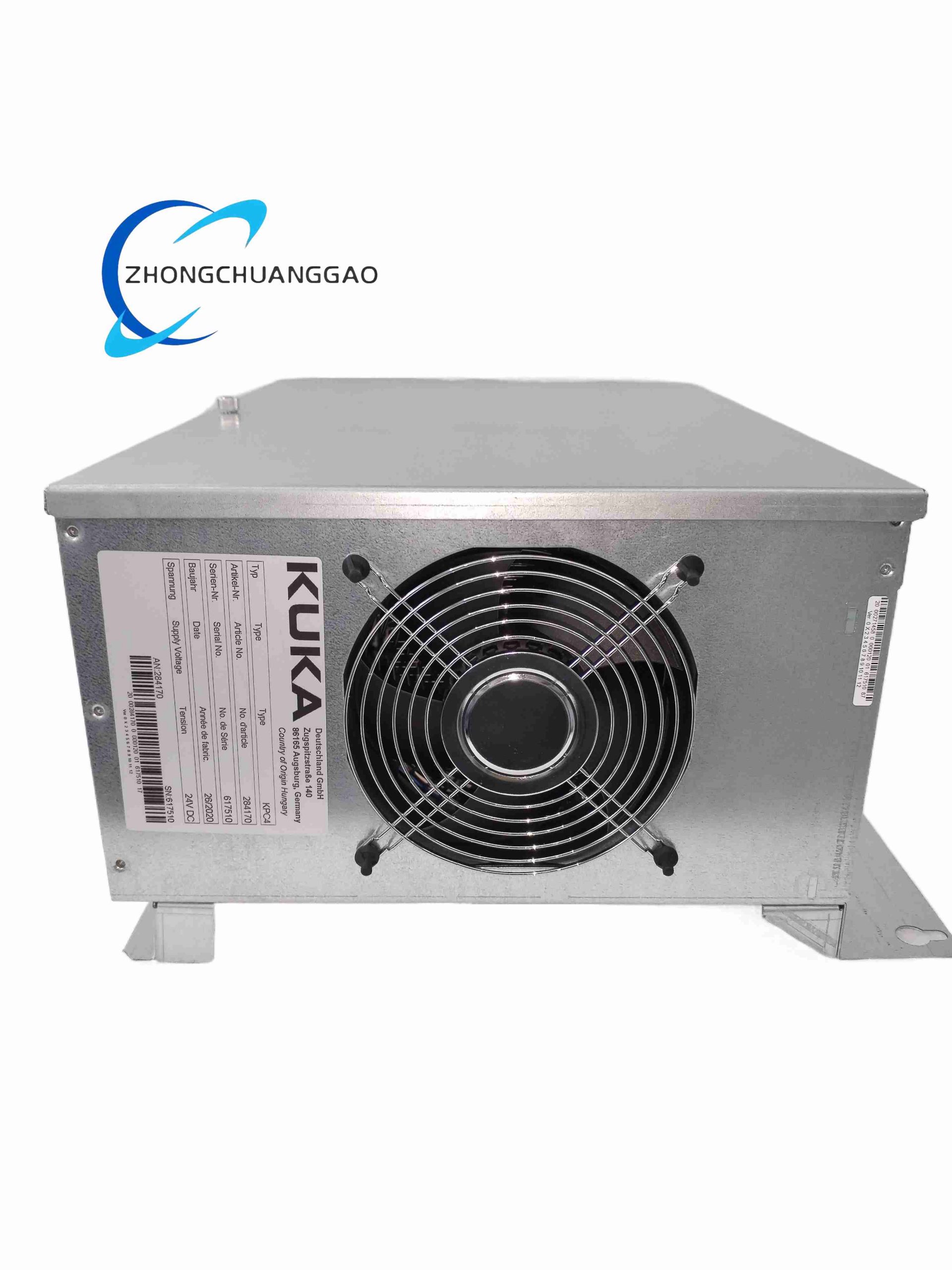

KUKA KPC4 00-284-170

Core Technical Performance Parameters

• Central Processor: Industrial multi-core real-time CPU with hardware floating-point arithmetic unit for robot kinematics calculation
• Standard Memory Configuration: 4GB industrial-grade shock-resistant DDR3 RAM
• Internal Storage: 64GB industrial solid-state SSD (wide temperature range, vibration-resistant, no mechanical moving parts)
• Operating System: Real-time VxWorks embedded OS dedicated for robot motion control
• Power Input Specification: 24VDC industrial DC power supply, 3.2A rated operating current
• Onboard Communication Interfaces:
  • 2× Gigabit Ethernet RJ45 ports (CAT5E compatible)
  • Multiple high-speed KUKA internal robot servo bus interfaces
  • USB 2.0 service port for offline program import, firmware upgrade and equipment diagnosis
  • Serial RS232 service diagnostic port
• Supported Robot Axis Quantity: Up to 12-axis synchronous robot motion control
• Environmental Operating Temperature: 0°C ~ +55°C robot control cabinet internal ambient
• Storage Temperature Range: -20°C ~ +70°C
• Relative Humidity: 10% ~ 85% non-condensing
• Shock Resistance: 5g half-sine wave shock, 10ms duration
• Vibration Standard: 0.3g acceleration 10–150Hz frequency band
• Protection Class: IP20 internal cabinet mounting only
• Compatibility: Matches full KR C4 robot controller series (compact, smallsize, standard, midsize, extended cabinet variants)

Functional Features

1. Real-time multi-core robot kinematics and dynamics calculation, smooth continuous path interpolation for welding, handling, painting robot trajectory planning
2. Executes KUKA Robot Language (KRL) user automation programs, process logic interlock and fault diagnostic algorithm
3. High-speed internal servo bus communication with robot drive modules to transmit position loop command and receive encoder feedback signals
4. Gigabit Ethernet interface realizes data exchange with factory MES, PLC and vision inspection system
5. Built-in complete robot self-diagnosis system: servo drive fault, motor encoder abnormality, cabinet over-temperature, communication timeout error recording and code storage
6. USB service port supports offline robot program backup, system firmware update and maintenance diagnosis data export
7. Integrated watchdog hardware circuit, automatic system reset under program crash or CPU overload to avoid robot runaway risk
8. Shock-resistant industrial SSD eliminates mechanical hard disk failure risk in high-vibration robot workshop environment

Working Principle

Material Composition & Structural Characteristics

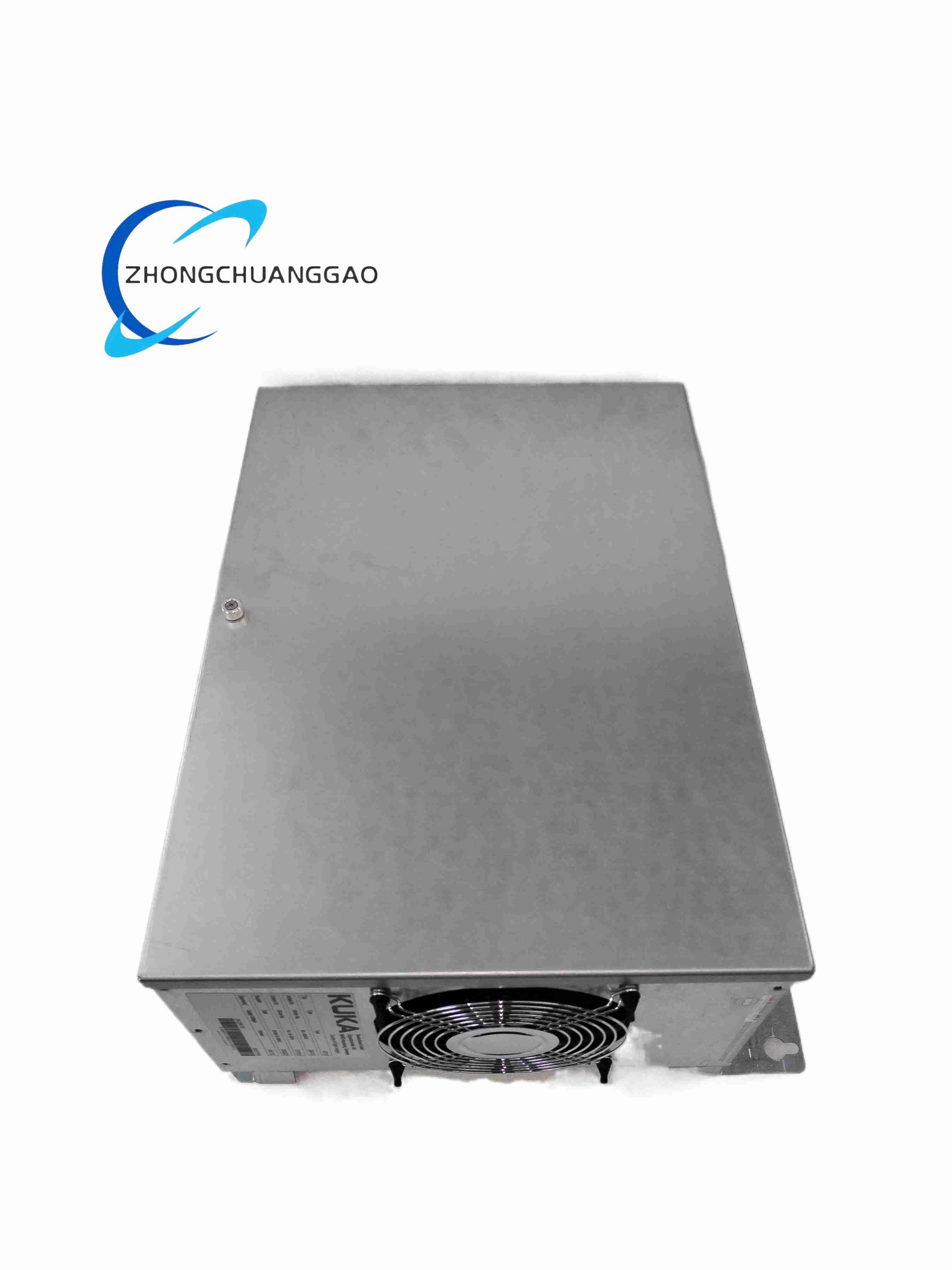

• Outer Housing: Black thickened cold-rolled steel sheet enclosure with internal EMC electromagnetic shielding coating
• Main Circuit Board: Industrial multi-layer server-grade PCB with anti-vibration reinforced chip soldering process
• Storage Medium: Wide-temperature industrial SSD without rotating mechanical components
• Heat Dissipation System: Passive heat sink + low-speed silent industrial cooling fan with dust filter screen

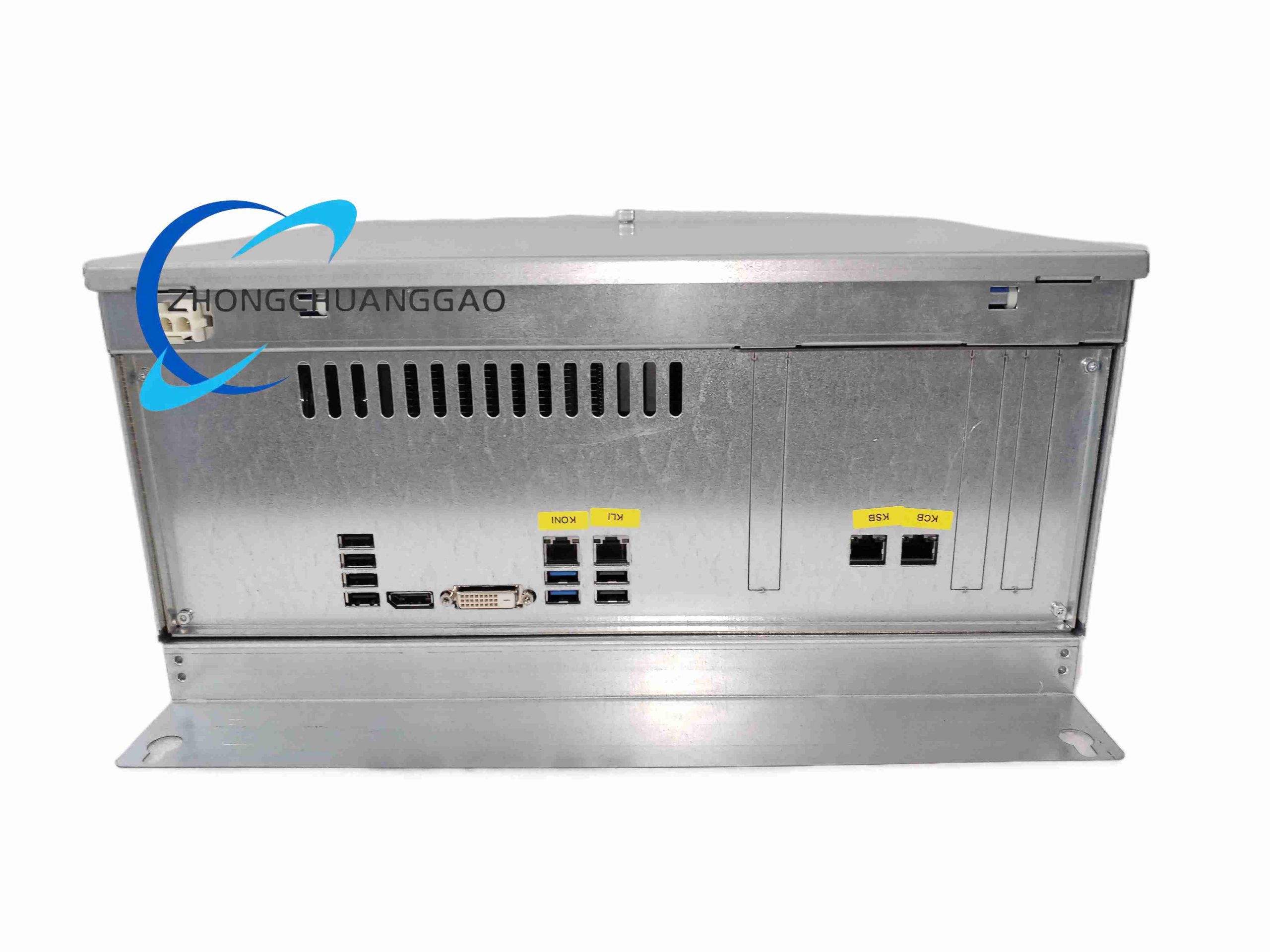

• Connection Interfaces: Gold-plated RJ45 Ethernet sockets, locked USB ports, metal circular internal robot bus connectors
• Mounting Structure: Fixed bracket designed for internal installation inside KR C4 robot control cabinet

  Installation Requirements

  1. Install at designated fixed bracket position inside KUKA KR C4 robot controller cabinet only.
  2. Reserve 40mm ventilation gap around KPC4 unit for cooling fan air circulation.
  3. All Ethernet communication cables must use CAT5E or above shielded twisted-pair cable.
  4. Cabinet ambient temperature must be controlled below 55°C continuous operation; install cabinet air conditioner for high-temperature workshop environments.
  5. Fasten all mounting screws to specified torque value to resist workshop mechanical vibration.
  6. Ensure proper connection of internal servo bus cables; loose connectors will trigger motion communication interruption.
  7. Do not install close to high-power contactors, frequency converters to prevent strong electromagnetic interference.

  Application Scenarios

  • Automotive production line spot welding, arc welding, handling and palletizing KUKA KR C4 robot systems
  • Metal processing, casting and forging workshop robotic material handling equipment
  • Food, logistics industry automated palletizing and depalletizing robot controllers
  • Electronic manufacturing assembly, gluing, testing robotic work cells
  • Paint shop automated spraying robot control cabinets
  • General industry multi-axis customized robot automation solutions adopting KR C4 platform

  Operation & Maintenance Precautions

  1. Cut off main cabinet power supply before removing or installing the KPC4 module; hot plugging is strictly prohibited.
  2. Regularly inspect cooling fan rotation status and dust filter screen every three months; clean accumulated dust to avoid overheating shutdown.
  3. Do not open the sealed steel housing of KPC4; internal circuit boards contain precision industrial components with no user-serviceable parts.
  4. Back up robot programs, tool parameters, motion configurations and system image to external storage before module replacement or firmware upgrade.
  5. Avoid impact and vibration during transportation or disassembly; internal memory and SSD are sensitive to violent collision.
  6. Prevent conductive dust, oil mist and cutting fluid vapor from entering the cabinet to avoid circuit corrosion and short circuit.
  7. Use only official KUKA matched firmware versions; mismatched firmware will cause robot motion disorder or startup failure.
  8. When communication failure occurs, firstly check locking status of internal bus connectors and Ethernet cable shielding grounding condition.
