Product Short Description

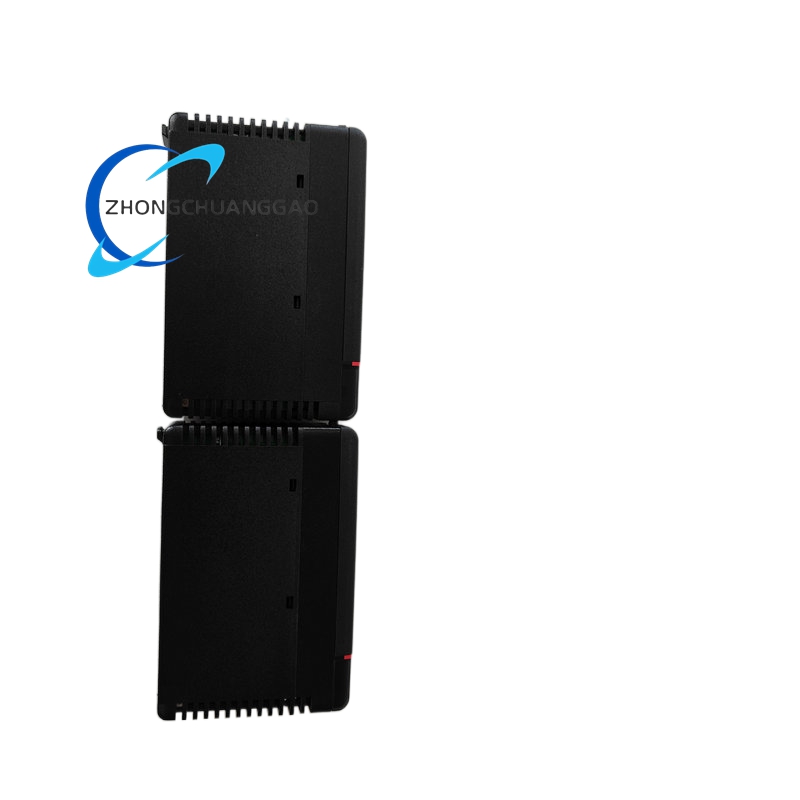

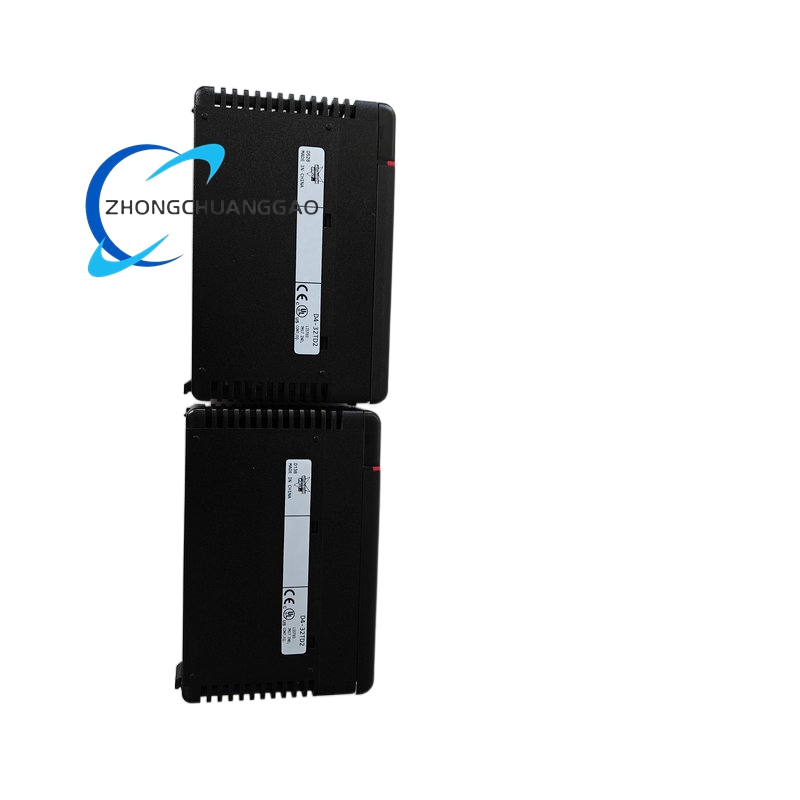

Product Name: KOYO D4-32TD2 32-Point DC Transistor Output Module
Product Introduction: The D4-32TD2 is a 32-point digital transistor output module designed for KOYO DirectLOGIC 405 series PLC systems. It provides 32 DC transistor outputs (sourcing, PNP) for controlling external DC loads such as solenoid valves, relays, or other DC drive devices. It is a high-density solution for expanding discrete outputs in DL405 platforms.
Description
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | D4-32TD2 |
| Manufacturer | KOYO (Koyo Electronics) |
| Series | DirectLOGIC 405 (DL405) |
| Module Type | Digital Transistor Output Module |
| Output Points | 32 |
| Output Type | DC transistor outputs, sourcing (PNP) |
| Load Voltage | 12-24 VDC (10.8-26.4 VDC range) |
| Peak Voltage | 30 VDC |
| Current per Point | 0.2A maximum (resistive) / 0.5A |
| Common Configuration | 4 commons (8 points per common) |
| Logic Voltage | 5-24 VDC (input current approximately 7 mA) |
| Module Current Consumption | Approximately 150 mA (logic power supply) |
| Protection Features | Short-circuit protection, over-temperature protection |
Functional Features:
-
32 DC transistor outputs (sourcing, PNP)
-
Designed for 12-24 VDC loads
-
Faster switching than relay-based output modules
-
4 commons with 8 points per common for flexible wiring
-
Short-circuit and over-temperature protection
-
High-density design for efficient space utilization
Performance Parameters:
-
32 output points
-
0.2A per point maximum resistive current
-
10.8-26.4 VDC operating voltage range
-
30 VDC peak voltage
-
150 mA module current consumption
Material Composition: Industrial-grade components with transistor output technology for fast, reliable switching
Structural Features:
-
High-density 32-point module design
-
4 commons with 8 points per common configuration
-
PNP open collector output type
Working Principle: The D4-32TD2 receives logic signals from the DL405 PLC system via the backplane. Each of the 32 output channels switches a DC load (12-24 VDC) using transistor technology. The outputs are sourcing (PNP) type, meaning they supply positive voltage to the load when activated. The module provides faster switching speeds compared to relay outputs and eliminates the mechanical wear associated with relays.
Advantages and Strengths:
-
High-density 32 outputs in a single module
-
Faster switching than relay outputs
-
No mechanical wear or contact arcing
-
Clean switching for 24V DC loads
-
Multiple common configuration for wiring flexibility
-
Designed for reliable operation in DL405 systems
Applicable Industries:
-
Industrial automation and control
-
DirectLOGIC 405 PLC system expansions
-
Control of solenoid valves, relays, and DC drive devices
-
Applications requiring high-density discrete outputs
Model Series: KOYO DirectLOGIC 405 Series (DL405)
Installation Requirements:
-
Plugs into DL405 series PLC rack
-
Requires 5-24 VDC logic power supply (approximately 7 mA input current)
-
150 mA module current consumption from logic power supply
Usage Precautions:
-
Outputs are PNP sourcing type; verify compatibility with load wiring
-
0.2A maximum per point resistive current
-
10.8-26.4 VDC operating voltage range (30 VDC peak)
-
4 commons with 8 points per common
-
Output type: DC transistor (no relay contacts)
