Product Short Description

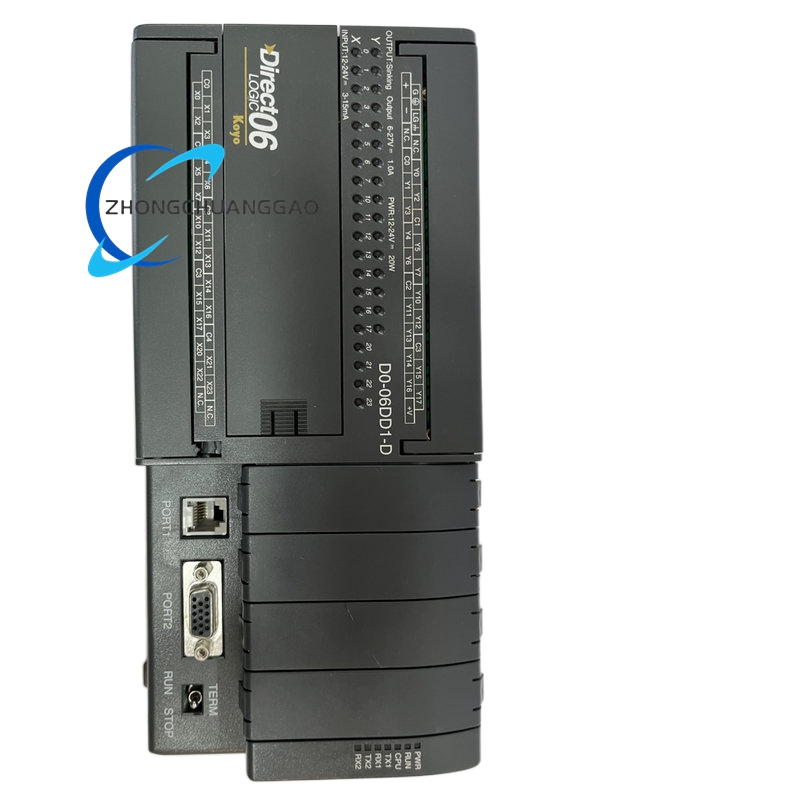

Product Name: KOYO D0-06DD1-D PLC CPU Module (DL06 Series)
Product Introduction: The D0-06DD1-D is a DL06 series CPU module from KOYO (also known as Koyo Electronics), designed for industrial control applications. It features 20 DC inputs and 16 DC outputs (NPN, current sinking) and is expandable up to 100 I/O. The module requires external 12-24 VDC power and includes built-in communication ports.
Description
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | D0-06DD1-D |
| Manufacturer | KOYO (Koyo Electronics) |
| Series | DL06 CPU |
| Inputs | 20 DC inputs, 12-24 VDC PNP/NPN (current sinking/sourcing), 5 isolated commons (4 inputs per common) |
| Outputs | 16 DC outputs (NPN, current sinking), 12-24 VDC, 1.0A/point max. |
| Isolated Commons (Outputs) | 4 isolated commons (4 points per common) |
| User Program Area | 7680 words |
| Data Register | 7.3k words |
| Instruction Execution Time | 0.7 μs |
| Communication Ports | 1 RS232C and 1 RS232C/RS422/485 |
| Expandability | Up to 100 I/O |
| Option Slots | 4 option slots available |
| High-Speed Output | 2 outputs configurable for independent CW/CCW and direction pulse output up to 10kHz (0.5A/point) |
| Power Supply | External 12-24 VDC |
Functional Features:
-
20 DC inputs with PNP/NPN compatibility (current sinking/sourcing)
-
16 DC outputs (NPN, current sinking) with 1.0A/point capacity
-
High-speed pulse output capability: Up to 10kHz on 2 configurable outputs (CW/CCW and direction)
-
Expandable up to 100 I/O
-
Dual communication ports: RS232C and RS232C/RS422/485
-
4 option slots for functional expansion
-
5 isolated commons for inputs (4 inputs per common)
-
4 isolated commons for outputs (4 points per common)
Performance Parameters:
-
Instruction execution time: 0.7 μs
-
User program area: 7680 words
-
Data register: 7.3k words
-
High-speed pulse output: Up to 10kHz
Material Composition: Industrial-grade components for reliable control applications
Structural Features:
-
CPU module with integrated I/O
-
4 option slots for expansion modules
-
Built-in communication ports
Working Principle: The D0-06DD1-D functions as a PLC CPU, executing user programs stored in the 7680-word program memory. It scans inputs from the 20 DC input channels, executes control logic with 0.7 μs instruction execution time, and updates the 16 DC outputs. The module communicates with external devices via RS232C and RS232C/RS422/485 ports and supports high-speed pulse output for motion control applications.
Advantages and Strengths:
-
Fast instruction execution (0.7 μs)
-
Expandable architecture up to 100 I/O
-
Flexible input configuration (PNP/NPN compatible)
-
High-speed pulse output capability up to 10kHz
-
Multiple communication ports
-
4 option slots for functional expansion
Applicable Industries:
-
Industrial automation and control
-
Machine control applications
-
Process control systems
-
Motion control applications requiring high-speed pulse output
Model Series: KOYO DL06 Series
Installation Requirements:
-
Requires external 12-24 VDC power supply
-

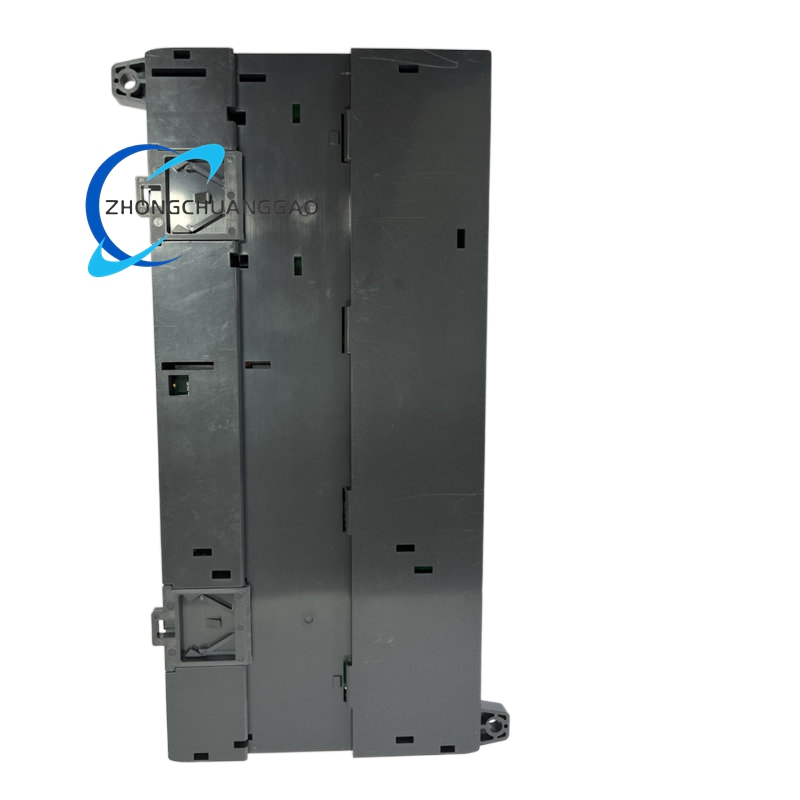

Panel or DIN rail mounting
-
Requires appropriate I/O wiring for inputs and outputs
Usage Precautions:
-
Inputs support both PNP (sourcing) and NPN (sinking) configurations
-
Outputs are NPN current sinking type
-
High-speed outputs limited to 0.5A/point
-
High-speed pulse output not available when using high-speed inputs
