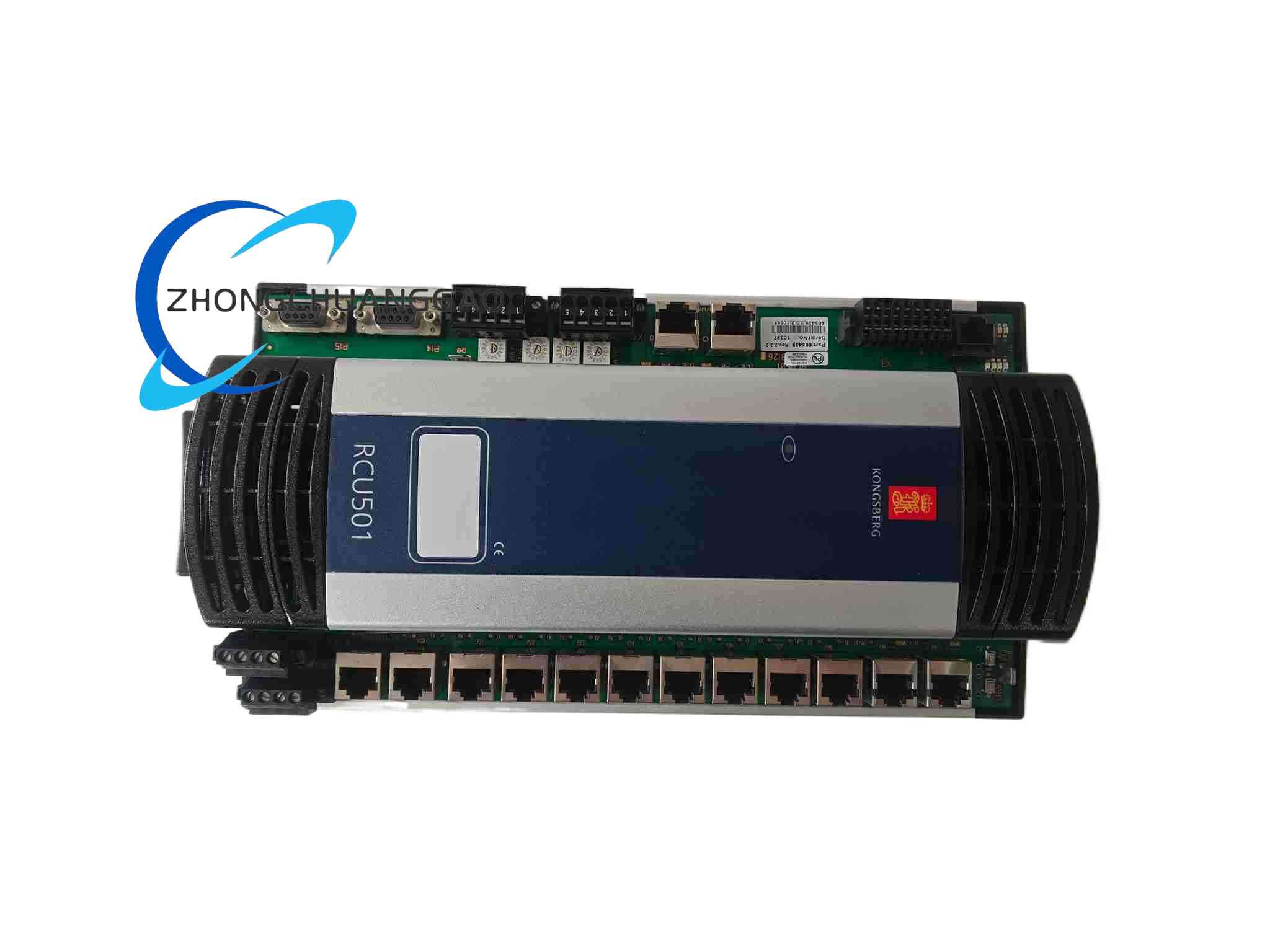

KONGSBERG RCU510

Technical Performance Specifications

1. Processor Core: Dual redundant PowerPC 8245 processors, each main frequency 400MHz, independent floating-point arithmetic unit for high-speed DP positioning algorithm calculation
2. Memory Configuration: Dual redundant memory banks, each bank equipped with 128MB SDRAM operating memory, 64MB Flash program storage memory
3. Built-in Local I/O Channels: 16 universal digital input channels, 16 universal digital output channels (maximum capacity of RCU500 series local I/O)
4. Communication Bus Interfaces
   • Dual redundant Ethernet LAN control network, each Ethernet channel equipped with independent hardware communication chip
   • Dual independent RedundancyNet hot backup interfaces for RCU master-slave redundant pair communication
   • Dual RBUS remote I/O process bus, maximum access quantity of 64 RDIO/RDIOR series remote digital I/O modules
   • 60 RS232/RS422/RS485 multi-protocol serial ports
   • 4 PROFIBUS-DP bus channels, 4 CAN-Bus bus channels, independent PROFIsafe safety bus dedicated interface
5. Power Supply Standard: Triple redundant 18–32 VDC marine DC power input terminals, independent power conversion circuit for each main control board, multi-stage overvoltage, undervoltage, reverse connection, surge impact protection circuit
6. Operating Environmental Parameters
   • Operating Temperature Range: 0°C ~ +70°C
   • Storage Temperature Range: -40°C ~ +85°C
   • Vibration Resistance: Enhanced IEC 60068-2-6 marine heavy vibration standard, double-layer rubber shock absorption structure for internal circuit boards
   • Humidity Resistance: 5%–95% non-condensing relative humidity
   • Electromagnetic Interference Resistance: Complies with IEC 61000-6-2 heavy industrial EMC anti-interference standard
7. Safety & Explosion Protection Grade: Ex Zone 2 enhanced explosion-proof certified, SIL 1/SIL 2/SIL 3 highest marine safety integrity level compliant
8. Physical Dimensions & Weight
   • Dimensions: 260mm (H) × 120mm (W) × 140mm (D)
   • Net Weight: 1.8kg
9. Protection Rating: IP20 indoor sealed control cabinet installation only

Core Functional Features

1. Full Hardware Dual Redundant Main Control Architecture: Two independent complete main control boards inside one module, simultaneous synchronous operation; when one main control board fails, the other board completes seamless hot backup switchover within 10ms, zero data loss and uninterrupted control output
2. Ultra-large-capacity Remote I/O Expansion: Dual RBUS bus supports up to 64 remote digital I/O modules, meeting the centralized control demand of ultra-large-scale offshore platform and large DP vessel field equipment
3. Dedicated DP Dynamic Positioning Algorithm Library: Pre-installed high-precision marine DP positioning control algorithm, supports real-time calculation of ship position deviation, automatic adjustment of thruster output power and direction
4. SIL 3 High-safety Grade Safety Logic Processing: Independent PROFIsafe safety bus interface, dedicated safety logic operation circuit, meets the highest safety standard of marine fire protection, inert gas and emergency blackout protection systems
5. Triple Redundant Power Supply Anti-failure Design: Three independent power input circuits, any one or two power supply circuits failure will not affect normal module operation
6. Full-channel BIST Hardware Self-Test & Fault Location: Real-time monitoring of all local I/O channels, remote I/O modules, multi-bus communication circuits and dual main control board operating status; accurately locate fault to single circuit board, single channel or single bus channel
7. Dual Independent Hardware Watchdog Safety Circuits: Each redundant main control board is equipped with independent watchdog timer; any main control board program abnormality will trigger independent fail-safe output protection
8. Full Industrial & Marine Standard Communication Protocol Compatibility: Supports NMEA0183 marine navigation protocol, Modbus RTU/TCP, PROFIBUS, PROFIsafe, CANopen, HART, DeviceNet multi-protocol docking
9. Batch Online Firmware & Safety Logic Configuration Upgrade: Remote Ethernet batch update of dual main control board programs, no system shutdown required, upgrade process with automatic fault rollback protection
10. Multi-group Independent Isolated Fail-Safe Output Settings: Local digital outputs and each RBUS bus connected remote I/O module outputs can independently configure fail-safe open/closed circuit state, adapting to different safety requirements of DP system, fire system and auxiliary machinery system

Application Scenarios

1. All Types of Vessel Dynamic Positioning (DP) Core Control System: Offshore drilling platform supply vessel, diving support vessel, floating production storage and offloading unit (FPSO), marine wind turbine installation vessel DP positioning closed-loop control
2. Ship High-safety Critical Protection Systems: Ship fire detection and suppression interlock system, inert gas explosion-proof safety system, engine room emergency blackout load shedding protection system, toxic gas leakage emergency interlock control
3. Large Offshore Drilling & Production Platform Process Control System: Drilling fluid pipeline pressure and flow high-precision closed-loop adjustment, multi-area fire and gas detection signal centralized collection and linkage alarm, platform emergency shutdown (ESD) safety logic calculation
4. Ultra-large Merchant Ship Integrated Auxiliary Machinery Centralized Control System: Full-ship ballast water pump group, fuel oil supply system, cooling water system multi-equipment synchronous interlock automatic control
5. Marine Multi-sensor High-speed Data Fusion System: Simultaneous access to multiple groups of high-precision navigation sensors, real-time data fusion calculation to provide positioning reference data for DP system

Material Composition & Structural Characteristics

1. Outer Shell Material: Thickened high-strength UL94-V0 flame-retardant ABS plastic shell, built-in double-layer metal shielding layer to isolate internal circuit electromagnetic interference; surface coated with anti-salt mist anti-corrosion coating suitable for long-term marine environment operation
2. Internal Circuit Board Structure: Two completely independent FR4 high-temperature resistant double-sided tin-sprayed circuit boards, each circuit board fixed with double-layer anti-vibration rubber shock absorption pads; all signal pins gold-plated to prevent salt spray corrosion and poor contact
3. Wiring Terminal Partition Design: Triple power supply terminals, Ethernet bus terminals, RBUS bus terminals, local I/O signal terminals are completely partitioned on the terminal base, with clear color separation and printed wiring identification labels

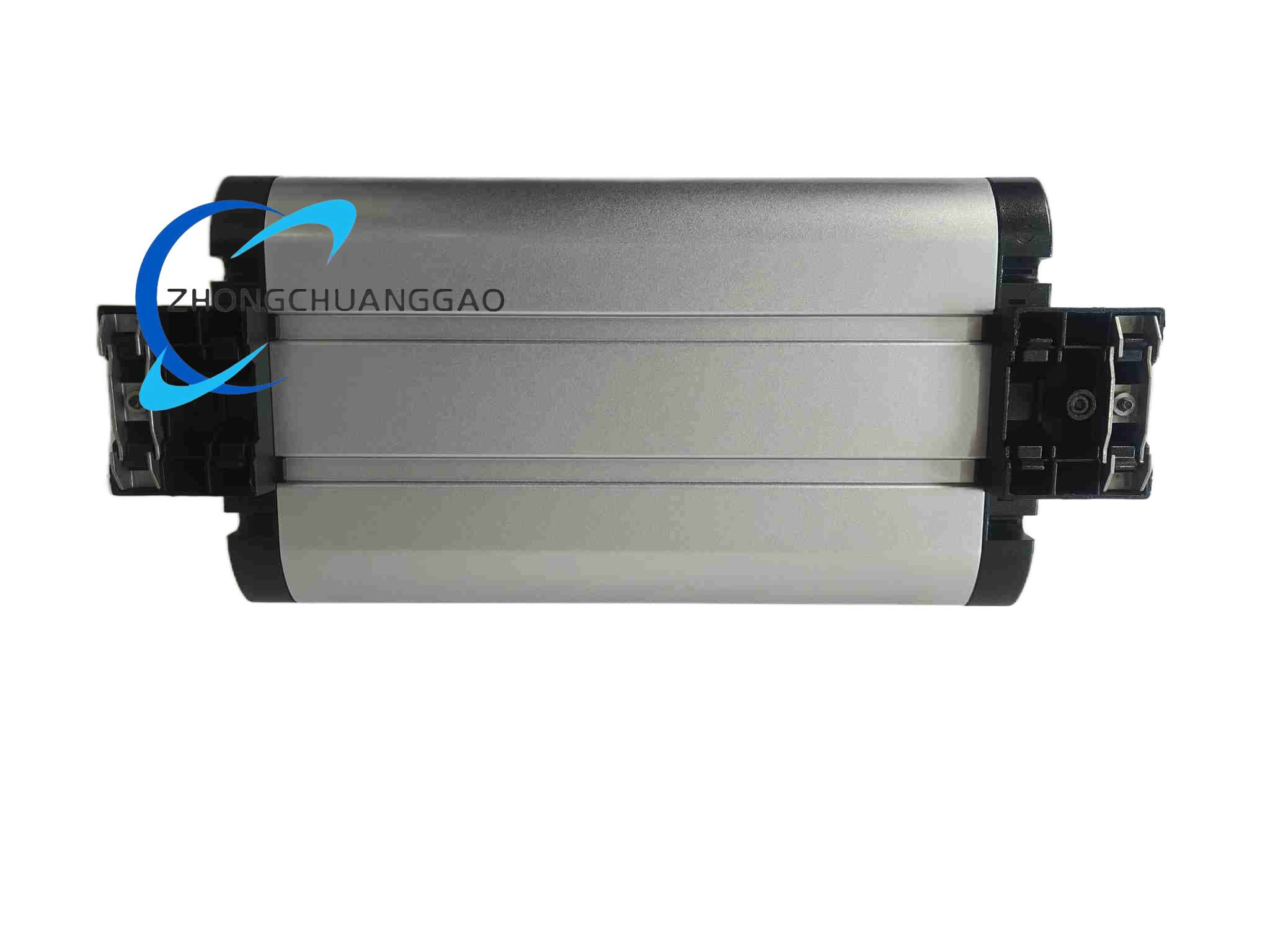

4. Mounting Structure: Standard 35mm DIN rail card slot fixing, double-sided double locking buckle design to prevent module sliding and falling under heavy long-term ship vibration
5. Front Panel Multi-group Independent Indicator Lights: Separate LED indicator groups for dual redundant main control boards, triple power supply channels, Ethernet A/B dual channels, RedundancyNet bus, RBUS A/B dual buses, running status, general fault alarm, main control board fault alarm, I/O channel fault alarm, safety bus fault alarm; ultra-high brightness lamp beads, long service life, visible in dark control cabinet environment

Working Principle

1. Triple redundant power supply input stage: Three independent power conversion circuits convert input 24VDC into stable multi-group DC power to supply power to two independent main control boards; single or dual power supply circuit failure will not interrupt power supply to main control boards
2. Signal collection & bus data receiving stage: Dual main control boards simultaneously receive signals from built-in 16DI/16DO local I/O channels and data uploaded by up to 64 remote I/O modules via dual RBUS bus; two boards synchronously store all collected signal data in respective redundant memory banks to realize data backup
3. Synchronous logic operation stage: Two main control boards simultaneously execute DP positioning algorithm, SIL safety logic and auxiliary machinery interlock logic programs; real-time comparison of operation results between two boards, automatic identification of single board operation calculation abnormality
4. Control output execution stage: Under normal synchronous operation state, the primary main control board sends control output instructions to local I/O channels and remote I/O modules; when the primary board fails, the secondary redundant main control board completes seamless switchover within 10ms and takes over all control output work, zero interruption of field equipment control
5. Network data transmission stage: Dual Ethernet channels simultaneously upload synchronized real-time monitoring data, DP positioning parameters and fault alarm information to central operator stations and redundant backup RCU controllers; dual channels mutually back up transmission data to avoid data loss caused by single Ethernet channel failure
6. Multi-layer fault safety protection stage: When power supply circuit fault, bus communication interruption, main control board operation abnormality or I/O channel short-circuit fault is detected by BIST self-test circuit and dual independent watchdog circuits, the module immediately switches all output channels to pre-configured independent fail-safe state, and uploads detailed multi-dimensional fault codes to the monitoring network

Installation Requirements

1. Installation Environment: Must be installed inside fully sealed IP54 and above forced air cooling electrical control cabinet; control cabinet equipped with temperature control fan to maintain internal cabinet temperature below 50°C; strictly prohibited open-air installation or contact with sea water, salt mist and oil vapor
2. DIN Rail Mounting Standard: Standard 35mm top-hat DIN rail horizontal installation; minimum 30mm heat dissipation gap between left and right adjacent modules, minimum 60mm vertical gap between upper and lower modules to ensure dual main control board heat dissipation
3. Wiring Specification
   • Triple Power Supply Cable: Each power supply circuit uses independent 1.5–2.5mm² shielded marine control cable; three power supply terminals must connect three completely independent power distribution circuits to realize triple power redundancy
   • Multi-bus Communication Cable: Ethernet, RBUS, PROFIsafe safety bus all use double-layer shielded twisted-pair cables; cable shielding layer single-point grounding at cabinet grounding busbar to eliminate marine heavy electromagnetic interference
   • Local I/O Signal Cable: Digital input/output wiring uses 1.0–1.5mm² shielded cable; strong current power cables and weak current signal cables use independent wiring trenches, minimum separation distance 15cm
4. Grounding Requirement: Module shell grounding terminal connected to ship protective grounding busbar with copper wire length less than 25cm, grounding resistance less than 3Ω
5. Pre-power-on Address Configuration: Adjust side 4-bit rotary address switch to set unique RBUS node ID; address value only read during initial power-on startup, address modification requires full module power cycle restart to take effect

Operation & Maintenance Precautions

1. Power-on Operation Specifications
   • Complete full cable insulation resistance test and wiring correctness verification before triple power supply access; power terminal short-circuit test is strictly prohibited
   • Power-on sequence: First start control cabinet forced air cooling fan, then supply three groups of power supply circuits sequentially; wait for dual main control board self-test completion (all fault LED indicators off) before switching to automatic DP and safety control operation mode
   • Live plugging and unplugging of all bus and signal terminal plugs is prohibited; live operation will cause bus short-circuit and burn dual main control board communication drive chips, leading to DP system positioning failure
2. Daily Regular Maintenance
   • Monthly inspection: Check all front panel LED indicator status, confirm no persistent fault alarm lights; use dry soft brush to clean double-sided heat dissipation grid surface dust, prohibit liquid cleaning agent contact with module shell
   • Quarterly inspection: Tighten all screw terminal blocks to eliminate loosening risk caused by long-term heavy ship vibration; measure voltage of three groups of power supply circuits to ensure stable within 18–32VDC range; check RBUS bus load rate via operator station monitoring interface, control load rate below 60%
   • Semi-annual maintenance: Manually trigger full BIST self-test of dual main control boards through operator station; back up dual main control board firmware program, DP positioning algorithm configuration and SIL safety logic program to offline storage device for data backup
3. Fault Handling Prohibited Operations
   • When any fault alarm LED indicator lights up, cut off all three groups of module power supply circuits first before disassembling and inspecting internal dual main control boards; live disassembly will cause electric shock hazard and secondary irreversible circuit damage
   • Non-Kongsberg authorized professional maintenance personnel are prohibited from disassembling the module shell and replacing internal circuit board components; all faulty RCU510 modules must be returned to Kongsberg official authorized service center for professional repair and dual main control board synchronous calibration
   • Random modification of SIL safety logic fail-safe output parameters and DP positioning algorithm parameters is prohibited; unauthorized parameter modification will lead to ship DP positioning deviation or safety protection interlock failure, causing serious marine navigation accidents
4. Spare Module Storage Standards
   • Spare RCU510 modules stored in constant temperature and humidity anti-static warehouse, storage environment temperature -10°C ~ +35°C, relative humidity 15%–55% non-condensing
   • Modules sealed with double-layer anti-static packaging bags during storage, equipped with desiccant inside packaging bag to prevent internal circuit board damp corrosion
   • Long-term stored spare modules need to be powered on to run dual main control board synchronous self-test for 3 hours every 4 months to prevent circuit board electrolytic capacitor aging failure caused by long-term power-off storage
