Product Short Description
Product Brief Introduction

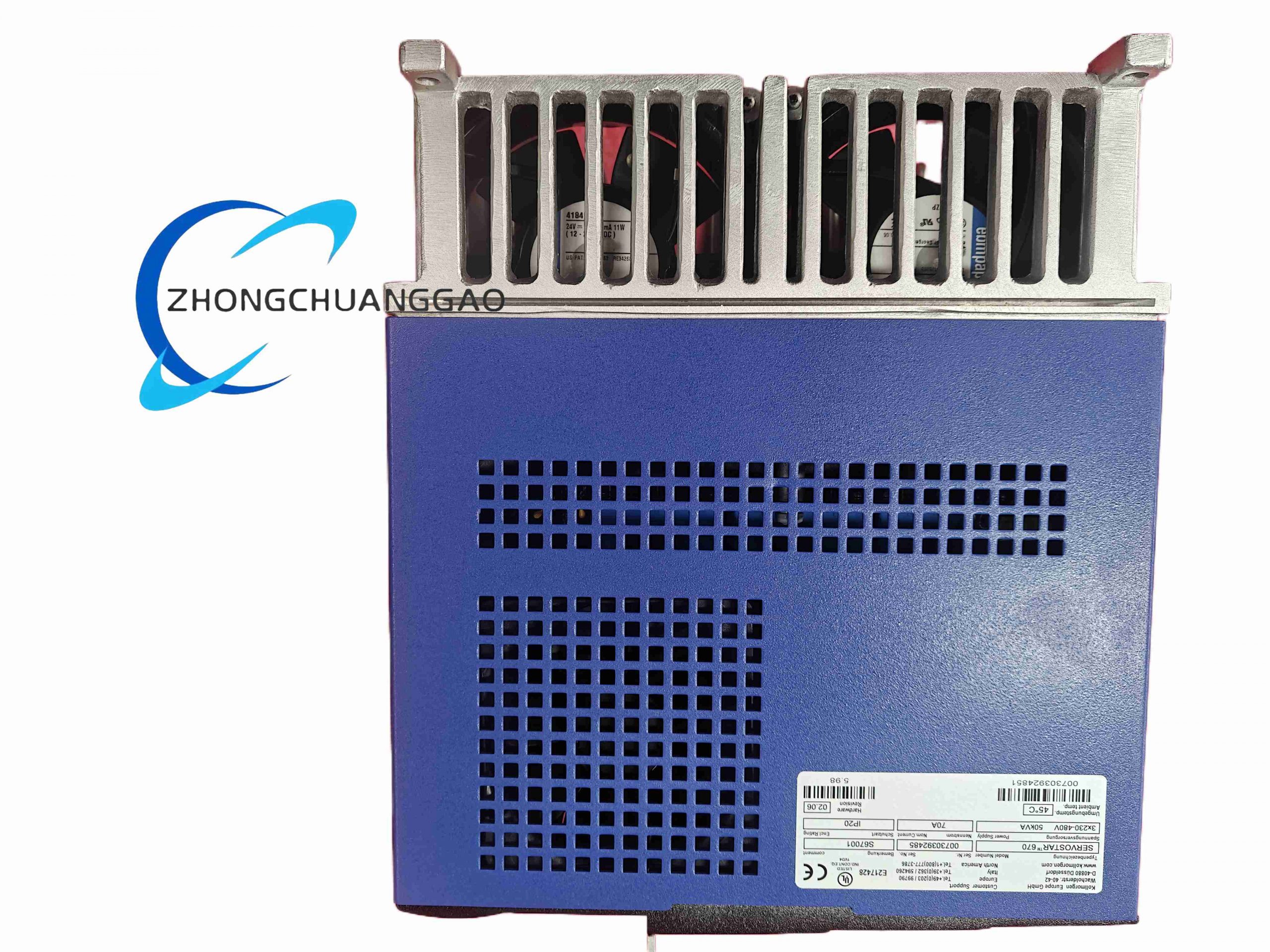

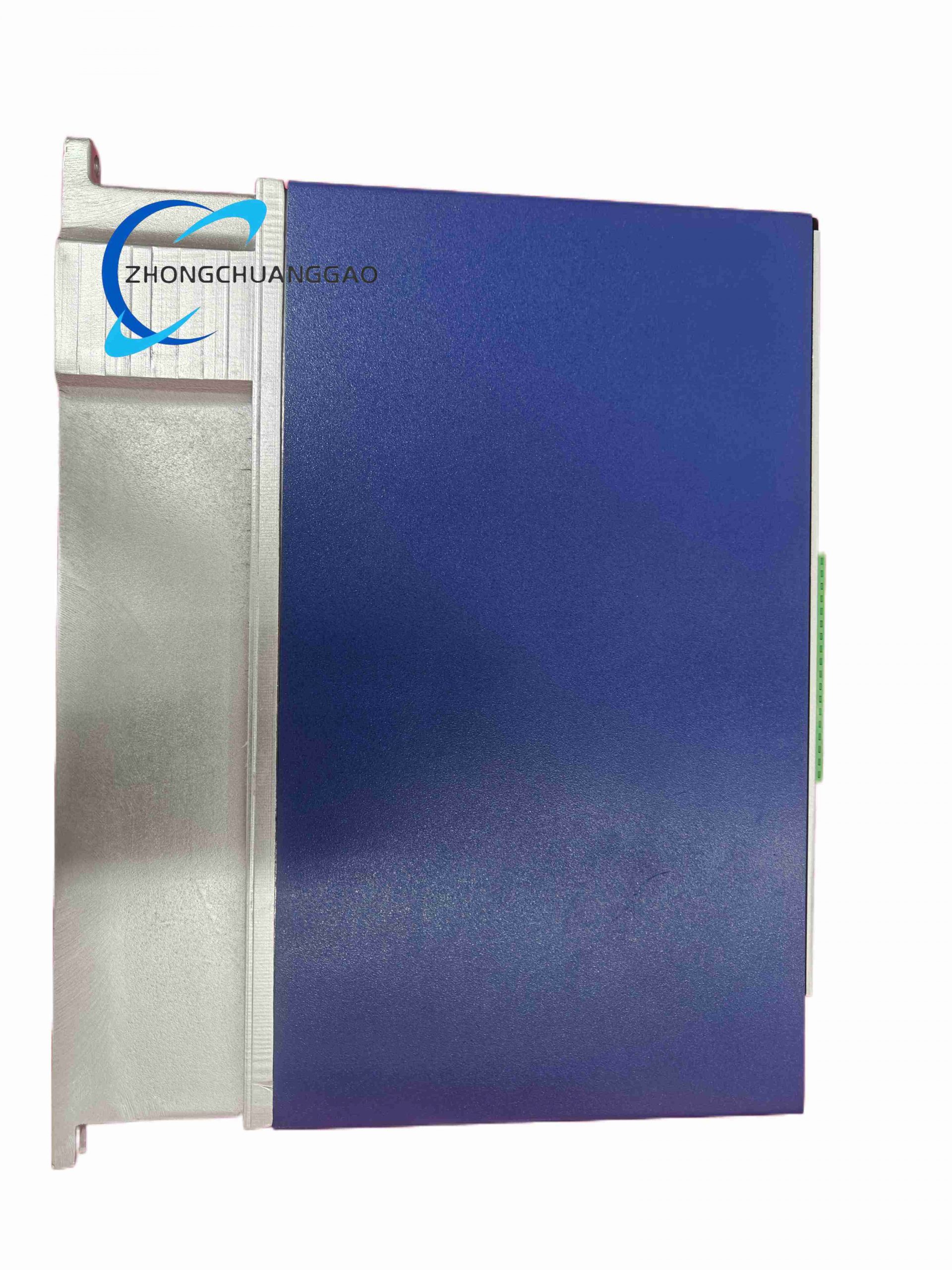

S67001 belongs to SERVOSTAR 640–670 high-power series, designed for heavy-load high dynamic industrial motion control. It supports high-current large frame servo motors, advanced multi-axis synchronization algorithms, high safety integrity STO function, suitable for heavy machinery requiring high torque and fast response.
Description
Core Technical Specifications
- Input Mains: 3-phase 380–480VAC industrial high-voltage power supply
- Continuous Output Current Per Phase: 12A RMS
- Peak Overload Capacity: 36A RMS (300% overload for 5s, 200% continuous 30s)
- Matched Motor Power Range: 4kW ~ 11kW high-torque AC servo motors
- PWM Frequency: 4kHz–16kHz adjustable switching frequency
- Servo Loop Update Speed: 50μs ultra-fast closed-loop cycle
- Fieldbus Interfaces: EtherCAT, Profinet, CANopen DS402, Ethernet IP
- Feedback Support: Multi-turn EnDat, Hiperface, Resolver, incremental encoder
- Safety Function: STO Safe Torque Off (PLd SIL2 certified)
- Digital I/O: 8×24VDC input, 4×24VDC output expandable via accessory card
- Operating Temperature: -20°C ~ +55°C full load; forced cooling required above 55°C
- Protection Class: IP20 cabinet-only installation
- Dimension: 240mm (H) × 180mm (W) × 260mm (D)
- Net Weight: 4.7kg
Function Features
- High-current vector control algorithm for heavy inertia load rapid acceleration/deceleration without torque drop
- Built-in multi-axis electronic synchronization, master-slave following error compensation function
- Expandable I/O card slot for custom machine safety interlock logic
- Advanced motor stall detection and load vibration suppression algorithm to eliminate mechanical resonance
- Regenerative energy management; supports shared DC bus parallel connection with multiple drives for energy recycling
- Full fault recording storage (100 historical fault logs) for equipment failure troubleshooting
- Multi-level motor thermal protection via PTC temperature sensor input interface
Working Principle
Three-phase high-voltage AC power passes EMC filter and full-bridge rectifier to form high-voltage DC bus. High-power IGBT module outputs three-phase adjustable frequency sine wave current to heavy-duty servo motor under DSP vector control. Multi-turn absolute encoder transmits rotor position data to control chip for ultra-precise position closed-loop control. During multi-drive shared DC bus configuration, regenerative braking energy from decelerating motors is shared among accelerating motors to reduce power grid energy consumption. STO safety circuit directly cuts IGBT drive signals independent of main control chip to meet machine safety standard requirements.
Material Composition
- Enclosure: Thickened cold rolled steel plate, anti-rust epoxy powder coating
- Power Stage PCB: Extra-thick copper layer high-current power circuit board
- Power Core Components: High-power IGBT power stack, high-current electrolytic DC bus capacitors
- Heat Dissipation System: Large-volume aluminum extrusion heat sink with optional built-in cooling fan
- Signal Control Board: Multi-layer digital PCB with isolated communication interface chips
- Power Terminals: Copper alloy high-current screw terminals with anti-loosening lock washers
Structural Characteristics
- Heavy-duty DIN rail mounting base with reinforced metal bracket for vibration resistance

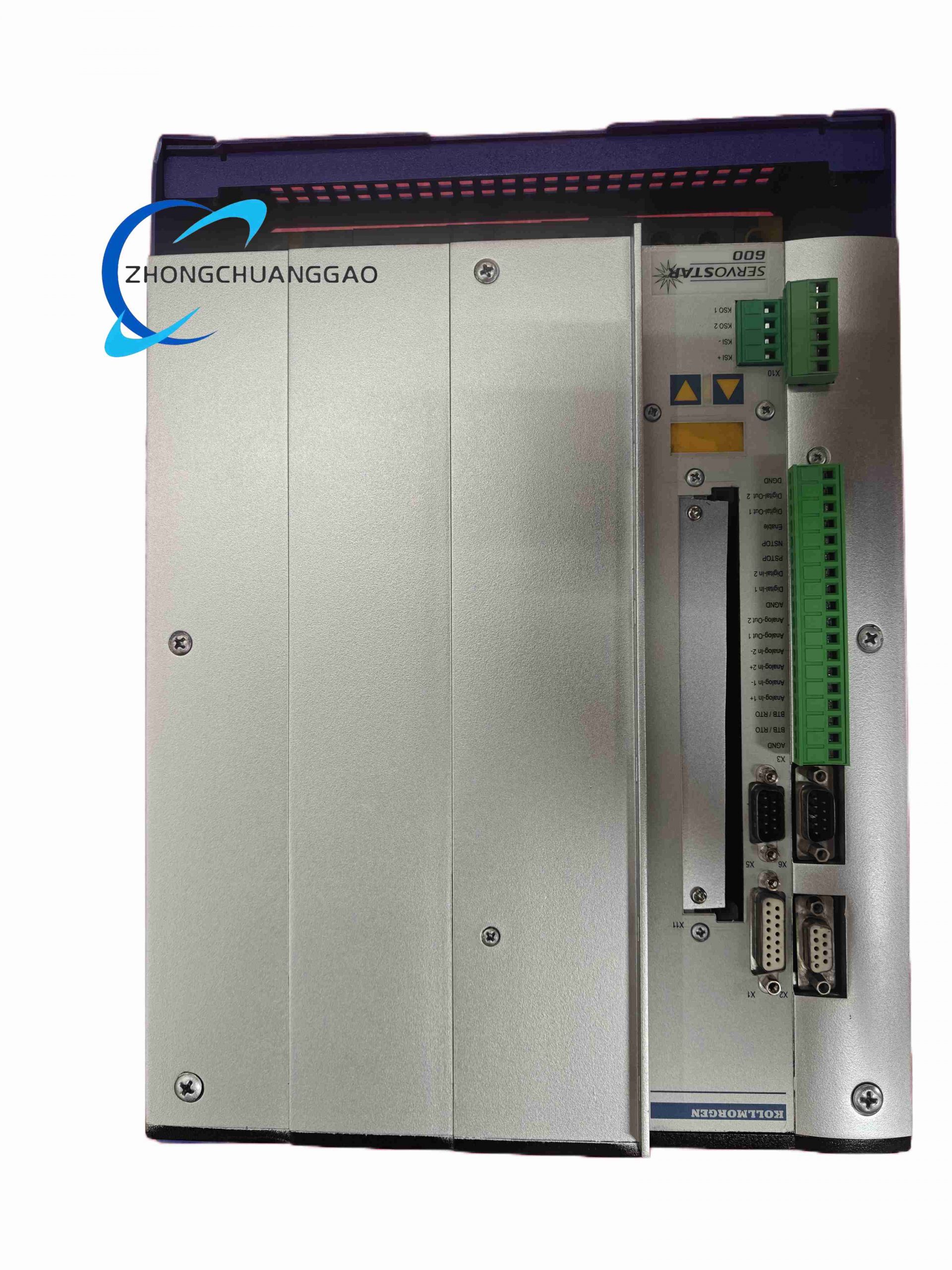

- Front panel split layout: upper signal communication area, lower high-power motor & mains terminal area
- Built-in variable-speed cooling fan with dust filter screen for high-temperature continuous operation
- Expandable side card slot for safety I/O or additional fieldbus communication modules
- Multi-color high-brightness LED status panel for power, communication, running, fault, STO safety status
- Internal separate shielding partition between power circuit and signal circuit to eliminate EMI crosstalk
Installation Requirements
- Vertical DIN rail mounting, minimum 150mm vertical air gap top and bottom for heat dissipation
- Mains and motor power cables must use shielded high-current cable with cross-section ≥4mm² copper core
- Separate power wiring and signal wiring trunking with minimum 15cm spacing
- Shared DC bus parallel configuration requires dedicated factory-specified DC bus connection cables
- Cabinet cooling air flow ≥1.2m/s under continuous full-load operation
- External braking resistor must be installed in independent ventilation space with temperature monitoring
Application Scenarios
- Metal processing machinery: CNC lathe spindle, heavy-duty milling machine feed axis
- Printing & paper machinery: Large roll unwinding tension control, high-speed press register axis
- Injection molding equipment: Mold clamping servo drive, material injection axis control
- Automated metal forging: Heavy-duty manipulator joint servo positioning
- Wind turbine auxiliary equipment: Pitch control heavy servo actuators
Operation Precautions
- DC bus capacitors retain high residual voltage for 30 minutes after mains power cut; wait full discharge before maintenance
- Do not run drive without connecting motor PTC thermal sensor for high-power continuous operation
- Regularly clean fan dust filter every 2 months in workshop environments with metal dust
- Avoid frequent emergency stop operation exceeding 10 times per minute to prevent braking resistor overheating
- When multiple drives share DC bus, configure power balance parameters via Kollmorgen WorkBench software
- Do not modify internal safety STO circuit wiring, will invalidate PLd SIL2 safety certification
