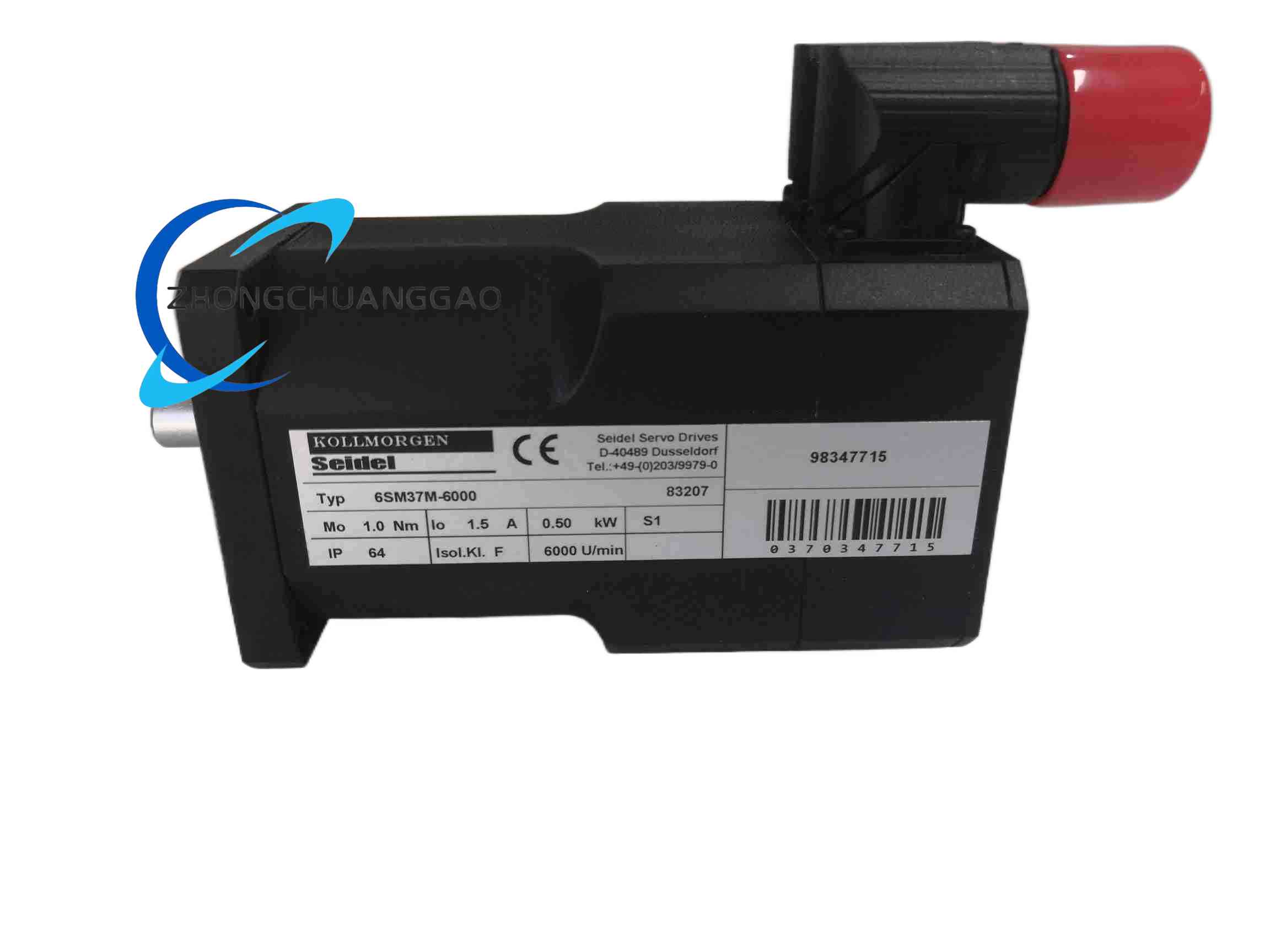

Product Name: Kollmorgen (Seidel) 6SM37‑M‑6000 Brushless Synchronous Servo Motor
Overview:
A high‑speed 6‑pole, sinusoidally wound brushless servo motor with resolver feedback, designed for 400 V‑class servo drives.
Technical Specifications:
-
Series: Kollmorgen Seidel 6SM
Description
-
Rated torque: 0.8 N·m @ 6000 rpm
-
Holding (standstill) torque: 1.0 N·m
-
Peak torque: 4.0 N·m
-
Torque constant (K_T): 0.62 N·m/A
-
Rated speed: 6000 rpm (operates on 300 V DC up to 3000 rpm; up to 600 V DC bus for full speed)
-
Rotor inertia: 0.7 kg·cm²
-
Winding: 400 V class
-
Feedback: Resolver (built‑in)
-
Flange: 75 mm square, 4 × M‑holes on 90 mm PCD
-
Shaft: 11 mm diameter, no keyway
-
Locating spigot: Ø 60 mm
-
Overall length: 157 mm
-
Weight: 2.3 kg
-
Connections: Via sockets on motor housing
-
Protection class: Typically IP65 (per series documentation)
Features:
High‑speed 6000 rpm capability; low inertia for rapid acceleration; sinusoidal winding for smooth torque; resolver for accurate commutation.
Application Scenarios:
High‑speed spindle‑like axes, robotics, packaging machinery, transfer lines, and other precision motion‑control systems.
Construction & Material:
Neodymium‑iron‑boron (NdFeB) permanent‑magnet rotor; aluminum housing; resolver at rear.
Working Principle:
Brushless synchronous operation: the drive supplies three‑phase sinusoidal currents whose frequency matches the commanded speed; resolver provides rotor angle for precise current commutation.
Installation Requirements:
Flange‑mount on 75 mm square flange; align shaft with flexible coupling; use mating connectors for power and resolver; ensure 400 V‑class drive with appropriate DC‑bus voltage (up to 600 V DC).
Precautions:
-
Provide adequate cooling; do not exceed insulation temperature limits.
-
Use shielded resolver cable, separated from power lines.
-
Confirm drive compatibility (e.g., Kollmorgen Servostar, Digifas, or third‑party 400 V‑class servo amp).
-
Avoid axial load beyond specification (no keyway → rely on coupling for torque transmission).
