Description
Technical Specifications (per public listings):
-
Series: 6SM synchronous servo motor
-

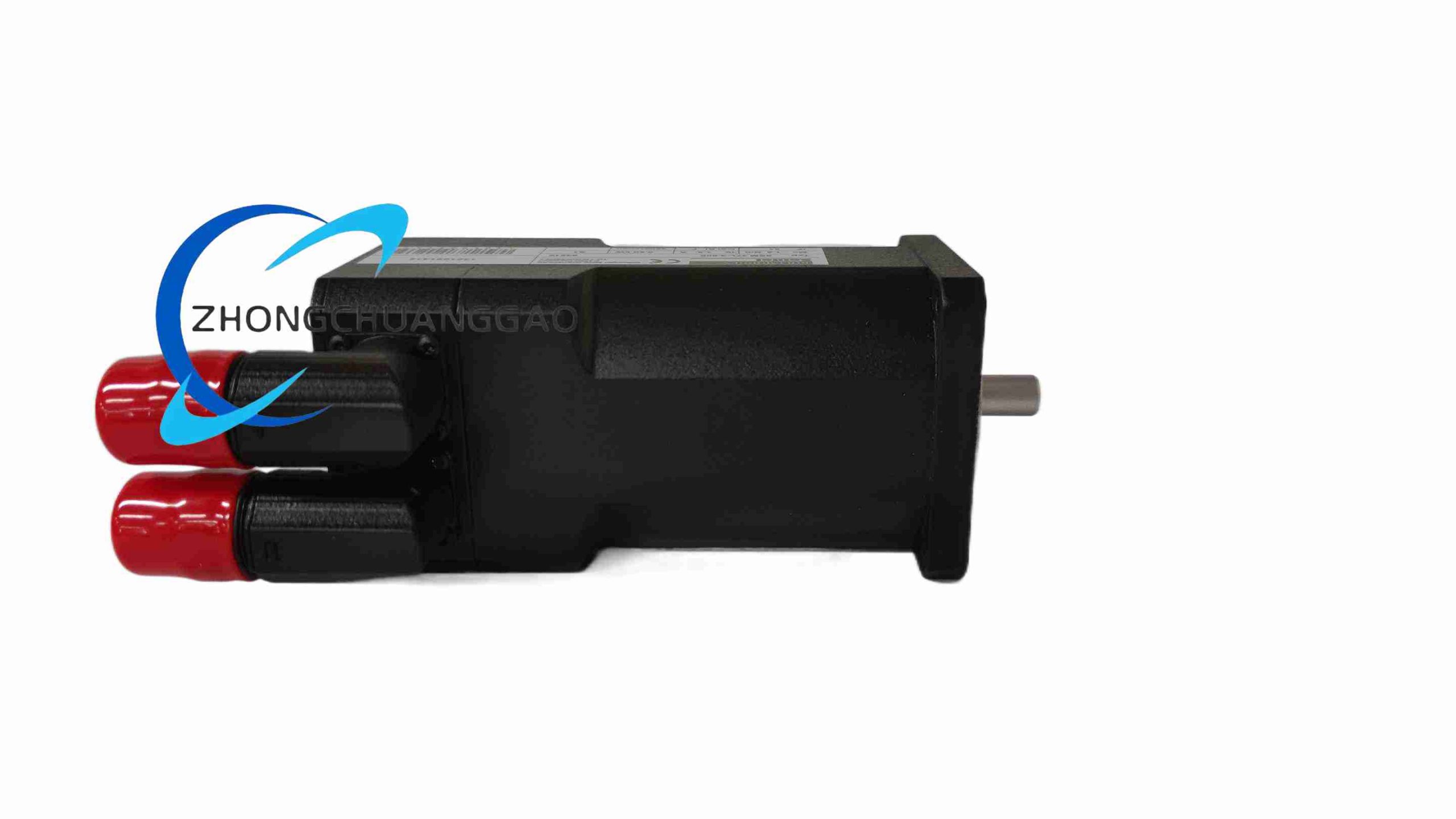

Model: 6SM37L‑4.000
-
Rated power: 0.5 kW
-
Standstill (holding) torque: 1.5 N·m
-
Rated current: ≈1.5 A (some sources 1.6 A)
-
Rated speed: 4000 rpm
-
Protection class: IP64
-
Weight: ≈2.9 kg
-
Thermal limit (flange temp): ≤65 °C in continuous operation
-
Built‑in feedback: Resolver + thermal sensor (thermostat)
-
Cooling: Self‑cooled (provide adequate airflow)
Features:
High‑dynamic brushless design; resolver feedback for precise positioning; integral thermostat for thermal protection.
Application Scenarios:
Small‑to‑medium axis drives in packaging machines, pick‑and‑place units, auxiliary CNC axes, and laboratory automation.
Construction & Material:
Aluminum alloy housing, IP64 sealed; permanent‑magnet rotor; resolver mounted on rear.
Working Principle:
Three‑phase sinusoidal currents in the stator interact with the permanent‑magnet rotor to produce torque; rotor position is fed back via resolver for closed‑loop commutation.
Installation Requirements:
Flange‑mount per 6SM series; align shaft coupling without imposing excessive axial/radial load; wire resolver with shielded twisted pair; connect thermostat to drive thermal input; ensure airflow around motor.
Precautions:
-
Discontinued—keep spare/refurbished units.
-
Thermostat must be monitored by the amplifier; it is not a standalone overload protector.
-
Avoid blocking ventilation; keep flange temperature below 65 °C.
-
Use shielded motor cables; separate power and signal wiring to reduce EMI.
-
Only operate with a properly matched servo amplifier (e.g., Kollmorgen Servostar).
