Product Short Description

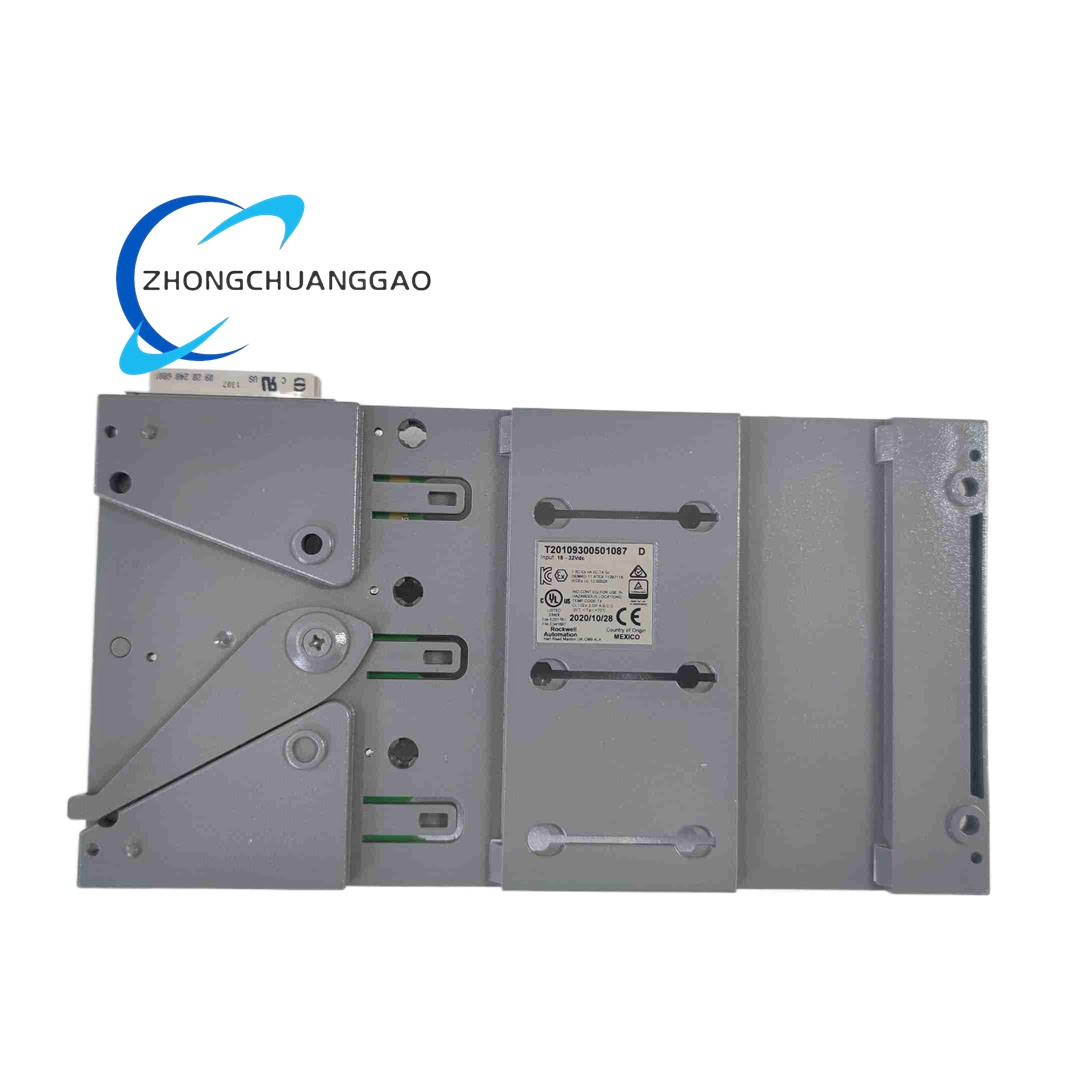

Product Brief: Redundant power supply module for ICS Triplex Trusted safety control rack, provide stable DC power for processor modules and I/O modules.
Technical Specifications:
- Input Range: 85–264V AC universal alternating current input
Description
- Output: 24V DC regulated power supply
- Rated Output Power: 120W
- Redundancy Mode: Support N+1 redundant parallel operation
- Isolation: Input-output reinforced isolation
- Operating Temperature: 0°C ~ +65°C
Function Features:
- Overvoltage, overcurrent, short-circuit automatic protection
- Power fault alarm signal output
- High efficiency power conversion, low heat generation
- Hot swap support for redundant power supply configuration
Working Principle: Convert AC mains power into stable 24V DC power required by system modules; built-in protection circuit automatically cut off output under abnormal conditions to protect system load.
Material Composition: Aluminium alloy heat dissipation housing, high-frequency switching power circuit board, electrolytic capacitors with long service life.
Structural Characteristics: Rack plug-in power supply module, built-in cooling channel; front panel power status and fault indicator.
Application Scenarios: Provide power for all Trusted safety control racks, widely used in petrochemical, energy safety control cabinets.
Installation Requirements: Install at the power slot of the control rack; ensure ventilation of heat dissipation channel.
Usage Notes: Recommended redundant configuration for safety systems; input power equipped with dedicated surge protection device.
