Product Short Description

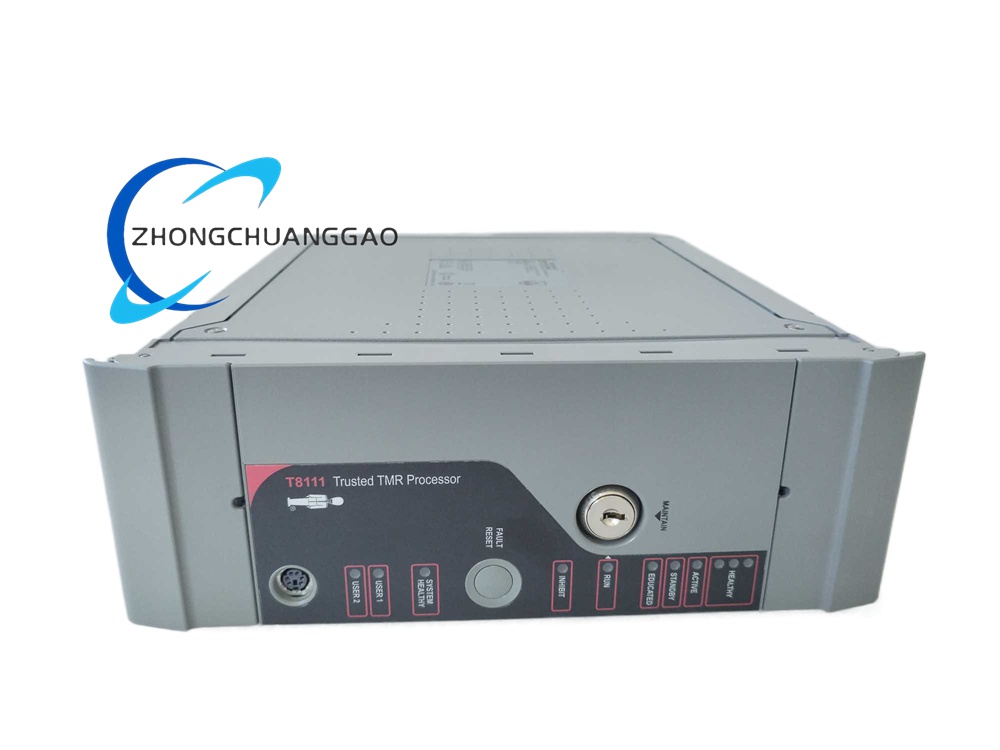

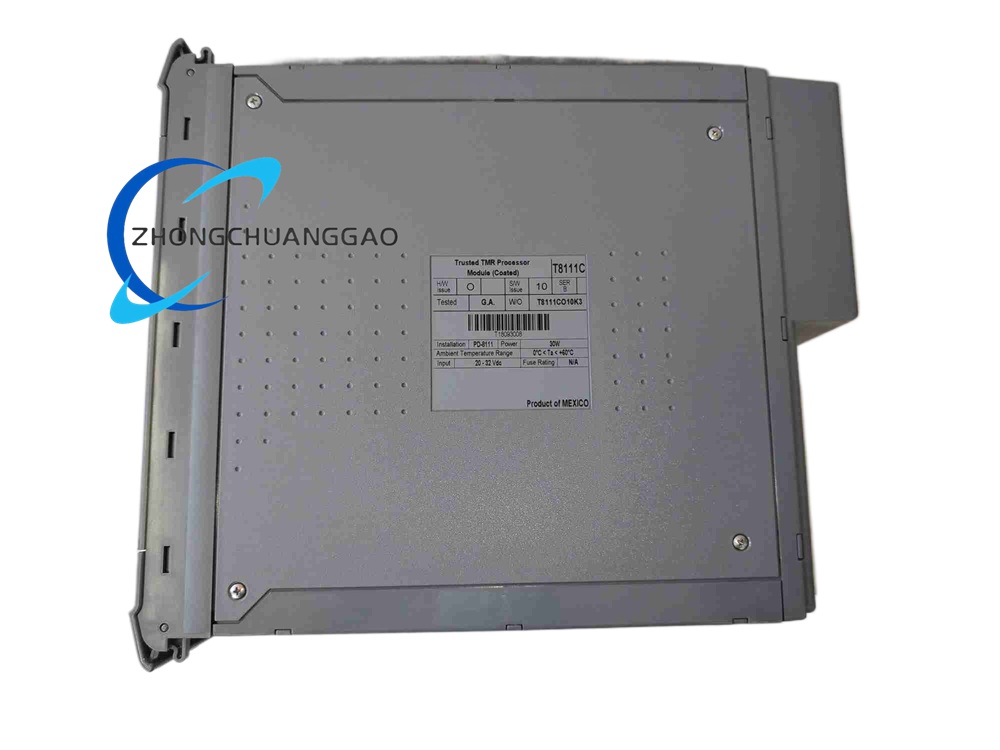

Product Brief Introduction: Core triple modular redundant processor module of Trusted safety system, executes safety control logic, processes I/O data and system fault management.
Technical Specifications
- Supply Voltage: 20–32 Vdc backplane power
Description
- Rated Power Consumption: 30 W
- Safety Standard: IEC 61508 SIL3
- Built-in Fault Relay Output: 0.5 A / 24 Vdc
Function Features
- 2-out-of-3 TMR redundant logic operation
- Whole system continuous hardware diagnosis
- Support user safety application logic execution
- System fault alarm contact output
- Online program modification and download
Application Scenarios: Core controller for ESD, FGS, turbine safety control and all SIL3 safety instrumented systems
Performance Parameters
- Deterministic logic execution cycle
- Real-time fault voting and fault isolation
Material Composition: Reinforced housing, multi-layer high-speed PCB, industrial grade memory chips
Structure Characteristics: Double-width main rack plug-in module, front panel system status LED array
Working Principle: Three independent processor cores run identical control program simultaneously; voting circuit compares calculation results; only consistent valid result is output to I/O modules; abnormal core is diagnosed and isolated automatically.
Installation Requirements: Install in dedicated processor slot of T8100 main chassis; must adopt redundant dual processor configuration for high availability system.
Usage Notes: Processor firmware version must match whole system modules; hot swap only allowed under system redundant running status.
