Description
- Supported signal: 4–20 mA, 0–10 VDC
- Single-ended signal input architecture
Features:
- Channel overrange diagnostics
- Open wire detection
- Galvanic group isolation
Application Scenarios: Refineries, chemical plants, power plant process parameter acquisition

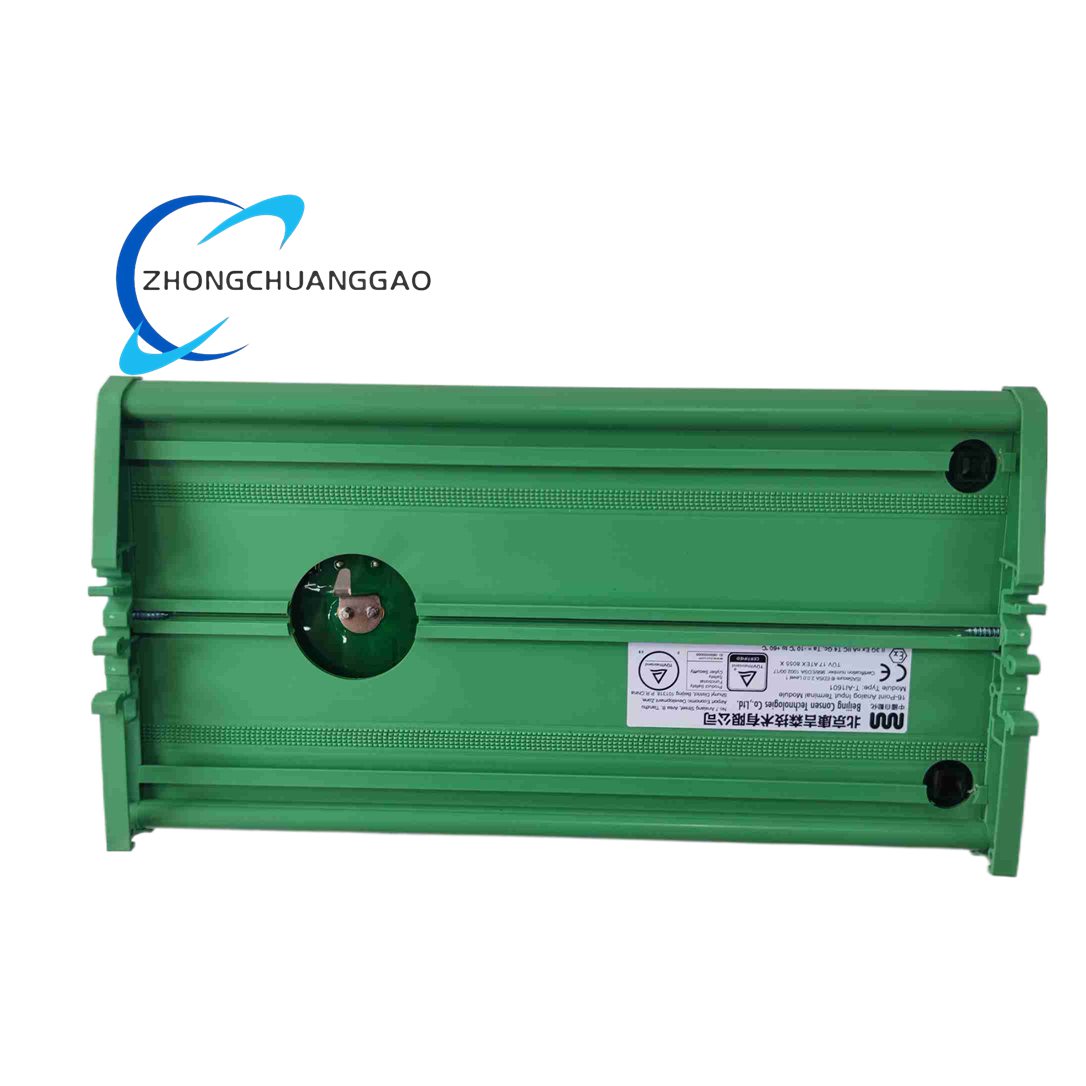

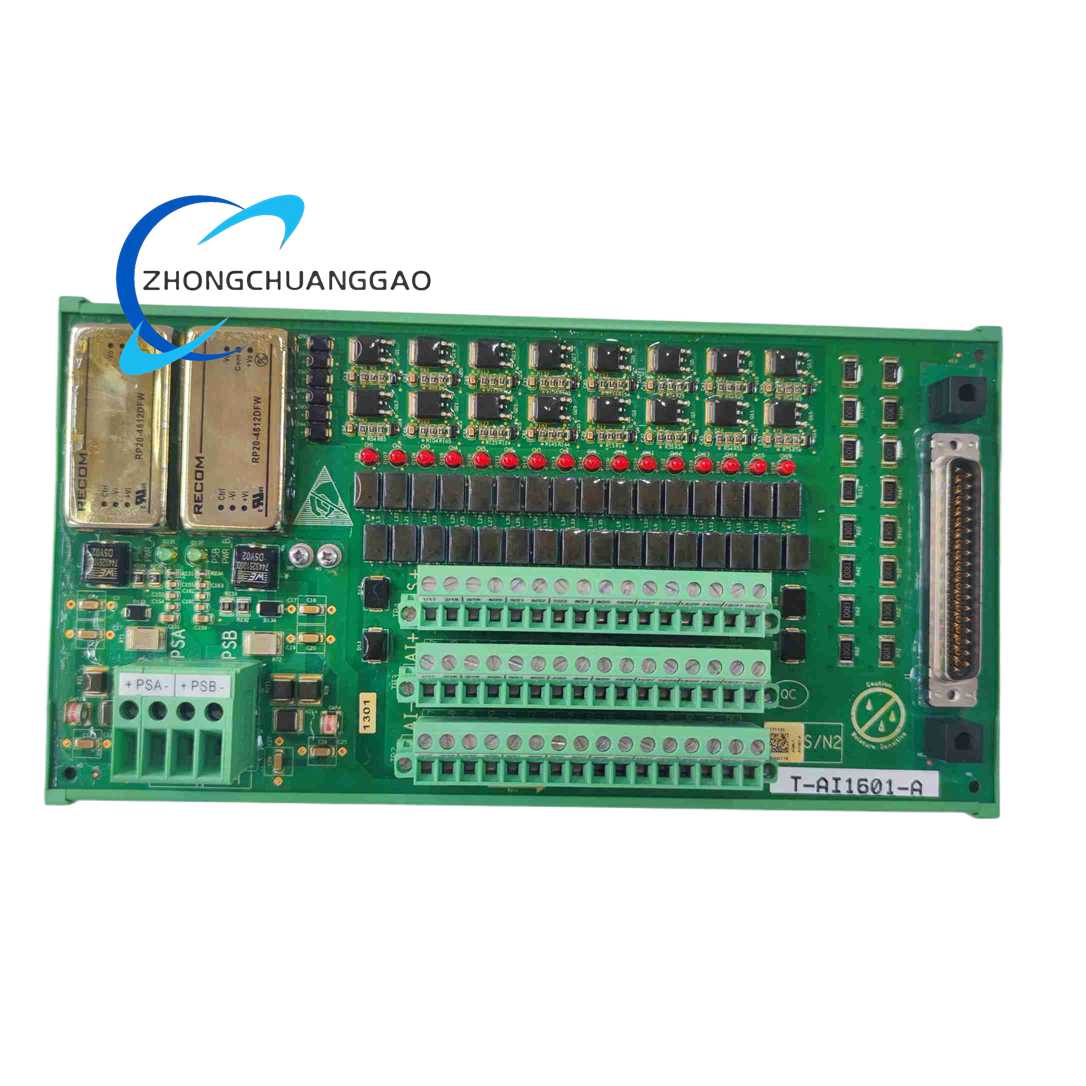

Material Construction: Flame retardant plastic module housing, precision signal processing PCB
Structural Characteristics: Hot swappable DCS backplane module
Installation Requirements: Mount onto matched TC series terminal base; cabinet temperature within rated range
Operation Notes: Calibrate input channels periodically; avoid conductive dust accumulation inside cabinet
