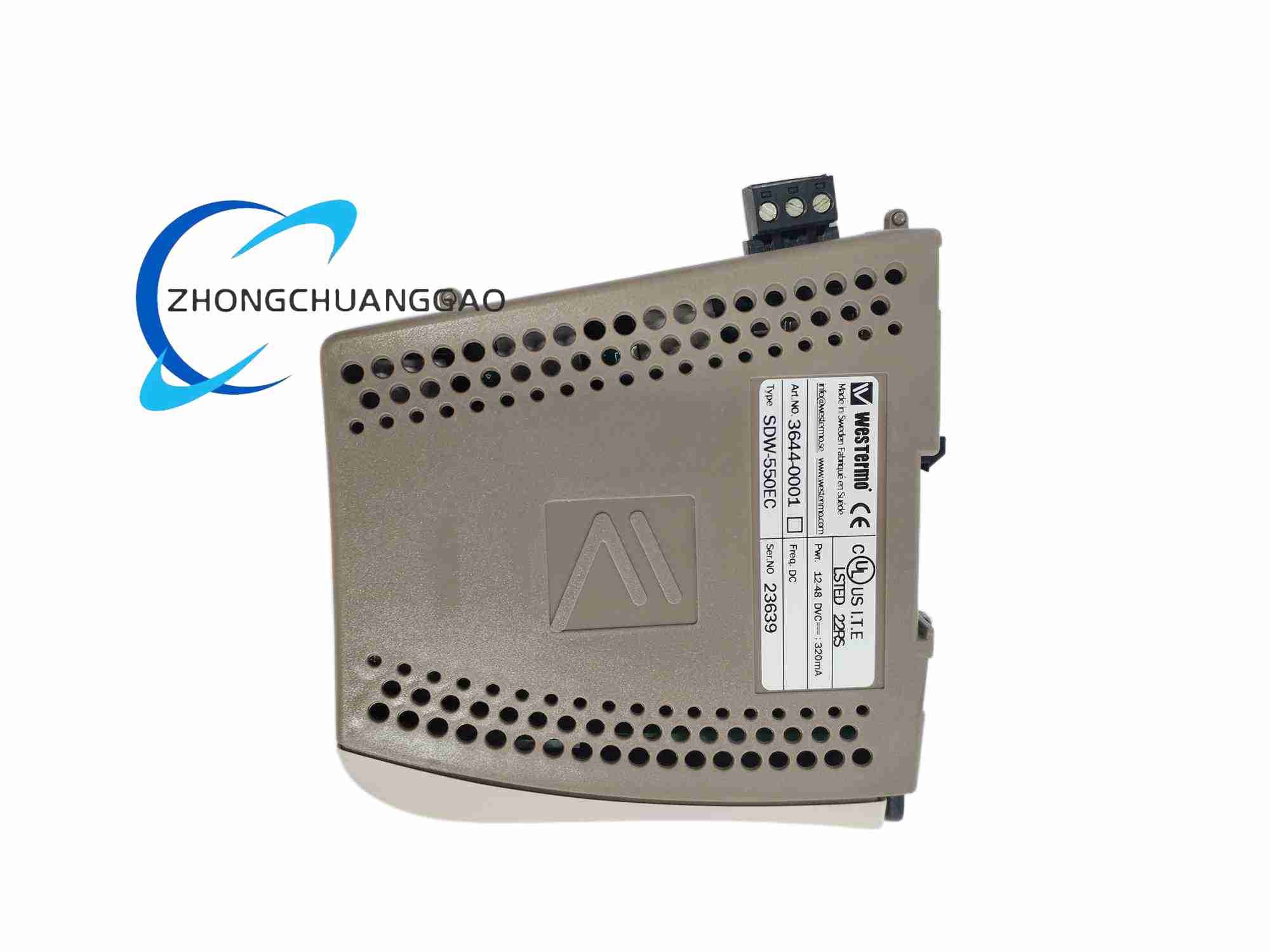

Honeywell SDW-550EC

Physical port configuration layout provides five independent auto-sensing 10/100/1000BASE-T RJ45 standard gigabit Ethernet communication port interfaces integrated into single compact unit body assembly. Total internal switching fabric capacity measurement reaches ten gigabits per second full duplex bidirectional data transmission throughput performance rating. Maximum packet forwarding processing throughput capacity metric registers at 7.44 million data packets per second sustained handling performance under full load operating conditions. Native integrated support scope for standardized Ethernet communication protocol specifications includes IEEE 802.3 ten megabit transmission rate standard, IEEE 802.3u one hundred megabit transmission rate standard, IEEE 802.3ab one thousand megabit gigabit transmission rate standard, IEEE 802.3x full duplex data transmission flow control regulation protocol, alongside STP and RSTP network topology loop prevention algorithm execution logic. Power supply input circuit specification adopts dual independent redundant direct current terminal block wiring connection layout, acceptable input voltage operating range spans twelve volt direct current to forty eight volt direct current with built-in reverse polarity connection protection diode circuit assemblies eliminating damage risk from reversed positive and negative power conductor wiring construction errors. Maximum full load unit power consumption measurement limited to 4.5 watt total electrical energy draw under continuous peak data transmission throughput operating conditions. Continuous normal operation ambient temperature tolerance range spans negative forty degrees Celsius to positive seventy five degrees Celsius stable performance maintenance boundaries; hardware storage temperature environmental operating range expands to negative forty five degrees Celsius to positive eighty five degrees Celsius for long term off power shelf storage conditions. Ambient relative humidity environmental tolerance specification maintains five percent to ninety five percent relative humidity range without condensed liquid water formation on unit enclosure surface areas. Complete physical dimensional measurement specifications register unit width 135 millimeters, depth 50 millimeters, height 110 millimeters compact vertical cabinet footprint layout design. Single unit net mass measurement reaches 0.65 kilograms solid metal alloy enclosure integrated construction assembly weight specification. Mechanical enclosure environmental protection classification attains IP30 dust resistance grade rating, providing effective barrier protection against fine airborne dust particle infiltration into internal circuit assembly spaces and limited resistance against accidental light liquid water splashing contact events on outer enclosure surface areas. Compatible communication cable hardware specification scope includes Cat5e and Cat6 grade shielded and unshielded twisted pair industrial Ethernet communication cable assemblies for all port wiring connection construction workflows. Global industry compliance certification coverage includes CE electromagnetic compatibility directive certification, FCC Class A industrial radio frequency interference suppression standard certification, RoHS hazardous substance restriction environmental compliance certification, E-Mark ECE R10 motor vehicle electromagnetic compatibility standard certification enabling deployment within marine vessel engine room automation control cabinet environments.

Plug and play unmanaged operation architecture eliminates requirement for complex software configuration programming workflows following completion of power supply connection construction procedures; hardware automatically executes real-time port communication transmission rate and duplex mode matching detection logic upon initial physical cable connection events with downstream industrial automation equipment assemblies. Dual independent redundant direct current power supply input circuit layout incorporates seamless automatic power supply branch switching logic execution; upon detection of voltage drop fault conditions within one active power supply branch circuit assembly, internal power management integrated circuits instantly redirect all unit internal operating power supply delivery pathways to standby redundant power supply branch circuits without generating temporary interruption events in Ethernet data transmission communication workflows, fully eliminating single point power supply failure risk factors for critical industrial automation control network architectures. Native hardware integrated STP and RSTP network topology loop suppression algorithm logic continuously monitors all port communication data stream signal pathways for redundant cable wiring loop formation conditions; automatic port blocking function execution upon loop topology detection events eliminates catastrophic broadcast storm fault propagation risks which would otherwise trigger complete industrial control network communication collapse failures. Hardware level individual port surge voltage transient suppression and electrostatic discharge protection circuit assemblies integrated for every RJ45 communication port interface; each port assembly incorporates eight kilovolt contact electrostatic discharge transient voltage suppression capability alongside two kilovolt alternating current surge voltage withstand performance rating to protect sensitive internal signal processing semiconductor chip assemblies from field lightning induction transient voltage spike damage events. Monolithic die cast aluminum alloy solid metal unit enclosure assembly incorporates integrated fin type passive heat sink structural layout design across side panel surface areas; fanless passive heat dissipation operating architecture eliminates mechanical moving component wear and failure risk factors, extending total hardware service lifespan under continuous twenty four hour daily industrial facility operation cycle conditions. Ultra wide low and high ambient temperature continuous stable performance operating capacity enables reliable deployment within freezing outdoor field control cabinet enclosures and high temperature heat generating production workshop internal cabinet assembly environments without triggering communication performance degradation or hardware shutdown fault events. Built-in broadcast storm suppression data traffic regulation logic continuously monitors port data packet transmission stream composition metrics; hardware enforces maximum broadcast packet transmission volume limitation thresholds to preserve unobstructed priority real-time transmission bandwidth allocation for critical industrial automation closed loop control signal data streams. Standardized integrated spring clamping DIN rail mechanical mounting buckle assembly design fully compatible with all industry standard thirty five millimeter width industrial control cabinet DIN mounting rail hardware assemblies, supporting flexible horizontal or vertical unit installation orientation layout construction workflows without fixed angular positioning limitation constraints.

Industrial automation control equipment assemblies including programmable logic controllers, distributed control system main controllers and human machine interface touch screen operator terminals transmit digital Ethernet data packet signal streams through Cat5e or Cat6 grade twisted pair communication cable assemblies to the five RJ45 port interface terminals integrated into the SDW-550EC unit enclosure front panel assembly. Physical layer transceiver semiconductor chip assemblies integrated within each individual RJ45 port interface execute automatic real-time detection and identification procedures for connected downstream equipment communication transmission rate operating mode parameters including ten megabit, one hundred megabit and one thousand megabit gigabit signal bandwidth specifications alongside full duplex or half duplex bidirectional data transmission operation mode classification values, completing physical layer electrical signal synchronization matching workflows between unit port hardware and connected field automation equipment assemblies. Internal high speed switching fabric processing integrated circuit semiconductor chips extract source and destination MAC address identification information data fields embedded within every received Ethernet data packet frame structure, executing real-time matching comparison logic operations against dynamically updated internal MAC address forwarding lookup table memory storage assemblies maintained within unit internal volatile random access memory circuit hardware. Upon successful MAC address lookup matching identification event completion, internal switching fabric processing circuits forward individual data packet frame signal streams exclusively to the single target RJ45 port interface assembly corresponding to destination MAC address identification values, fully isolating independent data traffic signal streams between separate port interface pathways to eliminate unnecessary network communication bandwidth resource waste allocation conditions and cross equipment data packet signal interference distortion fault risks. Native integrated STP and RSTP network topology loop prevention algorithm logic operates continuously in parallel with standard data packet forwarding processing workflows, executing real-time monitoring analysis procedures on all port communication signal pathways to detect redundant Ethernet cable wiring loop formation topological structure conditions; upon positive loop topology detection event confirmation, internal switching control circuits automatically activate blocking state operating mode for one redundant port interface pathway assembly to eliminate broadcast storm fault propagation risks across entire industrial automation control network architecture layouts. Independent dual power supply branch voltage monitoring circuit assemblies continuously execute real-time voltage level sampling measurement procedures for both separate direct current power supply input terminal block wiring connection pathways integrated into unit top side panel assembly layout design. Upon detection of voltage level drop fault conditions within primary active power supply branch circuit assemblies falling below minimum hardware operating voltage threshold specification values, internal power management semiconductor integrated circuits instantly redirect all unit internal operating power supply delivery pathways to standby redundant power supply branch circuit assemblies without generating temporary interruption events in Ethernet data packet transmission communication signal stream workflows, fully preserving continuous unbroken industrial automation control network data communication functionality during single power supply branch fault tolerance operating cycle conditions. Hardware integrated bidirectional transmission flow control regulation circuit assemblies continuously monitor port data packet receive buffer memory storage assembly filling level capacity metrics; upon detection of impending receive buffer overflow capacity saturation conditions, internal control circuits transmit standardized pause frame control signal data packets to upstream connected transmitting industrial automation equipment assemblies to temporarily suspend outgoing data packet transmission stream output workflows, eliminating data packet frame loss fault events triggered by port receive buffer memory storage assembly overload saturation operating conditions.

Main unit outer protective enclosure assembly constructed from monolithic die cast aluminum alloy metal substrate material with anodic oxidation surface anti-corrosion modification treatment processing workflow completion, delivering high thermal conductivity performance metrics required for efficient fanless passive heat dissipation operation architecture functionality. Internal signal processing printed circuit board assemblies adopt multi-layer industrial grade fiberglass copper clad base substrate material construction methods, with full surface coverage of protective acrylic conformal coating layer barrier material to resist degradation damage caused by cabinet accumulated fine dust particle infiltration and sustained high humidity atmospheric exposure operating cycle conditions. RJ45 Ethernet communication port interface connector assemblies utilize fully shielded metal housing structural layout design with gold plated internal conductive contact pin components to maintain long term stable low resistance bidirectional data signal transmission performance metrics and resist oxidation degradation damage under prolonged high humidity cabinet environmental exposure operating cycle conditions. Direct current power supply input terminal block wiring connection assemblies constructed utilizing high temperature resistant UL94-V0 flame retardant PA66 plastic outer housing substrate material with embedded solid copper conductive insert internal components, adopting screw type cable clamping wiring construction methods to maintain firm stable mechanical fixing force retention for all power supply conductor cable assembly connection points. Mechanical mounting hardware components include cold rolled steel substrate DIN rail spring clamping buckle assembly structures with built-in elastic spring force retention mechanisms enabling rapid tool free unit installation and removal construction workflows from standard thirty five millimeter width industrial cabinet DIN mounting rail hardware assemblies without requirement for additional separate mechanical fixing screw fastener hardware components. All internal semiconductor functional circuit components adopt industrial grade wide temperature range specification switching fabric processing integrated circuit chips, electrostatic discharge transient voltage suppression diode semiconductor components and dual redundant power supply branch management control integrated circuit hardware assemblies.

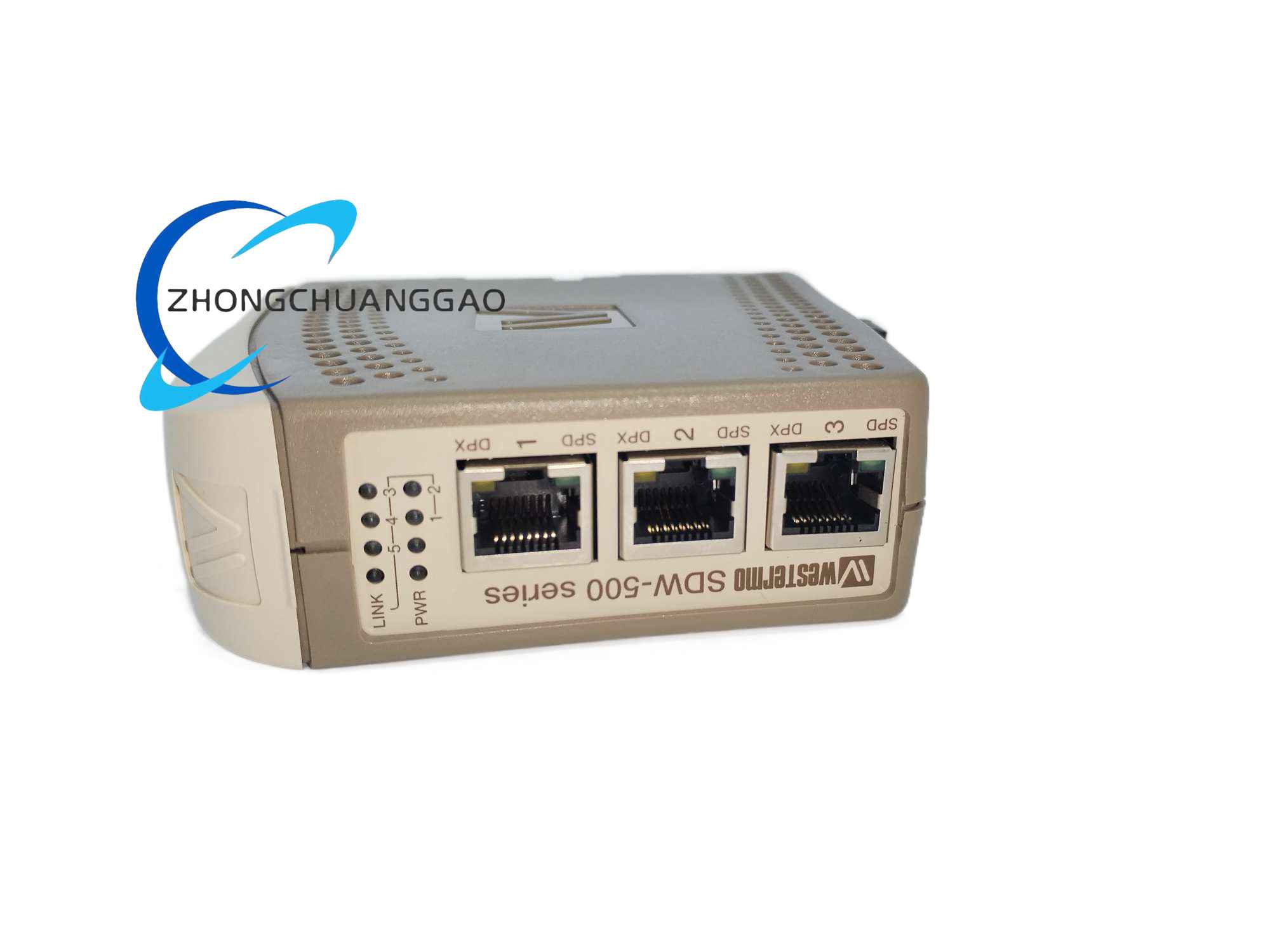

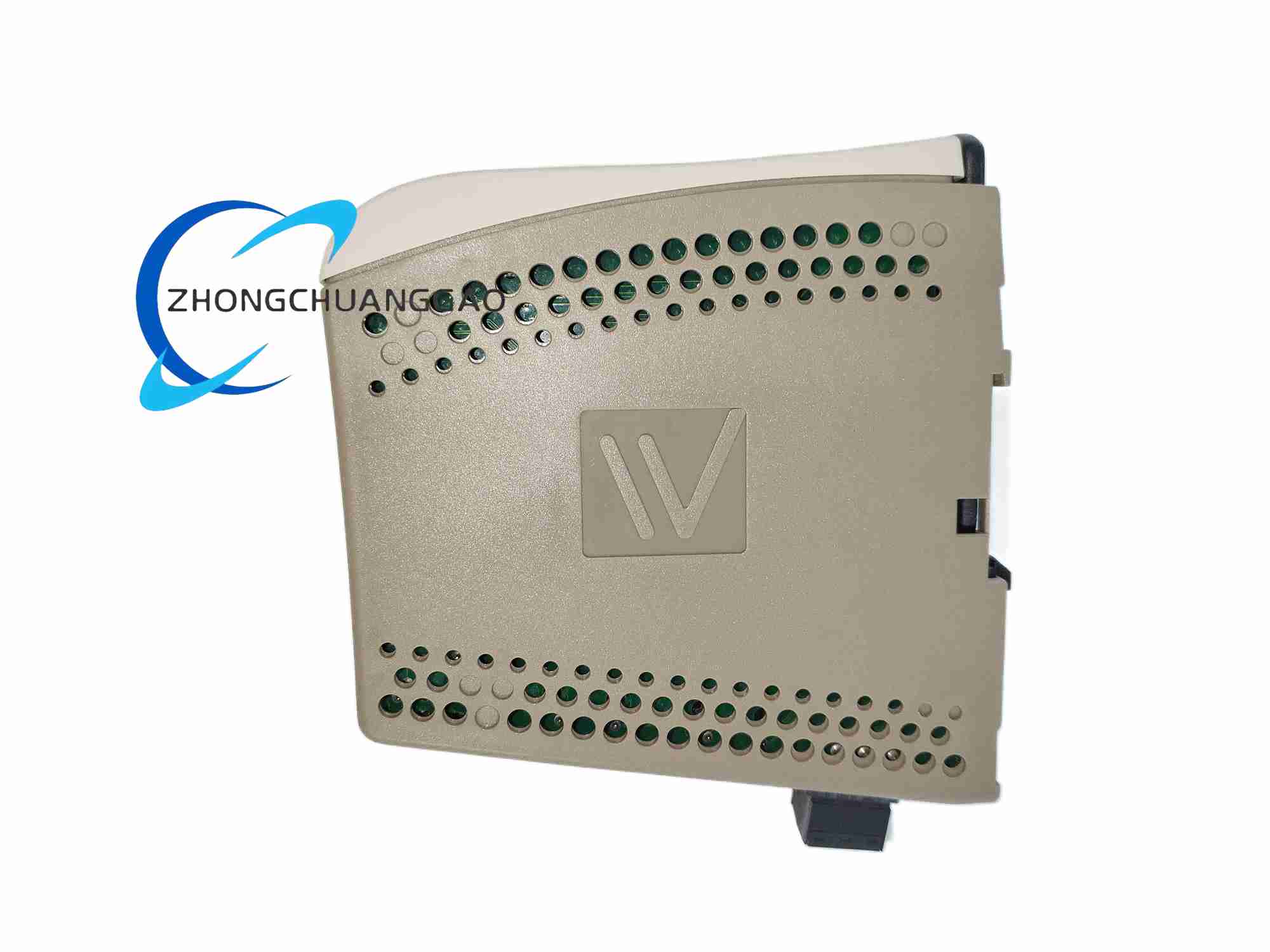

Compact rectangular vertical cabinet footprint mechanical layout design with minimal occupied physical space volume requirements to conserve limited valuable internal installation area capacity resources within densely populated industrial automation control cabinet frame assembly environments. Front panel surface area layout design arranges all five RJ45 Ethernet communication port interface connector assemblies in uniform horizontal linear alignment structural layout formation, with individual independent LED status indicator lamp assemblies allocated to each separate port interface unit; solid green lamp illumination indicates stable physical layer link connection establishment completion state conditions while intermittent flashing lamp light output signals active bidirectional Ethernet data packet transmission stream communication workflow operation cycles. Unit top side panel surface area layout design integrates dual independent redundant direct current power supply input terminal block wiring connection assembly structures, with fully separated positive polarity and negative polarity conductor wiring terminal port allocation layout design and clear engraved polarity identification marking symbols printed onto plastic terminal block outer housing surface areas to eliminate reversed power conductor wiring construction error risks during field installation workflow execution cycles. Unit rear side panel surface area integrates monolithic cold rolled steel substrate spring clamping DIN rail mechanical mounting buckle assembly structural layout design, fully compatible with all industry standard thirty five millimeter width industrial control cabinet DIN mounting rail hardware assemblies, eliminating requirement for additional separate mechanical fixing screw fastener hardware components during unit installation construction workflows. Monolithic die cast aluminum alloy metal unit enclosure assembly incorporates integrated fin type passive heat sink structural layout design across left hand and right hand side panel outer surface area regions, creating enlarged heat dissipation contact surface area capacity metrics between internal printed circuit board assembly heat generating semiconductor chip components and metal alloy enclosure substrate material to facilitate efficient passive heat transfer dissipation airflow movement pathways without requirement for mechanical cooling fan hardware assemblies. Fully sealed internal circuit assembly cavity structural layout design delivers IP30 dust resistance environmental protection grade performance rating, forming effective physical barrier separation layers to prevent fine airborne cabinet dust particle infiltration into narrow internal circuit assembly gap spaces and avoid potential short circuit fault condition triggering events during subsequent live power supply unit operation cycle conditions.

Mechanical mounting construction standard specification mandates spring clamping DIN rail installation construction workflow execution exclusively onto industry standard thirty five millimeter width industrial control cabinet DIN mounting rail hardware assemblies; hardware fully supports both vertical orientation and horizontal orientation unit installation layout construction workflows without fixed angular positioning limitation constraint conditions. Ambient cabinet installation environmental condition specification enforces exclusive deployment within fully enclosed industrial control cabinet frame assembly structures; installation positioning layout construction workflows must avoid selection of locations subject to direct solar radiation light exposure events, liquid water splashing contact hazards, corrosive industrial chemical gas stream accumulation concentration zones and excessive heavy airborne dust particle pollution environment regions within cabinet enclosure spaces. Direct current power supply wiring construction rule specification requires deployment of two fully independent twelve volt to forty eight volt direct current power supply branch circuit assemblies connected separately to dual redundant power supply input terminal block wiring connection pathways integrated into unit top side panel assembly layout design; every individual power supply branch circuit assembly must incorporate independent dedicated fuse protection hardware component installation workflows with three ampere nominal rated fuse hardware specification recommended for standard operating condition deployment cycles; all power supply conductor cable assembly wiring construction workflows must utilize copper core conductor cable hardware with minimum zero point seventy five square millimeter cross section dimensional specification rating to maintain stable power supply current delivery performance metrics under maximum full load unit operating condition cycles. Ethernet communication cable assembly wiring construction specification mandates exclusive utilization of shielded Cat5e grade or Cat6 grade industrial twisted pair Ethernet communication cable hardware assemblies for all physical wiring connection construction workflows executed between unit RJ45 port interface assemblies and downstream industrial automation control equipment assemblies; all communication cable outer shielding layer structures must implement single point grounding connection construction workflows to cabinet unified safety grounding busbar network assembly hardware components with total system grounding resistance measurement value maintained below four ohms to eliminate electrostatic charge accumulation and electromagnetic interference propagation risk factor conditions across entire control network architecture layouts. Heat dissipation airflow pathway clearance space specification enforces maintenance of minimum forty millimeter unobstructed air circulation gap volume capacity metrics across unit left hand side panel, right hand side panel, top side panel and bottom side panel outer surface area regions within cabinet enclosure assembly spaces following completion of unit installation construction workflows; installation positioning layout construction workflows must avoid placement of other high power heat generating industrial automation hardware assemblies including variable frequency drive inverter units and dedicated power supply modules within fifty millimeter minimum linear distance separation specification limit ranges from SDW-550EC unit enclosure outer surface area regions to eliminate accumulated heat concentration saturation fault risk factor conditions. Cabinet system grounding construction requirement specification mandates firm electrical connection establishment between solid metal alloy SDW-550EC unit enclosure outer housing assembly structures and cabinet unified safety grounding busbar network assembly hardware components utilizing two point five square millimeter cross section dimensional specification copper core grounding conductor cable hardware assemblies to eliminate electrostatic charge accumulation and electromagnetic interference propagation risk factor conditions across entire industrial automation control network architecture layouts. Network topology installation cascading connection limit specification enforces maximum eight individual SDW-550EC unit hardware assemblies connected in series cascading network topology layout construction workflows; excessive cascading connection count volume metrics will generate cumulative Ethernet data packet transmission signal stream propagation delay time period accumulation conditions which degrade real-time response speed performance metrics for critical industrial automation closed loop control signal data stream communication workflows.

Internal control cabinet interconnection network switching hardware unit assemblies deployed within distributed control system DCS central control room rack frame assembly environments to realize bidirectional data communication interconnection functionality between DCS main controller hardware units, remote I/O signal acquisition station modules and human machine interface touch screen operator terminal equipment assemblies. Automated mass production manufacturing workshop assembly line programmable logic controller hardware units, servo drive motion control equipment assemblies and human machine interface touch screen operator terminal equipment assemblies real-time motion control closed loop Ethernet communication network interconnection switching hardware unit deployment environments. Thermal power generation plant auxiliary mechanical equipment remote real-time operational state monitoring Ethernet data communication network interconnection switching hardware unit assembly installation environments.
