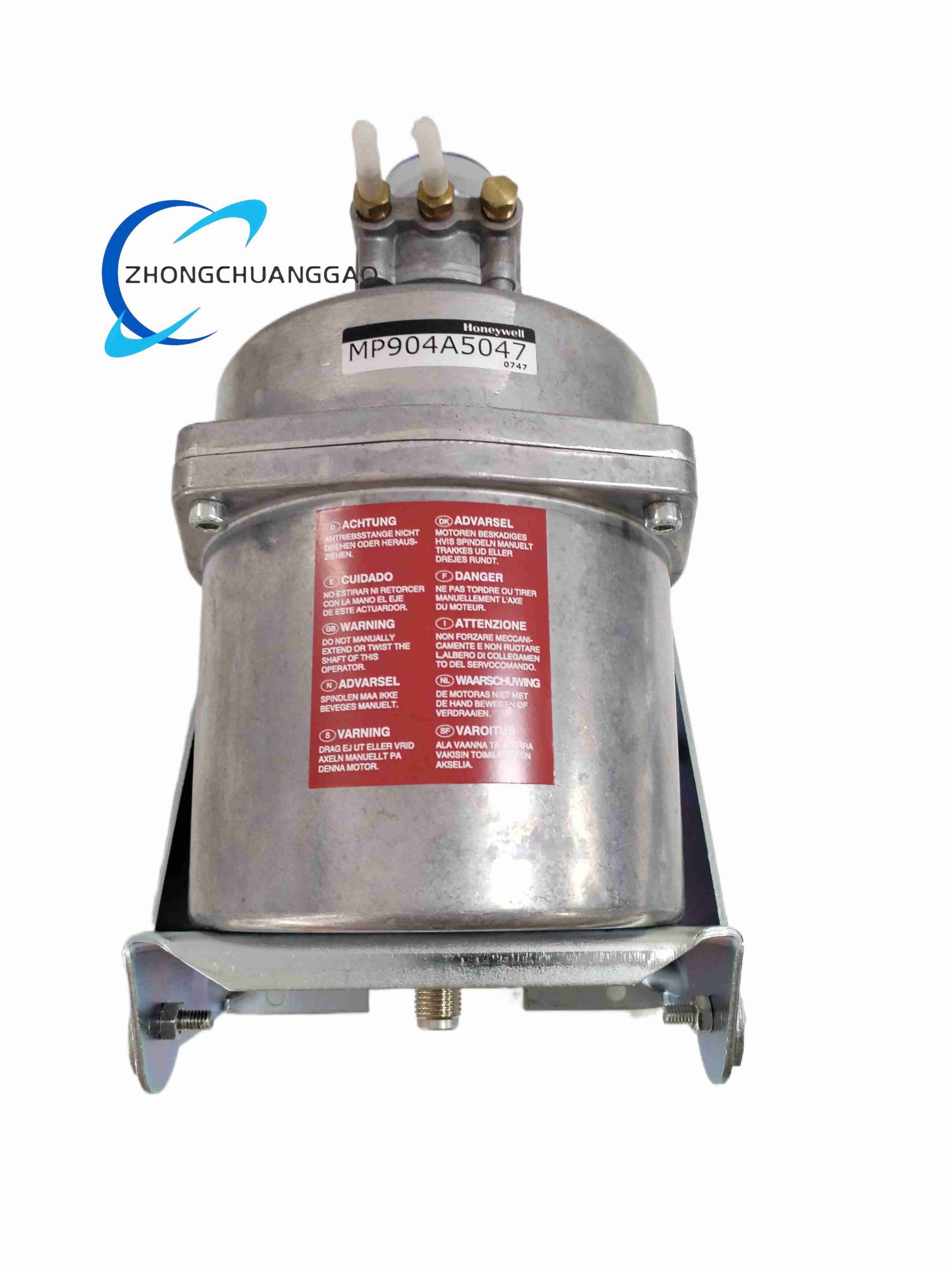

Honeywell MP904A5047

Core Technical & Performance Parameters

• Actuator type: Modulating proportional linear pneumatic actuator with integral fail-safe return spring
• Rated linear stroke travel: 90 mm maximum pushrod extension
• Operating control air pressure signal range: 20 kPa ~ 100 kPa (3–15 psi standard HVAC modulation signal)
• Maximum safe air supply pressure: 210 kPa; Normal operating supply pressure: 140 kPa
• Air connection port: 6 mm barb fitting for 1/4 inch polyethylene pneumatic tubing
• Fail-safe mode: Full spring retraction to minimum airflow position when air supply pressure drops below 20 kPa
• Operating ambient temperature range: -30°C ~ +70°C
• Enclosure protection rating: IP54 dust and splash resistant housing
• Mounting orientation: Universal any-angle mounting (horizontal, vertical upward, vertical downward) without performance degradation
• Actuator output thrust: 1200 N maximum linear push force at full supply pressure
• Hysteresis: <1% full stroke travel; Position repeatability ±0.2 mm
• Service life cycle: Minimum 100,000 full stroke modulation cycles under rated operating conditions

Function Features

1. Proportional modulating positioning: Pushrod stroke linearly correlates with input pneumatic control pressure signal for stepless precise airflow adjustment without discrete step movement.
2. Integrated heavy-duty return spring fail-safe mechanism; automatically retracts pushrod to safe closed/minimum flow position upon compressed air supply failure, preventing overheating or excessive air intake hazard in heating systems.
3. Low hysteresis diaphragm internal control chamber design maintains stable fixed stroke position without continuous air bleed consumption, reducing compressed air system energy load.
4. Universal multi-point mounting bracket compatibility; directly mounts to rectangular ventilation dampers, round air duct dampers and small flange process control valves without custom adapter modification.
5. IP54 sealed housing structure prevents dust accumulation and water splash ingress in factory workshop ventilation and outdoor air handling unit installations.
6. Built-in visual stroke position indicator window on front housing; operator directly observes current pushrod travel stroke without external position feedback sensors.
7. Corrosion-resistant internal diaphragm material compatible with dry compressed air, low dew point chilled air and non-corrosive industrial ventilation gas media.

Material Composition & Structural Characteristics

• Outer actuator housing: Die-cast aluminum alloy with white matte anti-corrosion powder coating, integrated visual stroke indicator transparent PC window.
• Internal pressure diaphragm: Reinforced EPDM rubber composite fabric diaphragm resistant to temperature cycling and dry air aging.
• Return spring: High-tensile silicon manganese alloy steel compression spring with anti-rust phosphate coating.
• Pushrod assembly: Precision ground stainless steel solid rod with anti-wear hard chrome plating, threaded end for crank arm mechanical connection.
• Air connection barb fitting: Nickel-plated brass corrosion-resistant tubing port with integrated rubber anti-leak gasket.
• Mounting brackets & fasteners: Hot-dip galvanized carbon steel hardware to resist atmospheric oxidation in humid HVAC plant environments.

Working Principle

Installation Requirements

1. Mount actuator via four M10 mounting screws to damper/valve flange bracket; evenly torque mounting bolts to avoid housing distortion restricting pushrod linear movement.
2. Mechanical crank arm connection alignment requirement: Pushrod travel axis must remain parallel to damper blade rotation crank arm plane; angular misalignment >5° causes stroke positioning hysteresis and accelerated pushrod wear.
3. Pneumatic tubing connection: Use 6mm OD polyethylene tubing, fully insert tubing into brass barb fitting until locked; secure with hose clamp to prevent tubing detachment under air pressure fluctuation.
4. Compressed air supply pre-treatment mandatory: Install air filter regulator upstream of actuator to remove water condensate, oil mist and particulate contaminants; dry air dew point ≤+3°C to prevent internal diaphragm freeze damage at low ambient temperatures.
5. Stroke mechanical limit adjustment: Do not operate pushrod beyond rated 90mm full travel stroke; over-stroke compresses return spring past elastic limit leading to permanent spring fatigue loss of fail-safe function.
6. Ambient installation clearance: Maintain minimum 50mm free space around pushrod full travel path to avoid mechanical collision with ductwork structural supports.

Application Scenarios

Operation & Maintenance Precautions

1. Regularly drain compressed air filter regulator condensate reservoir weekly; water condensate entering actuator internal chamber accelerates EPDM diaphragm aging and causes stroke sticking failure.
2. Do not supply compressed air containing oil vapor or chemical solvent mist; oil contamination degrades composite diaphragm material leading to air chamber leakage and loss of modulating positioning precision.
3. Inspect pushrod chrome surface every 6 months; clean accumulated dust and corrosion residue with dry cloth to prevent jamming during stroke modulation movement.
4. Avoid continuous operation at ambient temperature exceeding +70°C; high temperature accelerates return spring metal fatigue shortening service cycle life significantly.
5. Do not manually force pushrod extension beyond rated 90mm stroke travel without compressed air supply; mechanical overloading permanently deforms return spring eliminating fail-safe shutdown function.
6. Replace internal EPDM diaphragm every 5 years for continuous 24-hour operation systems; natural rubber aging causes slow air chamber leakage leading to gradual stroke position drift.
