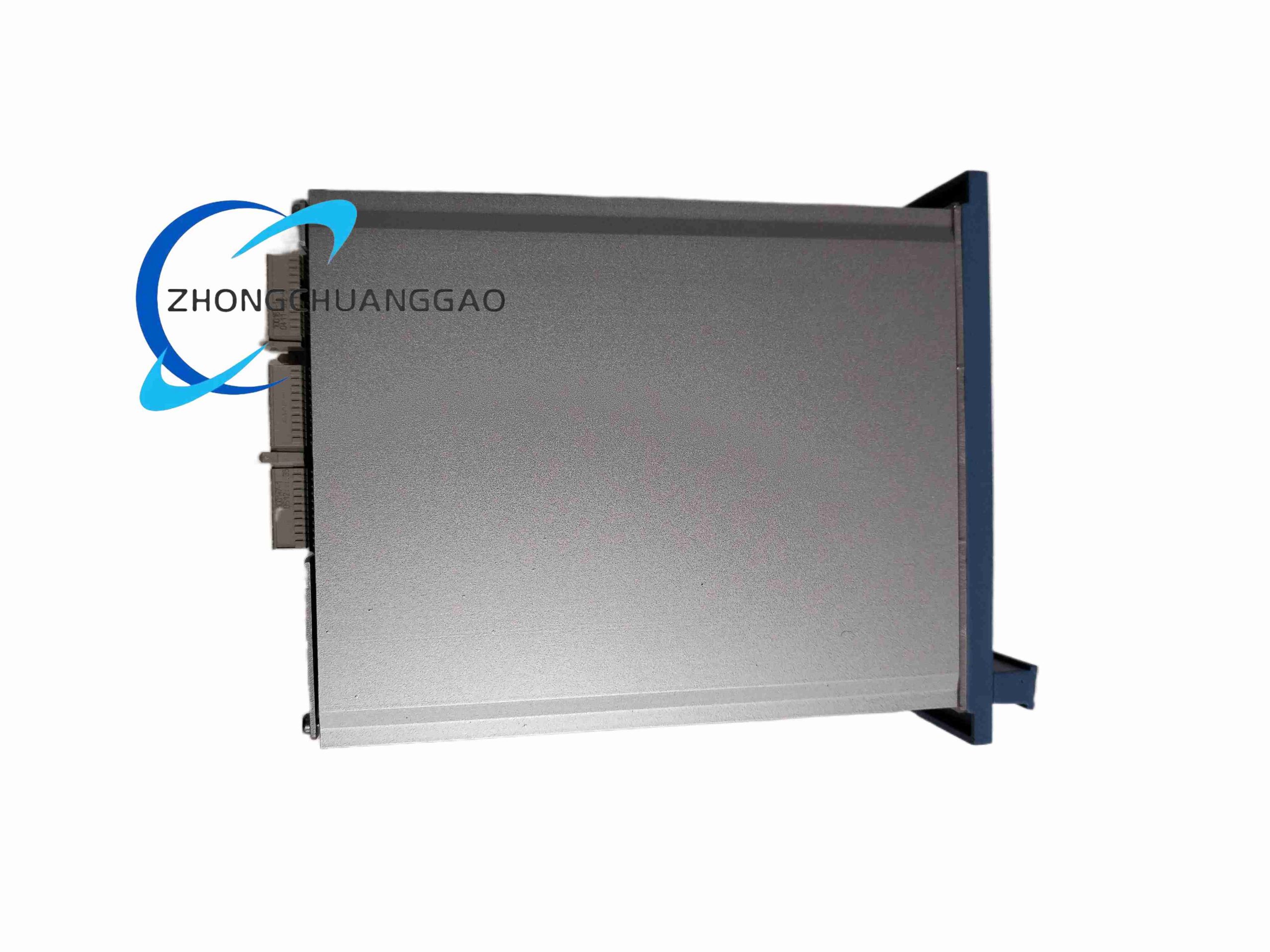

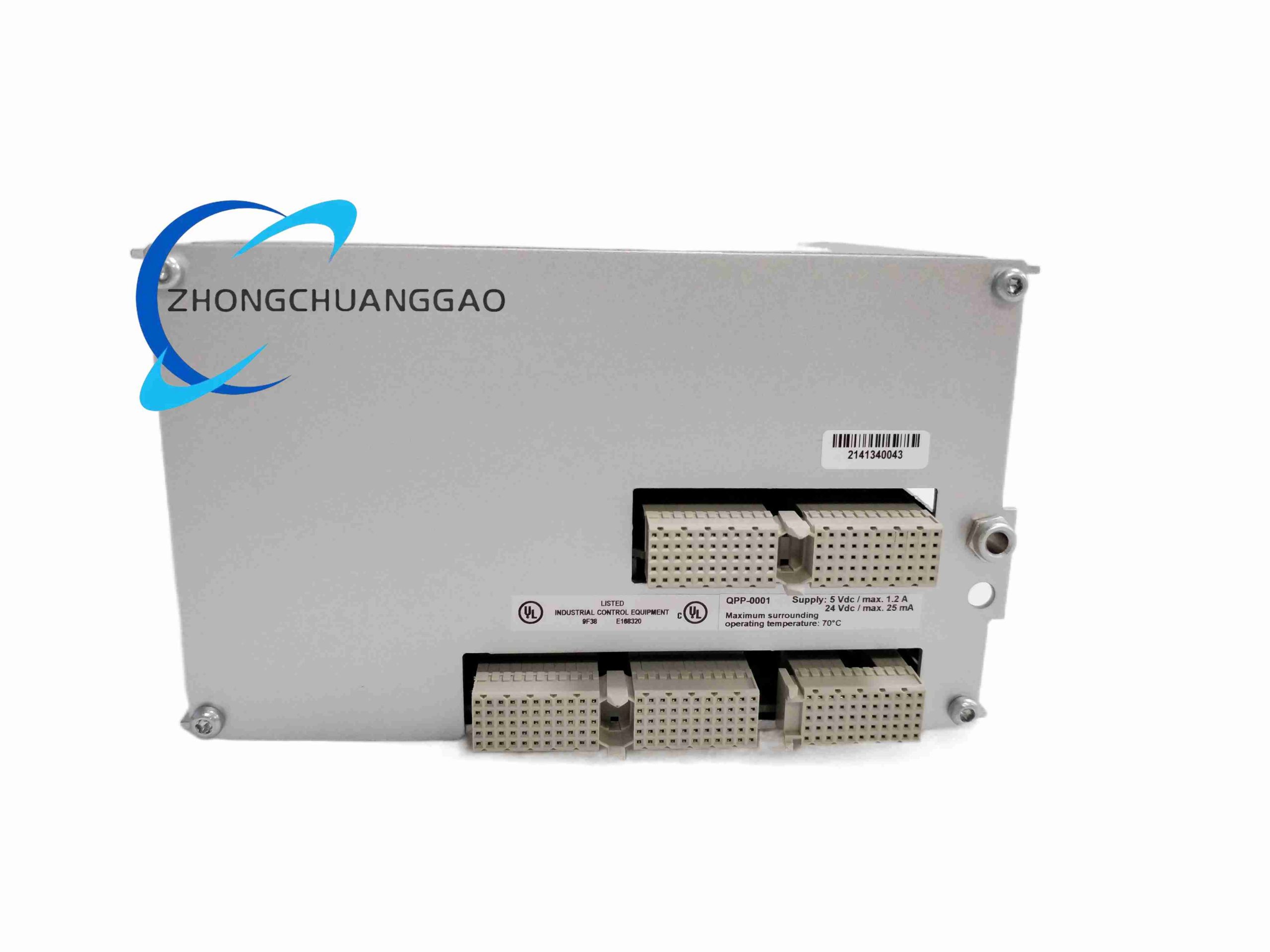

Honeywell FC-QPP-0001

Description

Product Brief Introduction

FC-QPP-0001 is the core main controller module of Honeywell Safety Manager SIS safety instrument system, adopting quad-core redundant safety processor architecture. It executes safety interlock logic calculation, channel fault diagnosis, fieldbus communication data processing and system alarm management core tasks, serving as the central control brain of whole safety instrument system.

Technical Specifications & Core Performance Parameters

• Processor Architecture: Four-core redundant safety dedicated industrial processor
• On-board Memory Configuration: 8GB industrial grade RAM + 16GB high-temperature flash storage
• System Operating System: Embedded real-time safety operating system, SIL3 certified kernel
• Communication Interfaces: Dual redundant Ethernet port, RS485 maintenance debugging port, internal FC backplane bus interface
• Logic Scan Cycle: Minimum 50ms safety logic full scan cycle configurable
• Safety Certification Grade: SIL3 IEC 61508 / IEC 61511, TÜV certified
• Backplane Power Supply: 24VDC safety bus power; power consumption 12W maximum
• Physical Dimension: 140mm (W) × 70mm (H) × 220mm (D)
• Net Weight: 0.95kg
• Operating Temperature Range: -10℃ ~ +65℃ cabinet internal

Material Composition

• Module Front Panel: Black matte anti-static ABS plastic with liquid crystal status display screen
• Main Control Circuit Board: Multi-layer high anti-interference FR4 PCB with full copper shielding layer
• Storage Chip: Wide-temperature industrial flash memory chip
• Connector Terminal: Gold-plated anti-oxidation communication terminal block

Structural Features

• Single-slot rack slide-in redundant main processor module, support dual QPP module hot standby redundant configuration
• Front panel embedded monochrome LCD status display screen, display system running state, fault code, communication node information
• Multi-group LED indicators: power running light, logic operating light, communication fault light, safety trip alarm light
• Internal independent partition layout for processor core circuit, memory storage circuit and communication interface circuit

Working Principle

1. Receive digital signal sampling data uploaded by all FC series safety I/O modules via backplane safety bus
2. Quad-core redundant processor synchronously execute safety interlock logic program, cross-verify calculation result to eliminate single-point logic error
3. Output interlock control commands to corresponding safety output modules according to logic operation result
4. Real-time run system self-diagnosis covering processor core, memory, communication bus and I/O channel equipment
5. Transmit SIS operating data, alarm records and fault log to upper DCS/EMS system via dual redundant Ethernet interface

Function Features

1. Quad-core cross-redundant processing architecture to realize SIL3 safety level logic calculation
2. Hot standby dual module redundant configuration, automatic seamless master-slave switch without safety loop interruption
3. Local LCD screen real-time display system operating status and fault code for on-site maintenance
4. Support long-term storage of safety operation log, fault record and interlock action event data
5. Configurable multi-level safety trip alarm output and remote upper system data uploading

Advantage Highlights

1. Quad-core cross-verification design eliminates single-processor calculation failure safety risk
2. Dual redundant Ethernet communication ports avoid single communication line disconnection system data loss
3. Built-in large-capacity flash storage records complete safety event log for factory safety audit traceability
4. Shortest 50ms logic scan cycle meets fast emergency shutdown ESD loop response requirement
5. Integrated local LCD display without external maintenance terminal for on-site rapid fault diagnosis

Applicable Industries

All high-risk process safety instrument system main control core equipment: oil & gas pipeline station ESD system, large-scale petrochemical plant safety interlock, coal chemical hazardous reaction workshop, nuclear power auxiliary safety control system

Installation Requirements

1. Install two FC-QPP-0001 modules in adjacent dedicated main processor slots of Safety Manager cabinet for redundant hot standby configuration
2. Dual Ethernet communication wiring adopt separate shielded twisted pair cable, two cables route independently without parallel bundling
3. Reserve 40mm vertical heat dissipation gap above and below processor module
4. Cabinet internal dust filter replaced every 3 months to prevent dust accumulation blocking heat dissipation air duct
5. System safety ground resistance controlled below 4Ω

Usage Precautions

1. Do not hot-swap master running FC-QPP-0001 module during safety system automatic operation, will trigger full system safety trip
2. Complete full system logic verification test after module replacement or program download
3. Avoid cutting off cabinet power supply during safety event log storage writing cycle
4. RS485 maintenance port only connect official Honeywell debugging equipment, forbid third-party uncertified terminal access
5. Ambient temperature exceeding +65℃ will trigger automatic system scan cycle extension protection
