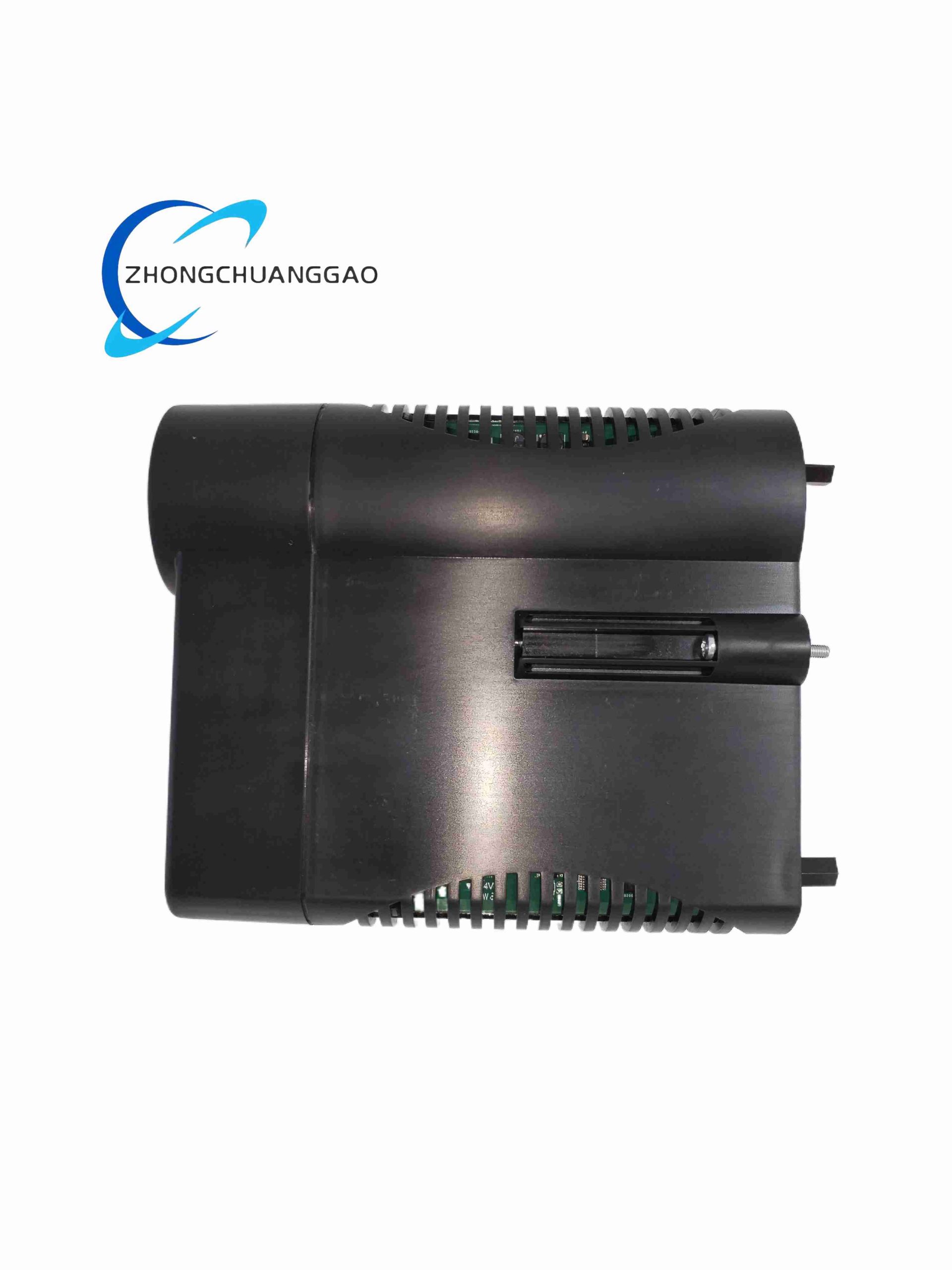

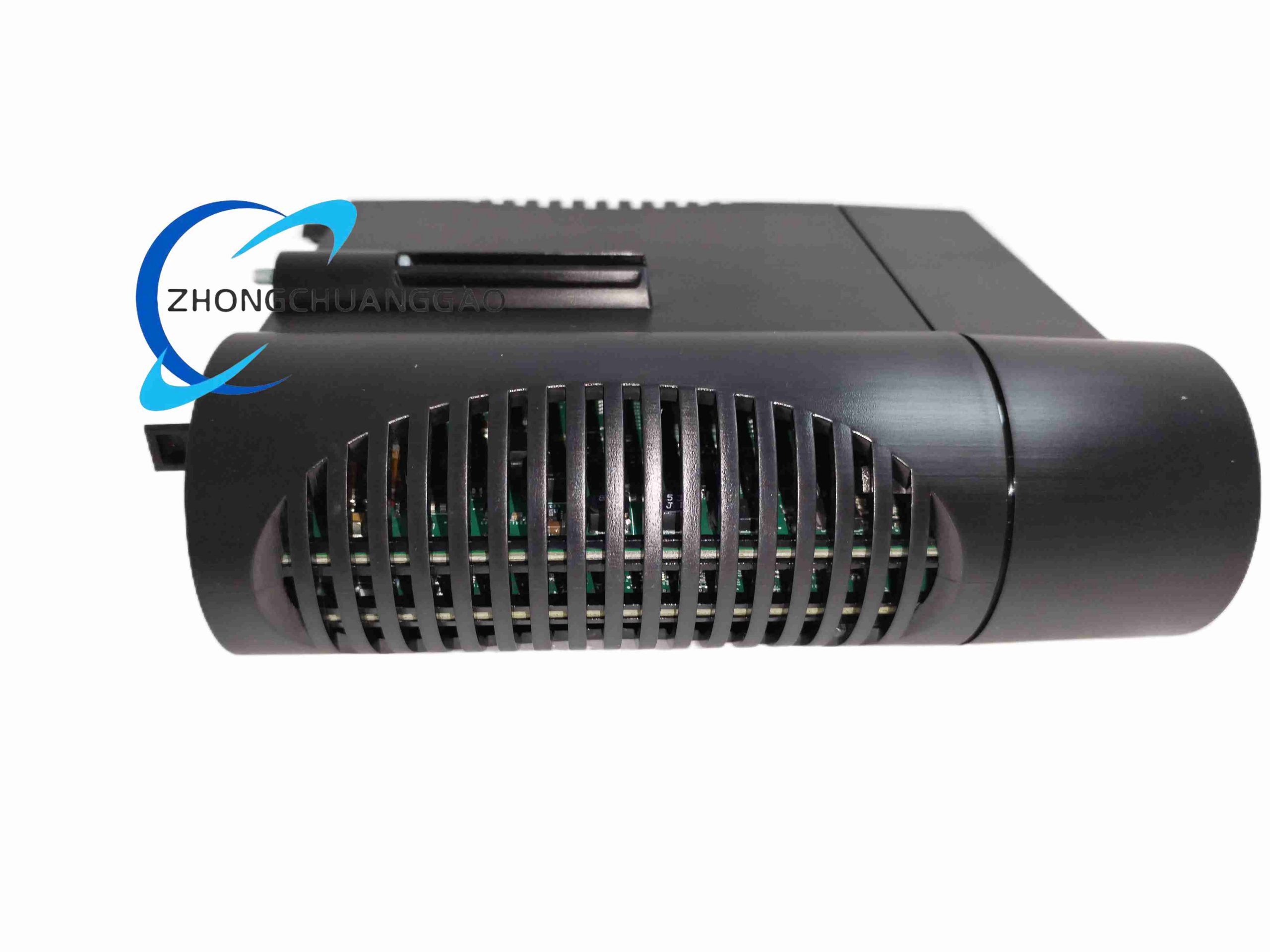

Honeywell FC-PDIO01

Description

Product Brief Introduction

FC-PDIO01 is a SIL3-certified mixed discrete I/O module for Honeywell Safety Manager SIS system, integrating digital signal input and safety contact output functions in single unit. It collects field limit switch, emergency stop button discrete signals and drives safety interlock actuators such as solenoid valves, used for small-scale safety interlock loop signal interface.

Technical Specifications & Core Performance Parameters

• Channel Layout: 8 isolated 24VDC digital input channels + 4 safety relay output channels
• Input Signal Standard: 24VDC wet contact input, 2-wire/3-wire sensor configurable
• Output Load Capacity: Single relay channel maximum 5A resistive load, 2A inductive load
• Safety Certification Grade: SIL3 IEC 61508 / IEC 61511
• Channel Isolation: 2500VAC isolation between field circuit and backplane safety bus
• Diagnostic Coverage Rate: 99% channel fault self-diagnosis
• Backplane Power Supply: 24VDC safety bus power, power consumption 7W maximum
• Physical Dimension: Standard 4TE rack width, 220mm module depth
• Net Weight: 0.48kg
• Operating Temperature Range: 0℃ ~ +70℃ cabinet internal

Material Composition

• Module Shell: Flame-retardant black PC plastic anti-static housing
• Circuit Board: High TG FR4 PCB with anti-corrosion gold plating circuit trace
• Safety Relay: AgSnO2 contact low arc industrial safety relay
• Terminal Connector: Lockable spring gold-plated terminal block

Structural Features

• Compact single-slot rack slide-in modular design, save cabinet installation space
• Front panel independent LED indicator for each input channel and relay output status
• Internal double-redundant signal acquisition circuit for safety loop
• Separated power, input and output wiring partition at module bottom

Working Principle

1. Field discrete switch signals pass optocoupler isolation and level conversion before entering on-board signal processor
2. Dual redundant circuit simultaneously sample each input channel to avoid single-point sampling failure
3. Upload digital state data to Safety Manager main controller via backplane safety bus
4. Downlink interlock shutdown commands trigger dual-coil safety relay pull-in to drive field actuators
5. Continuous real-time detection of relay contact adhesion, channel open/short circuit faults, upload fault code to SIS alarm system

Function Features

1. Mixed input-output integrated design for small safety interlock loops, reduce cabinet module quantity
2. SIL3 full safety certification for hazardous process ESD and fire/gas interlock control
3. Complete channel-level fault diagnosis covering wiring breakage, short circuit, relay contact failure
4. Hot-swap support without system safety loop shutdown
5. Configurable input channel wire break detection function for 3-wire proximity sensors

Advantage Highlights

1. Single module realizes both signal collection and safety actuator drive, reduce cabinet wiring complexity
2. High diagnostic coverage rate meets strict safety instrument system quantitative risk assessment requirements
3. Small 4TE slot size improves cabinet space utilization rate by 40% compared with split I/O modules
4. Dual redundant internal circuit eliminates single-point failure risk of safety signal transmission
5. Wide inductive load drive capacity directly matches solenoid valve safety actuators without intermediate relay

Applicable Industries

Chemical plant small batch safety interlock, oil depot fire protection ESD system, food and beverage high-temperature sterilization safety control, water plant hazardous chemical dosing interlock

Installation Requirements

1. Slide horizontally into Safety Manager standard rack, lock front panel fixing buckle
2. Field wiring must use shielded twisted pair cable, shield layer grounded at cabinet safety ground terminal
3. Inductive load output channels must connect freewheeling diode parallel to actuator coil
4. Maintain 20mm vertical ventilation gap between adjacent modules for heat dissipation
5. Cabinet safety ground resistance controlled below 4Ω

Usage Precautions

1. Forbid connecting AC voltage signal to digital input channels
2. Do not exceed rated inductive load current of relay output channel, will cause contact arc ablation and adhesion
3. Complete loop functional test after each module replacement to verify safety interlock action logic
4. Quarterly inspection of terminal wiring tightening status to avoid loose wire break fault diagnosis misjudgment
5. Avoid installing near high-frequency electromagnetic interference equipment
