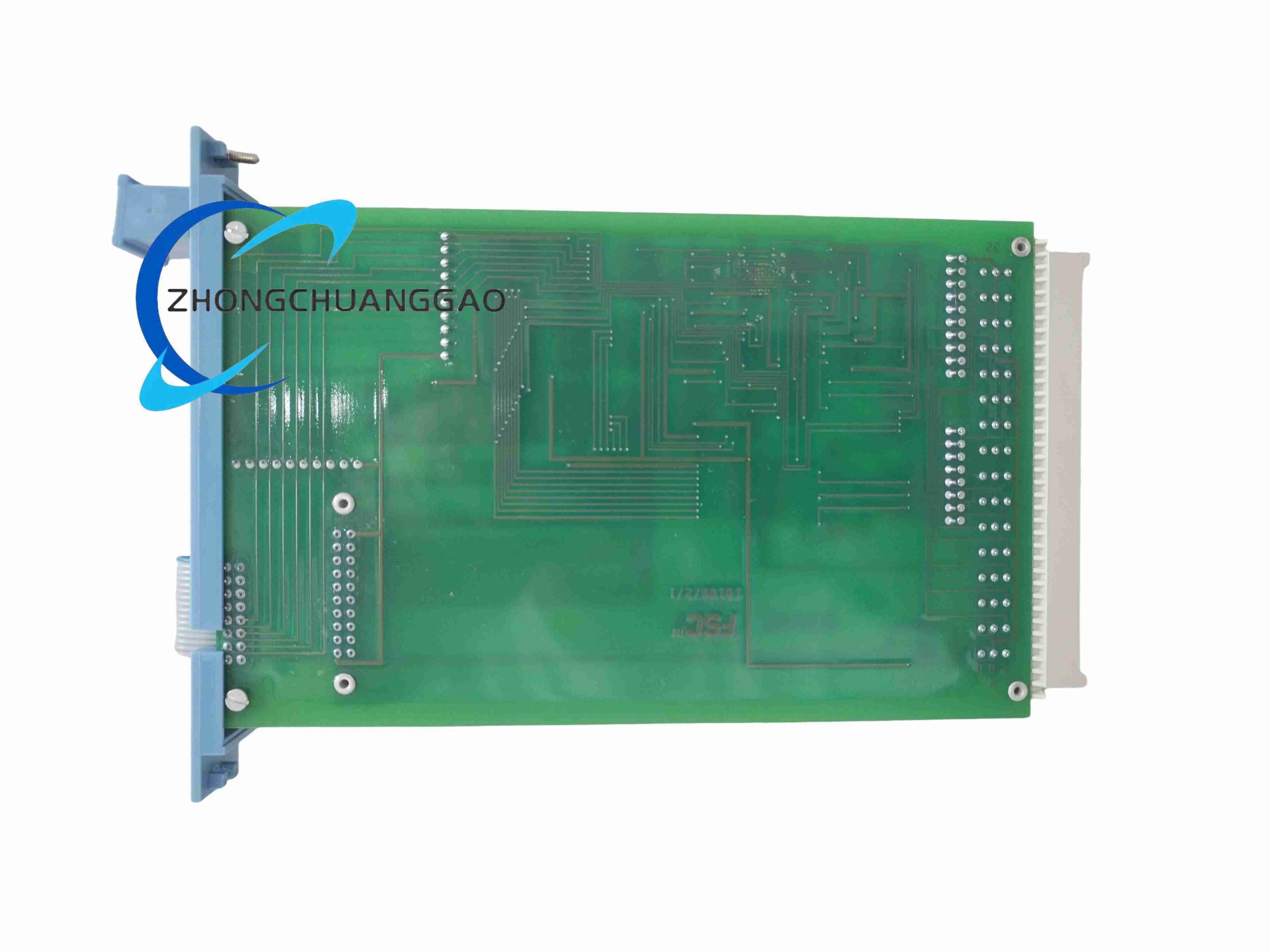

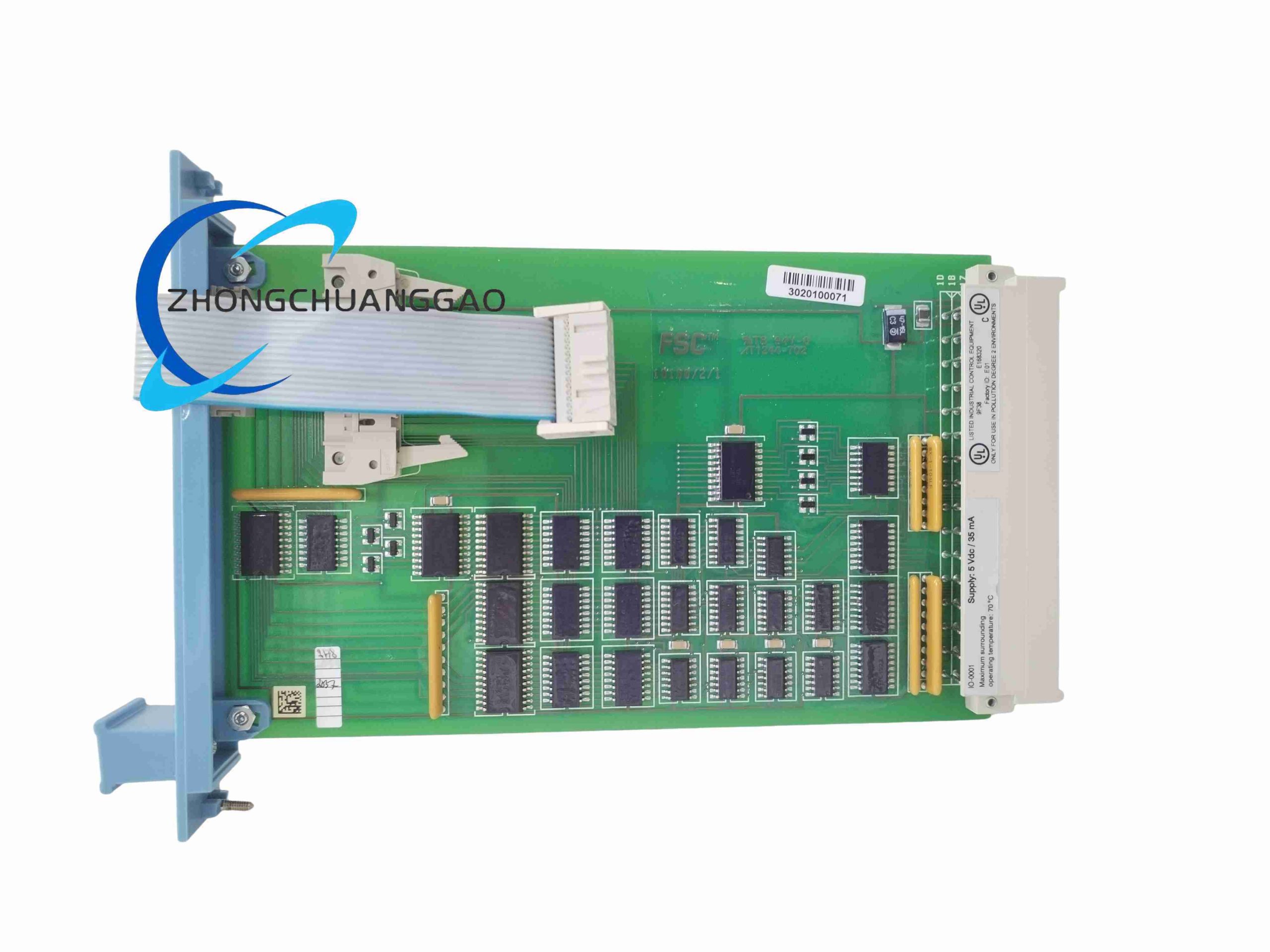

Honeywell FC-IO-0001 CCV1.0

Technical & Performance Parameters

• Input Power Range: 9 VDC ~ 36 VDC isolated field power
• Max Power Consumption: 15 W
• Output Signal Types (Configurable): 4–20 mA, 0–20 mA constant current source
• Output Accuracy: ±0.05% full scale
• Output Isolation Voltage: 2500 VAC channel-to-backplane isolation
• Response Latency: ≤ 1 ms signal conversion delay
• Communication Bus: RS485 Modbus RTU, FC-Series backplane IOBUS-HB2
• Channel Count: 16 digital input channels + 16 analog output channels
• Operating Temperature: -40 °C ~ +70 °C
• Storage Temperature: -45 °C ~ +85 °C
• Operating Humidity: 0% ~ 95% RH non-condensing
• Physical Dimensions: 133.4 mm (H) × 20.3 mm (W) × 280 mm (D)
• Net Weight: 0.61 kg
• Certifications: CE, UL 508, IEC 61508 SIL 2 Certified

Material Composition

1. Outer housing: High-strength flame-retardant ABS plastic (UL94-V0)
2. Circuit substrate: 6-layer industrial FR4 PCB with full conformal silicone coating
3. Terminal connectors: Gold-plated copper spring terminal blocks
4. Backplane edge connector: Phosphor bronze gold-plated contact pins
5. Internal passive components: Industrial-grade tantalum capacitors, metal-film resistors

Structural Characteristics

• Horizontal hot-swappable plug-in design for FC-IOCHAS series 19-inch I/O chassis
• Front panel with LED status indicators: Power, Fault, Channel Active, Bus Communication
• Lockable front terminal cover to prevent accidental wiring disconnection
• Integrated anti-vibration mounting clips for rack vibration resistance
• Standard 4TE Eurocard width form factor

Working Principle

1. Receives digital setpoint commands via the chassis internal IOBUS backplane from FC-QPP safety quad processors
2. On-board 24-bit DAC converts digital values to precise analog current signals
3. Galvanic isolation circuit separates field valve wiring from SIS control backplane to suppress EMI interference
4. Real-time channel fault diagnostics continuously monitor open/short circuit valve wiring and report faults to the central safety controller via bus feedback

Core Function Features

1. Independent per-channel signal range configuration without chassis power shutdown
2. Built-in open-circuit and short-circuit fault self-diagnosis with front-panel LED alarm
3. Isolated analog output eliminates ground loop signal distortion in multi-valve cabinet layouts
4. Hot-swap compatible; module replacement does not interrupt other chassis I/O channel operation
5. Digital signal filtering algorithm suppresses industrial electromagnetic noise from motors, VFDs

Advantage Highlights

1. Integrates valve signal drive and fault detection into single module, reducing cabinet hardware count by 40%
2. SIL 2 safety certification for emergency shutdown valve control loops
3. Ultra-wide operating temperature range supports unheated outdoor industrial cabinet installation
4. Conformal coated PCB prevents corrosion in high-humidity, chemical vapor environments
5. Modbus RTU secondary communication port for third-party HMI signal readback

Applicable Industries

Installation Requirements

1. Install exclusively within Honeywell FC-IOCHAS-0002R 19-inch redundant I/O chassis slots 1–18
2. Horizontal rack mounting only; vertical installation prohibited to maintain thermal convection cooling
3. Minimum 15 mm vertical clearance between adjacent modules for heat dissipation
4. Chassis ambient airflow rate ≥ 0.3 m/s to avoid overheating at maximum load
5. Wiring must use shielded twisted-pair cable with shield single-point grounded at chassis terminal bar

Usage Precautions

1. Do not apply AC voltage directly to analog output terminals; permanent circuit damage occurs
2. Replace module only during system maintenance lockout; hot-swap is permitted but safety loop bypass procedures required
3. Avoid mechanical impact to front terminal blocks; gold-plated contacts degrade under heavy shock
4. Store spare modules in low-humidity anti-static packaging to prevent PCB trace oxidation
5. Annual calibration of output current accuracy required per IEC 61508 SIS maintenance standards
