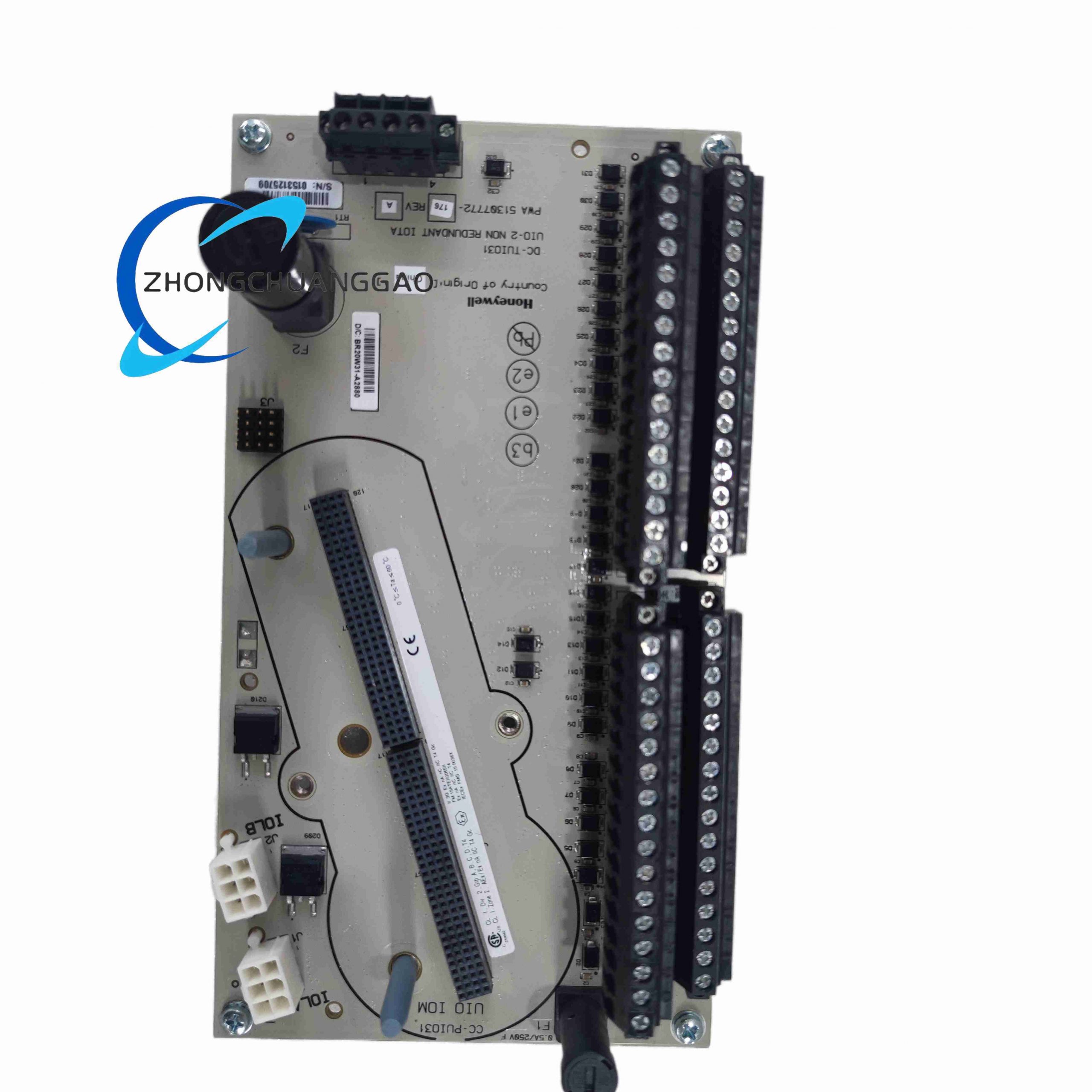

Honeywell DC-TUIO31

Model Series Definition

• DC: Honeywell Experion Series C I/O product series prefix
• TUIO: Termination Universal Input Output universal signal termination assembly
• 31: Standard 32-channel non-redundant base plate hardware revision

Technical & Performance Parameters

1. Channel Configuration Specs
   • Total Configurable Channels: 32 software multiplexed channels
   • Supported Signal Types per Channel: 4–20 mA analog input, 0–20 mA analog output, 24 VDC digital input, 24 VDC digital output, 0–15 kHz pulse frequency input
   • A/D Conversion Resolution: 16-bit
   • Analog Input Scan Rate: 10 ms per channel group
   • Normal Mode Rejection Ratio: 18 dB @ 50 Hz, 20 dB @ 60 Hz
   • Channel-to-Channel DC Crosstalk: ≤ 60 dB (0–60 Hz frequency band)
2. Power Supply Specs
   • Operating Supply Voltage: 24 VDC ±10%
   • Maximum Power Consumption: 10 W
3. Environmental Specs
   • Operating Temperature Range: -20°C to +60°C
   • Storage Temperature: -40°C to +85°C
   • Operating Humidity: 5%–95% non-condensing
   • Protection Class: IP20 (cabinet internal installation only)
4. Mechanical Dimensions & Weight
   • Overall Size (W × H × D): 127 mm × 127 mm × 32 mm
   • Net Weight: 0.2 kg

Material Composition

• Base Plate Housing: Flame-retardant ABS engineering plastic
• Internal Signal PCB: FR4 anti-aging industrial circuit board
• Terminal Contacts: Phosphor bronze with gold plating for low contact resistance
• Surge Suppression Components: TVS transient voltage suppression diodes, gas discharge tubes

Structural Features

• DIN rail snap-on mounting structure compatible with Series C I/O carrier rack
• Front side: Pluggable spring-cage screw terminal blocks for field instrument wiring, each channel independent wiring terminal
• Rear side: Gold finger connector directly plugged into Honeywell Series C I/O module backplane
• Built-in channel independent surge suppression circuit for field signal transient protection
• No internal redundant signal path hardware; single-channel fault isolation without cross-channel interference

Working Principle

Core Function Features

1. Full 32-channel software reconfigurable multi-signal universal interface, eliminating dedicated single-signal termination plates
2. Integrated channel-level surge and ESD protection to block field wiring lightning transients
3. Plug-and-play terminal blocks supporting rapid field wiring modification without tool disassembly
4. Compatible with 2-wire, 3-wire, 4-wire industrial transmitters
5. Supports pulse counting input for flow meter, encoder, and turbine instrumentation
6. Real-time channel open/short circuit fault diagnosis feedback to DCS HMI

Advantage Highlights

1. Single base plate replaces 3–4 separate dedicated termination modules, greatly reducing cabinet wiring quantity and space occupation
2. Channel-level independent fault isolation prevents single instrument wiring failure from affecting entire I/O group
3. No hardware modification required for signal type switching; configuration completed via DCS engineering software
4. Low power consumption design reduces cabinet heat load
5. Full Honeywell Experion PKS native compatibility without third-party conversion adapters

Applicable Industries

Installation Requirements

1. Mount on standard 35 mm DIN rail inside IP54 industrial control cabinet
2. Reserve ≥20 mm vertical clearance between adjacent DC-TUIO31 modules for heat dissipation
3. Separate analog signal wiring and high-power digital output wiring into different cable bundles, maintain minimum 10 cm routing separation
4. 24 VDC power supply wiring must use twisted shielded cables with single-point cabinet grounding
5. All field instrument signal cables require shielding layer grounded at cabinet terminal only (single-end grounding)

Operation & Maintenance Precautions

1. Do not plug/unplug the module backplane connector while powered; cut off 24 VDC supply before disassembly
2. Verify terminal screw torque (0.5–0.8 N·m) every 6 months to avoid loose wiring contact resistance drift
3. Replace internal surge suppression components if lightning surge fault alarms occur repeatedly
4. Prohibit wiring AC power signals to any channel terminals; only 24 VDC low-voltage field signals are permitted
5. Avoid installing near high-frequency variable-frequency drive equipment without additional signal isolation barriers
