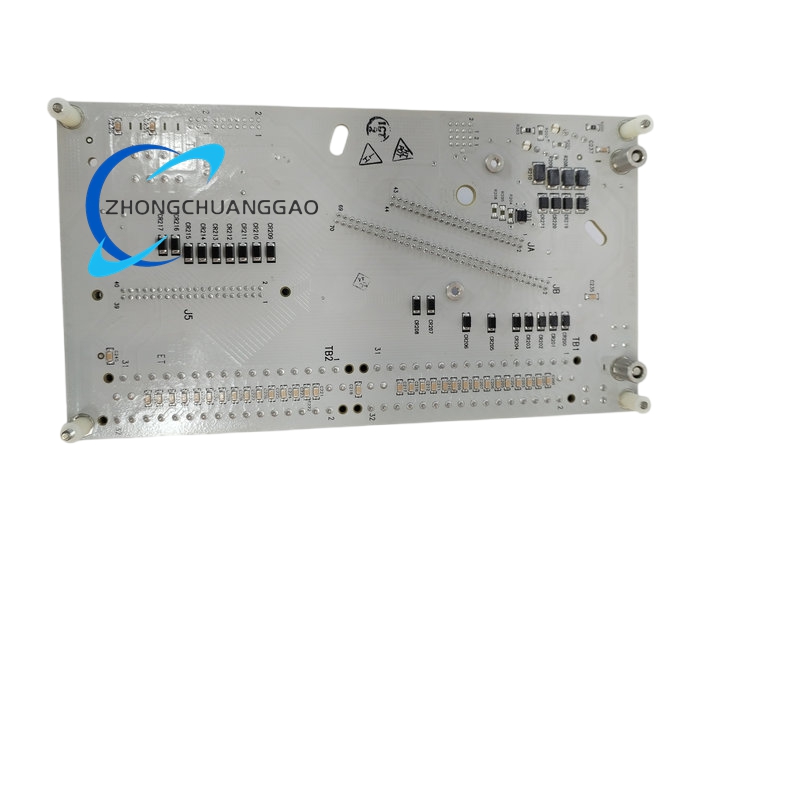

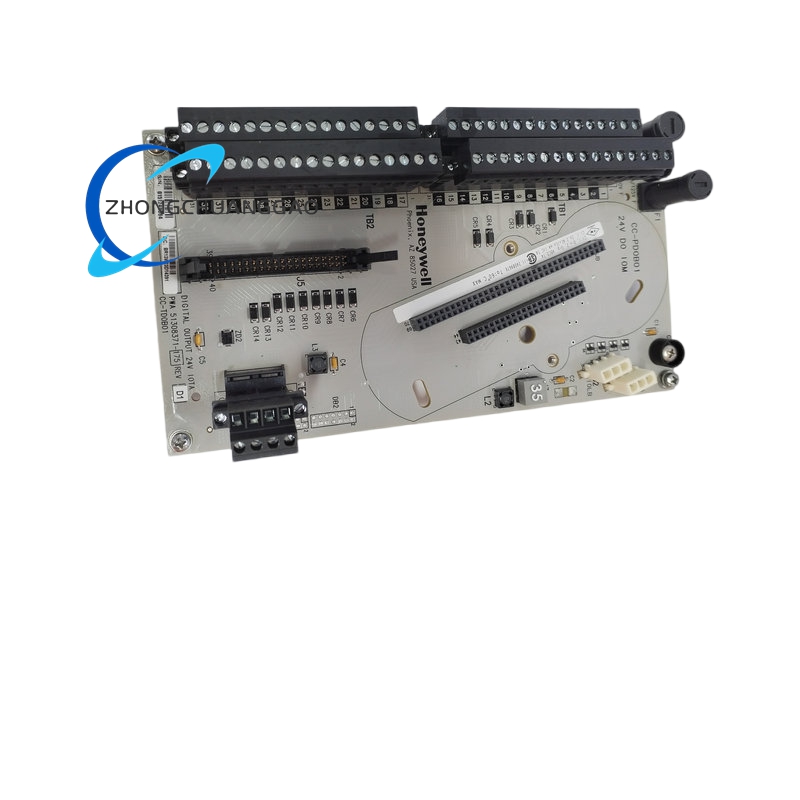

Honeywell CC-TDOB01

Description

Technical Specifications:

• Model Number: CC-TDOB01

• Part Number: 51308371-175

• Product Type: Digital Output Module

• Manufacturer: Honeywell

• Platform Compatibility: HC900 ControlEdge Series; C300 Controller

• Output Channels: 32 solid-state digital outputs (Alternative: 16)

• Output Type: Sourcing DC Voltage

• Operating Voltage: 24V DC Nominal

• Output Voltage Range: 12V DC to 24V DC

• Current per Channel: 0.5A Maximum

• Response Time: <10 microseconds

• Isolation: Channel-to-Channel and Channel-to-Bus

• Diagnostics: Short Circuit and Open Load Detection

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -55°C to +85°C

• Humidity Range: 5% to 95% non-condensing

• Mounting: DIN Rail or Panel Mount

• Weight: 1000g (Alternative: 3 Kg)

Functional Features:

• Solid-State Output: Reliable solid-state design with no moving parts

• High Channel Density: 32 channels per module

• Exceptional Noise Immunity: Robust against electrical interference

• Comprehensive Diagnostics: Short circuit and open load detection

• Fast Response: <10 microseconds response time

• Wide Temperature Range: -40°C to +70°C operation

Performance Parameters:

• Response Time: <10 microseconds

• Current per Channel: 0.5A Maximum

Material Composition: Industrial-grade electronic components for rugged durability.

Structural Features: Standard module form factor with DIN rail or panel mount options.

Working Principle: The CC-TDOB01 receives digital control signals from the controller, processes the commands, and drives solid-state outputs to field devices such as solenoid valves, motor starters, actuators, and relays. The module provides short circuit and open load detection for diagnostic feedback.

Advantages and Highlights:

• High channel density with 32 outputs per module

• Fast response time (<10 µs) for precise control

• Comprehensive diagnostics for maintenance and troubleshooting

• Wide operating temperature range for harsh environments

Applicable Industries:

• Manufacturing, chemical industry, petroleum, electric power, transportation

• Process manufacturing (chemical, pharmaceutical, food and beverage)

• Oil and gas operations

• Power generation

• Water treatment

• Building automation

Model Series: Honeywell HC900 ControlEdge / Experion PKS Series C

Installation Requirements:

• DIN Rail or Panel Mount

• Requires compatible controller (HC900 ControlEdge or C300)

• Proper field wiring per output specifications

Usage Precautions:

• Do not exceed maximum current per channel (0.5A)

• Verify operating voltage within 12-24 VDC range

• Observe operating temperature range (-40°C to +70°C)

• Ensure proper load protection for inductive loads
