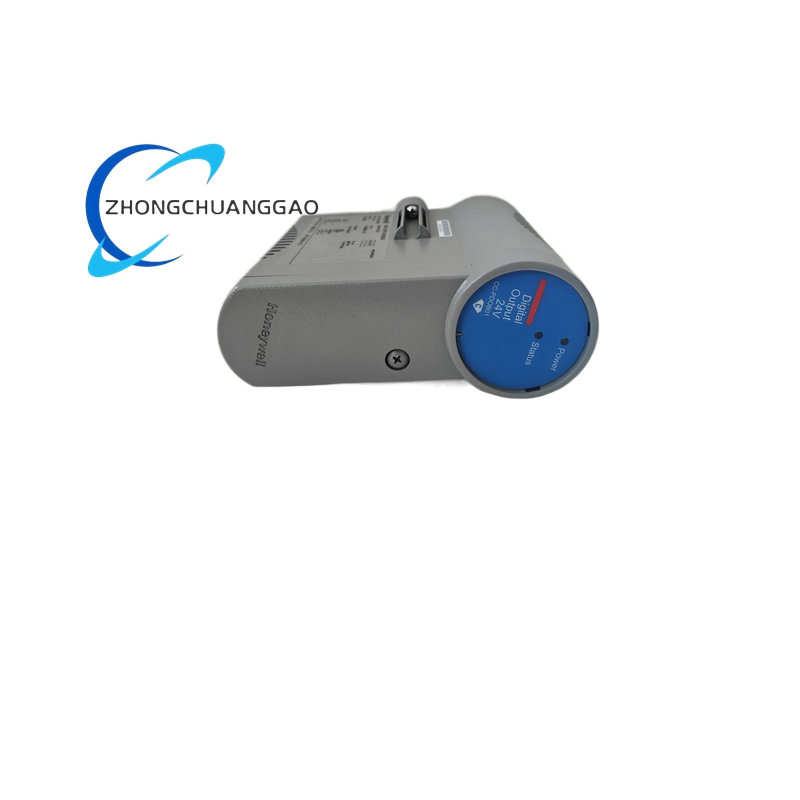

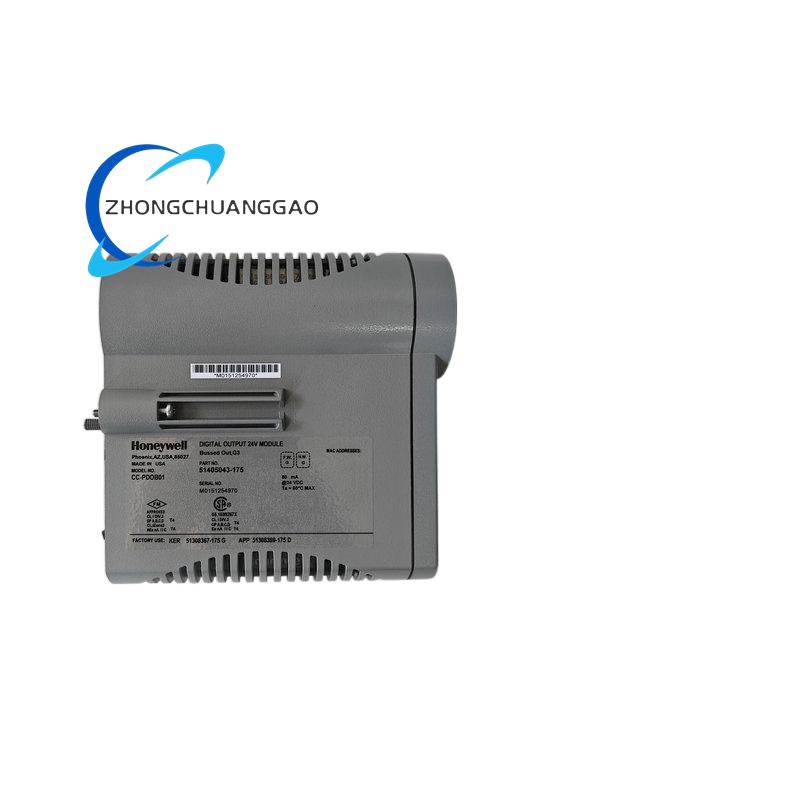

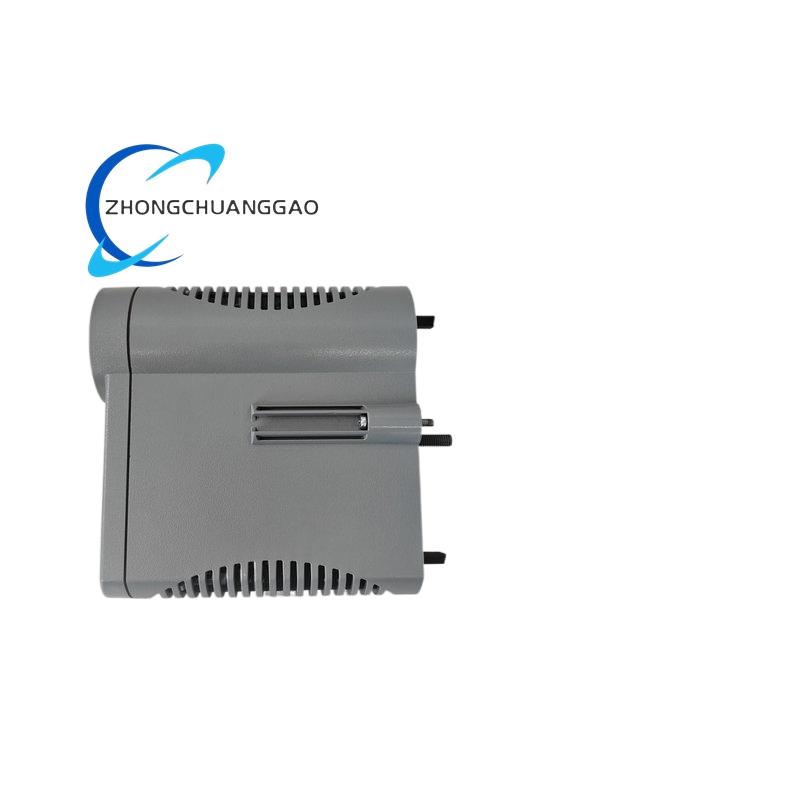

HONEYWELL CC-PDOB01

Description

Technical Specifications:

• Product Model: CC-PDOB01 (51405043-175)

• Manufacturer: Honeywell

• Product Type: 24V Digital Output Module

• Output Channels: 32 fully isolated

• Output Voltage: 9.5-35 V DC

• Output Current: 1A to 2A per channel maximum

• Output Type: Field isolated, bussed output

• Operating Temperature: -40°C to +85°C

• Protection Rating: IP65

• Dimensions: 100 mm × 50 mm × 20 mm

Functional Features:

• 32 Fully Isolated Channels: Each channel independently isolated for fault tolerance

• High Current Drive: Capable of switching resistive and inductive loads

• Wide Voltage Range: 9.5-35 V DC output compatibility

• Hot-Swap Support: Online module replacement

• Bussed Output Configuration: Simplified wiring for common applications

Performance Parameters:

• Output Channels: 32

• Output Voltage: 9.5-35 V DC

• Output Current: 1-2A per channel

• Isolation: Channel-to-channel fully isolated

Material Composition:

• Industrial-grade construction for reliability

• IP65 protection rating

Structural Features:

• Series C form factor with patented heat channeling design

• Compact dimensions: 100 × 50 × 20 mm

• Hot-swappable modular design

• LED status indicators for power and output status

Working Principle:
The module receives digital control commands from the C300 controller via the Series C bus, drives the corresponding output channels to switch loads (relays, solenoids, valves) by applying 24 VDC output voltage. Each channel is fully isolated to prevent fault propagation between channels.

Advantages & Strengths:

• 32-channel high-density design reduces cabinet space

• Full channel isolation prevents single-channel faults from affecting others

• Wide 9.5-35 V DC output range provides application flexibility

• High current capability (1-2A per channel) drives多种 loads

• -40°C to +85°C operating range supports extreme environments

Applicable Industries:

• Process Control: Driving control valves, actuators, and solenoids in chemical, power, and pharmaceutical industries

• Industrial Automation: Controlling relays, contactors, and motors in manufacturing

• General Purpose: Any application requiring high-density, high-reliability digital outputs

Model Series: Honeywell Experion Series C I/O

Installation Requirements:

• Standard Series C I/O rack installation

• Proper load wiring with adequate wire gauge for current requirements

• External suppression diodes for inductive loads recommended

• Ensure proper cooling for high-current applications

Usage Precautions:

• Do not exceed maximum current per channel (1-2A)

• Use external surge suppression for inductive loads (relays, solenoids)

• Monitor LED indicators for output status and faults

• Ensure load voltage within 9.5-35 V DC range
