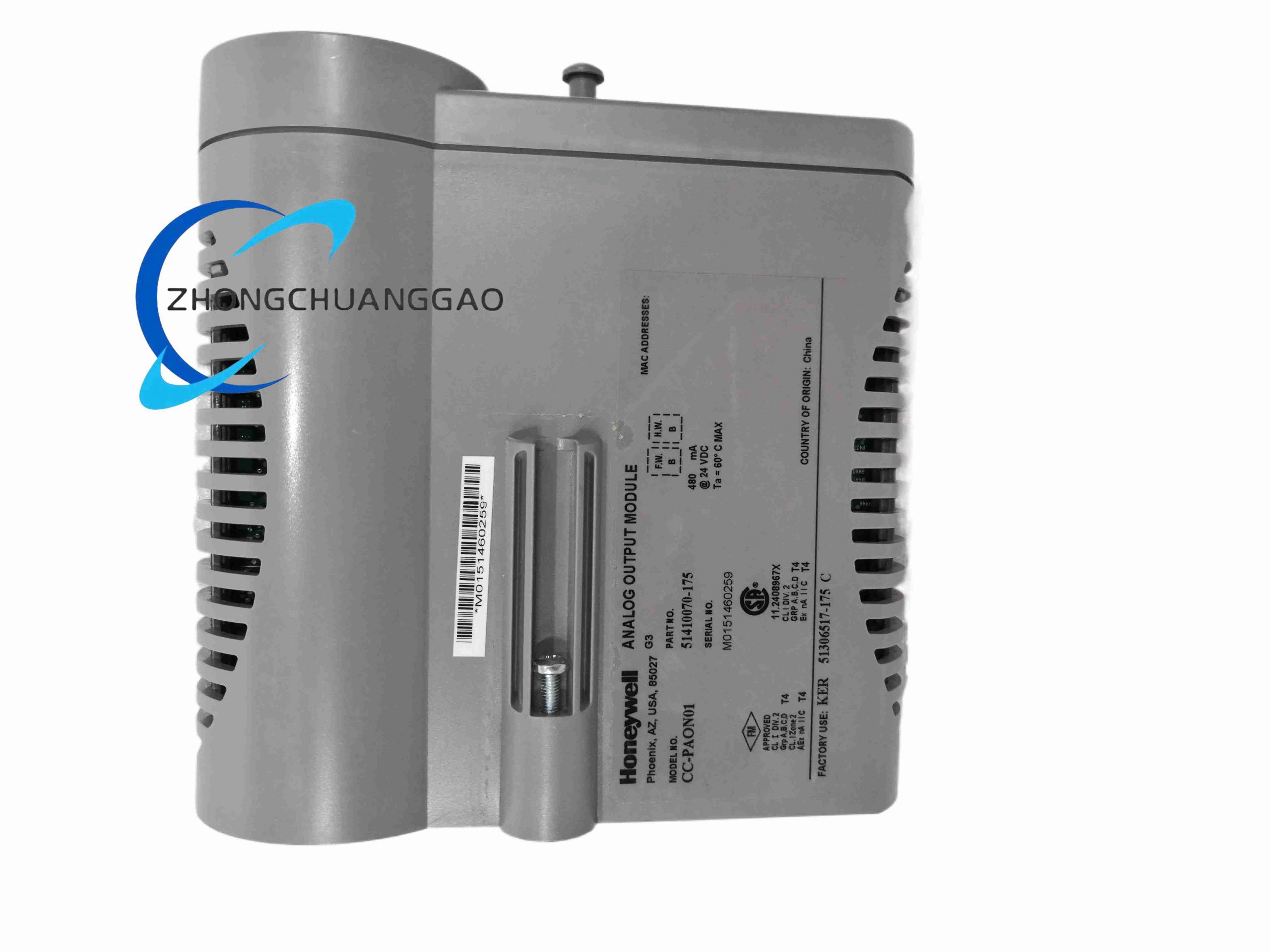

Honeywell CC-PAON01

Technical Specifications​

Part number: 51410070-175

Channels: 8 independent analog output channels

Output signal: 4-20 mA standard, 0-20 mA configurable in applicable firmware

DAC resolution: 16 bits

Accuracy: ±0.1% full scale at 25°C, ±0.15% full scale across 0°C to 60°C operating range

Maximum loop load: 750 Ω at 24 V field supply

Update/scan: 50 ms module scan; per-channel update configurable in engineering tools

Isolation: galvanic isolation per channel and channel-to-backplane, 1500 Vrms rated in isolated configurations

HART: HART 5 and HART 7 pass-through, digital signal superimposed on the 4-20 mA loop

Diagnostics: open-circuit detection, short-circuit protection, output-readback discrepancy alarm, HART communication loss alarm

Backplane power: 24 VDC Series C supply, typical module draw about 3.2 W

Operating temperature: 0°C to 60°C

Storage temperature: -40°C to 85°C

Compatible termination: CC-TAON01 or other assigned Series C analog output IOTA

Functional Features​

Per-channel galvanic isolation. Programmable fail-safe output state. Hot-swap replacement in supported carriers. HART device configuration without interrupting the analog control signal. Live output readback for preventive maintenance.

Application Scenarios​

Control-valve positioners, smart valve actuators, I/P converters, variable-frequency-drive speed commands, burner air/gas ratio control, boiler feedwater and steam pressure control, chemical dosing pumps and pharmaceutical bioreactor analog set points.

Performance Parameters​

Sixteen-bit DAC provides fine set-point resolution across the 4-20 mA range. The 750 Ω load capability supports long field loops with 24 V loop supply. HART pass-through enables range, damping, tag and diagnostic reading while the analog value remains active.

Material Composition​

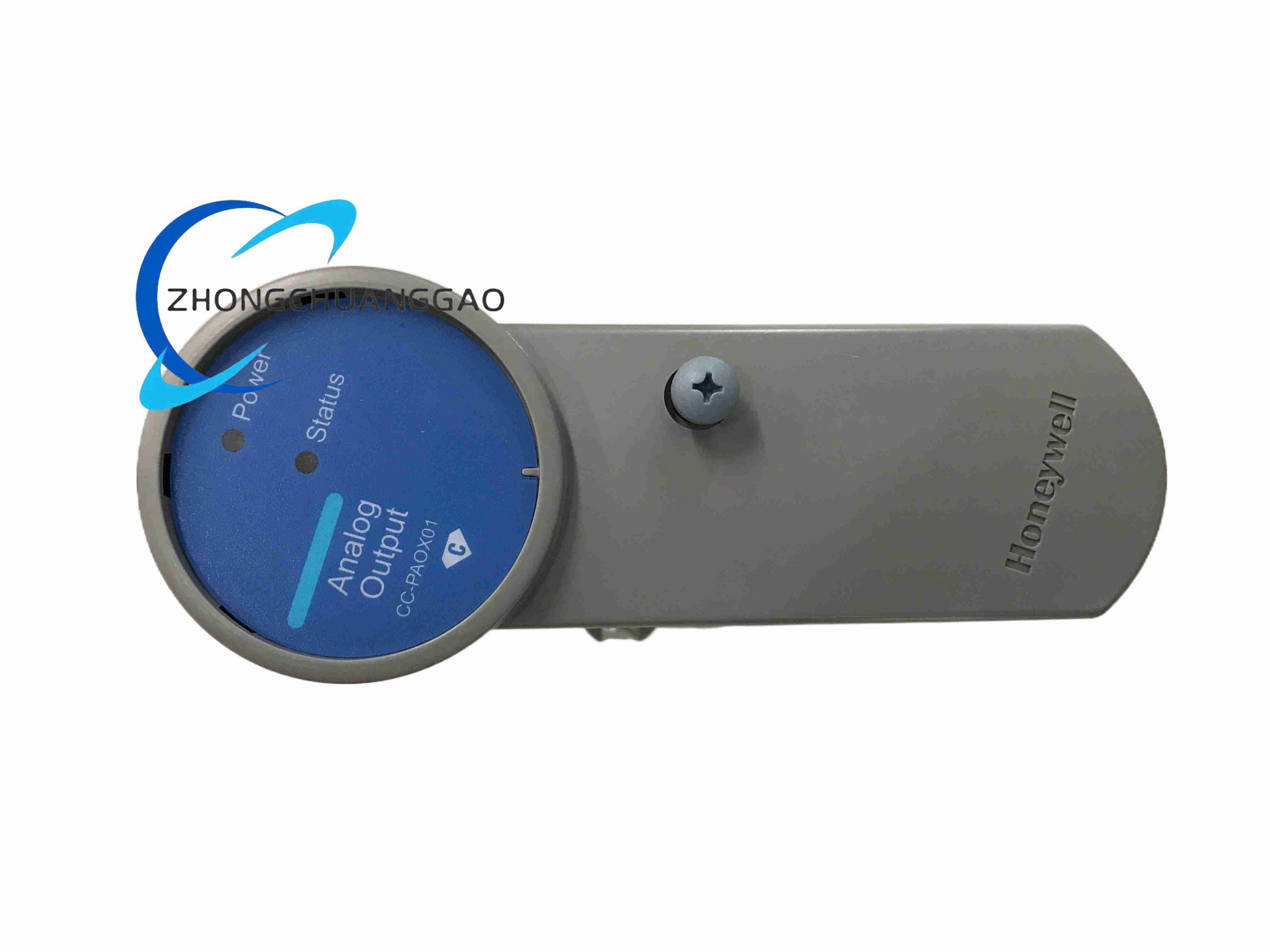

Industrial multilayer PCB, 16-bit DAC components, galvanic isolation barriers, surface-mount power stages, metal backplane edge connector and molded faceplate with per-channel and module-status LEDs.

Structural Characteristics​

Plug-in Series C output PWA. Active electronics reside in the module; field wiring terminates on the IOTA. The divided design allows module replacement without disturbing field cables in hot-swap-capable carriers.

Working Principle​

The C300 controller sends a digital output value over the Series C backplane. The DAC converts the value to a precise current. The output stage drives the field loop through the IOTA. HART modem circuitry modulates digital packets onto the same 4-20 mA loop for two-way instrument communication.

Installation Requirements​

Install CC-PAON01 in a standard Series C I/O carrier and mate it with the correct analog output IOTA. Connect field devices with shielded twisted pair, maintain proper loop polarity and confirm loop load below the 750 Ω limit at 24 V. Configure output range, HART parameters and fail-safe action in the Experion project before placing the loop in service.

Usage Precautions​

Remove IOTA and backplane power before any non-hot-swap service. Verify that CC-PAON01 is not substituted directly for CC-PAOX01 16-channel high-density output because pinout and termination differ. Check open-load and shorted-loop alarms during start-up. Ground shields only at the designated cabinet ground point to avoid ground loops.
