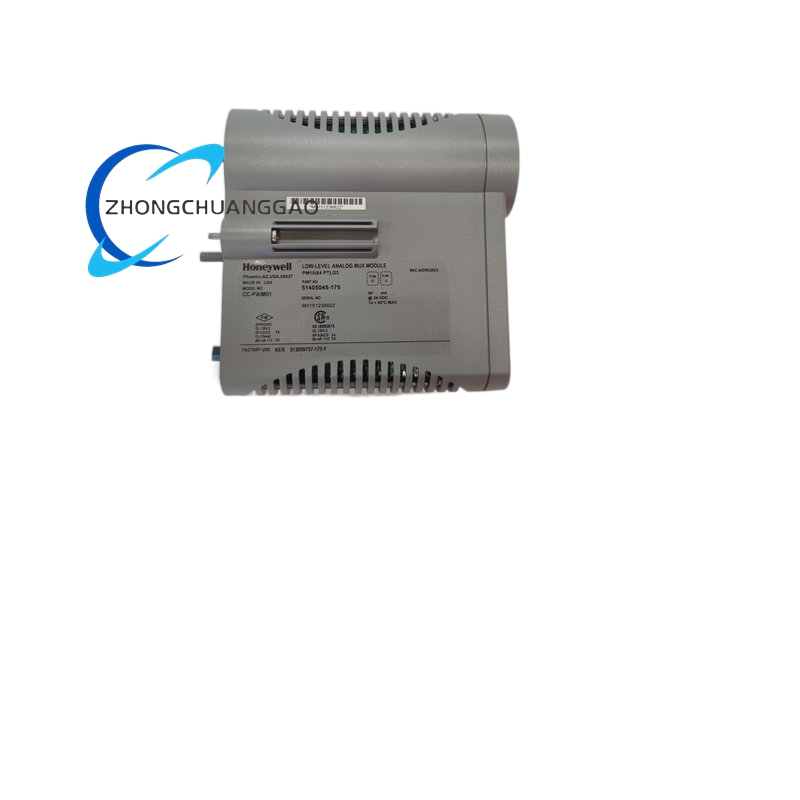

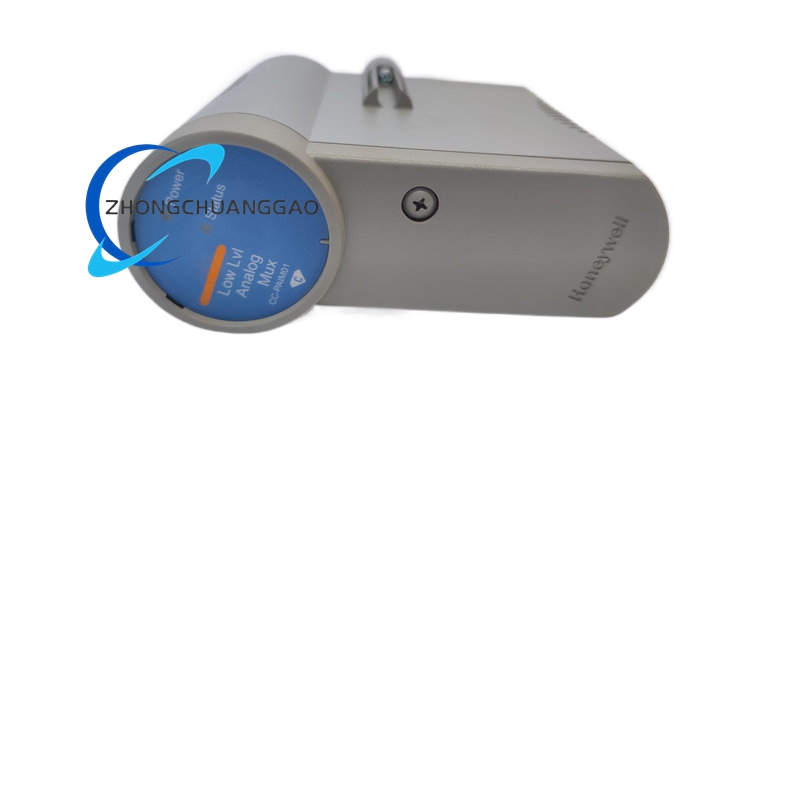

HONEYWELL CC-PAIM01

Description

Technical Specifications:

• Product Model: CC-PAIM01 (51405045-175)

• Manufacturer: Honeywell Process Solutions

• Product Type: Low-Level Analog (Temperature) Input Module / Analog Input Module

• Input Channels: 8 fully-isolated channels (standard configuration); supports up to 64 channels in multiplexed configurations

• Input Signal Types: 4-20 mA DC (2-wire or 4-wire), supports HART Protocol Revision 5/6/7

• Temperature Sensor Support: Thermocouple (TC), Resistance Temperature Detector (RTD)

• Input Impedance: 250 Ω (typical)

• Accuracy: ±0.05% of span

• Resolution: 16-bit ADC

• Isolation Rating: Channel-to-channel and channel-to-ground >500 VAC RMS

• Common Mode Rejection Ratio (CMRR): >100 dB

• Update Rate: 100 ms typical per channel

• Diagnostic Functions: Open circuit detection, short circuit alarm, over-range indication, HART device status reading

• Operating Temperature: 0°C to +60°C

• Power Supply: Redundant 24 VDC via C300 I/O backplane

• Power Consumption: 2.8 W typical

• Installation: DIN rail mounting in C300 I/O rack, supports hot-swap

• Certifications: CE, UL, cUL, ATEX, IECEx

Functional Features:

• Dual-Function Capability: Simultaneously performs high-fidelity analog signal acquisition and serves as a HART communication gateway

• Native HART Integration: Eliminates need for external HART multiplexers – directly extracts HART data at the I/O layer

• Full Channel Isolation: Single-channel fault does not affect other channels

• Hot-Swap Support: Online replacement minimizes maintenance downtime

• Seamless PKS Integration: Automatic recognition in Experion PKS Configuration Studio

Performance Parameters:

• Input Signal: 4-20 mA DC with HART digital communication

• Precision: ±0.05% of span (includes non-linearity, repeatability, temperature drift)

• Resolution: 16-bit

• Isolation: Channel-to-channel and channel-to-ground >500 VAC RMS

Material Composition:

• Industrial-grade construction with high-quality electronic components

• Designed for control room installation (IP20 protection rating)

Structural Features:

• Plugs into FTEB (Field Termination and Electronics Base)底座

• Series C form factor with patented heat channeling design

• Supports redundant implementation for no-single-point-of-failure solutions

Working Principle:
For temperature inputs, the module receives微弱 voltage/resistance signals from thermocouples and RTDs, amplifies them through precision signal conditioning circuits with cold junction compensation, and converts them to digital values via a 16-bit ADC. For 4-20 mA inputs, the module converts current to voltage through a 250 Ω resistor, performs A/D conversion, and simultaneously extracts HART digital communication packets superimposed on the analog loop.

Advantages & Strengths:

• ±0.05% accuracy – for a 100°C temperature signal, error is less than 0.05°C

• HART integration enables predictive maintenance – smart device diagnostics appear directly on DCS画面

• Redundant power supply ensures high availability

• SIL2 certification (IEC 61508) allows use in safety instrumented systems (SIS)

• 16-channel capacity with full isolation

Applicable Industries:

• Refining & Petrochemical: Reactor temperature, column level, pipeline pressure monitoring

• Power Generation: Boiler and turbine parameter measurement

• Pharmaceutical: Critical temperature control in production processes

• General Process Industries: Any application requiring high-accuracy temperature or 4-20 mA signal acquisition

Model Series: Experion PKS C300 I/O Series

Installation Requirements:

• Insert into FTEB (Field Termination and Electronics Base)底座 in C300 I/O rack

• Control room installation only (IP20)

• Ensure redundant 24 VDC power supply through I/O backplane

• Proper wiring for 2-wire vs. 4-wire transmitter configurations

Usage Precautions:

• Monitor diagnostic LEDs for open circuit, short circuit, and over-range conditions

• Regular firmware updates through Experion PKS engineering station recommended

• Ensure proper grounding to maintain >100 dB CMRR performance

• Operating temperature range: 0°C to +60°C – avoid exceeding limits
