Product Short Description
Product Introduction:

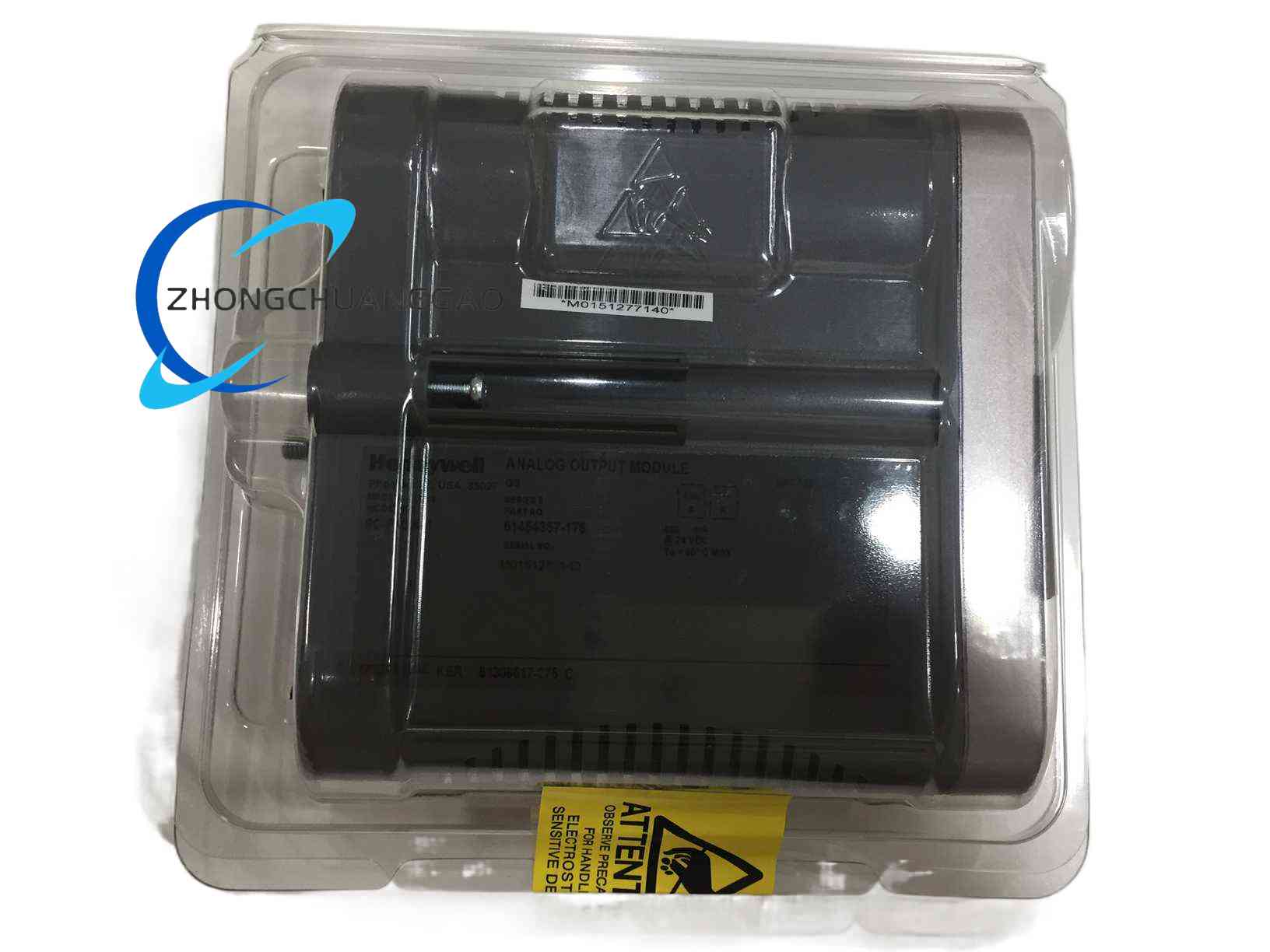

The Honeywell 8C‑PAON01 is an 8‑channel, independently isolated analog output module for the Experion PKS C300 controller platform (Series 8 I/O). Each channel can be software‑configured for current or voltage output without hardware jumpers, providing high‑precision control signals to field actuators.
Description
Technical Specifications:
|
Parameter
|
Value
|
|---|---|
|
Channels
|
8, individually isolated
|
|
Current output
|
4–20 mA (standard), 0–20 mA (optional)
|
|
Voltage output
|
0–10 VDC
|
|
Resolution
|
16‑bit D/A conversion
|
|
Accuracy
|
±0.1 % full scale @ 25 °C
|
|
Output settling time
|
< 80 ms
|
|
Load capability (current)
|
0–600 Ω
|
|
Load capability (voltage)
|
≥ 1 kΩ
|
|
Output impedance
|
> 10 MΩ
|
|
Update rate
|
50 ms/channel (configurable)
|
|
Channel‑to‑channel isolation
|
≥ 1500 Vrms
|
|
Channel‑to‑system isolation
|
≥ 1500 Vrms
|
|
Common‑mode rejection (CMRR)
|
> 100 dB @ 50/60 Hz
|
|
Protection
|
Built‑in over‑voltage, over‑current, short‑circuit protection
|
|
Communication
|
ControlNet / Redundant ControlNet with C300 controller
|
|
Hot‑swap
|
Supported
|
|
Slot occupancy
|
Single slot in C300 I/O rack
|
|
Diagnostics
|
Real‑time channel‑level diagnostics with system alarm
|
|
Certifications
|
CE, UL, CSA, ATEX, SIL 2
|
|
Protection rating
|
IP20 (cabinet installation)
|
|
Weight
|
Approx. 0.5 kg
|
Functional Features:
-
Per‑channel software‑configurable output type (no hardware jumpers)
-
Full galvanic isolation between all channels and the system backplane
-
Built‑in signal filtering suppresses industrial EMI
-
Channel‑level diagnostics with automatic fault reporting to the control system
-
Hot‑swappable for maintenance without system shutdown
-
Supports redundant ControlNet configuration for high availability
Working Principle:
Each of the eight channels contains an independent 16‑bit DAC and isolation barrier. The C300 controller sends output command values over ControlNet; the module converts these to precise current or voltage signals, with continuous self‑diagnostics monitoring output health, load faults, and short circuits.
Application Scenarios:
-
Process control loops driving 4–20 mA valves, actuators, and transmitters
-
Variable frequency drives and inverter speed commands (0–10 V)
-
Safety‑related loops up to SIL 2 in Experion PKS and PlantCruise systems
-
Oil & gas, chemical, power generation, and pharmaceutical process plants
Installation Requirements:
-
Insert into a C300 I/O rack, single‑slot width
-
Cabinet installation (IP20 environment)
-
24 VDC power supply with redundancy option
-
Proper grounding; shield termination for field cables
-
Configure each channel’s output type via Control Builder software (no physical jumpers)
Usage Precautions:
-
Verify load impedance matches output type: current mode requires ≤ 600 Ω; voltage mode requires ≥ 1 kΩ
-
Although hot‑swappable, ensure the rack supports online replacement before pulling the module
-
Isolation voltage of 1500 Vrms must not be exceeded between any channel and ground/system
-
SIL 2 certification is valid only when the overall system design meets the safety manual requirements
