Product Short Description
Product Overview:

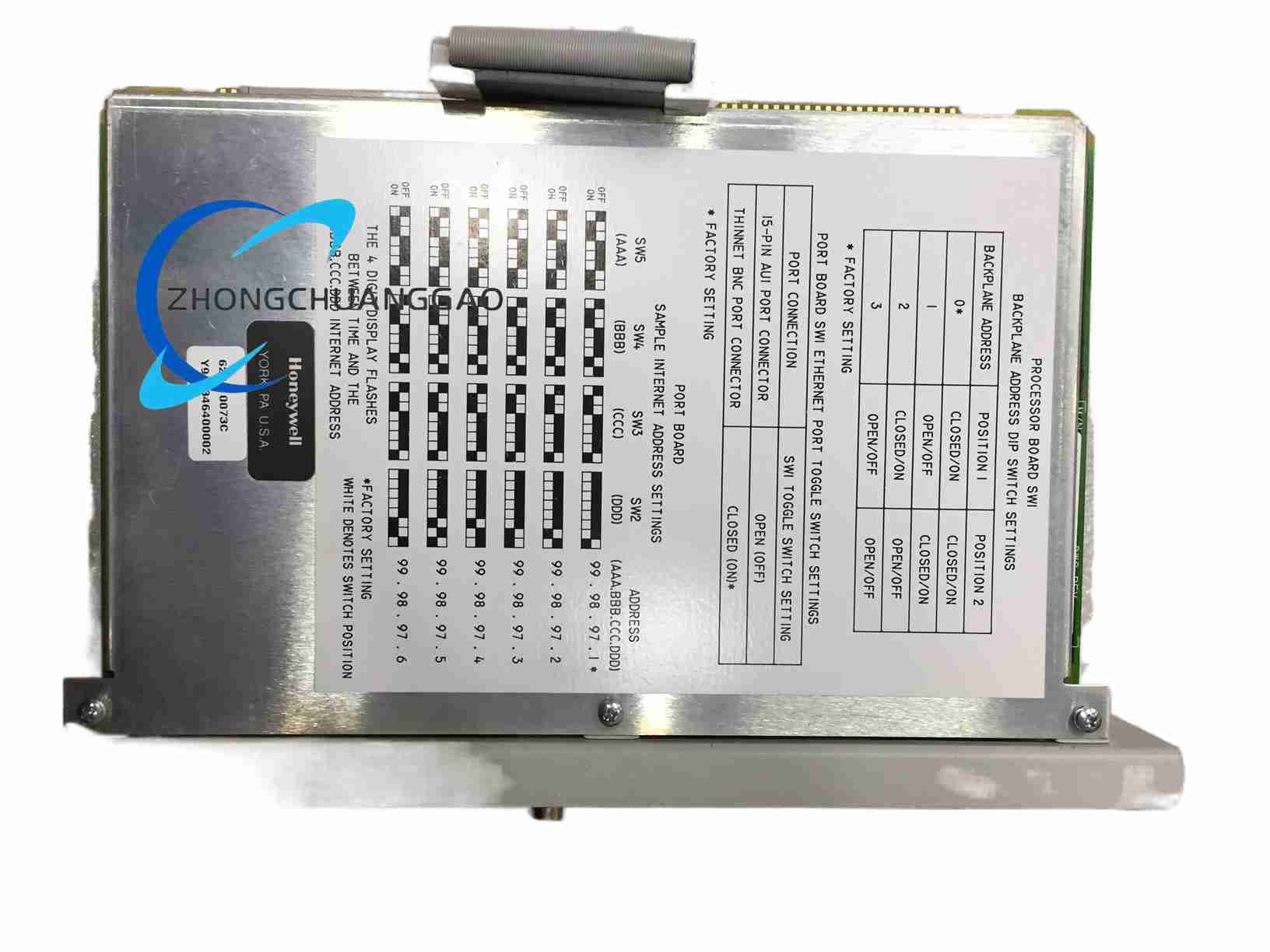

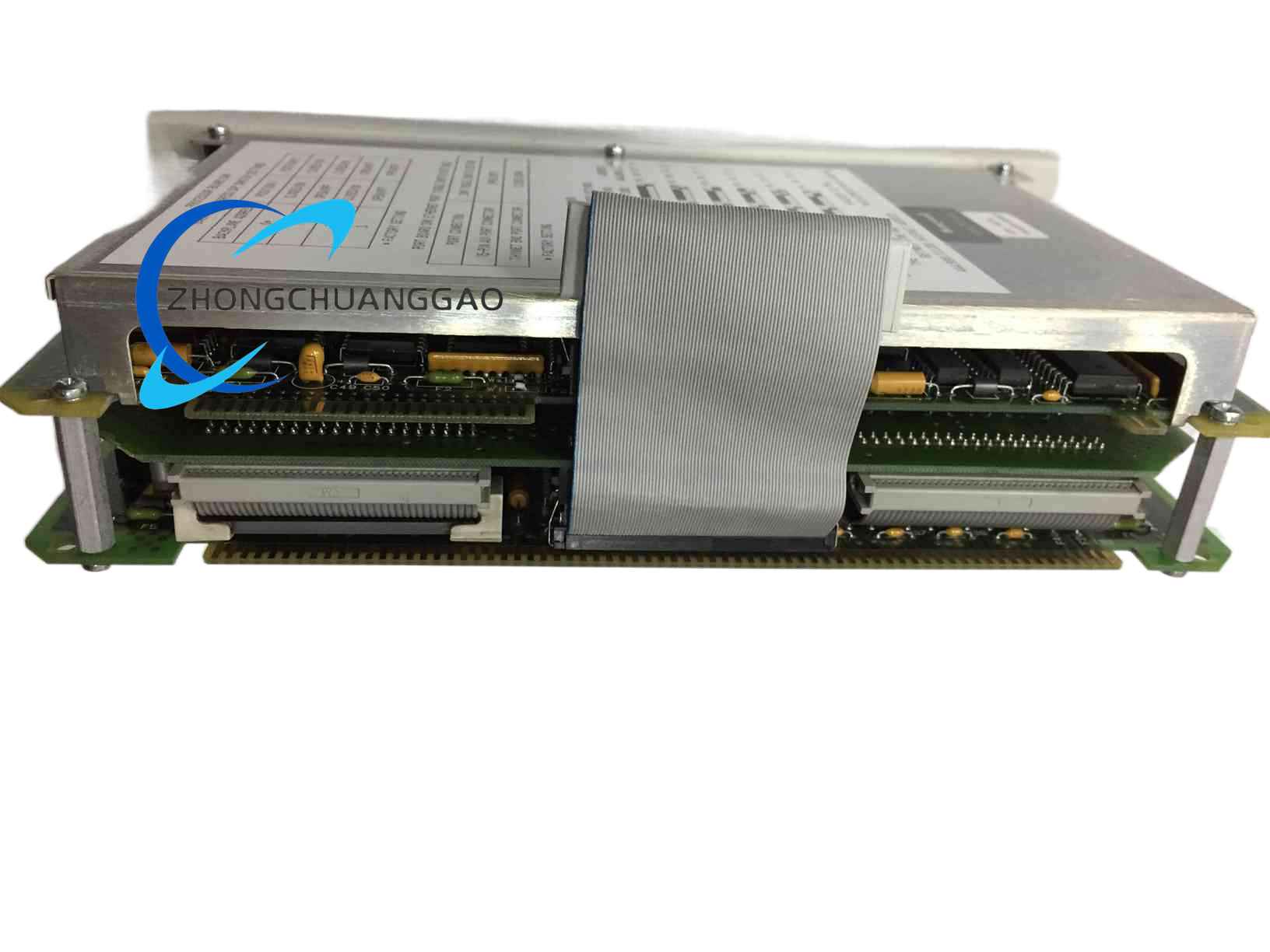

The Honeywell 620-0073C is a rugged, high-performance Ethernet Loop Processor Module designed for Honeywell’s Experion PKS and TDC 3000 distributed control systems. It executes real-time control loops, handles data acquisition, and provides high-speed Ethernet communication to field devices and higher-level hosts.
Description
Technical Specifications:
-
Manufacturer: Honeywell
-
Model: 620-0073C
-
Product Type: Ethernet Loop Processor Module
-
Processor: 32-bit RISC
-
Clock Frequency: 100 MHz
-
RAM: 128 MB
-
Flash Memory: 256 MB
-
Power Input: 85–264 VAC (nominal 24 VDC)
-
Current Consumption: 500 mA
-
Output Power: Up to 360 W (24 VDC output)
-
I/O Channels: 16 (analog & digital)
-
Communication Interfaces: RS-232, RS-485, Ethernet, HART, Modbus RTU, EtherNet/IP
-
Operating Temperature: -25 °C to +70 °C
-
Storage Temperature: -40 °C to +85 °C
-
Humidity: 5–95 % non-condensing
-
Protection Rating: IP65
-
Dimensions: 254 × 193 × 30 mm
-
Weight: 2.58 lb
Key Features:
-
32-bit RISC processor with 128 MB RAM for demanding control strategies
-
Embedded Ethernet, HART, and Modbus for multi-protocol integration
-
IP65 ruggedised enclosure for harsh industrial environments
-
16 mixed analog/digital I/O channels
-
Designed specifically for Experion PKS and TDC 3000 system racks
-
Real-time loop execution and data acquisition
Application Scenarios:
Power generation, petrochemical plants, oil & gas, manufacturing facilities, and any process industry requiring reliable, high-speed loop control within Honeywell DCS architectures.
Installation & Usage Notes:
-
Install in a compatible Honeywell DCS rack with proper backplane seating.
-
Supply 85–264 VAC (or 24 VDC per system design) from a conditioned source.
-
Ethernet port must be connected per Honeywell network topology rules.
-
Keep within -25 °C to +70 °C ambient; ensure cabinet ventilation for the IP65 unit.
-
Do not expose to condensing humidity (>95 % RH).
-
For Experion PKS integration, load the correct firmware image matching the system version.
-
HART and Modbus parameters must be configured via Honeywell engineering tools.
