Product Short Description

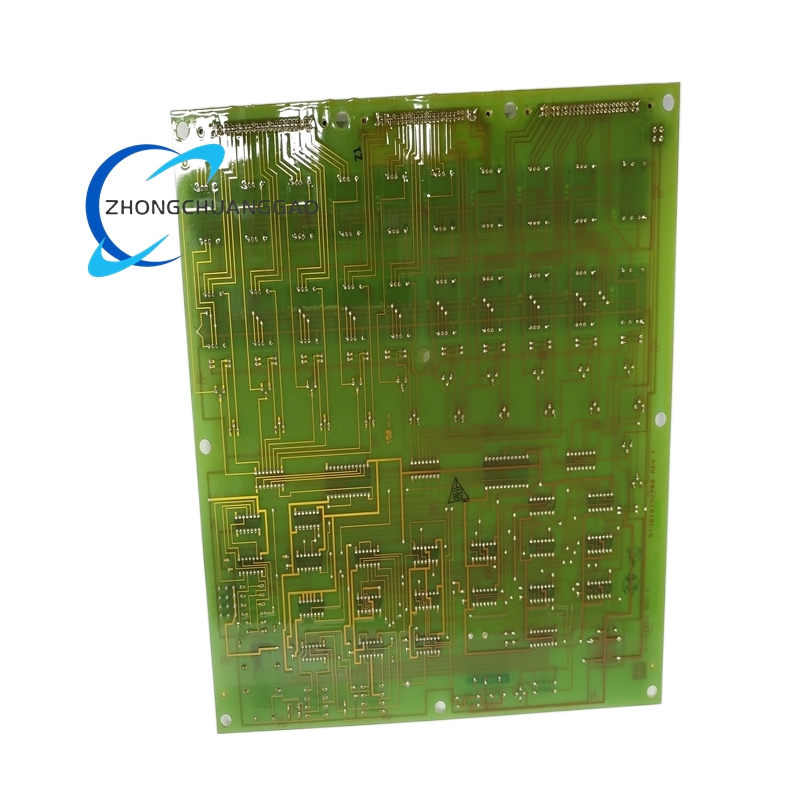

- Product Name: Honeywell DCS I/O Module
- Product Overview: Specialized input/output module designed for Honeywell distributed control systems, responsible for connecting field equipment and main control system to realize signal interaction between field side and control room.
- Model Series: Honeywell Universal I/O Module Series
Description
- Technical Specifications:
- Input/Output Type: Mixed digital I/O
- Rated Power Supply: 24 VDC
- Operating Temperature Range: 0 °C ~ +65 °C
- Insulation Resistance: ≥ 100 MΩ
- Isolation Voltage: 1500 VAC isolation between channels
- Channel Quantity: Standard multi-channel configuration
- Functional Features: Digital signal input, switch signal output, channel over-current protection, short-circuit protection, online channel status monitoring, fault alarm output.
- Performance Parameters: Channel response speed ≤ 8 ms, low signal attenuation, high channel isolation performance, continuous stable operation under industrial harsh environment.
- Material Composition: Flame-retardant ABS outer shell, tin-plated copper terminals, industrial ceramic capacitors, military-grade integrated chips, metal shielding layer inside module.
- Structural Characteristics: Rack-mounted modular design, unified size matching Honeywell standard chassis, separate channel terminal area, integrated status indicator lights, push-pull installation structure.
- Working Principle: Receives on-site digital switch signals and transmits to main controller; converts control commands from main controller into switch signals to drive on-site actuators; each channel adopts independent isolation circuit to prevent signal crosstalk.
- Advantages & Highlights: Excellent channel isolation performance, complete protection functions, strong anti-vibration capability, high compatibility with Honeywell DCS platforms, easy on-site debugging.
- Applicable Industries: Thermal power plant, chemical plant, natural gas processing, cement production, food & beverage processing, municipal engineering.
- Installation Requirements: Mount on dedicated industrial rack inside control cabinet; maintain clearance ≥ 20 mm between adjacent modules for heat dissipation; connect field cables strictly corresponding to terminal labels.
- Usage Notes: Do not connect over-voltage signals to I/O channels; inspect cable connection tightness periodically; prohibit plugging and unplugging module under live state; keep working environment dry and dust-free.
