Product Short Description

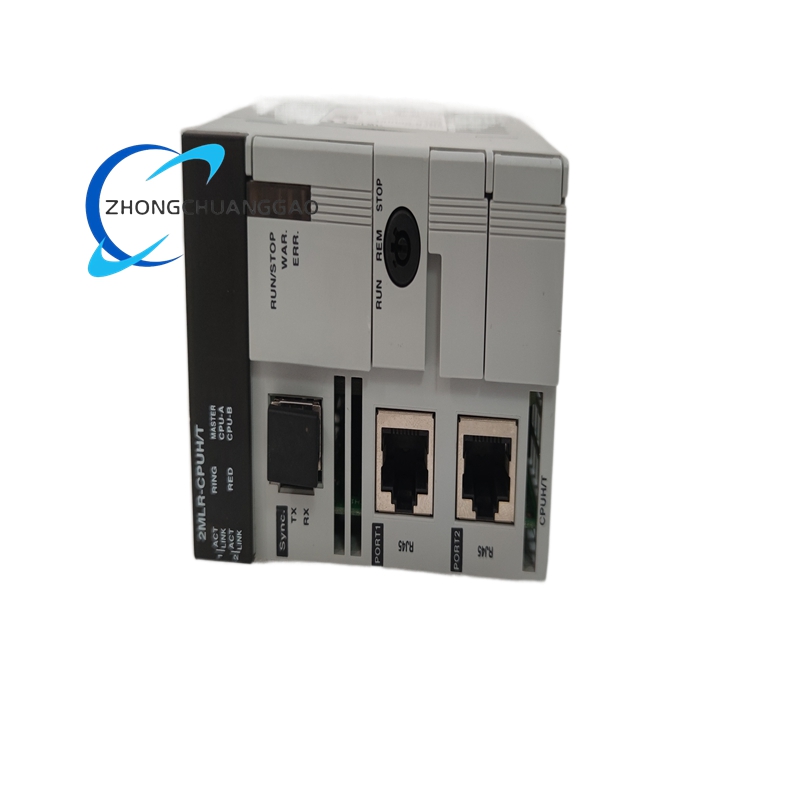

Product Series: Honeywell MasterLogic DCS/PLC CPU Module Series
Product Brief: Core central processing unit module for Honeywell MasterLogic automation control system. It undertakes program execution, logic operation, data processing, bus management and system scheduling, acting as the control core of the entire distributed control system and programmable logic controller.
Description
- Supply Voltage: 24 V DC ±15%
- Operating Temperature: 0 °C ~ +65 °C
- Storage Temperature: -30 °C ~ +75 °C
- Relative Humidity: 5% ~ 95% RH (Non-condensing)
- Program Memory: Large-capacity industrial program storage space
- Data Memory: High-speed real-time data storage area
- System Bus Rate: 2 Mbps
- Redundancy Support: Hot redundant backup function
- Execute user control programs and complete complex logic and arithmetic operations
- Real-time scheduling and management of system internal bus and I/O modules
- Collect on-site I/O data and distribute control commands to each channel
- Support CPU hot redundancy to ensure uninterrupted system operation
- System self-diagnosis, fault code output and running status monitoring
- Multiple communication protocol support for upper monitoring and third-party device docking
- Total Power Consumption: ≤ 14 W
- Program Scan Cycle: Minimum 0.1 ms
- Vibration Resistance: 5 Hz ~ 160 Hz, 0.8 g
- Shock Resistance: 16 g peak acceleration
- MTBF: ≥ 96000 hours
- Main PCB: Server-grade high-density multilayer industrial PCB
- Enclosure: Die-cast aluminum alloy shell with electrostatic anti-corrosion coating
- Core Components: Industrial high-speed CPU chip, flash memory chip, cache chip
- External Connectors: Gold-plated high-reliability industrial connectors
- Internal Structural Parts: Reinforced shockproof brackets and heat conduction components
- Standard rack-mounted modular structure for Honeywell dedicated control racks
- Front panel equipped with running, fault, redundancy and communication indicator lights
- Rear side integrated system bus connector and expansion interface
- Internal layered layout of computing unit, storage unit and communication unit
- Integrated passive heat dissipation structure using aluminum shell as heat conductor
- Anti-loose locking structure for rack installation
After power-on and system initialization, the CPU loads user control programs into the running memory. It cyclically scans all I/O modules to collect field data, executes logic and arithmetic operations according to programs, and outputs control commands to drive field equipment. The redundant monitoring circuit realizes real-time data synchronization between master and backup CPU. The diagnosis circuit monitors the overall system status and outputs alarms when faults occur.
- High-speed computing performance, meeting high-frequency program scan requirements
- Hot redundancy function, realizing seamless switching and system uninterrupted operation
- Large-capacity storage, supporting complex programs and massive data storage
- Aluminum alloy shell with excellent heat dissipation and mechanical strength
- Rich protocol compatibility, convenient for system networking and expansion
Petrochemical industry, power generation, pharmaceutical engineering, building automation, food and beverage production, large-scale process control systems
- Install in the main control slot of Honeywell dedicated rack and lock firmly
- Reserve ≥ 20 mm clearance around the module for heat dissipation
- Use original dedicated cables for bus and communication connection
- Complete reliable protective grounding according to industrial standards
- Install away from strong vibration sources and electromagnetic interference sources
- Cut off rack power before module disassembly, replacement and program downloading
- Do not block the heat dissipation surface of the aluminum alloy shell
- Regularly back up user programs and configuration data to prevent data loss
- Keep the cabinet dry and dust-free to protect internal precision components
- Follow official specifications for redundant configuration and switching test
