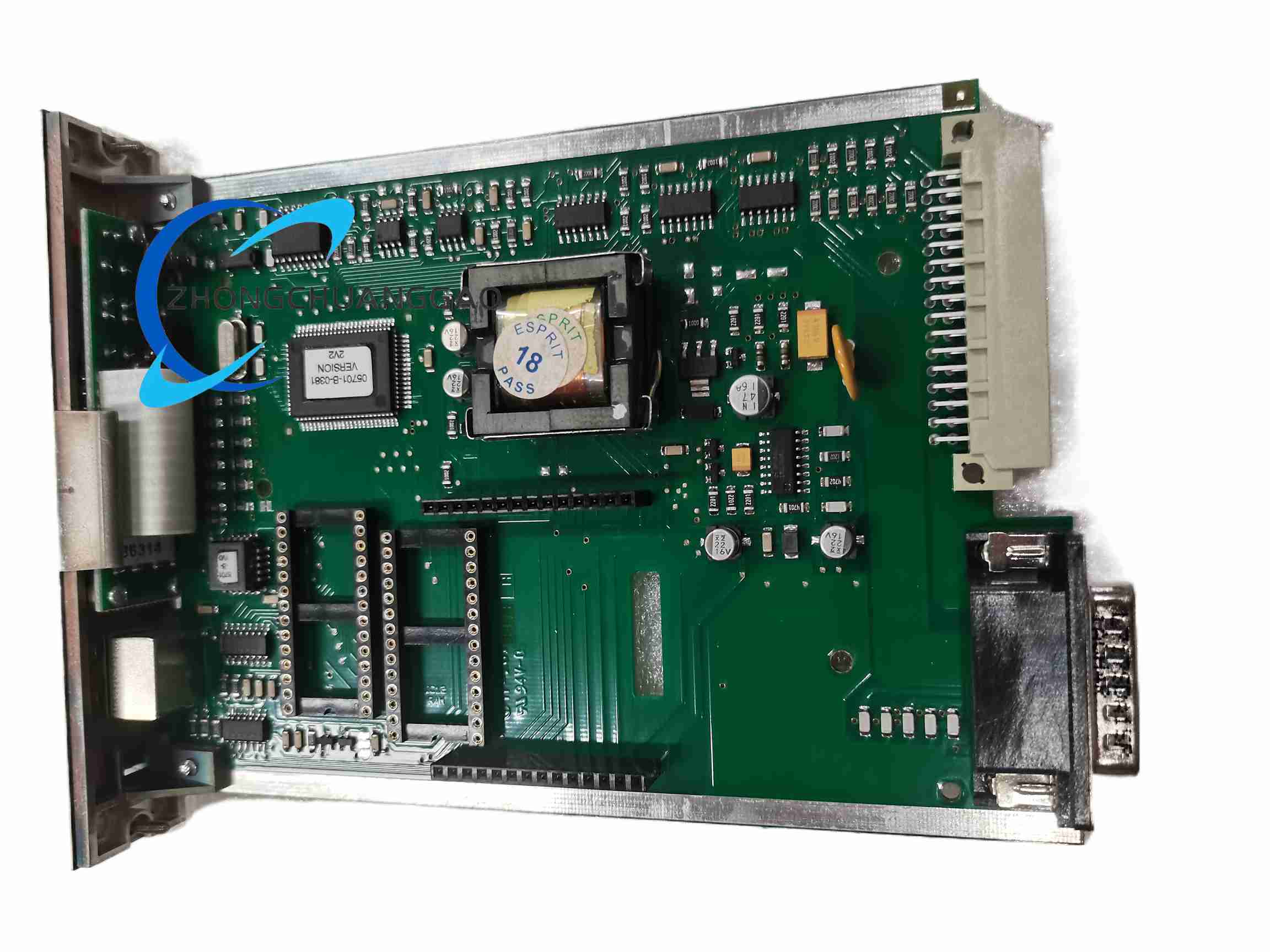

HONEYWELL 05701-A-0550

Description

• Manufacturer:​ HONEYWELL
• Type:​ Single-Channel Control Card / Calibration Plug
• Power Supply:​ 18-32 V DC (24 V DC typical)
• Power Consumption:​ < 20 W
• Catalytic Bridge Input:​ Constant current mode, 90-315 mA range
• 4-20 mA Input Loop Resistance (Max):​ 500 ohms
• Response Time:​ < 30 seconds
• Display:​ Backlit LCD, bar graph, peak reading; LED indicators; operation buttons
• Functions:​ Remote reset and disable
• Insulation Resistance:​ ≥ 100 MΩ
• Dielectric Strength:​ AC 500 V / 1 minute
• Operating Temperature:​ -5°C to +55°C (industrial control variant: -40°C to +85°C)
• Storage Temperature:​ -25°C to +55°C
• Humidity:​ 20%-95% RH (non-condensing)
• Enclosure:​ Stainless steel housing; G1/4 external thread connection (industrial variant)
• Protection Rating:​ IP67
• Dimensions:​ 3U height × 25 mm width (calibration plug); 144×102×44 mm (industrial variant)
• Weight:​ 0.165 kg (calibration plug); 0.25 kg (industrial variant)
• Certifications:​ EN 50270

• 25-segment analog bar display with LEDs (A1, A2, A3, plus Fault, Inhibit, Power)
• Low electronic drift and tight repeatability
• Electrical isolation design
• Natural convection cooling

• Chemical, petrochemical, oil & gas, and power generation
• Industrial gas detection and safety alarm monitoring
• Process variable real-time monitoring
• System calibration and fault diagnosis

• Plug-in module for control systems
• Maintain operating temperature within rated range for optimal performance
• Ensure proper shielding and grounding to prevent EMI-induced signal interference
