Product Short Description

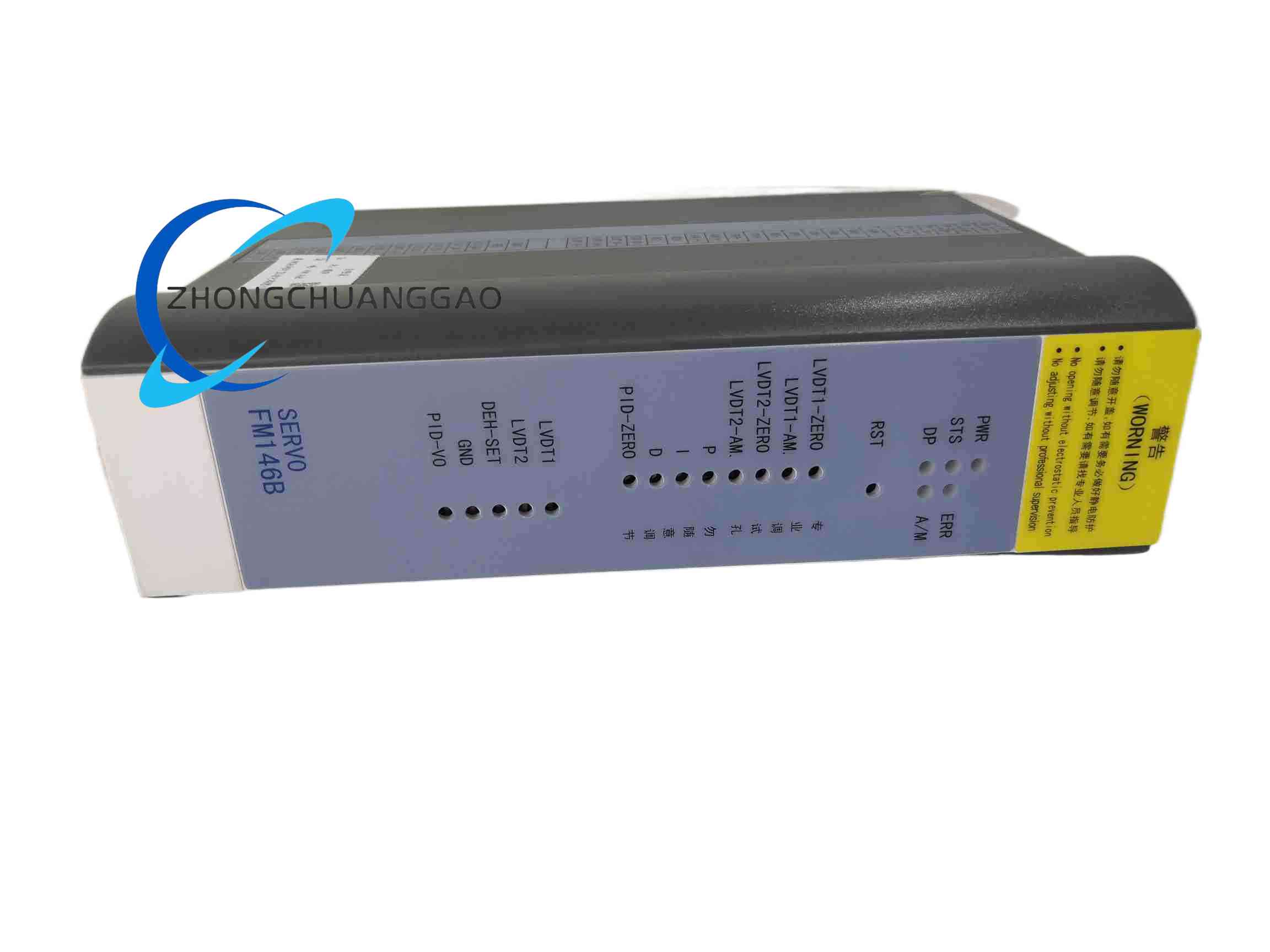

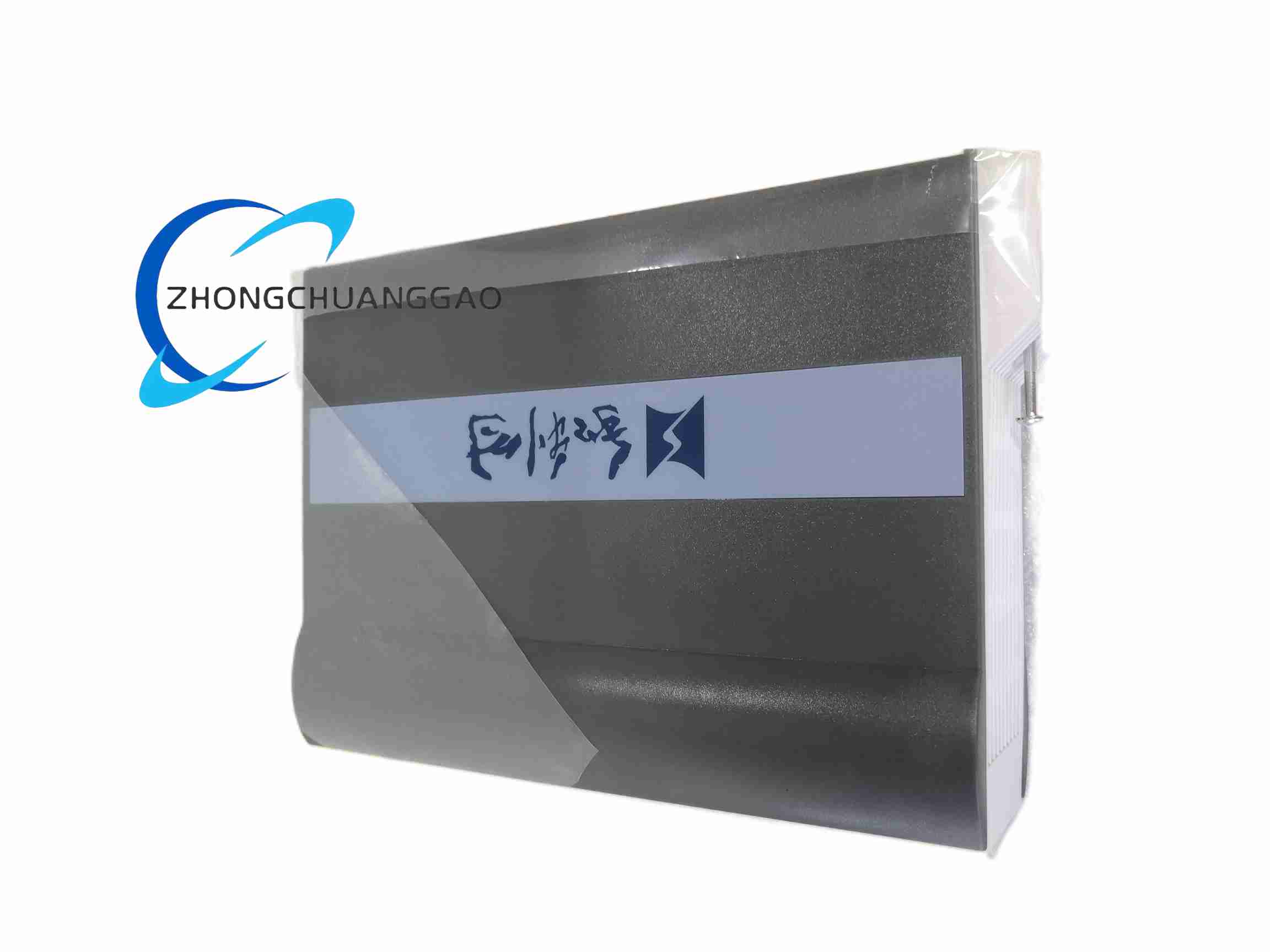

Product Name: Hollysys FM146B Control / I/O Module
Product Introduction: The Hollysys FM146B is an industrial control module within the Hollysys FM series, designed for process control and automation applications. It features a high-performance 32-bit RISC CPU and provides a combination of digital and analog I/O capabilities for interfacing with field devices. The module is built with modular, redundant-design architecture for high reliability in industrial environments.
Description
Technical Specifications:
- Model: FM146B
- Brand: Hollysys
- CPU: 32-bit RISC
- I/O points: 128 (digital)
- Analog I/O points: 16
- Scan cycle: 0.25 ms
- Communication interface: RS-485, Modbus RTU
- Power supply: 24 Vdc
- Dimensions: 220 mm × 160 mm × 80 mm
- Weight: 2 kg
- Programming: EasyLadder software
- Design: Modular with redundant CPU/I/O/power modules
Extended specifications (per additional product listings):
- Digital I/O: 16 DI (24 Vdc) + 16 DO (24 Vdc)
- Analog I/O: 8 AI (0–20 mA / 4–20 mA / 0–5 V / 0–10 V) + 4 AO
- CPU clock: up to 200 MHz (high-performance variant)
- Communication: RS-485, Ethernet
Functional Features:
- High-performance 32-bit RISC processor with 0.25 ms scan cycle for high-speed control
- Modular design with redundancy for CPU, I/O, and power modules
- Intuitive EasyLadder programming software and user interface
- Strong expandability with multiple extension modules
- Three-layer coating for anti-vibration, dust-proof, moisture-proof operation
- Compatible with Hollysys MACS DCS ecosystems
Application Scenarios: Industrial control, process control, automation systems in petrochemical, electric power, metallurgy, and general discrete manufacturing. Suitable for high-speed control applications requiring fast scan cycles and mixed digital/analog I/O.
Installation Requirements: Install in a compatible Hollysys FM series rack or cabinet. Provide 24 Vdc power supply. Connect field devices to the appropriate I/O terminals — digital inputs/outputs accept 24 Vdc signals; analog inputs support 0–20 mA, 4–20 mA, 0–5 V, 0–10 V. Maintain cabinet temperature within the standard industrial range.
Usage Precautions: Observe the total I/O point limits (128 digital, 16 analog). Ensure proper 24 Vdc power supply with adequate current margin for all connected field devices. For safety-critical or high-reliability applications, leverage the redundant module design. Use EasyLadder for configuration — verify firmware compatibility.
