Product Short Description
Product Overview

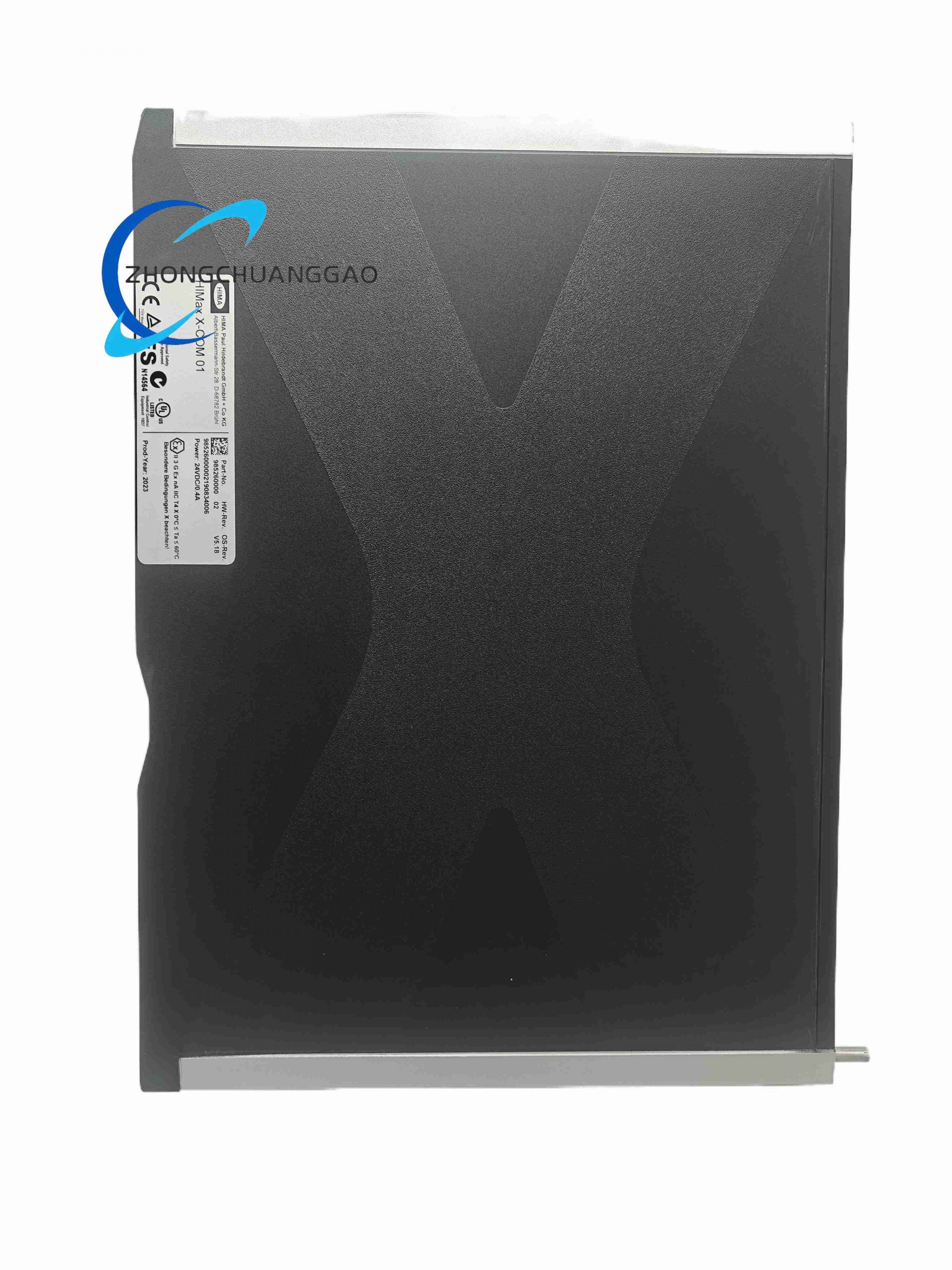

This is a dedicated gateway communication module exclusively matched with HIMA HIMax safety instrumented programmable electronic systems (PES). It serves as the data bridge between the internal redundant safety backplane bus and external industrial Ethernet/serial fieldbus networks. Although it does not execute direct safety control logic, it holds TÜV SIL 3 certification to guarantee end-to-end secure data transmission for safety loops, supporting multi-protocol parallel operation and integrated network switching functions. It must cooperate with X-CB 001 02 dedicated terminal connector board for field wiring.
Description
Technical Specifications
- Power Supply: 24 V DC, tolerance range -15% ~ +20%, SELV/PELV isolation standard
- Power Consumption: Max 32 W, rated operating current 1.3 A
- Hardware Interfaces: 4 independent RJ45 Ethernet ports (integrated managed switch), 2 x 9-pin D-Sub serial ports (RS232/RS485 switchable)
- Supported Industrial Protocols: SafeEtherCAT, Modbus TCP, HINET proprietary safety protocol, OPC UA, FDT/DTM, PROFIBUS
- Data Storage: Non-volatile flash memory for fault log, system firmware and configuration parameters
- Safety Certification: IEC 61508 SIL 3, TÜV Rheinland certified
- Physical Dimension: 125 mm (H) × 70 mm (W) × 25 mm (D)
- Net Weight: 0.5 kg, total shipping weight 2 kg including packaging
- Environmental Parameters: Operating temperature -20 ℃ ~ +60 ℃; storage temperature -40 ℃ ~ +85 ℃; relative humidity 5% ~ 95% non-condensing
- Diagnostic Response Speed: Fault detection cycle ≤ 1 ms, module fault self-reboot recovery within 5 s
Core Functional Features
- Redundant system bus data interaction, dual-channel backplane communication to eliminate single-point communication failure
- Built-in 4-port industrial Ethernet switch, realizing physical isolation between safety zone and non-safety zone networks
- Real-time bidirectional process data transmission, HMI/SCADA data uploading and remote system diagnosis
- Complete fault self-test mechanism covering port short circuit, cable breakage, communication timeout and hardware chip abnormality
- Independent error log recording, storing 10,000+ historical fault records readable via SILworX engineering software
- Multi-protocol simultaneous running without mutual interference, flexible network partition configuration
- Hot-swappable design, module replacement without full system shutdown
Working Principle
The module receives safety control data from X-CPU 01 main controller through dual redundant HIMax backplane bus. Internal dual-core communication processor completes data verification, protocol conversion and frame encapsulation. Process data is forwarded to external upper monitoring equipment via Ethernet/serial ports, while receiving remote configuration commands and downloading them to the main controller. Once communication hardware or link failure is detected, the module enters ERROR STOP state, stops all external data exchange, automatically restarts and re-establishes communication after hardware self-check passes. All transmitted safety data carries unique verification codes to prevent tampering and signal distortion.
Structural & Material Characteristics

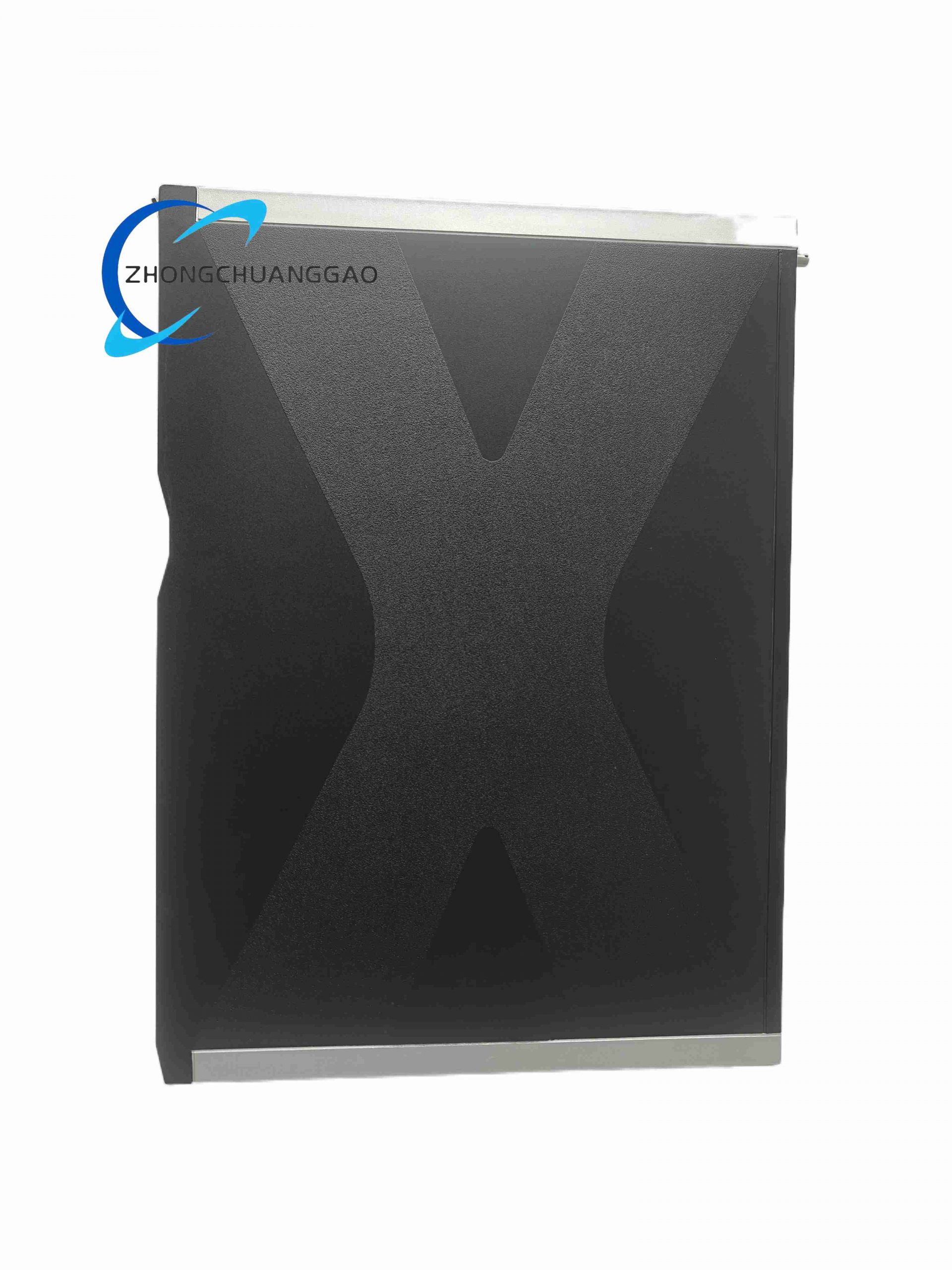

- Outer shell: Die-cast aluminum alloy housing with anti-corrosion matte black coating, anti-electromagnetic interference shielding layer inside
- Circuit substrate: High TG FR4 flame-retardant PCB board, full surface copper plating for EMC shielding
- Connector components: Gold-plated RJ45 and D-Sub terminals to reduce contact resistance and resist oxidation
- Indicator area: Front panel equipped with LED status lights for power, backplane bus, each Ethernet port, serial port and system fault
- Internal structure: Independent isolated power supply cavity, separated analog and digital circuit zones to avoid signal crosstalk
Installation Requirements
- Installed on HIMax system baseplate slots; cannot occupy dedicated system bus reserved slots
- Must install matched X-CB 001 02 terminal board at the rear of the baseplate for field cable access
- Mounting direction strictly horizontal, no vertical or inverted installation allowed
- Maintain ≥20 mm ventilation gap between adjacent modules for heat dissipation
- Complete ESD grounding of baseplate cabinet, ground resistance ≤ 4 Ω
- Ethernet cable must use industrial shielded CAT6 cable, shielding layer single-point grounding at cabinet side only
Application Scenarios
Oil & gas ESD emergency shutdown systems, chemical plant BMS burner management systems, power plant turbine safety control, pharmaceutical factory fire & gas detection safety loops, refinery SIS instrument systems, offshore platform safety monitoring systems.
Operation & Maintenance Precautions
- Strictly wear anti-static wristband when plugging/unplugging the module; static discharge will permanently damage internal communication chips
- Do not hot-plug D-Sub serial cables under power-on state, which may cause port chip burnout
- Avoid installing in areas with corrosive gas, heavy dust or direct water splashing; cabinet protection grade requires at least IP54
- Regularly export fault logs via SILworX every 3 months to check hidden communication link abnormalities
- Firmware upgrade must be completed under offline maintenance mode; online upgrade may lead to temporary safety communication interruption
- If multiple communication faults occur continuously, check backplane bus terminal pins for oxidation first before replacing the module
