HIMA F7131 981713102

Description

Technical Specifications

• Full Factory Part Identifier: F7131 981713102
• Safety Certification: IEC 61508 SIL 3, ISO 13849 PL e, TÜV Rheinland certified
• Monitored Power Input Channels: 3 independent 24VDC chassis power monitoring circuits
• Backup Battery Model Compatibility: CR-1/2 AA-CB lithium buffer battery
• Battery Service Life Cycle: 4 years rated continuous operation
• System Response Time for Critical Power Faults: <50ms
• Communication Interface: Dedicated isolated safety bus to main HIMA CPU
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C
• Module Rack Width: 4 TE unit

Function Features

1. Simultaneous monitoring of three independent chassis 24VDC power supply branches with undervoltage/overvoltage fault detection
2. Built-in lithium backup battery compartment to maintain diagnostic log storage during full chassis main power loss
3. Real-time power fault data aggregation and isolated transmission to main safety CPU
4. Front panel 3 dedicated LED indicators for each monitored power channel status
5. Automatic battery health self-test cycle executed every 24 operating hours
6. Hot-swappable design for redundant safety rack maintenance without full system shutdown

Performance Parameters

• Power voltage measurement precision: ±0.08VDC full scale
• Backup battery continuous runtime after main power loss: Minimum 72 hours for diagnostic log retention
• Battery health test diagnostic coverage: 100% internal battery circuit monitoring
• Fault data transmission delay to CPU: <10ms

Material Composition

• Housing: UL94 V0 flame-retardant reinforced ABS plastic
• Main PCB: Multi-layer high-temperature FR4 industrial circuit board
• Power monitoring sensor arrays: Precision wide-temperature voltage divider circuits
• Battery compartment: Shock-resistant plastic battery holder with anti-short-circuit contact terminals
• Communication bus connector: Gold-plated isolated edge connector

Structural Characteristics

• Rack pluggable auxiliary CPU sub-module with front locking mechanism

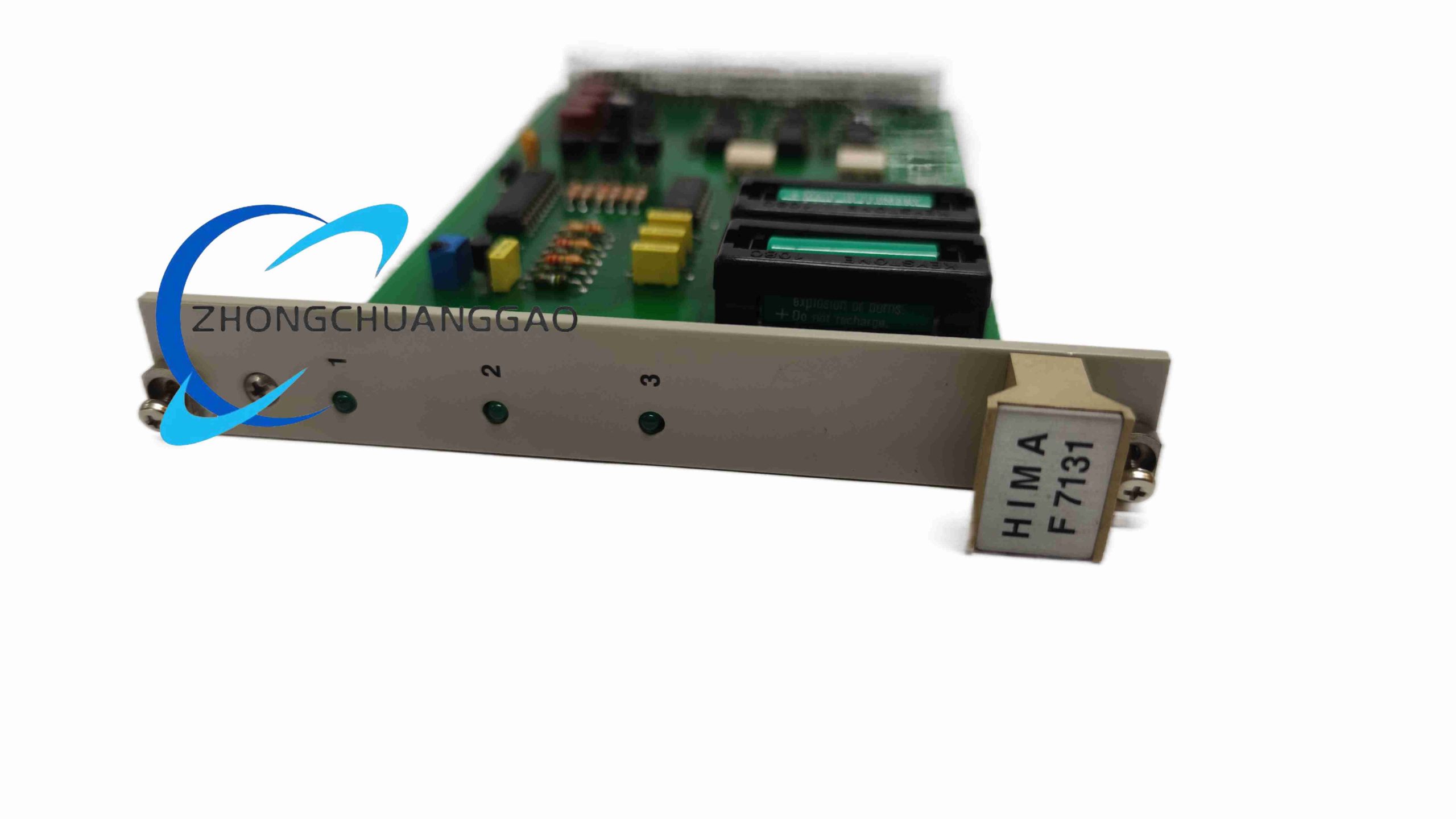

• Front panel three independent LED status indicators matching three monitored power branches
• Sealed rear battery compartment accessible via front panel removable cover
• Internal fully isolated power monitoring circuits separated from safety communication bus circuits

Working Principle

Three independent voltage sampling circuits continuously measure each chassis 24VDC power branch voltage levels, comparing against factory-calibrated fault thresholds. All power fault event data is stored in non-volatile memory powered by internal CR-1/2 AA-CB lithium backup battery during main power outage. Real-time power status and fault logs transmit to main HIMA safety CPU via isolated backplane bus. Daily automatic battery discharge test verifies backup cell capacity, triggering battery replacement alarm upon capacity degradation below rated threshold.

Advantage Highlights

1. Three-channel independent power monitoring supports triple redundant chassis power supply architectures
2. Long-duration backup battery retains critical safety fault logs through extended main power outages
3. SIL 3 certified full diagnostic coverage for chassis power supply integrity
4. Hot-swap compatible design eliminates full rack shutdown for module replacement
5. Daily automatic battery health testing enables predictive maintenance scheduling

Applicable Industries

Offshore Oil Platform ESD Systems, Large LNG Terminals, Thermal & Combined-Cycle Power Plant Safety Control, Petrochemical Mega-Plant SIS Racks, Hazardous Chemical Batch Production Safety Instrumented Systems

Installation Requirements

1. Install exclusively in dedicated auxiliary CPU adjacent slots of HIMA F-series redundant safety chassis
2. Insert CR-1/2 AA-CB factory-specified lithium battery before commissioning module
3. Maintain minimum 20mm ventilation gap around module for heat dissipation
4. Anti-static wristband mandatory during module installation and battery replacement operations

Usage Precautions

1. Replace internal lithium backup battery every 4 calendar years per factory service specification
2. Perform full power loss simulation test during annual SIS proof testing cycles
3. Use only original HIMA CR-1/2 AA-CB battery cells; third-party batteries invalidate SIL safety certification
4. Avoid installation in environments with corrosive gas, salt fog or continuous temperature cycling exceeding ±70°C range
5. Record all battery replacement dates in site safety equipment maintenance log for regulatory audit traceability
