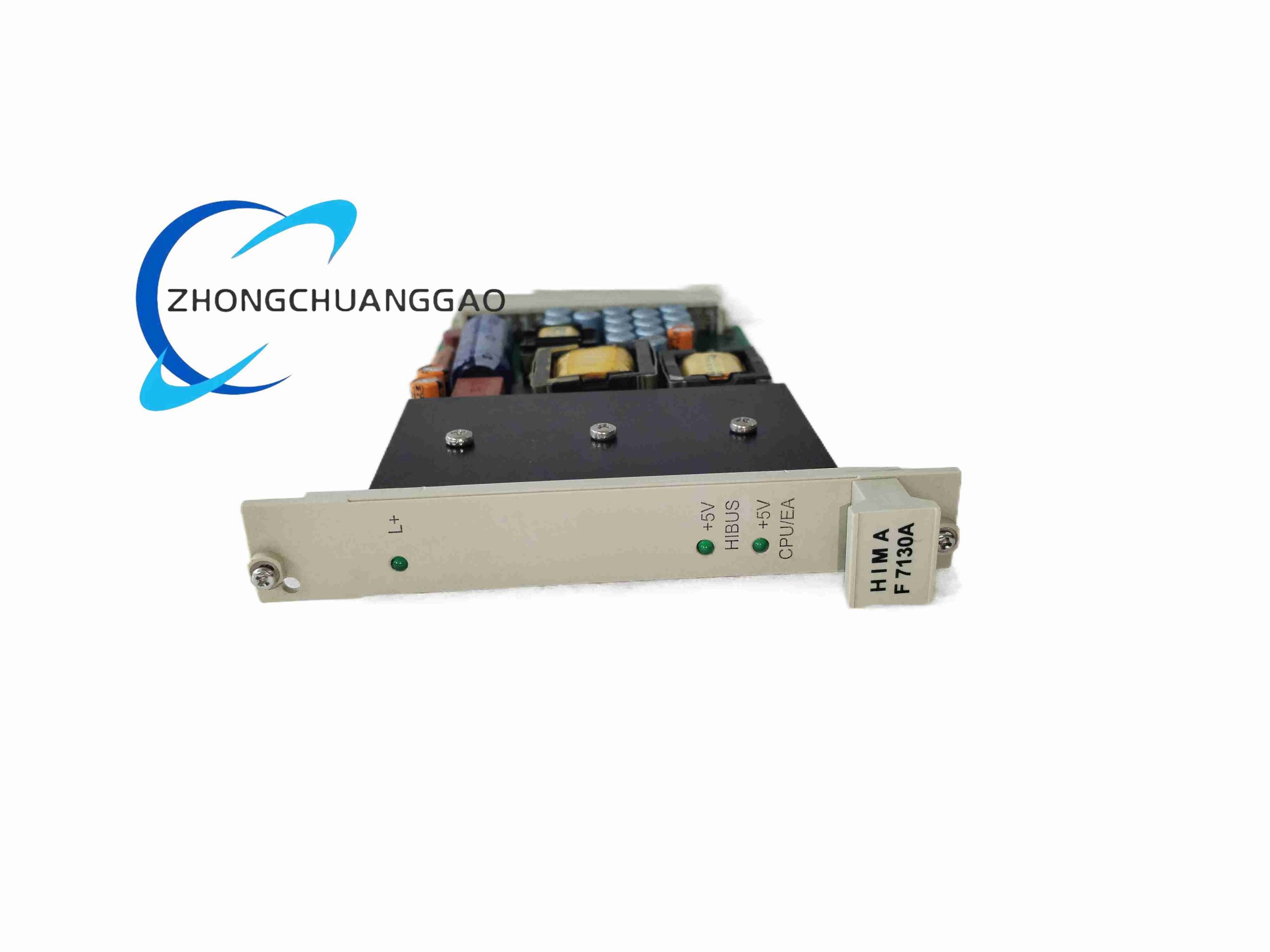

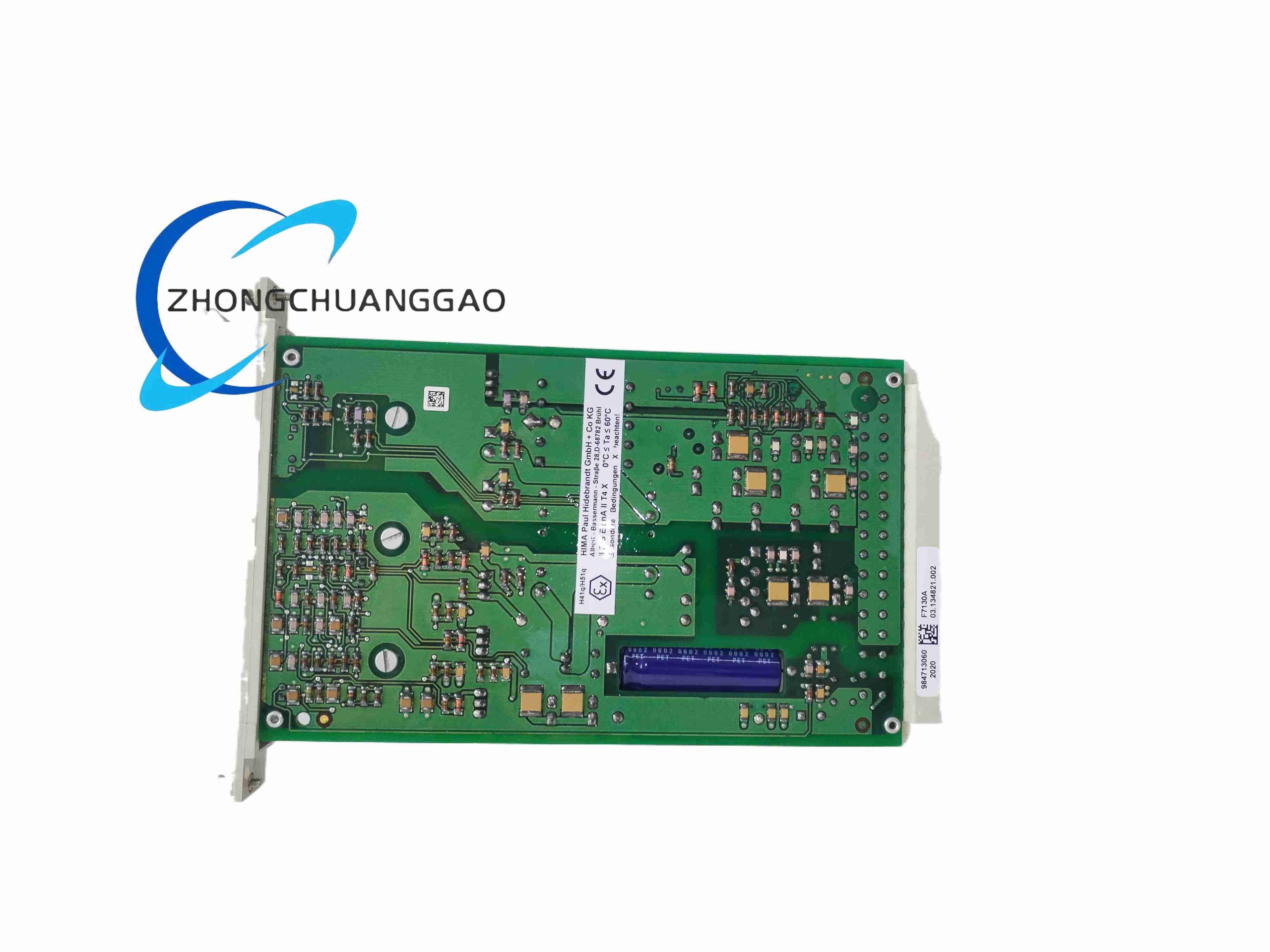

HIMA F7130A

Description

Technical Specifications

• Operating Supply Voltage: 24VDC industrial chassis power input
• Integrated Digital I/O Buffer Channels: 16 bidirectional digital monitoring channels
• Operating Temperature Range: -20°C ~ +70°C
• Storage Temperature Range: -40°C ~ +85°C
• Humidity Tolerance: 5% ~ 95% non-condensing
• Module Rack Width: 4 TE unit
• Certifications: IEC 61508 SIL 3 supporting auxiliary module, CE, UL
• Protection Grade: IP20 cabinet-only installation

Function Features

1. Real-time multi-channel chassis 24VDC power voltage monitoring with undervoltage/overvoltage fault alarm
2. 16-channel bidirectional digital signal buffering for auxiliary safety status feedback
3. Continuous backplane bus communication integrity detection and fault flag reporting
4. Redundant power supply cross-monitoring for dual-source chassis power systems
5. Front panel multi-color LED array for power, I/O and backplane fault status visualization
6. Fail-safe fault signal transmission to main safety CPU upon power or bus anomaly

Performance Parameters

• Power voltage monitoring resolution: 0.1VDC measurement precision
• Digital signal buffer response time: <10ms
• Backplane communication fault detection delay: <20ms
• Maximum digital signal load per buffer channel: 5mA

Material Composition

• Housing: UL94 V0 flame-retardant ABS plastic
• Main PCB: Double-layer FR4 high-temperature industrial circuit board
• Voltage monitoring circuits: Precision industrial voltage divider sensor arrays
• Digital buffer chips: Wide-temperature isolated signal buffer ICs
• Backplane connector: Gold-plated multi-point edge connector

Structural Characteristics

• Standard DIN rail rack plug-in module with front locking clip
• Front panel grouped LED indicators separated for power, I/O and communication fault zones
• Detachable front wiring terminal plug for auxiliary digital signal wiring
• Internal isolated power monitoring circuit independent of main safety control bus

Working Principle

Module draws operating power from chassis 24VDC supply, with precision voltage divider circuits continuously sampling primary and redundant power source voltages. 16 bidirectional digital buffer circuits receive auxiliary safety status signals from field secondary sensors, isolating and buffering signals for transmission to main CPU. Dedicated backplane monitoring circuit continuously verifies bus communication handshake signals; loss of valid handshake triggers immediate fault alarm signal to safety CPU and front panel fault LED illumination.

Advantage Highlights

1. Integrated power and backplane monitoring reduces quantity of auxiliary rack modules required
2. Isolated digital signal buffering eliminates field noise interference to main safety CPU circuits
3. Real-time dual redundant power cross-monitoring for high-availability safety rack systems
4. Compact 4TE width minimizes chassis slot space occupation
5. Wide temperature operating range supports unconditioned control cabinet installation

Applicable Industries

All process safety industries deploying HIMA HIQuad / HIMax SIS racks: Oil & Gas Refineries, Thermal Power Plants, LNG Terminals, Chemical Hazardous Process Plants, Pharmaceutical Batch Safety Systems

Installation Requirements

1. Install in designated auxiliary monitoring slots of HIMA F-series safety chassis
2. Auxiliary digital signal wiring uses shielded twisted-pair cables with cabinet single-end grounding
3. Maintain minimum 20mm ventilation gap around module for heat dissipation
4. Anti-static wristband mandatory during module installation and replacement

Usage Precautions

1. Do not connect auxiliary digital channels to loads exceeding 5mA maximum buffer current rating
2. Calibrate power voltage monitoring thresholds per site safety system design documents
3. Execute full power fault simulation test during annual SIS proof testing cycles
4. Avoid installation in corrosive gas, continuous oil mist or water splash environments
