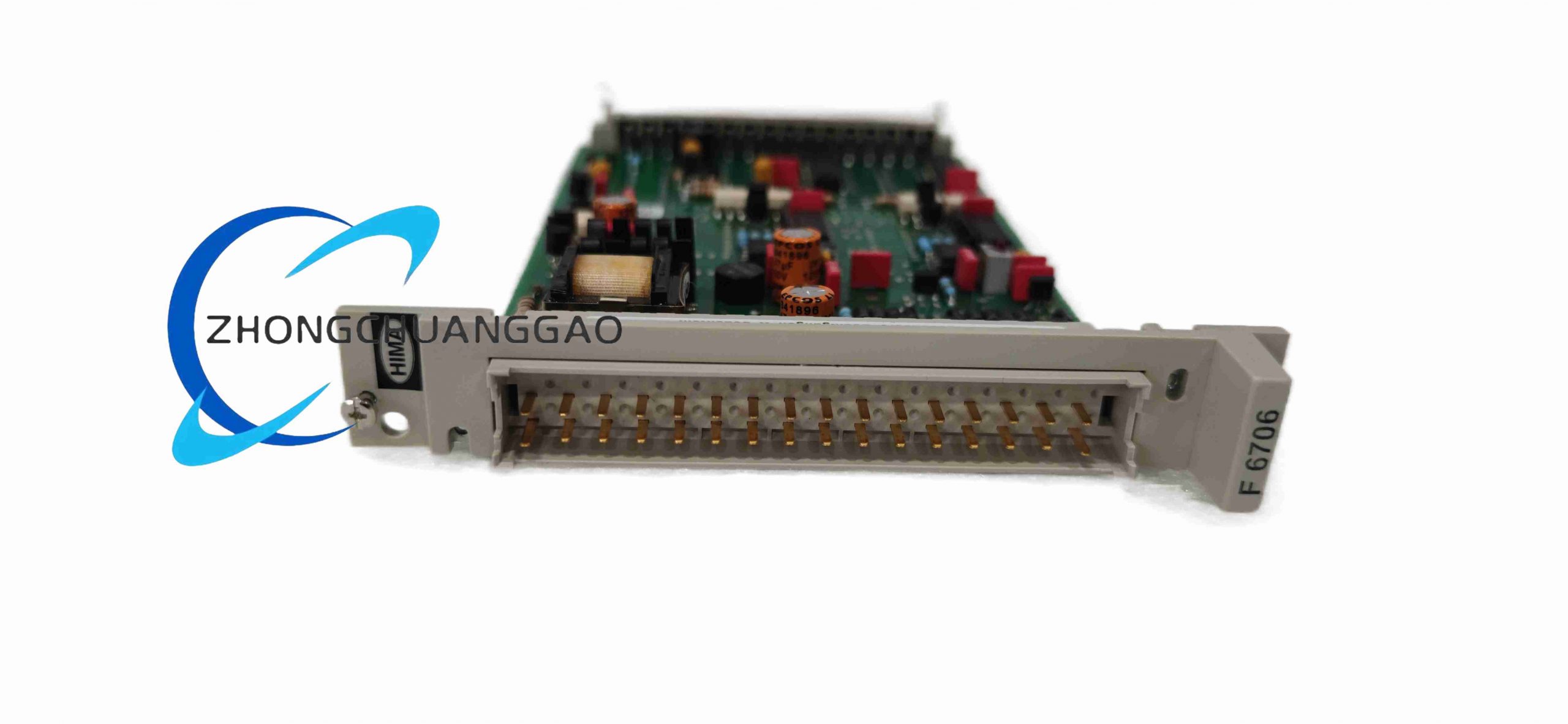

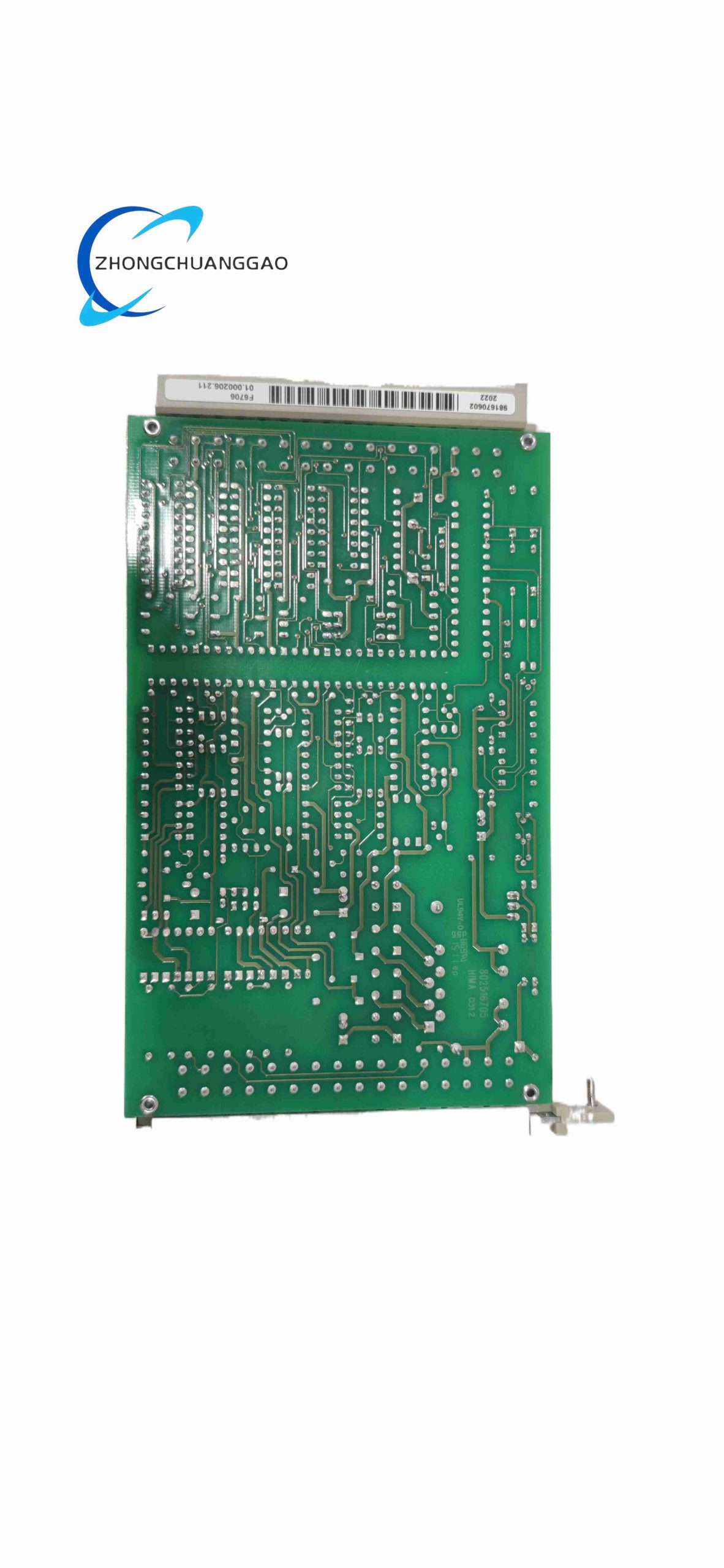

HIMA F6706

Description

Technical Specifications

• Channel Quantity: 8 independent isolated analog input channels
• Supported Input Signal Standard: 4–20mA two-wire HART transmitter loop
• Maximum Allowable Loop Resistance at 24VDC: 600Ω per channel
• HART Communication Compatibility: Full HART digital diagnostic signal decoding per channel
• Module Rack Width: 4 TE unit
• Safety Certification: IEC 61508 SIL 3, TÜV certified, CE, UL
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -40°C ~ +85°C
• Humidity Range: 5% ~ 95% non-condensing
• Protection Grade: IP20 indoor cabinet installation only

Function Features

1. Per-channel galvanic isolation eliminates cross-channel analog signal interference
2. Continuous wire break, short-circuit and out-of-range 4–20mA signal fault detection
3. Full HART protocol support to read transmitter internal diagnostic data and calibration parameters
4. Front panel individual LED fault/status indicator for each analog channel
5. Cyclic analog signal calibration self-test to maintain long-term measurement accuracy
6. Hot-swappable for redundant HIMax safety rack configurations
7. Dedicated matching termination board TB-F6706 required for field wiring termination

Performance Parameters

• Analog signal measurement accuracy: ±0.05% full scale factory calibrated
• Channel fault diagnostic response time: <15ms
• HART data polling cycle minimum interval: 250ms per channel
• Analog signal sampling resolution: 16-bit per channel
• Maximum transient voltage withstand per channel: 36VDC surge

Material Composition

• Housing: UL94 V0 flame-retardant reinforced ABS plastic
• Main PCB: Multi-layer high-temperature FR4 industrial analog circuit board
• Signal processing chips: Industrial wide-temperature analog-to-digital converters
• Terminal connectors: Nickel-plated copper alloy anti-corrosion wiring terminals
• Isolation components: High-voltage signal isolation transformers per input channel

Structural Characteristics

• DIN rail rack pluggable module with front mechanical locking clip
• Front panel 8 independent LED indicators for channel signal/fault status
• Backplane gold-plated multi-point edge connector for safety bus analog data transmission
• Internal separated analog signal isolation zones for each input channel
• Dedicated matching TB-F6706 termination board for field cable distribution

Working Principle

Each 4–20mA field transmitter loop connects to isolated input circuits on F6706 module. 16-bit high-precision ADC converts analog current signals to digital measurement values, transmitted to HIMA safety CPU via backplane safety bus. Embedded HART demodulator circuits extract digital diagnostic data superimposed on analog 4–20mA signals. Continuous impedance measurement on each loop identifies wire break or short-circuit faults, with all fault data logged to system diagnostic registers for safety logic evaluation.

Advantage Highlights

1. 16-bit high-resolution analog conversion delivers ultra-precise safety process variable measurement
2. Native HART protocol support eliminates separate HART communication hardware investment
3. Per-channel full galvanic isolation prevents cross-channel noise and ground loop interference
4. Factory permanent calibration eliminates periodic module recalibration requirements
5. SIL 3 certified diagnostic coverage meets strict IEC 61511 process safety regulatory standards
6. Wide operating temperature range adapts to unconditioned industrial control cabinets

Applicable Industries

LNG Export Terminal Tank Level & Pressure Monitoring, Ethylene Cracker Reactor Temperature Safety Measurement, Thermal Power Plant Boiler Drum Level & Fuel Pressure Protection, Refinery Quench Oil Flow Safety Interlock, Pharmaceutical Hazardous Reactor Temperature Control, Offshore Platform Cryogenic Pump Safety Monitoring

Installation Requirements

1. Install exclusively in HIMA HIMax C / HIQuad certified DIN rail safety chassis
2. Match module with official TB-F6706 termination board for all field transmitter wiring
3. Field wiring uses shielded twisted-pair cables with single-end cabinet ground connection
4. Limit each transmitter loop resistance below 600Ω at 24VDC supply voltage
5. Maintain minimum 20mm ventilation gap between adjacent I/O modules for heat dissipation
6. Anti-static wristband mandatory during module installation and wiring operations

Usage Precautions

1. Do not connect field loops exceeding 36VDC transient surge voltage to any input channel
2. Perform full loop wire break/short-circuit simulation test during annual SIS proof testing cycles
3. Use only original HIMA TB-F6706 termination boards; third-party terminal boards invalidate SIL certification
4. Avoid installation in environments with continuous oil mist, corrosive gas or direct water splashing
5. Poll HART transmitter diagnostic data periodically via HIMA Safety Suite software for predictive maintenance
6. Verify HART communication baud rate configuration matches field transmitter factory settings
