Product Short Description
Product Introduction

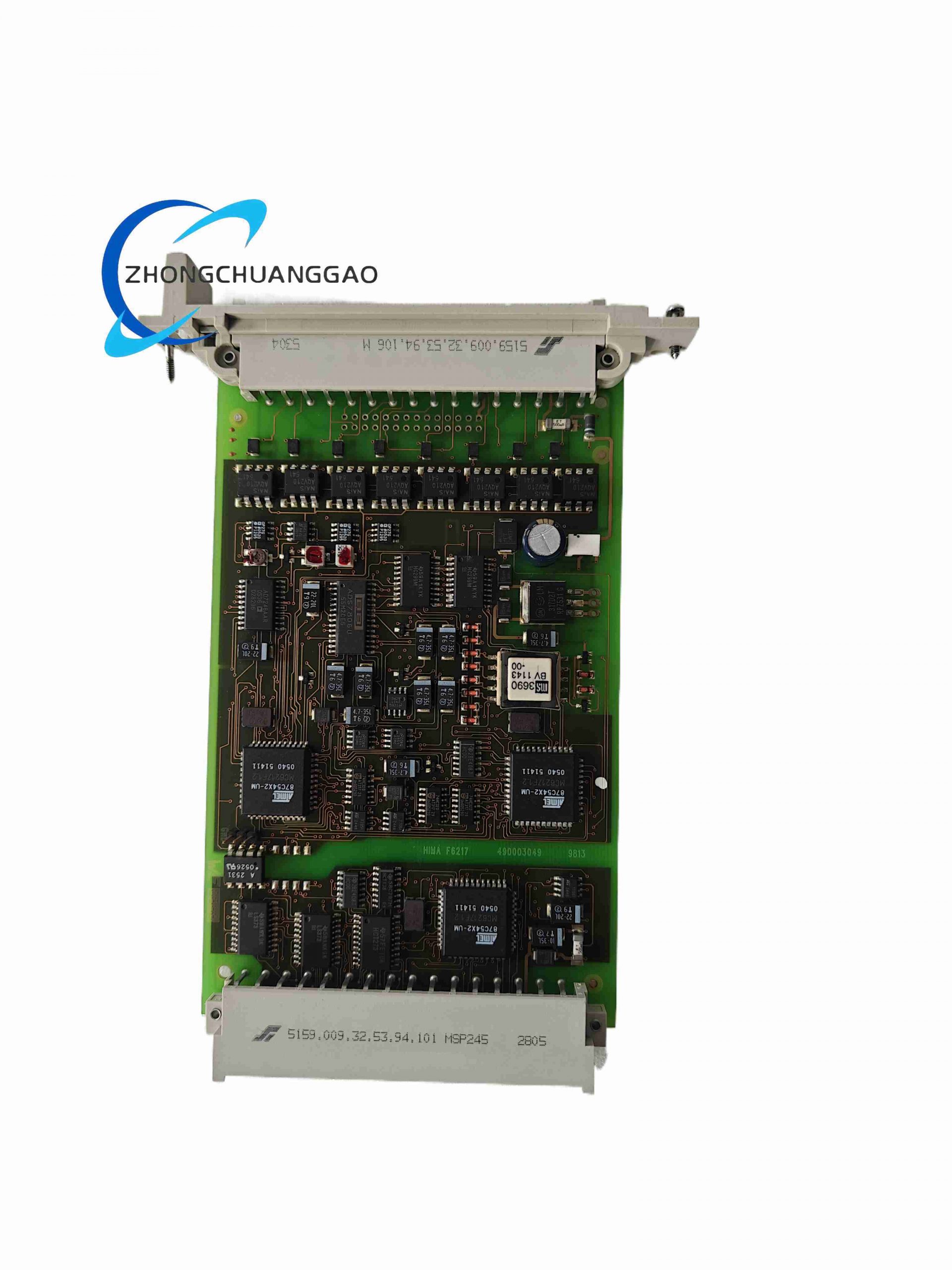

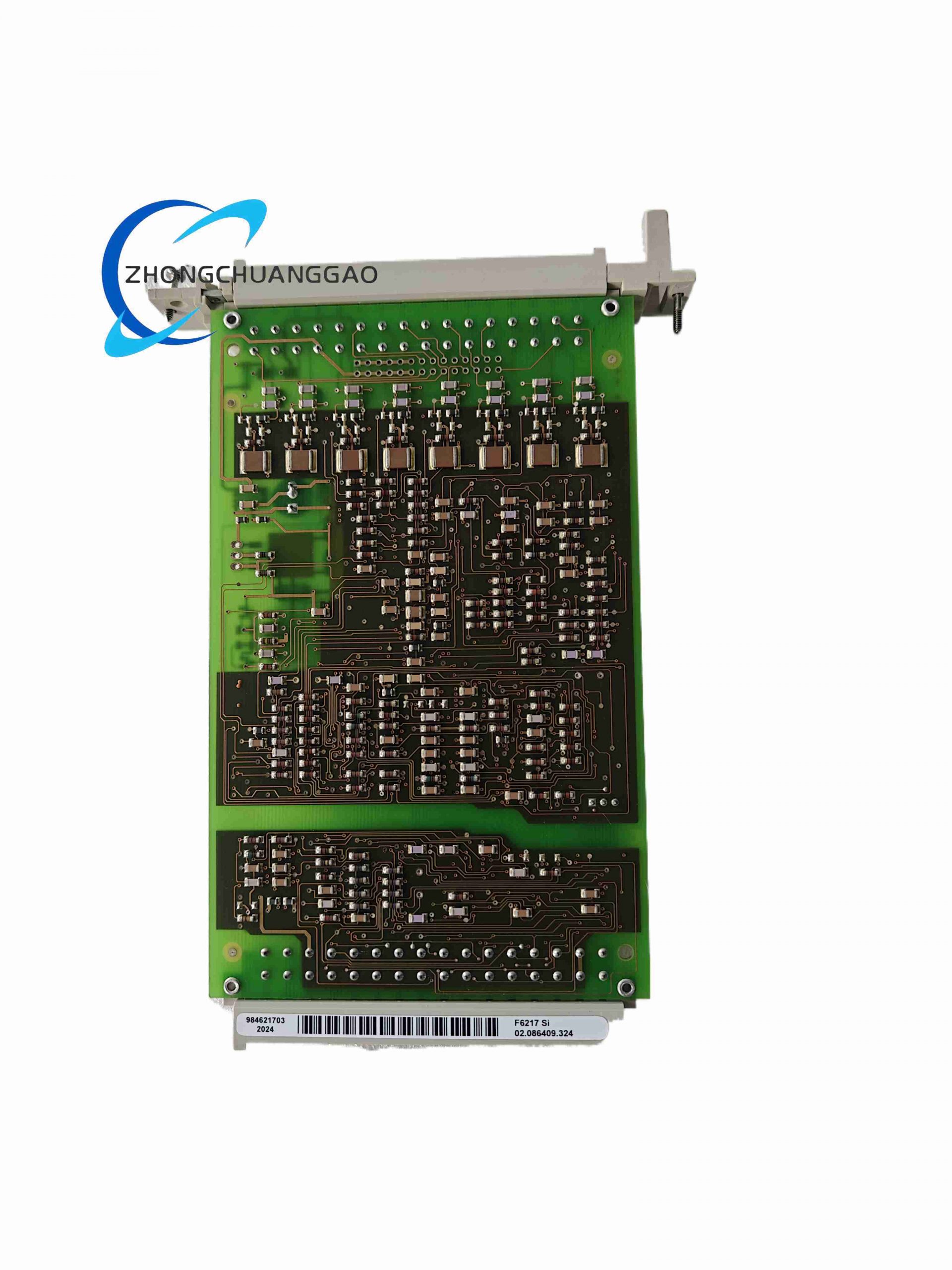

HIMA F6217 is a TÜV-certified safety analog input module dedicated to SIL3 safety instrumented systems (SIS). It acquires analog field sensor signals and converts them into safety-critical digital data for HIMatrix safety PLC controllers. Every channel implements independent galvanic safety isolation to eliminate ground loop interference and cross-channel signal crosstalk, complying with AK6 and IEC 61508 functional safety standards for process safety applications.
Description
Technical Specifications
- Rated Power Supply: 5 V DC (80 mA logic circuit), 24 V DC (10 mA field circuit)
- Input Channel Quantity: 8 fully isolated independent channels
- Supported Signal Ranges:
Current input: 0–20 mA / 4–20 mA
Voltage input: 0–5 V DC / 0–10 V DC
- Conversion Resolution: 12-bit analog-to-digital conversion
- Full-Scale Basic Accuracy: ±0.1 % at 25 °C; ±0.3 % operating error over -20 °C ~ +60 °C
- Safety Error Limit: Max 1 % full scale for safety calculation
- Input Impedance: 100 kΩ for voltage channels
- Isolation Withstand Voltage: ≥2500 V AC channel-to-backplane, ≥500 Vrms channel-to-channel
- Signal Filter Time Constant: 10 ms hardware low-pass filter
- Safety Response Time: < 450 ms safety update cycle
- Physical Width: 4 TE Eurocard rack unit
- Module Weight: 0.14 kg
- Operating Temperature Range: -20 °C ~ +60 °C
- Storage Temperature Range: -40 °C ~ +85 °C
- Relative Humidity Tolerance: 5 % – 95 % RH, non-condensing
- Vibration Resistance: 2–13.2 Hz ±1 mm displacement; 13.2–100 Hz ±0.7 g acceleration
- Certifications: TÜV SIL3, AK6, ATEX Zone 2/22, CE, RoHS
Function Features
- Dual independent signal sampling circuit per channel for 1oo2 safety voting logic
- Continuous real-time channel fault diagnostics (open circuit, short circuit, over-range signal)
- Dedicated shunt resistor (250 Ω, 0.05 % tolerance) built-in for direct 4–20 mA current measurement
- LED status indicator for power, module fault, and each channel signal validity
- Hot-plug compatible with HIMatrix backplane under non-safety shutdown maintenance mode
- Onboard overvoltage and ESD surge protection for all field wiring terminals
Performance Parameters
- Maximum sampling update rate: 50 ms per full 8-channel scan
- Temperature drift coefficient: < 10 ppm/K
- Signal processing latency: ≤ 100 μs single-channel conversion delay
- Probability of Dangerous Failure per Hour (PFDH): ≤ 10⁻⁷ (SIL3 compliance)
Material Composition
- Front panel: Flame-retardant black ABS plastic, UL94-V0 fire rating
- Circuit substrate: FR4 high-temperature fiberglass PCB with G3 conformal anti-corrosion coating
- Terminal block: Nickel-plated copper alloy contact pins, PA66 insulated housing
- Housing frame: Cold-rolled steel with electrostatic anti-static paint coating
Structure Characteristics
- Standard Eurocard plug-in rack structure with rear gold-plated backplane connector
- Front-mounted screw terminal wiring terminals for field sensor connection
- Vertical slotted heat dissipation vents on side panel for passive cooling
- Separate isolated compartment for field signal circuit and internal logic circuit
Working Principle
Field analog voltage/current signals pass through channel-specific isolation transformers and low-pass filter circuits, then feed into dual redundant 12-bit ADC chips. Two independent ADCs sample identical signals simultaneously and transmit digital values to internal safety logic CPU. The CPU executes 1oo2 voting algorithm; only matching valid sampling data is forwarded to the safety PLC main controller. Any mismatch between dual sampling paths triggers immediate channel fault alarm and safety signal freeze function to avoid false safety actuation.
Advantage Highlights
- Full SIL3 single-module certification without redundant pairing requirement for small safety loops
- Multi-signal compatibility eliminates separate voltage/current acquisition modules
- Per-channel complete isolation prevents single wiring fault from disrupting all measurement channels
- Compact 4 TE rack width saves control cabinet installation space
- Built-in continuous diagnostics reduce periodic manual inspection workload
- Wide industrial temperature range supports outdoor unheated control cabinet deployment
Applicable Industries
Petrochemical refining, natural gas processing, power generation (thermal/hydro/nuclear), pharmaceutical manufacturing, offshore oil & gas platforms, chemical batch processing, hazardous waste treatment plants
Installation Requirements
- Mount on standard 19-inch Eurocard rack with HIMatrix dedicated backplane bus
- Maintain minimum 10 mm vertical clearance above and below module for heat dissipation
- Field wiring must use shielded twisted-pair cables; cable shield single-end grounded at cabinet terminal strip
- Maximum wire gauge for terminal blocks: 1.5 mm² solid copper wire
- Power supply must provide isolated 5 V DC logic power and 24 V DC field power with ≤ 50 mV ripple
- Install surge protection barrier terminals between module and field sensors for outdoor wiring runs
Usage Notes
- Do not apply signals exceeding 12 V DC to voltage input channels; overvoltage permanently damages isolation circuits
- Conduct full channel loop calibration after every wiring modification or module replacement
- Store spare modules in anti-static packaging at 15–25 °C ambient temperature
- Avoid mounting within 300 mm of high-current contactors or variable frequency drives to minimize EMI interference
- Complete annual safety function proof-test per IEC 61508 SIL3 maintenance schedule
