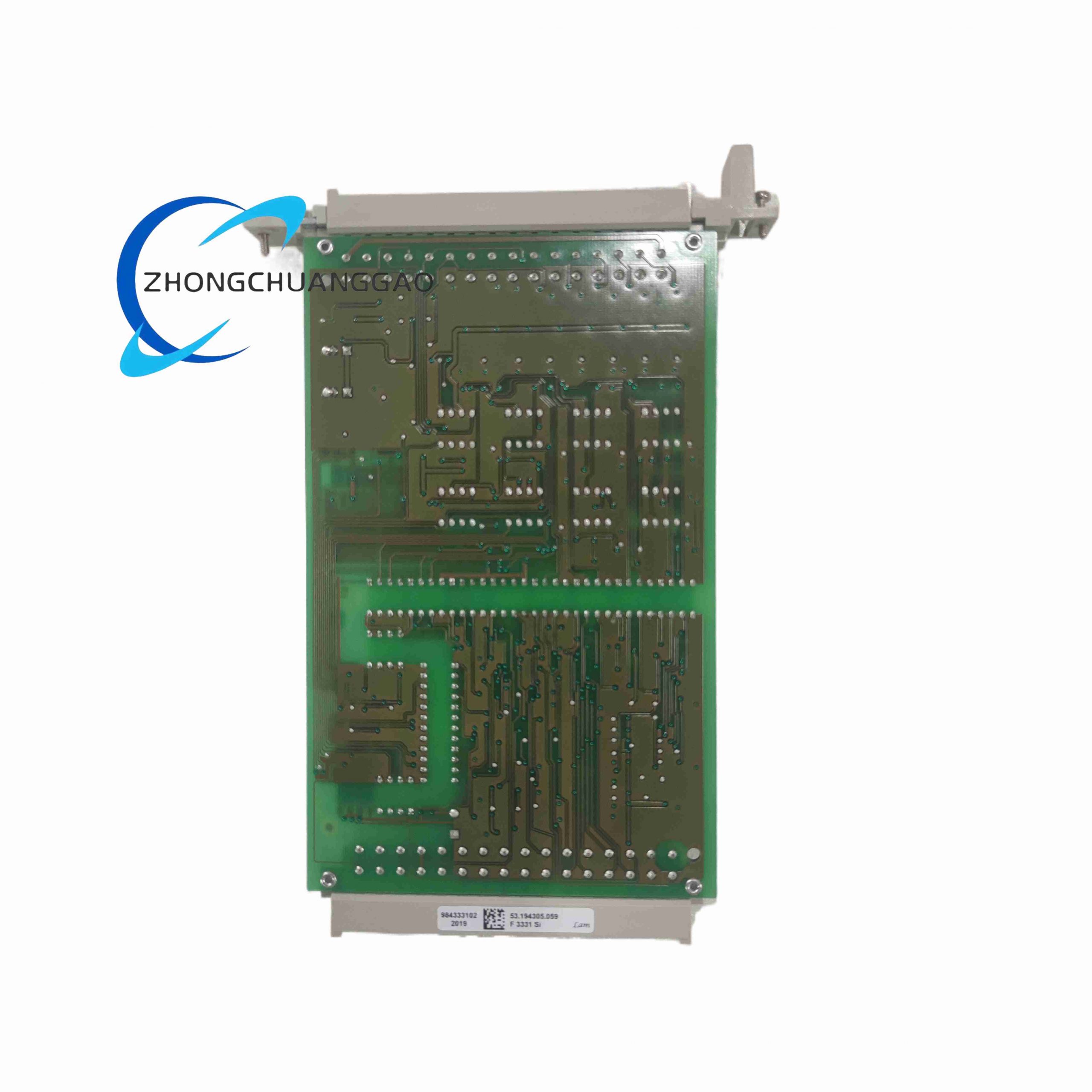

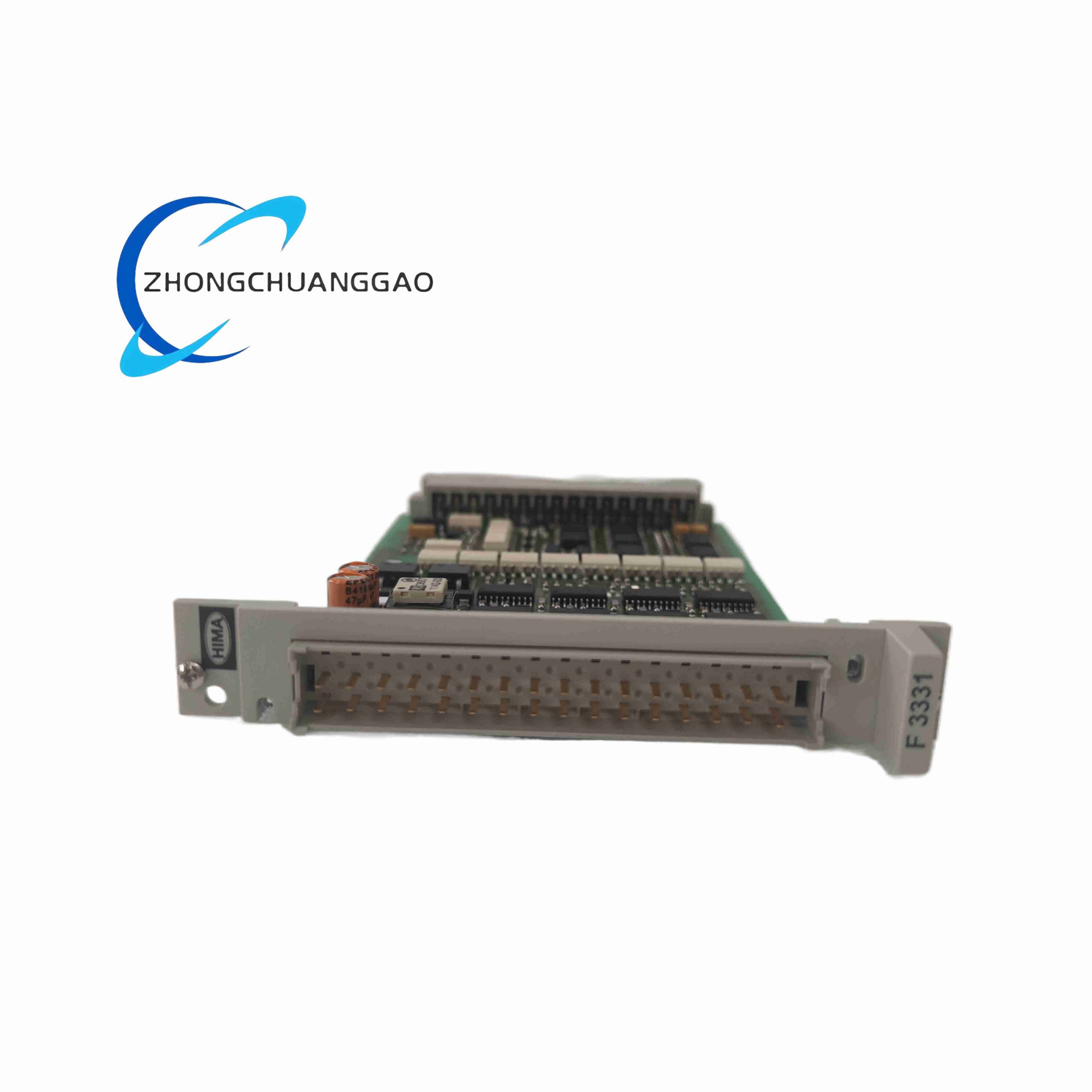

HIMA F3331

Description

Technical Specifications

• Channel Quantity: 4 independent safety output channels
• Single Channel Rated Output Current: 500mA resistive load
• Maximum Internal Voltage Drop at Full Load: 2V
• Undervoltage Trip Threshold: 16VDC supply voltage
• Maximum Output Leakage Current (Fail-Safe State): 350μA
• Short-Circuit Protection Current Range: 0.75A ~ 1.5A per channel
• Line Break Detection Current Window: 0.5mA ~ 9.5mA
• Module Power Consumption: 5VDC = 130mA; additional 180mA at 24VDC full load
• Rack Width: 4 TE unit
• Safety Isolation Class: AK 1 ~ AK 6
• Certifications: IEC 61508 SIL 3, CE, TÜV
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C

Function Features

1. Per-channel real-time wire break, short-circuit and undervoltage fault diagnosis
2. Fail-safe de-energized output logic; all channels cut power upon module critical fault
3. Integrated short-circuit current limiting to prevent field actuator burnout
4. Front panel individual LED status indicator for each output channel
5. Cyclic test pulse injection to verify channel circuit integrity without disrupting actuator operation
6. Galvanic isolation between backplane safety bus and field output circuits
7. Hot-swappable in redundant rack configurations

Performance Parameters

• Diagnostic response speed for channel faults: <10ms
• Maximum allowable field wiring resistance per channel loop: 11Ω
• Test signal pulse duration: Maximum 200μs (no interference to standard solenoid valves)
• Maximum continuous inductive load power per channel: 12W
• Lamp load compatible power limit: 4W per channel

Material Composition

• Housing: UL94 V0 flame-retardant ABS plastic
• Main PCB: Double-layer FR4 high-temperature industrial circuit board
• Output drive chips: Wide-temperature industrial power MOSFETs
• Terminal contacts: Nickel-plated copper alloy anti-oxidation terminals
• Internal diagnostic signal processing microcontroller

Structural Characteristics

• DIN rail rack plug-in structure with mechanical lock clip
• Front panel 4 independent channel fault/status LED indicators
• Separated field wiring terminal plug for single-module disconnection without chassis power cut
• Gold-plated backplane edge connector for redundant safety bus communication
• Internal isolated power division between control circuit and field drive circuit

Working Principle

Dual redundant internal control circuits receive safety output commands from HIMA CPU via backplane bus. Each channel MOSFET power drive circuit supplies 24VDC power to field actuators. Low-amplitude periodic test pulses inject into output loops to measure loop impedance, identifying wire break or short-circuit conditions. Fault signals feed back to CPU diagnostic register; critical channel faults trigger module-level safe de-energization of all outputs.

Advantage Highlights

1. Per-channel full fault diagnosis meets SIL 3 high diagnostic coverage requirements
2. Built-in short-circuit limiting protects expensive field safety actuators
3. Low voltage drop at full load reduces power loss and cabinet heat generation
4. Inductive load compatible without external freewheeling diode accessories
5. Compact 4TE width optimizes chassis slot utilization
6. Fail-safe de-energized design complies with global process safety standard requirements

Applicable Industries

Petrochemical Plant ESD Solenoid Control, Power Plant Boiler Safety Trip Valves, Offshore Platform Emergency Shutdown Actuators, Pharmaceutical Hazardous Batch Interlock, LNG Tank Overfill Protection Valves, Chemical Furnace Burner Trip Control

Installation Requirements

1. Mount only in HIMA Planar F series certified DIN rail chassis
2. Field wiring uses shielded twisted-pair cables; shield grounded at cabinet ground bar
3. Do not connect channel loads exceeding 500mA continuous rated current
4. Maintain 20mm minimum ventilation gap between adjacent I/O modules
5. All field actuator wiring must be routed separately from high-voltage power cables
6. Anti-static wristband mandatory during module replacement and wiring operations

Usage Precautions

1. Strictly limit single channel load power within 12W inductive / 4W lamp load rating
2. Execute full channel loop resistance test during commissioning and annual proof tests
3. Replace damaged terminal plugs with original HIMA matching spare parts only
4. Do not install in environments with continuous oil mist, corrosive gas or water splashing
5. Verify 24VDC supply voltage maintains above 16VDC minimum operating threshold
6. Disable test pulse function only for special low-current sensors per official manual guidance
