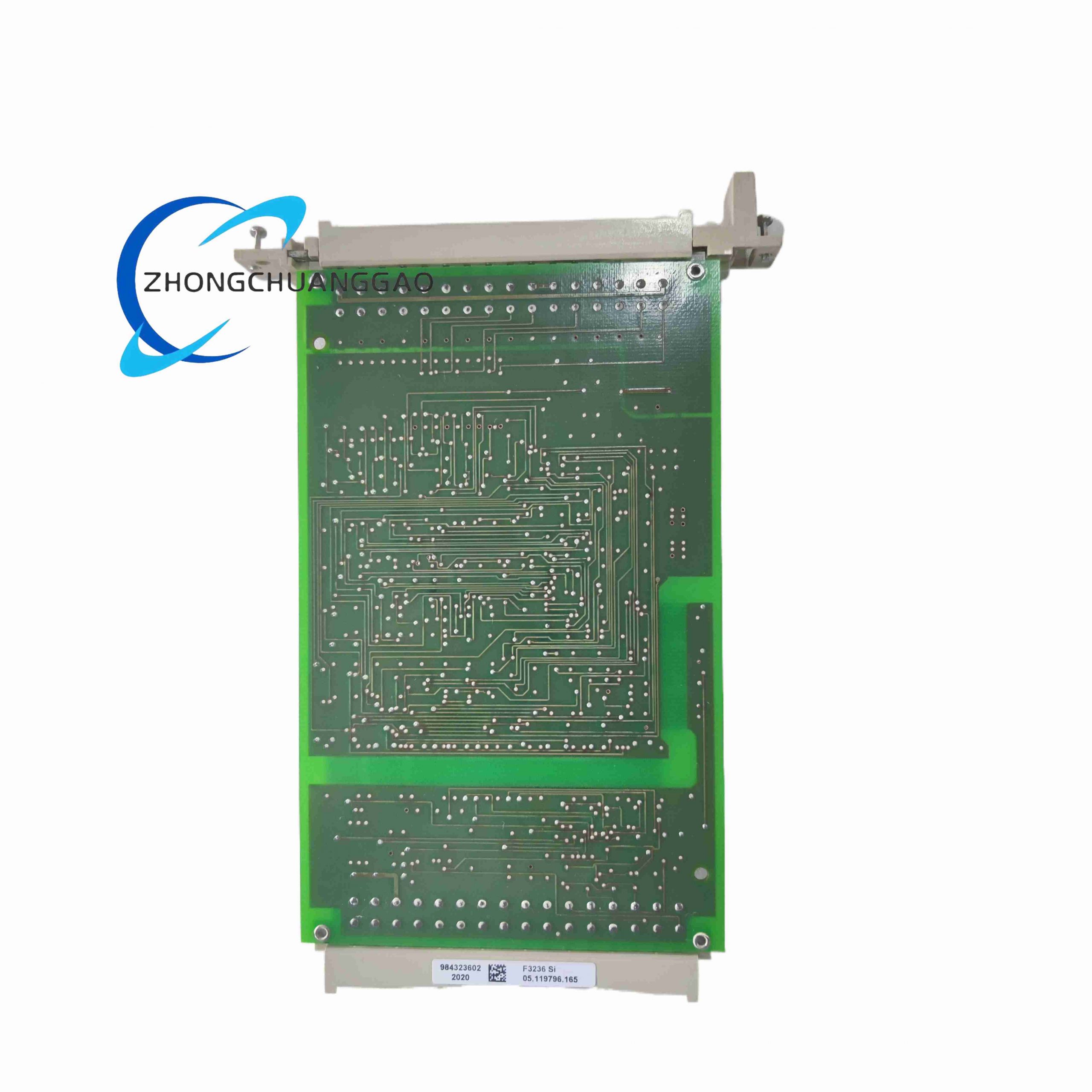

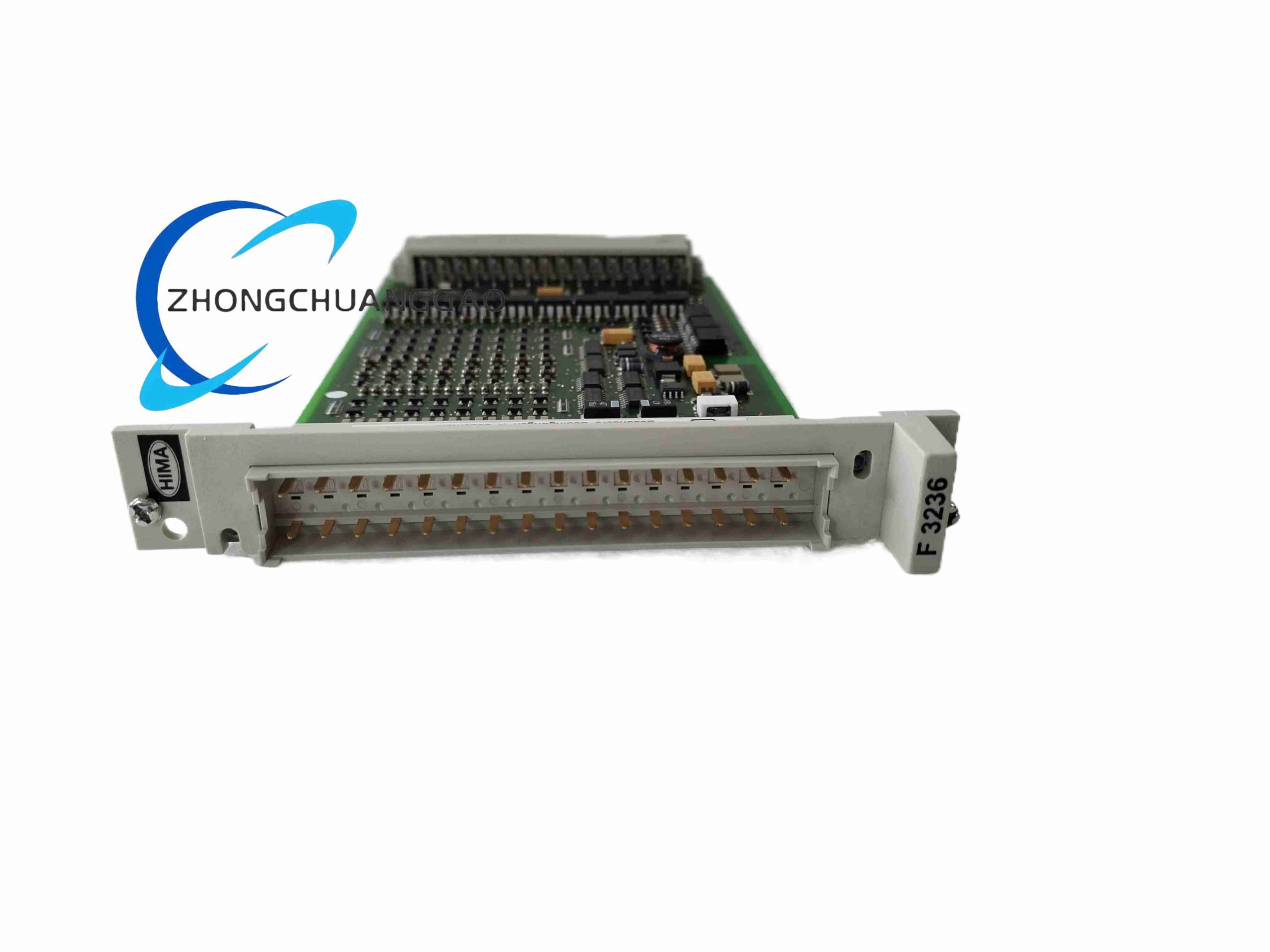

HIMA F3236

Description

Technical Specifications

• Channel Quantity: 16 independent isolated digital input channels
• Supported Input Signal Types: 6mA single-point current sensor signal; 24VDC mechanical dry contact signal
• Typical Switching Response Time: 8ms
• Power Consumption: 5VDC = 120mA; 24VDC = 200mA
• Module Width: 4 TE rack unit
• Safety Isolation Class: AK 1 ~ AK 6
• Certifications: IEC 61508 SIL 3, TÜV Rheinland AK6, CE, UL
• Operating Temperature: -20°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Relative Humidity: 5% ~ 95% non-condensing
• Protection Grade: IP20 (indoor cabinet installation only)

Function Features

1. Full-channel cyclic automatic self-diagnosis: cross-talk detection, capacitor circuit health check, channel open/short circuit identification
2. Fail-safe signal detection logic; faulty channel triggers system alarm without interrupting other channel acquisition
3. Galvanic isolation per channel to eliminate field noise interference
4. Front-mounted dedicated terminal plug for field wiring; color-coded channel pin assignment
5. Real-time fault LED indicator on module front panel
6. Hot-swappable compatible with redundant HIMA backplane systems

Performance Parameters

• Signal detection accuracy: 100% calibrated factory level
• Maximum allowable loop cable resistance per channel: 600Ω at 24VDC
• Maximum field input voltage withstand: 30VDC transient surge
• Diagnostic scan cycle: 100ms full channel loop test

Material Composition

• Main housing: Reinforced flame-retardant ABS plastic (UL94 V0 fire rating)
• Internal PCB: Double-sided industrial FR4 high-temperature circuit board
• Connector terminals: Nickel-plated copper alloy anti-corrosion terminals
• Internal processing chips: Dual redundant 32-bit 25MHz Intel 386EX microprocessors

Structural Characteristics

• Standard DIN rail rack insertion module structure
• Front panel integrated multi-status LED indicator array
• Lockable front wiring terminal plug to prevent loose wiring
• Backplane gold-plated edge connector for high-reliability bus communication
• Compact 4TE width for high chassis slot density layout

Working Principle

Dual redundant microprocessor architecture executes parallel signal sampling for all 16 channels. Each input channel applies constant 6mA sink current to detect contact closure or sensor active state. Built-in walking-zero test signal periodically injects test pulses to verify channel circuit integrity. All sampled signal data transmits to HIMA safety CPU via backplane safety bus, with fault diagnostic logs uploaded to engineering software HET/HIMA Safety Suite.

Advantage Highlights

1. Dual-core redundant processing eliminates single-point signal acquisition failure risk
2. Full-channel continuous self-test meets SIL 3 mandatory diagnostic coverage requirements
3. Dual signal mode compatibility reduces spare module inventory cost
4. Wide temperature range supports outdoor control cabinet installation
5. UL94 V0 flame retardant housing complies with hazardous area cabinet fire safety standards
6. Low power consumption reduces cabinet heat accumulation

Applicable Industries

Oil & Gas Onshore/Offshore Refineries, Petrochemical Plants, LNG Terminals, Thermal Power Plants, Nuclear Auxiliary Safety Systems, Pharmaceutical Batch Production, Coal Mine Gas Monitoring, Chemical Hazardous Process Factories

Installation Requirements

1. Install only in HIMA designated F-series DIN rail chassis (F6200/F6201/F6202)
2. Cut off chassis main power before module insertion/removal; confirm backplane bus slot mechanical lock fully engaged
3. Field wiring adopts shielded twisted-pair cables; cable shield single-end grounded at cabinet ground bar
4. Termination plug wiring strictly follow official channel pinout diagram; avoid mixed 24VDC power and signal wiring
5. Maintain minimum 20mm ventilation gap between adjacent modules for heat dissipation
6. Anti-static wristband mandatory during module handling to prevent ESD damage to internal circuits

Usage Precautions

1. Do not exceed maximum 30VDC transient input voltage on any channel
2. Replace damaged terminal plugs with original HIMA matching accessories only
3. Perform full channel proof test every 12 months per IEC 61511 safety cycle requirements
4. Store spare modules in temperature-controlled anti-static packaging at 10°C ~ 25°C
5. Prohibit installation in direct spray water, oil mist or corrosive gas environments
6. Firmware update only via official HIMA Engineering Tool; third-party firmware invalidates SIL safety certification
