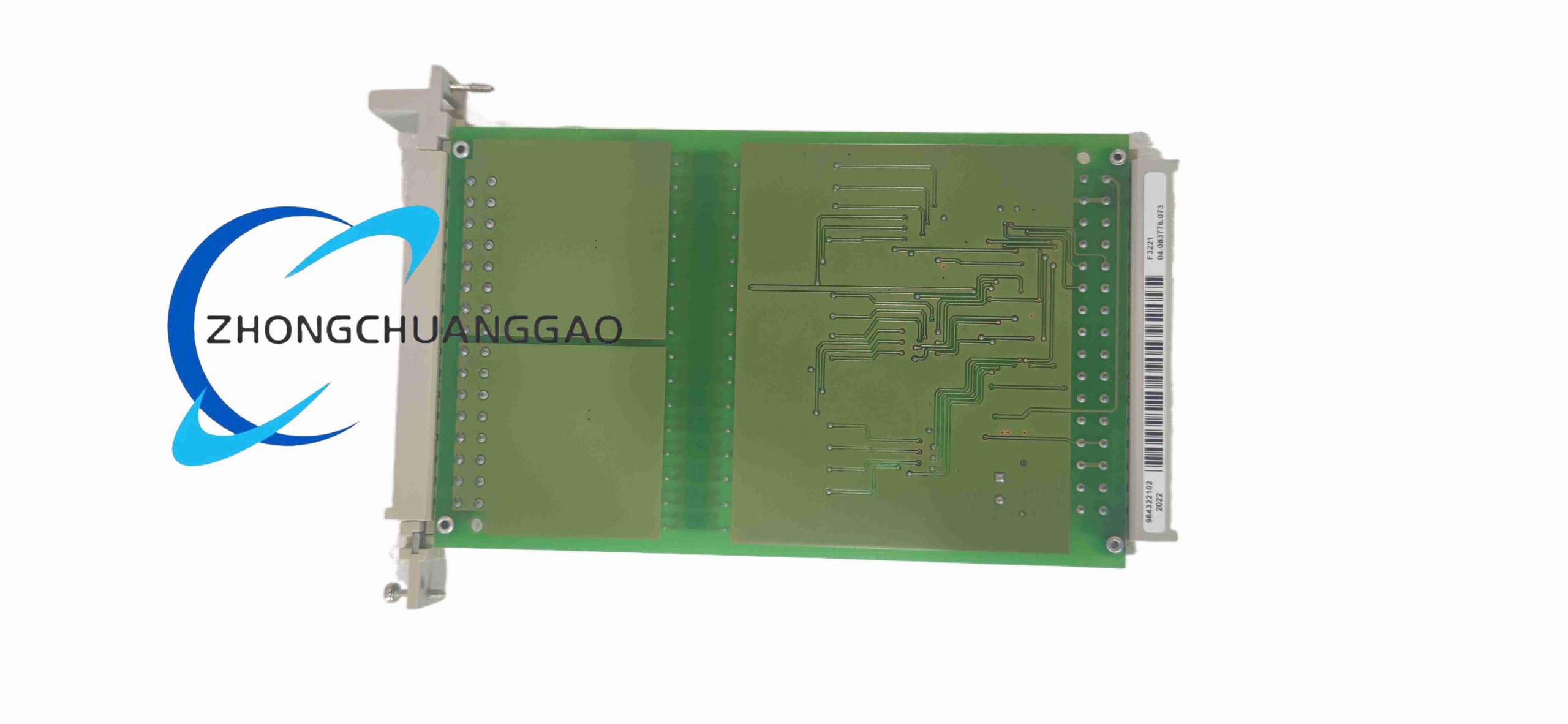

HIMA F3221 984322102

Description

Technical Specifications

• I/O Channel Configuration: 8 × Independent Safety Digital Output Channels
• Channel Current Rating: Continuous 1 A per single channel at ambient temperature ≤ 55 °C; derate to 0.6 A per channel at 60 °C; aggregate maximum total output current 6 A
• Signal Control Logic: Fail-safe de-energized on communication loss, module fault or power supply failure
• Communication Interface: Dual RJ45 10/100BASE-TX SafeEthernet integrated switch, redundant ring topology support
• Power Supply Parameters: Nominal 24 VDC; operating range 19.2 VDC – 30 VDC
• Response Time: ≤ 8 ms full channel output refresh cycle
• Galvanic Isolation: 500 VDC channel-to-backplane isolation
• Environmental Ratings:
  • Operating Temperature: -20 °C ~ +60 °C
  • Storage Temperature: -40 °C ~ +85 °C
  • Protection Class: IP20
  • Hazardous Area Certification: Ex Zone 2 approved
• Mechanical Dimensions: 207 mm (H) × 114 mm (D) × 22.5 mm (W)
• Net Weight: 1.25 kg
• Certifications: SIL3 (IEC 61508 / IEC 61511), TÜV safety certified, ATEX, CE, UL

Function Features

1. Per-channel hardware protection: short-circuit cut-off, over-current limiting, over-temperature thermal shutdown with automatic fault recovery
2. Continuous output readback monitoring; deviation between command value and actual output state triggers diagnostic alarm
3. Individual LED status indicators for each DO channel, power supply, network link, module global fault
4. Hot-swappable hardware design; module replacement without full SIS system shutdown
5. Redundant dual SafeEthernet ports eliminate external network switches for ring safety architectures
6. Full compatibility with all HIMatrix F-series controllers (F35, F3AIO8401, F3DIO20802) and SILworX / ELOP II Factory software
7. Non-volatile on-board fault memory stores timestamped channel overload, short-circuit and communication failure logs

Material Composition

• Outer Housing: UL94-V0 flame retardant reinforced industrial plastic
• PCB: High-temperature FR4 gold-plated backplane circuit board
• Terminal Blocks: Nickel-plated copper screw terminals with anti-loosening spring washers
• Internal Shielding: Cold rolled steel EMC shielding sheet
• Power Switching Devices: Industrial high-reliability MOSFET drivers with integrated thermal sensing circuits

Structural Characteristics

• Slim 22.5 mm DIN rail mount form factor for high cabinet packing density
• Front detachable terminal blocks for full field wiring disconnection during maintenance swap
• Dual stacked RJ45 Ethernet ports on upper front panel for cascaded redundant network wiring
• Vertical LED array aligned one-to-one with each output channel for immediate visual fault identification
• Rear anti-vibration DIN rail locking buckle with secondary safety lock tab
• Separated terminal zones for load power wiring and network communication wiring to reduce cross-interference

Working Principle

1. Safety actuation commands transmitted from HIMatrix main controller via redundant SafeEthernet cyclic safety frames with checksum validation
2. Internal FPGA logic distributes control signals to independent MOSFET output driver circuits for each channel
3. Real-time current and temperature sensors monitor each output channel; hardware protection circuits cut channel power immediately upon overcurrent or short-circuit events
4. Readback feedback circuit samples actual output state and compares against setpoint; mismatched values are logged as diagnostic faults and uploaded to the safety controller
5. Internal watchdog circuit monitors module CPU and network communication; total communication loss triggers all outputs to safe de-energized state within 10 ms

Advantage Highlights

1. 1 A per-channel high current rating eliminates external intermediate safety relays for large flow control solenoid valves
2. Channel-level thermal and short-circuit protection prevents single channel fault from disabling all module outputs
3. SIL3 full safety qualification for critical ESD, fire & gas and burner management safety valve loops
4. Dual redundant Ethernet ports support fault-tolerant ring network without auxiliary switching hardware
5. Hot-swap capability reduces maintenance downtime during field module replacement
6. Granular fault logging accelerates root cause analysis for valve actuation failure events

Applicable Industries

Oil & gas ESD shutdown valve control, petrochemical plant fire suppression valve actuation, power plant boiler safety cut-off solenoids, offshore platform emergency isolation valves, LNG terminal safety interlock valve control, chemical reactor pressure relief valve actuation

Installation Requirements

1. Mount only on standard 35 mm DIN top hat rail inside IP20 control cabinet
2. Maintain minimum 10 mm vertical clearance above and below module for heat dissipation
3. Field valve load wiring must use shielded twisted pair cables with single-point cabinet earth grounding
4. Separate high-current DO load wiring and low-current analog/sensor wiring with minimum 5 cm physical separation
5. SafeEthernet communication wiring must use industrial CAT5e shielded Ethernet cable
6. Surge protection devices mandatory for field wiring runs exceeding 20 meters
7. Cabinet ambient humidity controlled at 5% – 95% non-condensing, no condensation permitted

Usage Precautions

1. Installation limited to Ex Zone 2 hazardous areas; Ex Zone 0 / Zone 1 deployment strictly prohibited.
2. All inductive solenoid valve loads must install flyback freewheeling diodes across load terminals to suppress voltage transients.
3. Disconnect all field load wiring before performing hot-swap replacement to avoid surge damage to internal MOSFET circuits.
4. Supply voltage must remain within 19.2 VDC – 30 VDC continuous operating range; sustained overvoltage causes permanent driver burnout.
5. Maximum terminal screw tightening torque limited to 0.8 N·m to avoid PCB trace fracture.
6. Unauthorized firmware modification with non-HIMA tools voids TÜV SIL3 certification and product warranty.
7. Annual full channel overload and fault detection function test required per IEC 61511 process safety standards.
