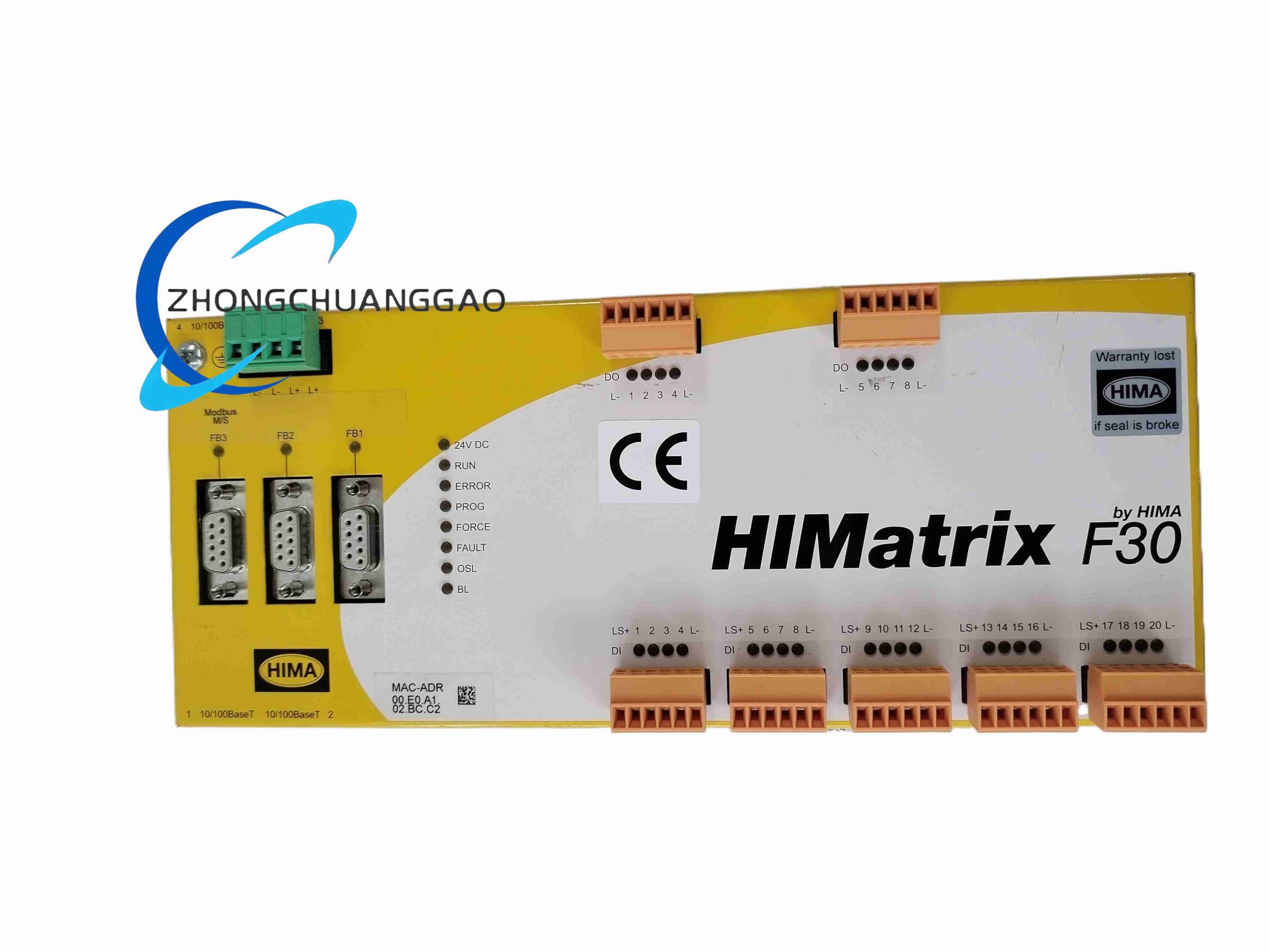

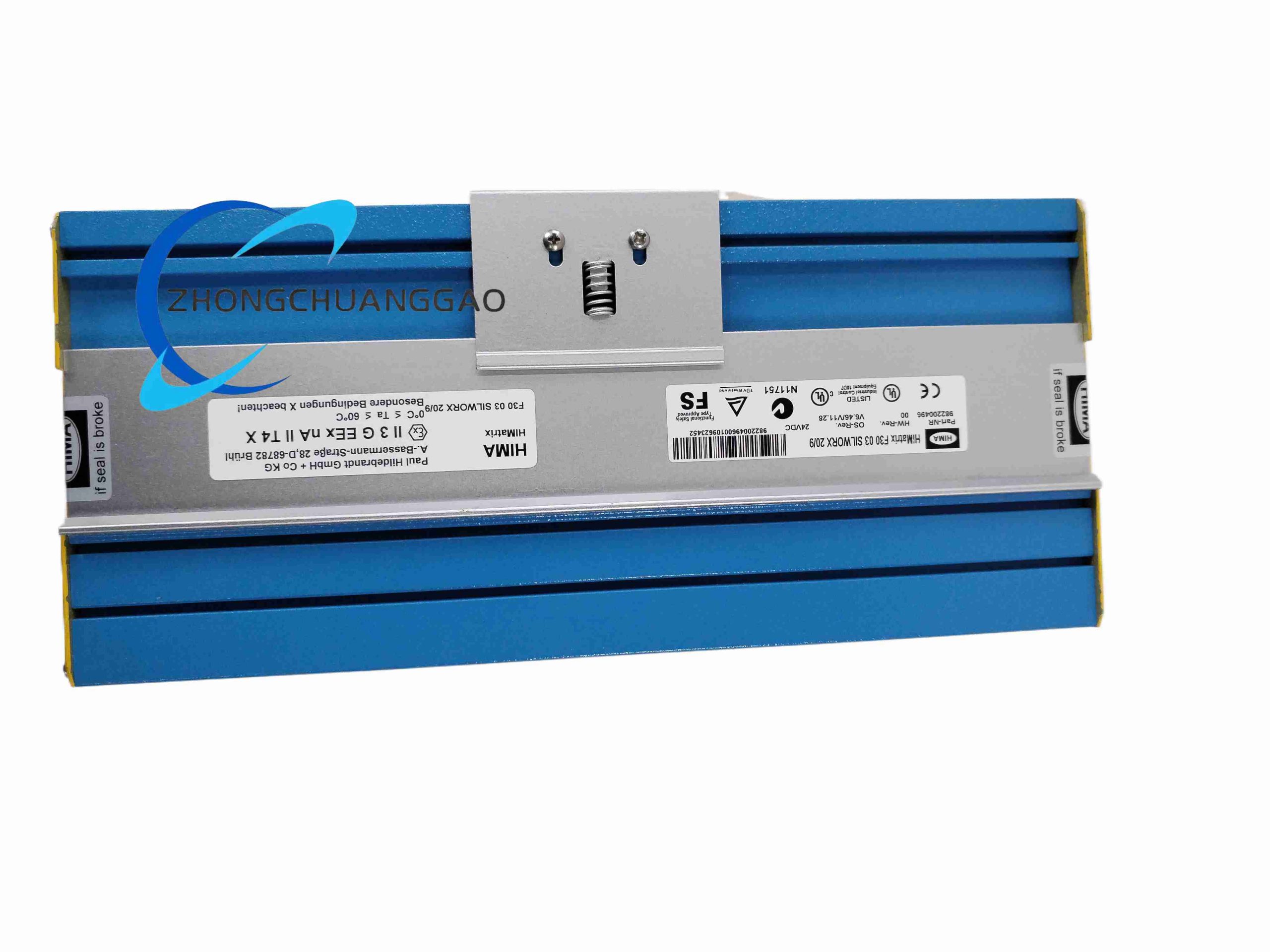

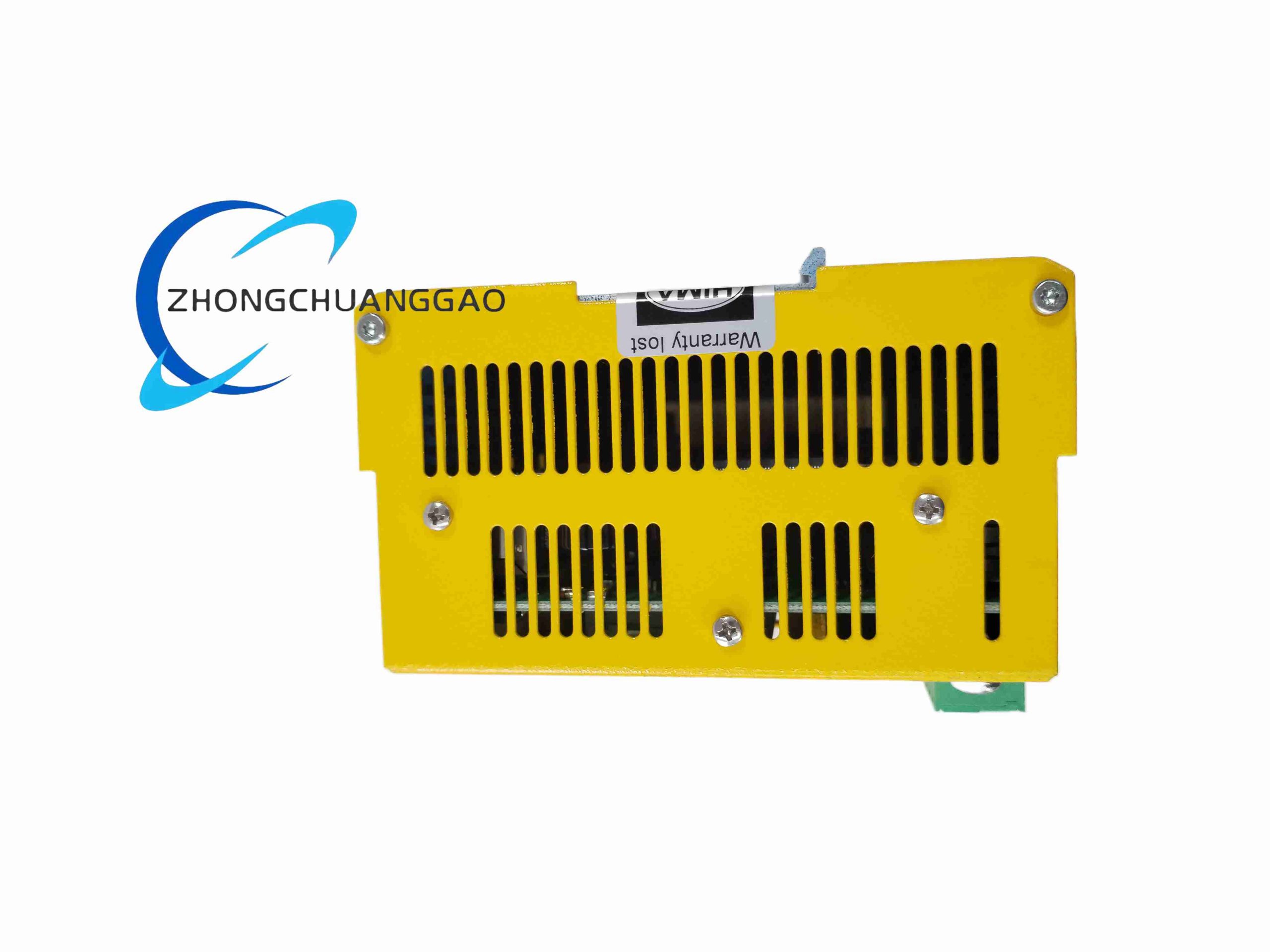

HIMA F3003 SILWORX 209

Description

Technical Specifications

• I/O Channel Configuration:
  1. 20 × Safety Digital Input Channels: 24 VDC nominal signal level, per-channel open/short circuit continuous line monitoring
  2. 9 × Safety Digital Output Channels: 0.5 A continuous per-channel rated current, hardware short-circuit and overload protection
• Software Compatibility: Exclusive firmware optimized for SILworX V7+ engineering software; limited compatibility with ELOP II Factory legacy tools
• Backplane Communication Interface: HIMA proprietary safety backplane bus for direct connection to HIMatrix F35 / F30 safety controllers
• Power Consumption: 5 W no-load static power draw; maximum 8 W full load operating power
• Response Time: ≤15 ms full channel input/output refresh cycle
• Isolation Rating: 500 VDC channel-to-backplane galvanic isolation
• Environmental Ratings:
  • Operating Temperature: -20 °C ~ +60 °C
  • Storage Temperature: -40 °C ~ +85 °C
  • Protection Class: IP20
  • Hazardous Area Approval: Ex Zone 2 certified
• Mechanical Dimensions: 180 mm (H) × 105 mm (D) × 22.5 mm (W)
• Net Weight: 0.4 kg
• Certifications: SIL3 (IEC 61508, IEC 61511), TÜV safety certification, ATEX, CE, UL

Function Features

1. Pre-flashed SILworX dedicated firmware eliminating on-site firmware upgrade requirement during commissioning
2. Per-channel continuous line fault diagnosis for all digital input wiring faults
3. Hardware failsafe output logic: all DO channels de-energized upon backplane communication loss or internal module fault
4. Individual LED status indicators for each DI/DO channel, power supply status, backplane communication link fault, module diagnostic alarm
5. Hot-swappable backplane design; module replacement without full SIS system shutdown
6. Support safety interlock logic, delay timers, two-out-of-two voting safety functions via SILworX programming environment
7. Full remote diagnostic data upload to SILworX workstation including channel fault history log and real-time signal status

Material Composition

• Housing: UL94-V0 flame retardant reinforced industrial plastic
• PCB: High-temperature FR4 gold-plated backplane edge connector circuit board
• Terminal Blocks: Copper nickel-plated anti-corrosion screw terminals
• Internal Components: Safety-certified fault detection FPGA, industrial-grade MOSFET output drivers, isolated signal transformers

Structural Characteristics

• Narrow 22.5 mm DIN rail mount form factor for high cabinet I/O packing density
• Rear edge connector for direct plug-in to HIMatrix controller backplane rack
• Front detachable terminal blocks for field wiring separation during maintenance
• Vertical LED indicator array aligned one-to-one with each I/O channel for visual fault identification
• Rear anti-vibration DIN rail locking buckle with secondary safety lock tab
• Integrated internal EMC shielding metal sheet to mitigate industrial electromagnetic interference

Working Principle

1. Field binary safety signals from emergency stop switches, gas detectors, valve position feedback transmitters are sampled via DI input circuits with periodic test pulse injection for wire fault detection
2. Sampled DI state data is transmitted via proprietary safety backplane bus to F35 series safety controller with cyclic safety checksum validation
3. Safety control logic output commands from controller trigger DO MOSFET drive circuits to actuate safety solenoid valves, shutdown relays and alarm devices
4. Internal watchdog circuit monitors module CPU and backplane communication status; loss of communication triggers immediate failsafe de-energization of all output channels
5. All channel fault diagnostic data is stored in non-volatile on-board memory and retrievable remotely via SILworX software for offline troubleshooting

Advantage Highlights

1. Factory pre-loaded SILworX firmware eliminates on-site firmware programming labor and potential version mismatch errors
2. Compact slim form factor maximizes cabinet I/O channel density for large-scale SIS projects
3. Full SIL3 safety certification for emergency shutdown, fire & gas and burner management safety loops
4. Built-in comprehensive channel fault logging reduces system downtime during fault troubleshooting
5. Hot-swappable hardware design enables online maintenance without safety system outage
6. Seamless native integration with F35 series HIMatrix safety controllers without intermediate adapter hardware

Applicable Industries

Oil refinery ESD systems, chemical plant fire & gas interlock control, power plant boiler safety protection, offshore platform safety instrumentation, fertilizer hazardous process monitoring, LNG terminal valve shutdown control, pharmaceutical explosive batch process safety interlock

Installation Requirements

1. Mount only on standard 35 mm DIN rail inside IP20 rated control cabinet
2. Maintain minimum 10 mm vertical clearance between adjacent modules for heat dissipation
3. Field wiring must use shielded twisted pair cables with single-point cabinet earth grounding
4. Separate DI sensor wiring and DO load wiring with minimum 5 cm physical separation to avoid inductive interference
5. Backplane rack must be powered by HIMA safety-isolated 24 VDC certified power supply unit
6. Install external surge protection devices for field wiring runs exceeding 20 meters
7. Cabinet ambient humidity controlled at 5% – 95% non-condensing

Usage Precautions

1. Strictly prohibited for Ex Zone 0 / Zone 1 hazardous area installation; only Ex Zone 2 deployment permitted
2. DO channels driving inductive solenoid loads must install freewheeling flyback diodes across load terminals
3. Disconnect all field wiring before performing hot swap module replacement to avoid transient voltage surge damage
4. Supply voltage must remain within 19.2 VDC – 30 VDC operating range at all times
5. Maximum terminal screw tightening torque limited to 0.8 N·m to prevent PCB trace fracture
6. Firmware modification via non-SILworX third-party tools invalidates TÜV SIL3 safety certification and product warranty
7. Annual full channel functional test mandatory via SILworX diagnostic tool to validate fault detection performance
