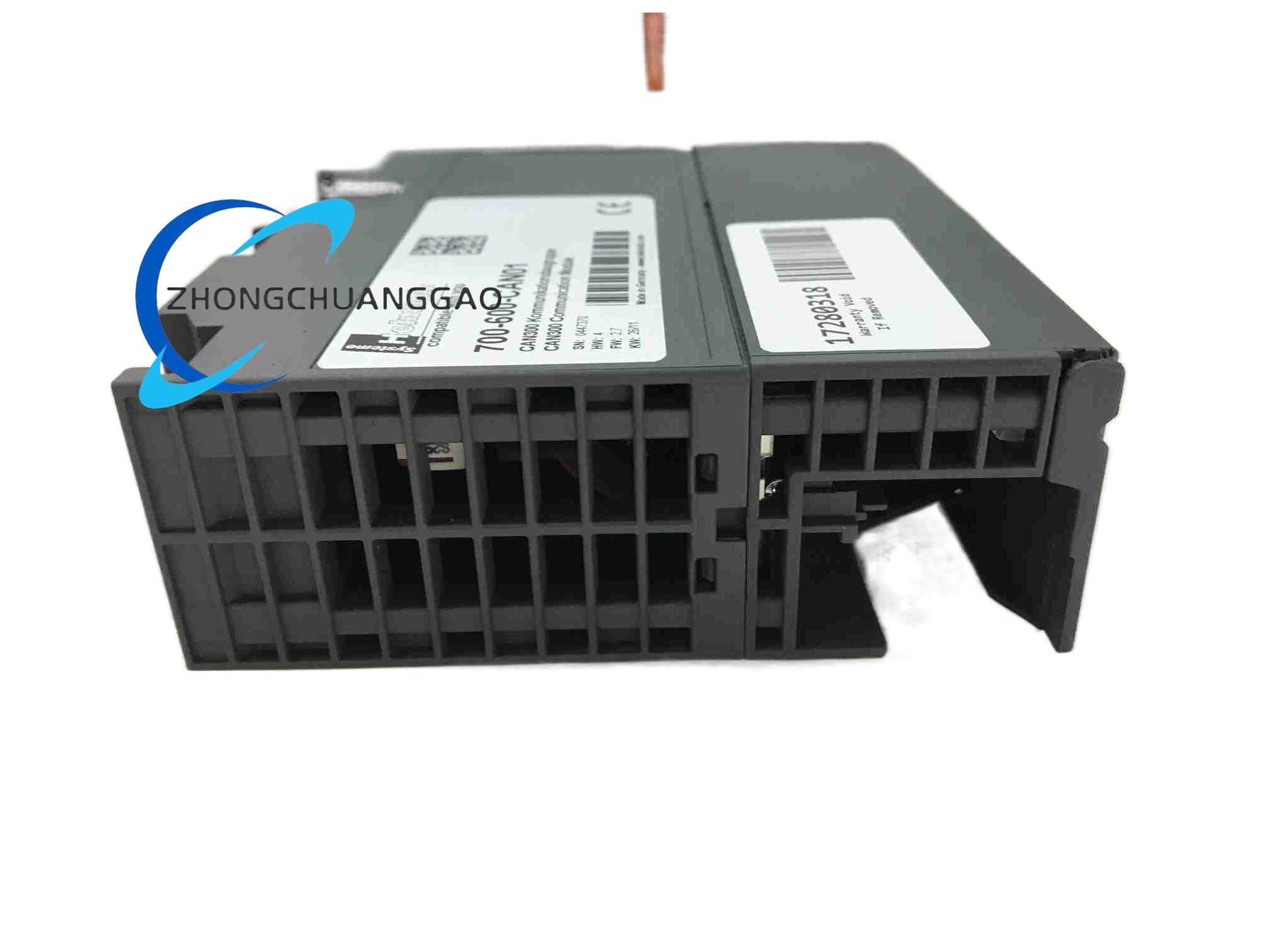

Baud Rate: 10 kbps – 1 Mbps (DIP-switch selectable)
-
Upper-layer Functions: CANopen Master can map up to 126 slave nodes as a process image
-
Timers: 16 freely programmable timers, each can trigger a CAN frame (ideal for servo sync)
-
Configuration Storage: Optional MMC micro-storage card for project backup / quick module swap
-

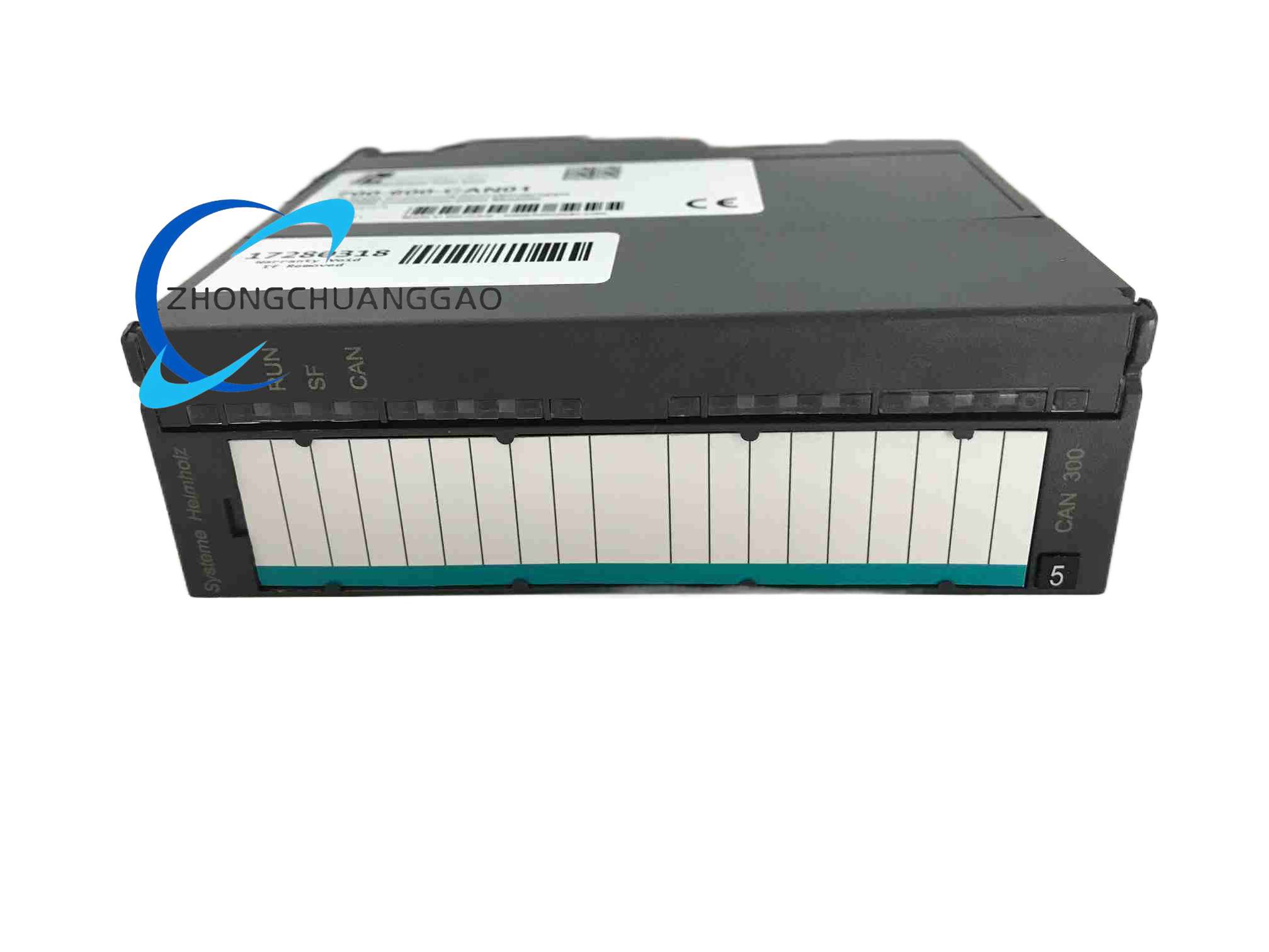

Diagnostics: USB port for PC-based diagnostics & parametrization; 6 LED status indicators (ON, CPU backplane, TX, RX, BF bus-fault, MODE)
-
DIP Switches: Set station address & baud rate without software
-
Power Supply: 5 VDC via S7-300 backplane (typical draw ~160 mA, max ~190 mA)
-
Operating Temperature: -25 °C to +60 °C
-
Storage Temperature: -25 °C to +75 °C
-
Protection Rating: IP20 (cabinet mount)
-
Certifications: CE, RoHS
-
Dimensions: 116 (D) × 40 (W) × 125 (H) mm, ~280 g
-
Application: Bridge S7-300 PLC to CAN-open drives, encoders, instruments; alternative to Siemens CP343-1 at lower cost with drop-in compatibility
-
Installation Notes: Insert into S7-300 central or expansion rack; occupy 1 slot; set DIP switches before power-up.
