HARMONIC DRIVE FHA-32C-50-H-C1024-SP

Product Short Description

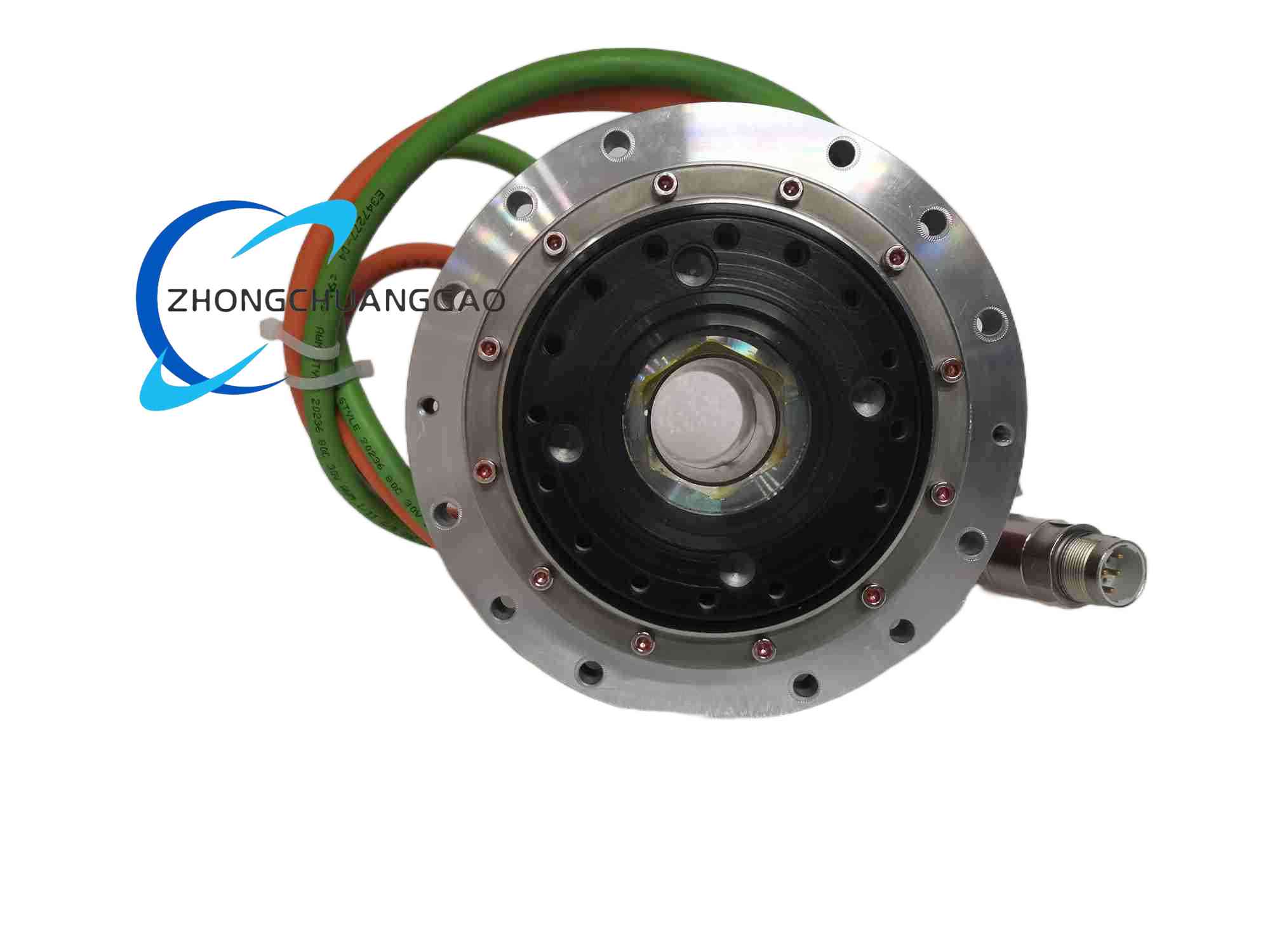

Product Name: Harmonic Drive FHA-32C-50-H-C1024-SP Hollow-Shaft Integrated Servo Actuator

Product Introduction: The FHA-32C-50-H-C1024-SP is part of Harmonic Drive’s FHA-C series of ultra-flat, integrated hollow-shaft rotary servo actuators. It combines a precision Harmonic Drive gear component with a performance-matched brushless servo motor and an incremental encoder in a single compact cylindrical body. The “C1024” suffix denotes a 1024-line incremental encoder, “H” denotes an IP65-rated housing for washdown environments, and “SP” indicates the standard brakeless configuration.

Description
Reviews (0)

Description

Technical Specifications:

Frame size: 32
Gear ratio: 50:1
Continuous rated torque: 16.5 N·m (32 N·m per some listings)
Peak instantaneous torque: 49.5 N·m (96 N·m per some listings)
Maximum output speed: 60 rpm (at motor 3000 rpm)
Hollow through-hole inner diameter: φ35 mm (φ60 mm per series drawings)
Encoder: 1024-line incremental
Power supply: AC 200 V three-phase
Rated continuous current: 5.7 A; peak current: 33 A
Unidirectional positioning accuracy: ≤ 30 arc-sec
Torsional stiffness: 110 × 10³ N·m/rad
Protection rating: IP65 (H-version)
Operating temperature: 0 to +50°C (wide-temperature variant optional)
Weight: 5.2 kg
Brake: None (SP = standard, no brake)

Structural & Working Principle: The actuator uses a zero-backlash harmonic gear mechanism — a wave generator, flexspline, and circular spline — to achieve high reduction in a compact form. The central hollow shaft allows cables, tubing, or laser beams to pass through the axis of rotation. The brushless servo motor is driven by third-party servo drives or Harmonic Drive’s DDP (CANopen), RTL, REL (EtherCAT), or HA-800 series drivers.

Functional Features:

Zero backlash, high torsional rigidity
Compact cylindrical design with large center through-hole
IP65 protection for washdown, oily, and harsh environments
High torque density relative to size
Closed-loop high-precision positioning via incremental encoder

Application Scenarios: Semiconductor manufacturing equipment, robotics joints, rotary indexing tables, medical equipment, packaging machinery, and any application requiring high torque, zero backlash, and routing of utilities through the rotation center.

Installation Requirements: Flange-end direct locking with standard mechanical mounting holes. Ensure the hollow shaft aperture is aligned for cable/tube pass-through. Connect to a compatible 200 VAC servo drive. Ambient temperature must be maintained within 0 to +50°C unless a wide-temperature variant is specified.

Usage Precautions: The SP configuration has no built-in brake — for vertical or holding applications, select a variant with the “B” (brake) option. Do not exceed peak torque or maximum output speed. Ensure proper encoder wiring to avoid counting errors.
