Product Short Description

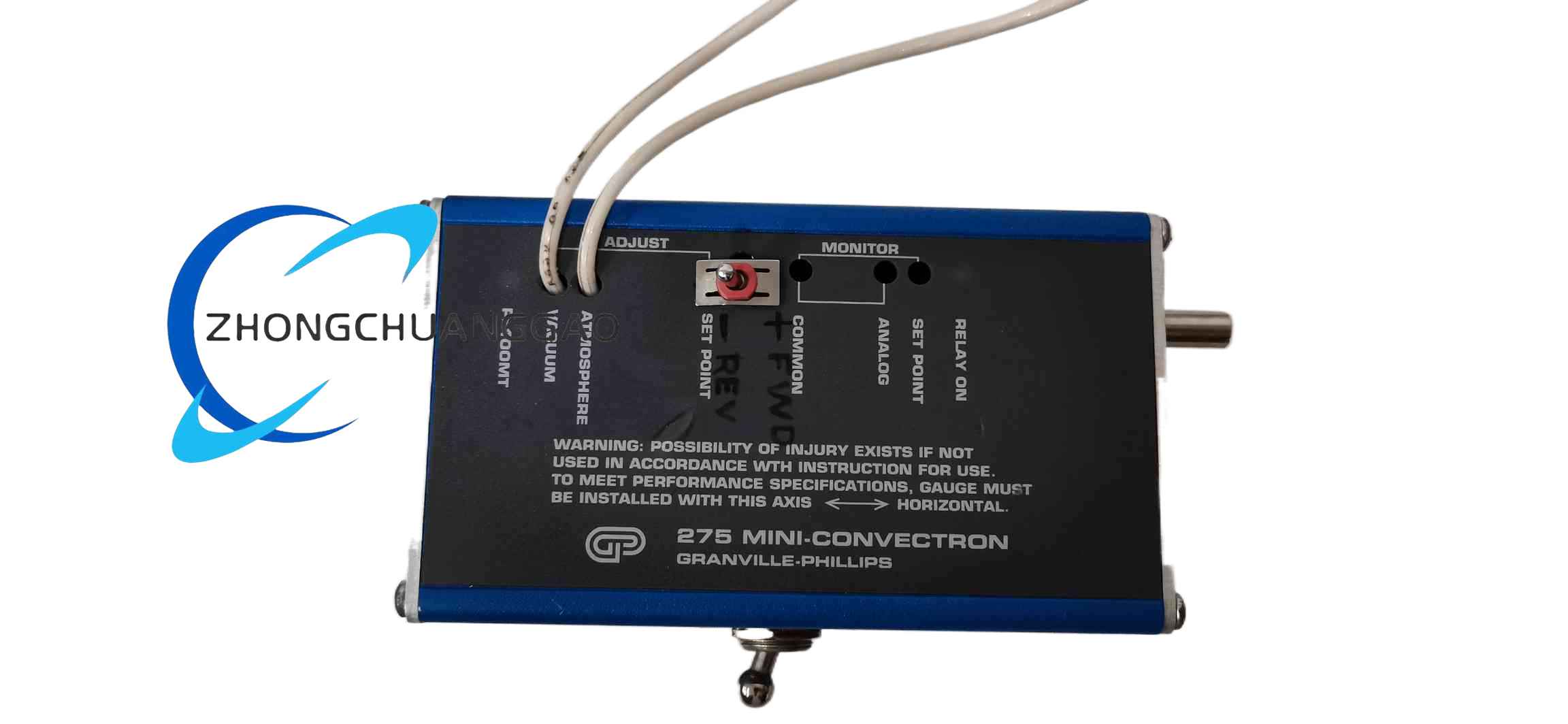

Product Name: Series 275 Mini-Convectron® Vacuum Gauge Module, NW16KF flange version
Product Introduction: The 275806-EU is a convection-enhanced Pirani-style vacuum gauge with integrated electronics, designed for direct mounting on a vacuum chamber. It provides a nonlinear analog output and supports process-control setpoint relays for interlock and valving logic.
Description
Technical Specifications:
-
Pressure Range: 1×10⁻⁴ Torr to 1000 Torr
-
Supply Voltage: 11.5 VDC to 26.5 VDC
-
Power Consumption: 1.8 W typical
-
Output Signal: Nonlinear analog voltage (calibrated 0.5–2 VDC across full range)
-
Setpoint Relays: 1 (basic version) or 2 (extended version) process-control relays
-
Vacuum Flange: NW16KF (also offered in NW25KF, NPT, VCR™, VCO™ and ConFlat® variants)
-
Accuracy: ±10% of reading (typical)
-
Stability: ±0.5% per day
-
Warm-up Time: 30 minutes
-
Operating Temperature: 5°C to 50°C
-
Enclosure: All-metal, RF-noise immune
Functional Features:
-
Compact, screw-driver replaceable gauge head
-
Factory-calibrated for repeatable accuracy
-
Adjustable setpoint relays for valve / safety interlock control
-
CE compliant
Application Scenarios: R&D vacuum systems, semiconductor manufacturing, analytical instruments, thin-film coating, any high-precision vacuum measurement point.
Installation & Notes: Mount directly to the chamber flange using the NW16KF interface. Ensure clean, particle-free sealing surfaces. Use only 11.5–26.5 VDC supply. Do not exceed the rated pressure range. The nonlinear output requires signal conditioning or a lookup table in the host system.
