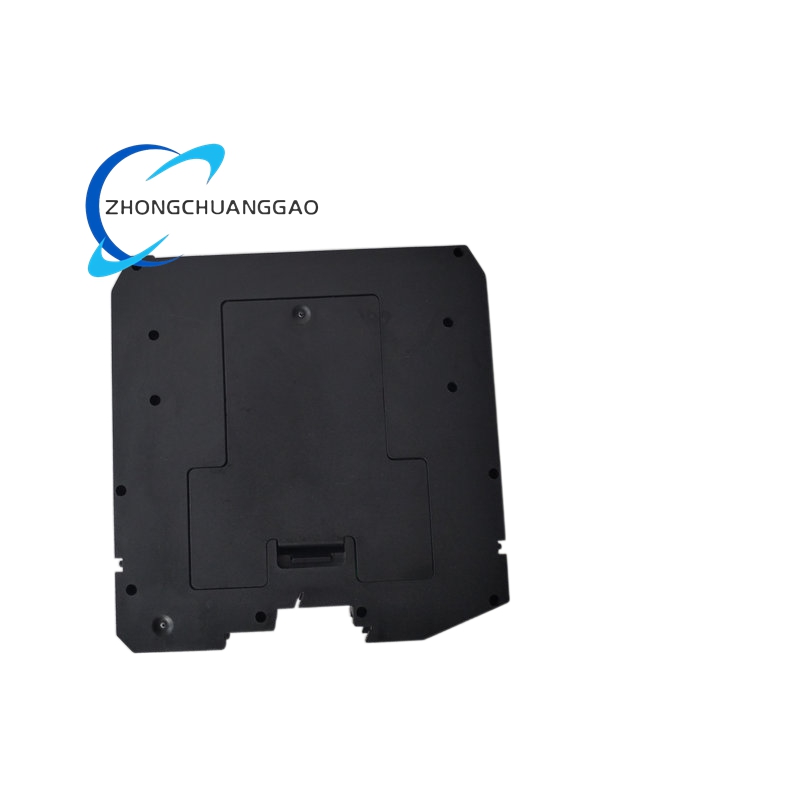

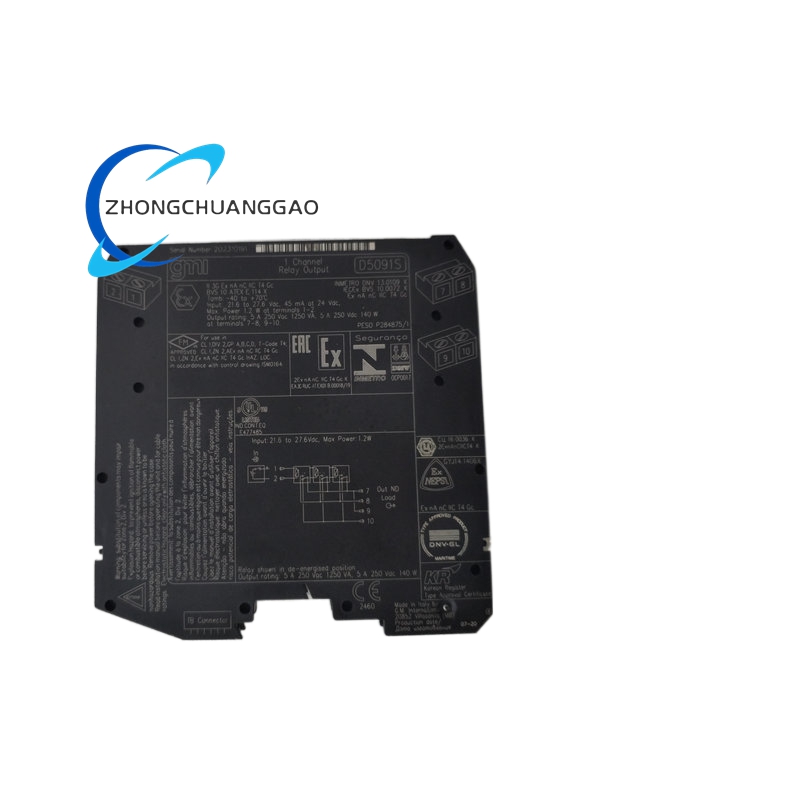

GM International D5091S

Description

Technical Specifications:

• Product Model: D5091S

• Manufacturer: GM International S.p.A.

• Product Category: Safety Relay Module

• Safety Rating: SIL 3 / SC 3 for ND/F&G loads with ND/NE driver

• Installation Location: Zone 2/Div. 2

• Channels: 1

• Input Voltage: 24 Vdc nom (21.6 to 27.6 Vdc), reverse polarity protected

• Current Consumption: 45 mA @ 24 Vdc (typical)

• Power Dissipation: 1.1 W @ 24 Vdc (typical)

• Output Type: Voltage free SPDT relay contact

• Contact Material: Ag Alloy (Cd free), gold plated

• Contact Rating: 5 A 250 Vac (1250 VA), 5 A 250 Vdc (140 W, resistive load)

• Minimum Switching Current: 1 mA

• Inrush Current: 6 A @ 24 Vdc, 250 Vac

• Mechanical Life: 5 × 10⁶ operations (typical)

• Electrical Life: 3 × 10⁴ operations (typical)

• Operate Time: 55 ms (typical)

• Release Time: 30 ms (typical)

• Isolation Test Voltage: Input/Output 2.5 kV

• Operating Temperature: -40 to +70°C

• Storage Temperature: -45 to +80°C

• Mounting: DIN-Rail 35 mm or custom terminal board

• Weight: Approximately 125 g

• Connection: Polarized plug-in disconnect screw terminal blocks up to 2.5 mm² (13 AWG)

• Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm

Functional Features:

• SIL 3 safety rating for high-risk industrial applications

• One SPDT contact for two different safety functions

• SIL 3 Safety Function for Normally De-Energized load (fail-safe state energized) at Terminal Blocks 7-8

• Input/Output isolation

• Compatible with DCS/PLC pulse testing

• Reverse polarity protection on input

• Relay coils internally protected with suppressor diodes

• Service contact available

• Zone 2/Div. 2 installation capable

Performance Parameters:

• Safety Level: SIL 3

• Contact Rating: 5A/250VAC, 5A/250VDC

• Inrush Current: 6A

• Operate Time: 55 ms

• Release Time: 30 ms

• Isolation: 2.5 kV

• Current Consumption: 45 mA

Material Composition:
Ag Alloy (Cd free) with gold plating for contacts. Industrial-grade electronic components with robust housing for hazardous area installation.

Structural Features:
Compact 12.5mm width module designed for DIN-Rail 35mm mounting. Polarized plug-in disconnect screw terminal blocks for secure connections. The module provides one SPDT relay contact with clearly marked terminal blocks.

Working Principle:
The D5091S relay module receives a 24 Vdc input signal (21.6 to 27.6 Vdc range) with reverse polarity protection. The relay coil is internally protected with suppressor diodes. When the drive signal is high (24 Vdc), the relay energizes and contacts change state. For SIL 3 safety function with Normally De-Energized load at terminals 7-8, the relay is normally de-energized with contacts open and load de-energized in the safe state. When the drive signal is high, the relay energizes and the load is powered. A dedicated internal circuit permits driving pulse testing without contact or LED flickering.

Advantages and Strengths:

• SIL 3 safety certification for high-risk applications

• Compact 12.5mm width for high-density installations

• Wide operating temperature range (-40 to +70°C)

• DCS/PLC pulse testing compatible

• Input/Output isolation for signal integrity

• Reverse polarity protection

• Zone 2/Div. 2 hazardous area installation capability

Applicable Industries:

• High-risk industrial safety applications

• Process automation

• Oil and gas

• Chemical processing

• Power generation

• Safety instrumented systems (SIS)

Model Series:
GM International D5000 Series Relay Modules

Installation Requirements:

• DIN-Rail 35mm mounting or custom terminal board

• 24 Vdc power supply (21.6 to 27.6 Vdc)

• Proper polarity connection (reverse polarity protected)

• Terminal connections up to 2.5 mm² (13 AWG)

• Suitable for Zone 2/Div. 2 hazardous locations

Usage Precautions:

• Operating temperature: -40 to +70°C

• Storage temperature: -45 to +80°C

• Proper SIL 3 safety function wiring at terminals 7-8 for Normally De-Energized load

• Input voltage must remain within 21.6 to 27.6 Vdc range

• Relay coil internally protected; do not add external suppression that may interfere with pulse testing
