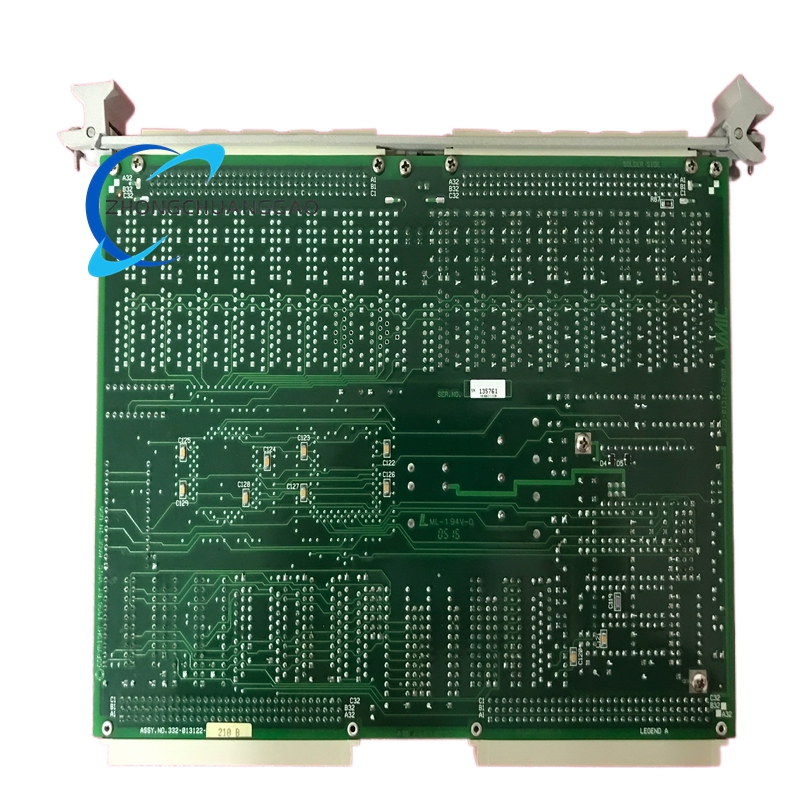

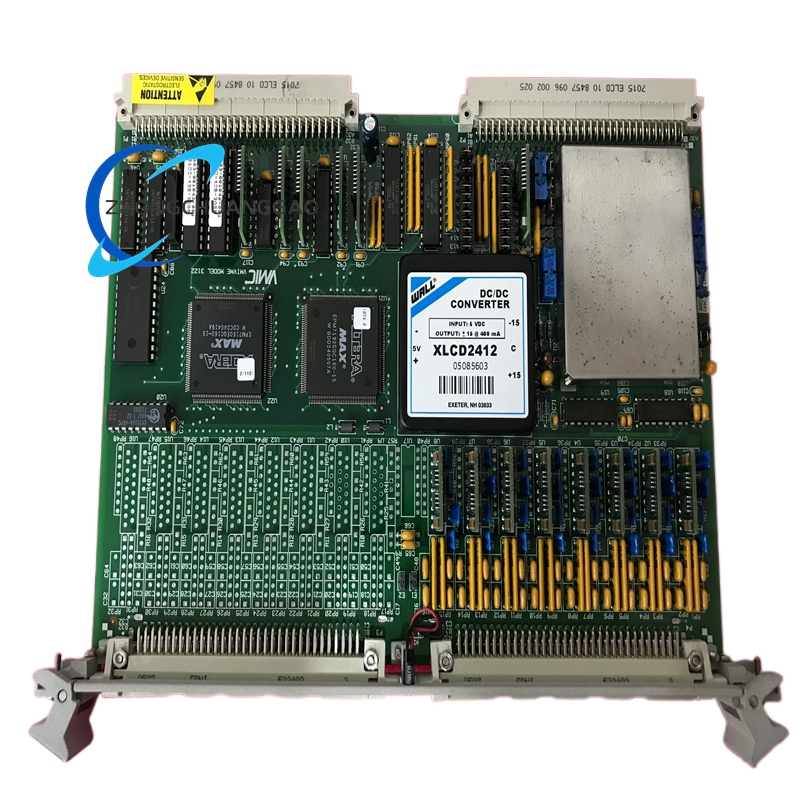

GE VMIVME-3122-020000

Description

Technical Specifications

• Manufacturer: GE Intelligent Platforms (Abaco Systems)
• Model: VMIVME-3122-020000
• Form Factor: 6U VMEbus (single slot, 160 mm × 233 mm × 20 mm)
• ADC Resolution: 16‑bit (no missing codes, ±0.003% full‑scale accuracy)
• Analog Input Channels: 64 differential or single‑ended (software‑selectable)
• Input Ranges: Software‑programmable ±2 V, ±5 V, ±10 V (default ±10 V for ‑020000)
• Gain Options: 1×, 2×, 4×, 8× (programmable per channel or global)
• Sampling Rate:
  • High‑Performance Mode: 381 Hz to 100 kHz (max 100 kS/s aggregate)
  • Standard Mode: 381 Hz to 50 kHz
• Conversion Time: <10 μs per channel
• Data Memory: 32 KB dual‑ported RAM (VMEbus and ADC interface accessible)
• On‑Board Timers: Intel 8254 (3× 16‑bit counters for scan timing, triggering)
• VMEbus Interface: A16/A24/A32 addressing, D16/D32 data, interrupt levels 1–7 (programmable)
• Input Connectors: P3/P4 96‑pin DIN non‑latching (standard for ‑020000; 64‑pin latching optional)
• Power Supply: +5 VDC ±5%, 7.0 A maximum (forced air cooling required)
• Operating Temperature: 0°C to +65°C (32°F to 149°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 0%–80% RH (non‑condensing)
• Altitude: 0–10,000 ft (0–3,000 m) operating; 0–40,000 ft (0–12,000 m) storage
• MTBF: 135,900 hours at 217°F (calculated)
• Certifications: CE, UL 508, CSA C22.2, IEC 61010‑1
• Status: Legacy (obsolete, but supported via Abaco Systems; ‑020000 is a standard configuration variant)

Key Features

1. 16‑Bit High‑Precision Conversion: Delivers 16‑bit resolution with no missing codes and ±0.003% full‑scale accuracy, ensuring precise measurement of low‑level analog signals in critical applications.
2. 64‑Channel High‑Density Input: Supports 64 differential or single‑ended inputs, reducing system complexity and cost by consolidating multiple signal sources into a single VMEbus slot.
3. Software‑Programmable Ranges & Gains: Offers ±2 V, ±5 V, ±10 V input ranges and 1×–8× gain settings, enabling flexibility to interface with diverse sensors (thermocouples, RTDs, strain gauges, transmitters).
4. Autonomous Scanning & Timing: On‑board 8254 timers and sequencers enable self‑paced channel scanning (381 Hz to 100 kHz) without host processor intervention, ensuring deterministic data acquisition.
5. Dual‑Ported Data Memory: 32 KB dual‑ported RAM allows simultaneous access by the ADC and VMEbus host, minimizing data latency and enabling high‑speed data streaming.
6. Multiple Operating Modes: Supports auto‑scan, data burst, and external synchronization modes, accommodating continuous monitoring, batch sampling, and event‑triggered acquisition.
7. Robust Industrial Design: Constructed for harsh environments with 0°C to +65°C operating temperature, vibration‑resistant components, and VMEbus compliance for reliable long‑term operation.
8. Flexible VMEbus Interface: Supports A16/A24/A32 addressing, D16/D32 data transfers, and programmable interrupts (levels 1–7), ensuring seamless integration with legacy and modern VMEbus systems.
9. Signal Conditioning Compatibility: Interfaces directly with GE/VMIC signal conditioning boards for thermocouple, RTD, and strain gauge inputs, simplifying sensor integration.
10. ‑020000 Standard Configuration: Optimized for general‑purpose use with 96‑pin non‑latching connectors, no input filters, and default firmware, reducing setup time and ensuring compatibility with most standard systems.

Applications

• Industrial Process Control: High‑speed monitoring of temperature, pressure, flow, and level sensors in manufacturing, chemical, and power generation plants.
• Test & Measurement: Data acquisition for vibration analysis, strain testing, and environmental monitoring in aerospace, automotive, and research laboratories.
• Scientific Computing: High‑channel‑count data logging for particle accelerators, telescopes, and experimental physics facilities (e.g., SLAC National Accelerator Laboratory).
• Power Generation & Distribution: Precision monitoring of generator outputs, transformer temperatures, and grid parameters in utility substations and power plants.
• Aerospace & Defense: Flight test data acquisition, avionics system monitoring, and radar signal processing in military and commercial aircraft applications.
• Legacy System Retrofits: Direct replacement for aging VMIVME‑3122 modules in existing VMEbus‑based control systems, extending operational life without full system redesign.
• Industrial Automation: High‑density analog input for PLC and DCS systems in refineries, petrochemical plants, and steel mills.

System Compatibility

• VMEbus Chassis: Compatible with all 6U VMEbus chassis (e.g., GE VMIVME‑2000, VMIVME‑2500 series).
• Operating Systems: Supports VxWorks, Linux, Windows XP/7 (with GE/Abaco driver software).
• Software Tools: Configured via GE/Abaco VMEware, VMIClink, and custom C/C++/Python APIs for data acquisition and control.
• Signal Conditioning: Interfaces with VMIVME‑3101, VMIVME‑3102, and VMIVME‑3103 signal conditioning boards for thermocouple/RTD/strain gauge inputs.
