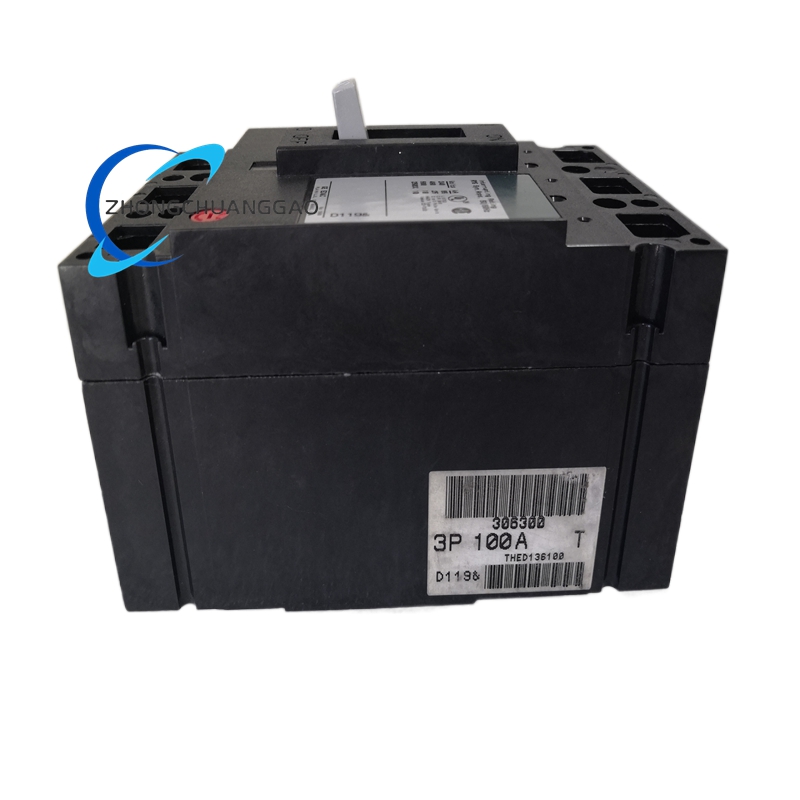

The GE THED136100WL is a heavy-duty molded case circuit breaker (MCCB) engineered for industrial and commercial electrical distribution systems. It provides reliable overcurrent, short-circuit, and ground fault protection for 3-phase circuits up to 600V AC and 100A. Equipped with a thermal magnetic trip unit and high interrupting capacity, it ensures robust protection against overloads and fault currents. The “WL” suffix denotes factory-installed copper/aluminum line and load lugs for versatile conductor compatibility.
Description
Technical Specifications
- Poles: 3 (3-phase)
- Rated Current: 100 A
- Rated Voltage: 600 V AC (50/60 Hz); 125/250 V DC
- Trip Unit: Thermal Magnetic (LI: Long-Time Overload + Instantaneous Short Circuit)
- Interrupting Ratings (AIC):
- 65 kA @ 120/240 V AC
- 25 kA @ 480 V AC
- 18 kA @ 600 V AC
- 10 kA @ 250 V DC
- Frame Rating: 150 A (E150 Series)
- Mounting Style: Bolt-on (Feed-Thru)
- Terminals: Copper/Aluminum (Cu/Al) lugs, 3–1 AWG wire range
- Operating Temperature: 10°C to 50°C (50°F to 122°F)
- Enclosure Material: High-impact thermoplastic
- Dimensions (H×W×D): 160 mm × 105 mm × 85 mm (6.5 in × 4.1 in × 3.4 in)
- Weight: 1.8 kg (4.0 lbs)
- Certifications: UL 489, CSA C22.2 No. 5, IEC 60947-2, NOM compliant
Key Features
- Dual Thermal-Magnetic Protection: Thermal element provides inverse-time overload protection for sustained overcurrent; magnetic element delivers instantaneous short-circuit tripping (≤10 ms) for fault isolation。
- High Interrupting Capacity: Withstands up to 65 kA at 240V AC and 25 kA at 480V AC, ensuring safety in high-fault-current industrial environments。
- Cu/Al Lug Compatibility: Factory-installed lugs accept both copper and aluminum conductors, reducing installation costs and inventory complexity。
- Robust Thermoplastic Enclosure: High-impact, flame-resistant housing protects against physical damage, dust, and moisture for long-term reliability。
- Clear Trip Indication: Front-panel toggle handle shows “ON/OFF/TRIP” status for quick visual identification of circuit conditions。
- UL/CSA/IEC Certified: Meets global safety standards for electrical distribution equipment, ensuring code compliance and system safety。
- Compact Footprint: Space-efficient design optimizes panel layout in motor control centers (MCCs) and distribution boards。
- Wide Operating Temperature: Functions reliably in ambient temperatures from 10°C to 50°C, adapting to indoor industrial and commercial environments。
Application Scenarios
- Industrial Distribution Systems: Protects 3-phase motors, pumps, compressors, and conveyors in manufacturing plants, refineries, and chemical facilities。
- Commercial Buildings: Used in shopping malls, airports, and data centers for main distribution panels and subfeeders。
- HVAC Systems: Safeguards large 3-phase fan and chiller motors in commercial and industrial HVAC installations。
- Oil & Gas: Deployed in refineries, pipelines, and offshore platforms for electrical distribution and motor control circuits。
- Water & Wastewater: Protects pump motors and control panels in treatment plants and water distribution systems。
- Mining & Metals: Used in crushers, conveyors, and processing equipment for reliable overcurrent protection in harsh environments。
Functional Overview
The THED136100WL serves as a critical protection device in 3-phase electrical systems. During normal operation, it conducts current to the load. In overload conditions, the thermal element heats and trips the breaker after a time delay proportional to the overcurrent magnitude. For short circuits, the magnetic element triggers an immediate trip to isolate the fault. The Cu/Al lugs simplify installation, while the high interrupting capacity ensures safety in high-fault environments. By combining robust protection, versatile connectivity, and global certifications, it delivers reliable performance across diverse industrial and commercial applications.
