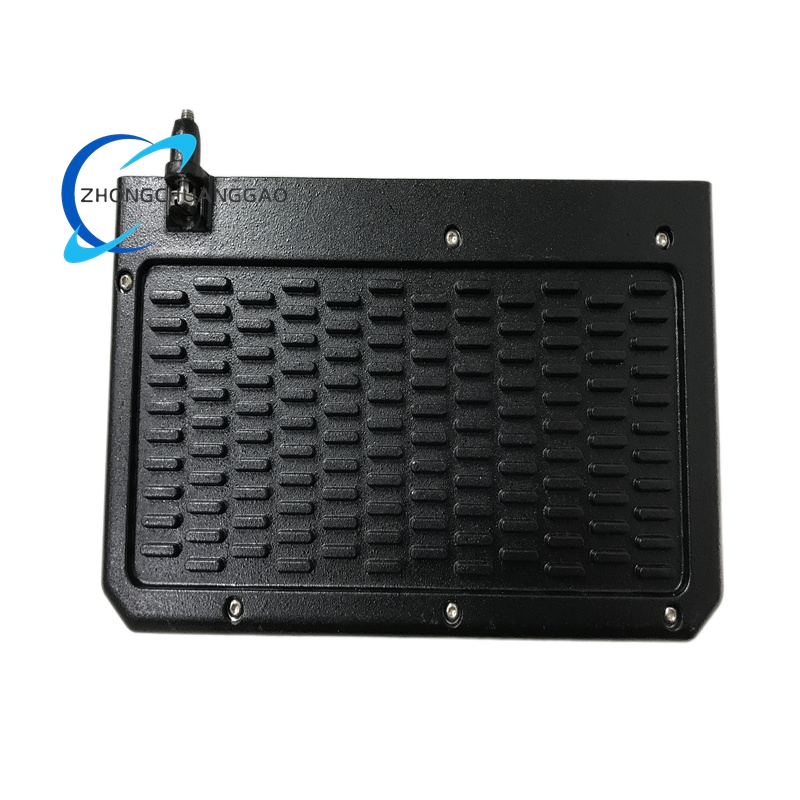

The GE 8851-LC-MT is a high-integrity, SIL2-certified safety logic controller within the GE PAC8000 series. It executes safety-critical control logic, provides dual-redundant fiber-optic Ethernet communication, and enables peer-to-peer data exchange between controllers. Designed for hazardous and high-reliability industrial environments, it serves as the core of safety instrumented systems (SIS) and integrates seamlessly with MTL8000 I/O modules.
Description
Technical Specifications
- Manufacturer: General Electric (GE), MTL Instruments
- Model Number: 8851-LC-MT
- Series: PAC8000 SafetyNet
- Safety Integrity Level: SIL2 certified (per IEC 61508)
- Communication Ports: Dual redundant 10/100/1000 Mbps Ethernet (LC fiber connectors)
- Fiber Wavelength: 1310 nm
- Optical Transmit Power: -9.5 dBm to 0 dBm
- Optical Receive Sensitivity: -20 dBm
- Max Fiber Transmission Distance: 10 km (single-mode fiber)
- Power Supply: 12 VDC (from 8913-PS-AC power supply)
- Power Consumption: 10 W maximum
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -20°C to +70°C (-4°F to +158°F)
- Humidity: 5%–95%, non-condensing
- Protection Class: IP20
- Dimensions: 70 mm × 140 mm × 130 mm (2.76 in × 5.51 in × 5.12 in)
- Weight: 1.24 kg (2.73 lbs)
- Certifications: ATEX, IECEx, UL/cUL, FM, CSA (Zone 0/1, Div. 1 hazardous areas)
Key Features
-
SIL2-Certified Safety Logic Execution
- Executes safety-critical logic per IEC 61131-3 standard languages.
- Delivers deterministic, fault-tolerant performance for safety instrumented systems.
- Supports online configuration and runtime reconfiguration without shutdown.
-
Dual-Redundant Fiber-Optic Ethernet Communication
- Two independent LC fiber ports provide 10/100/1000 Mbps redundant communication.
- Enables bumpless transfer and zero data loss during network or controller faults.
- Facilitates peer-to-peer communication between multiple SafetyNet controllers.
-
HART Protocol Pass-Through & Diagnostic Capabilities
- Transmits HART process variables, device status, and diagnostic data over SafetyNet.
- Supports digital diagnostic monitoring (DDM) for fiber link health.
- Logs up to 8000 events for audit trails and troubleshooting.
-
Intrinsic Safety & Hazardous Area Compliance
- Certified for ATEX/IECEx Zone 0/1 and UL/cUL Division 1 hazardous locations.
- Aluminum alloy housing provides durability and electromagnetic shielding.
- Conformal coating option available for corrosive or humid environments.
-
Seamless System Integration & Redundancy
- Interfaces with all PAC8000 I/O modules and MTL8000 series safety barriers.
- Supports redundant controller configurations for maximum system availability.
- Configured via GE EnerVista Workbench software (v8.3.0 SP1 or later).
Application Scenarios
- Oil & Gas: Upstream drilling platforms, midstream pipelines, and downstream refineries for emergency shutdown (ESD) and process safety control.
- Chemical & Petrochemical: Hazardous process units, reactor safety, and toxic gas monitoring systems.
- Power Generation: Thermal power plants, nuclear balance-of-plant, and renewable energy safety interlocks.
- Pharmaceutical & Food & Beverage: High-purity process safety and sterile environment monitoring.
- Water & Wastewater: Critical pump safety, chemical feed interlocks, and basin level protection.
- Mining: Conveyor safety, hoist control, and underground gas monitoring systems.
Additional Information
- Condition: Brand new, original factory sealed packaging
- Warranty: 12-month manufacturer warranty
- Country of Origin: United Kingdom (MTL Instruments)
- Lead Time: 4–6 weeks (in-stock units available)
- Compatibility: Fully compatible with GE PAC8000 CPUs, MTL8000 I/O modules, and 8913-PS-AC power supply
