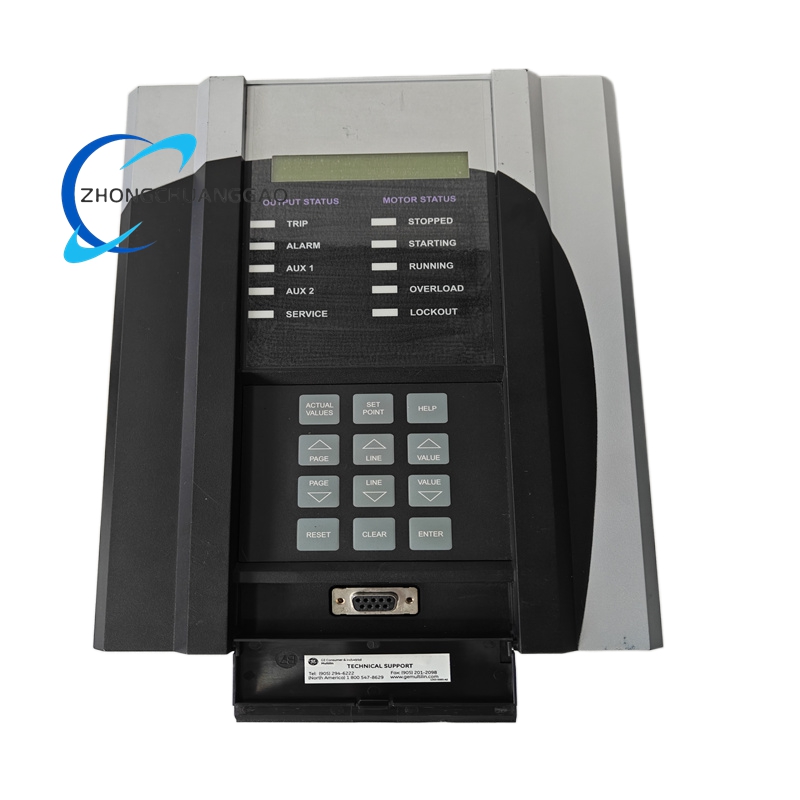

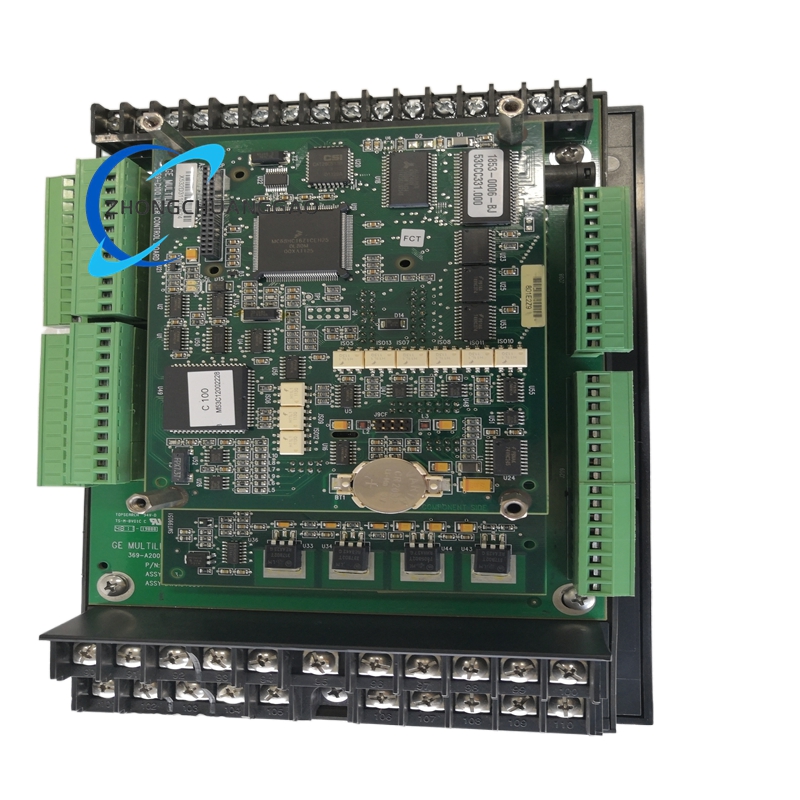

GE Multilin 369-HI-R-M-0-E-0 Enhanced Motor Management Relay

Description

Technical Specifications

• Manufacturer: GE Multilin (General Electric, now Emerson Automation Solutions)
• Model Number: 369-HI-R-M-0-E-0
• Series: 369 Motor Management Relay
• Control Power: 50–300 VDC / 60–265 VAC, 50/60 Hz
• Phase Current Input: 1 A or 5 A (secondary CT input)
• Ground Current Input: 20–100 Hz frequency range
• RTD Inputs: 12 built-in 3-wire inputs; supports 100Ω platinum, 100Ω nickel, 120Ω nickel, 10Ω copper
• Digital Inputs: 6 optically isolated inputs
• Digital Outputs: 6 relay outputs (configurable)
• Communication Interfaces: 1 front RS232 port, 3 rear RS485 ports; supports Modbus RTU, DNP3 protocols
• Display: 40-character LCD with keypad for local operation
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Storage Temperature: -40°C to +80°C (-40°F to +176°F)
• Humidity: 10%–95%, non-condensing
• Protection Class: Dustproof, moisture-proof, shock-resistant
• Dimensions: 200 mm × 150 mm × 100 mm
• Weight: Approx. 3.5 kg (7.7 lbs)

Key Features

1. Comprehensive Motor Protection
   • Electrical fault protection: Overload, short circuit, ground fault, overvoltage, undervoltage, unbalanced current, undercurrent.
   • Mechanical fault protection: Mechanical jam, stall, reverse rotation, RTD overtemperature, startup failure.
   • Thermal protection: Adaptive thermal model to prevent overheating during prolonged operation or frequent startups.
2. Precision Metering & Monitoring
   • Real-time monitoring of voltage, current, power (kW/kVAR/kVA), energy, frequency, and power factor.
   • 12 RTD inputs for stator winding, bearing, and ambient temperature monitoring.
   • Startup data logging: Captures current, voltage, and temperature profiles during motor startup.
3. Advanced Diagnostics & Analysis
   • Event Logging: Stores up to 512 time-stamped events (alarms, trips, self-tests).
   • Waveform Capture: Triggers 3 waveform records during trips, capturing 16 data cycles of phase/ground current and contact status.
   • Motor Health Reporting: Analyzes historical data to predict maintenance needs and identify potential faults.
   • Pre-Trip Alarms: Issues early warnings for ground faults, jams, or overtemperature before tripping.
4. Flexible Communication & Integration
   • Multi-port communication enables connection to SCADA systems, PLCs, and PCs.
   • Compatible with EnerVista 369 software for remote configuration, monitoring, and data retrieval.
   • Supports custom programmable logic for application-specific control requirements.
5. Robust & User-Friendly Design
   • Wide-range control power (50–300 VDC / 60–265 VAC) for global deployment.
   • DIN rail mounting for easy installation in control panels.
   • Flame-retardant, corrosion-resistant metal enclosure for harsh environments.
   • Intuitive LCD/keypad for local parameter adjustment and fault diagnosis.

Application Scenarios

• Manufacturing: Protects motors in production lines, machine tools, conveyors, and textile machinery.
• Oil & Gas: Safeguards motors in drilling rigs, pumps, compressors, and refinery processes.
• Water & Wastewater: Controls and monitors motors for pumps, fans, and treatment equipment.
• Power Generation: Protects auxiliary motors in thermal, hydro, and renewable power plants.
• Chemical & Petrochemical: Ensures safe operation of motors in reactors, mixers, and processing units.
• Mining: Protects motors in crushers, hoists, and underground conveyor systems.

Additional Information

• Condition: Brand new, original factory packaging
• Warranty: 12-month manufacturer warranty
• Country of Origin: United States
• Lead Time: 6–8 weeks (in stock available)
• Software: Compatible with GE EnerVista 369 Setup Software
