Product Short Description

The IS420UCSBH3A is a high-performance, standalone controller module serving as the core processing unit for GE Mark VIe and Mark VIeS turbine control and distributed automation platforms. Designed as a self-contained industrial computer, it executes real-time control logic, safety protection algorithms, and system communication tasks without relying on backplane I/O. It connects to all I/O networks to access full input data, ensuring no single point of data loss during maintenance.

Share on Facebook
Share on Twitter
Email This Product

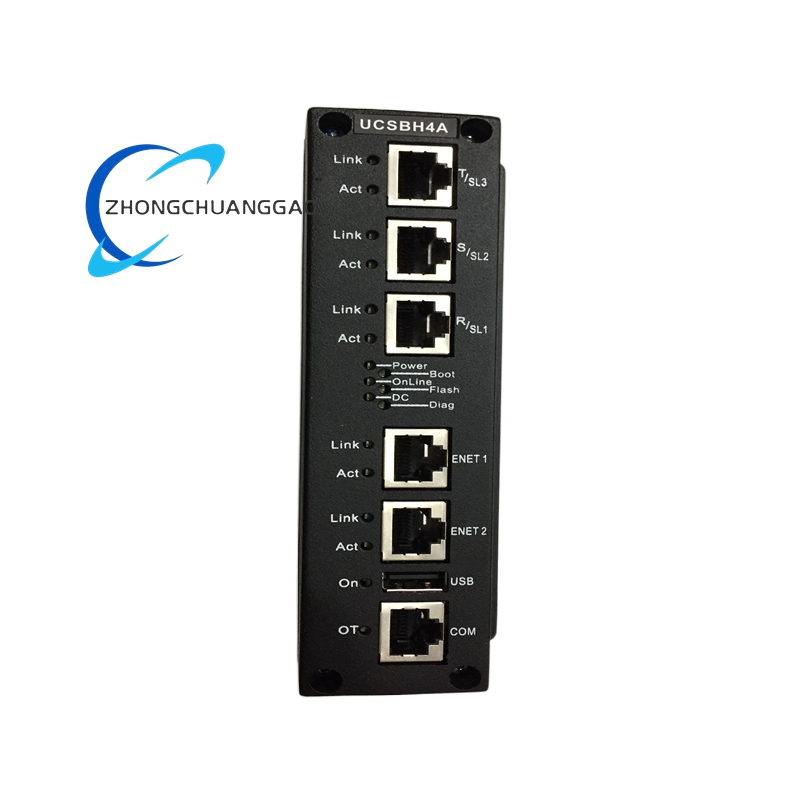

GE IS420UCSBH3A UCSB Universal Control System Block Controller Module
GE IS420UCSBH3A UCSB Universal Control System Block Controller Module - Image 2

Description

Technical Specifications

  • Processor: 1200 MHz Intel EP80579 (Atom-based)
  • Operating System: QNX Neutrino Real-Time Multitasking OS
  • Memory: 1 GB DDR3 RAM, 2 GB Industrial Flash Storage
  • Power Supply: 18–30 V DC (24/28 V DC nominal), 1.5 A max current
  • Power Consumption: 12 W typical, 28.7 W peak
  • Cooling System: Dual redundant hot-swap fans (field-replaceable)
  • Communication Interfaces:
    • 4 × RJ45 IONet (10/100 Mbps Ethernet, private I/O network)
    • 2 × RJ45 Ethernet (Modbus TCP/IP, Ethernet/IP, GE proprietary protocols)
    • 1 × USB 2.0 (configuration, firmware updates)
    • 1 × RS-232 (serial diagnostics)
  • Operating Temperature: 0°C to +65°C (+32°F to +149°F)
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
  • Humidity: 10%–95% (non-condensing)
  • Shock/Vibration: 5 g peak shock, 0.1 g vibration (5–2000 Hz)
  • Dimensions (H×W×D): 162.6 mm × 205.7 mm × 35.6 mm (6.4 in × 8.1 in × 1.4 in)
  • Weight: 1.3 kg (2.9 lbs)
  • Wire Gauge Compatibility: 28–16 AWG
  • LED Indicators: Power, Run, Online, Diagnostic, Overtemperature, Fan Fault
  • Certifications: CE (EN 61000-6-2), UL 508, CSA C22.2 No.14-13, SIL 2/3 (IEC 61508), ATEX Zone 2 (IIC), RoHS
  • Protection Class: IP67 (dust-tight, waterproof)
  • Conformal Coating: Full PCB conformal coating for harsh environment protection

Key Features

  1. High-Performance 1.2 GHz Processor: Delivers deterministic real-time processing for complex turbine control logic, safety interlocks, and advanced algorithm execution.
  2. Standalone Controller Architecture: Operates as an independent computer without onboard I/O, connecting to all I/O networks to eliminate single points of data loss during maintenance.
  3. Dual Redundant Hot-Swap Fans: Ensures continuous cooling in high-temperature environments; fans are field-replaceable without system shutdown.
  4. Battery-Free & Jumper-Free Design: Eliminates maintenance tasks related to battery replacement and jumper configuration, reducing downtime and operational costs.
  5. Multiple Industrial Communication Ports: Features 4 IONet ports for dedicated I/O communication and 2 Ethernet ports for third-party device integration (Modbus TCP/IP, Ethernet/IP).
  6. SIL 2/3 Functional Safety Certification: Meets IEC 61508 safety standards for safety-critical applications, ensuring reliable protection against equipment failure.
  7. Wide Industrial Temperature Tolerance: Operates reliably from 0°C to +65°C, suitable for extreme industrial environments with high ambient temperatures.
  8. Comprehensive Diagnostics & LED Status: Provides real-time monitoring of power, operation, communication, and cooling health; front-panel LEDs enable quick fault localization.
  9. Compact & Rugged Construction: Features IP67 protection, conformal coating, and vibration-resistant design for deployment in harsh industrial conditions.
  10. Seamless Mark VIe System Integration: Works with all Mark VIe I/O packs and terminal boards, supporting simplex, duplex, and triplex redundant system architectures.

Application Scenarios

  • Power Generation Plants: Deployed in gas turbine, steam turbine, combined-cycle, and cogeneration power plants as the main controller for turbine speed control, load management, exhaust temperature monitoring, and safety protection (overspeed, overtemperature).
  • Oil & Gas Industry: Used in refineries, compressor stations, and offshore platforms to control turbine-driven compressors, pumps, and process heaters; ensures safe and efficient operation of high-pressure, high-temperature equipment.
  • Industrial Cogeneration: Applied in chemical plants, steel mills, pulp/paper facilities, and pharmaceutical plants with on-site turbine-based power generation; optimizes energy efficiency and meets emissions regulations.
  • Process Industries: Utilized in water treatment, food/beverage, and mining operations for precise control of pumps, fans, and processing equipment; ensures consistent product quality and regulatory compliance.
  • Hazardous Locations: Certified for ATEX Zone 2 (IIC) explosive gas environments, enabling safe control of turbines and process equipment in high-risk industrial areas.

Functional Overview

The IS420UCSBH3A functions as the central brain of the Mark VIe control system. It boots the QNX Neutrino OS, executes user-defined control logic programmed via ControlST software, and communicates with distributed I/O packs over dedicated IONet networks. It processes real-time data from sensors and field devices, executes closed-loop control algorithms, and triggers safety actions (e.g., turbine trip) when parameters exceed predefined limits. Redundant communication ports ensure uninterrupted data exchange, while dual fans and comprehensive diagnostics maintain system reliability. The controller’s standalone architecture and safety certifications make it ideal for mission-critical industrial applications where uptime and safety are paramount.
