Product Short Description

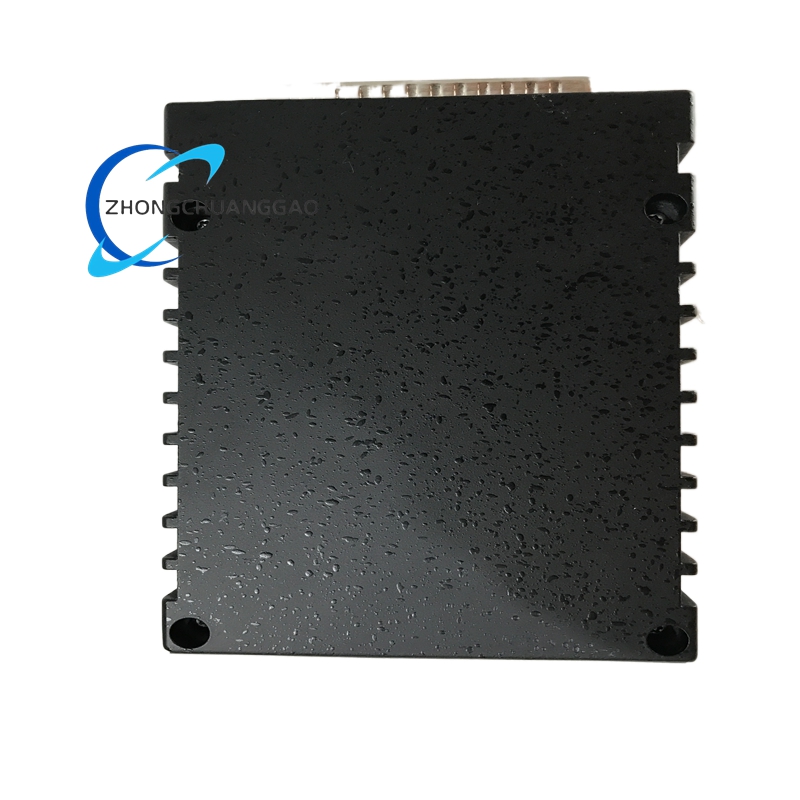

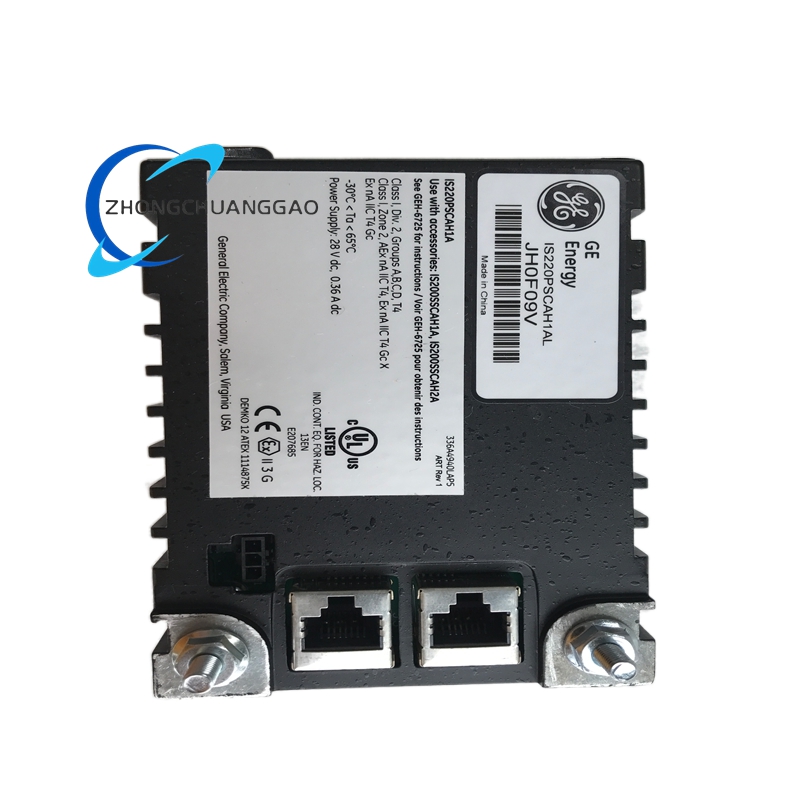

The GE IS220PSCAH1A is a high-performance, compact serial communication interface module engineered by General Electric (GE) for the Mark VIe and Mark VIeS turbine control systems. As a critical member of the IS220 series, it functions as a dedicated communication gateway, facilitating seamless data exchange between the Mark VIe controller and external serial devices, including Modbus RTU slaves, HMIs, SCADA systems, and third-party industrial equipment. The module integrates a powerful 32-bit processor, six configurable serial transceivers, and dual redundant Ethernet ports, delivering reliable, high-speed communication in harsh industrial environments.
Description
Technical Specifications
- Manufacturer: General Electric (GE)
- Series: Mark VIe/Mark VIeS Control System, IS220 Series
- Functional Acronym: PSCA (Serial Modbus Communication I/O Pack)
- Revision: H1A
- Processor: 32-bit Freescale 8349 RISC processor, 667 MHz
- Operating System: QNX Real-Time Operating System
- Memory: 64 MB DDR RAM, 128 MB non-volatile flash memory
- Power Supply: 24 VDC nominal (18–30 VDC range), 28 VDC optional, 15 W typical power consumption
- Communication Ports:
- Ethernet: 2 × RJ45, 100 Mbps full-duplex, GE IONet, TCP/IP
- Serial: 6 × configurable transceivers (RS-485 half-duplex, RS-232, RS-422)
- Serial Baud Rates: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
- Serial Cable Distance: RS-232: 15 m (50 ft); RS-485/RS-422: 1200 m (3937 ft)
- Connector Type: 37-pin D-sub (serial signals), dual RJ45 (Ethernet), 3-pin power input
- Form Factor: Compact I/O pack, single-slot mounting
- Status Indicators: 8 front-panel LEDs (Power, Run, Fault, Comms, Tx/Rx for each serial channel)
- Dimensions: 82.6 mm × 41.9 mm × 121.9 mm (3.25 in × 1.65 in × 4.78 in)
- Weight: 0.6 kg (1.32 lbs)
- Operating Temperature: -20°C to +60°C (-4°F to 140°F)
- Storage Temperature: -40°C to +85°C (-40°F to 185°F)
- Humidity: 5% to 95% non-condensing
- Protection Rating: IP20 (dust-protected)
- PCB Coating: Conformal coated for dust, moisture, and vibration resistance
- Mounting: Direct attachment to Mark VIe I/O racks, DIN-rail compatible
- Certifications: UL 508, CE, ATEX Class I Division 2
- Country of Origin: United States
Key Features
- Six Configurable Serial Channels: Supports RS-485 half-duplex, RS-232, and RS-422 protocols, enabling simultaneous connection to multiple serial devices and flexible network topology design.
- Modbus RTU Protocol Support: Functions as a Modbus RTU master or slave, ensuring seamless integration with legacy and modern Modbus-compatible equipment.
- Dual Redundant Ethernet Communication: Two 100 Mbps full-duplex ports with GE IONet and TCP/IP protocols provide redundant network paths, eliminating single points of failure and ensuring uninterrupted data exchange with Mark VIe controllers and HMIs.
- High-Speed Real-Time Processing: 667 MHz 32-bit processor and QNX OS deliver deterministic communication responses, critical for fast transient events in power generation and industrial control systems.
- Non-Volatile Flash Memory: 128 MB flash storage retains configuration data and firmware without battery backup, reducing maintenance and data loss risks.
- Comprehensive Self-Diagnostics: Real-time monitoring of board health, communication links, and signal integrity; triggers LED alerts and fault codes for rapid troubleshooting.
- Industrial-Grade Ruggedness: Conformal coating, wide temperature tolerance, and vibration-resistant design ensure reliable operation in high-vibration, dusty, or humid environments such as power plants and oil refineries.
- Seamless Mark VIe Integration: Plugs directly into Mark VIe I/O racks; compatible with GE Control Systems Toolbox software for configuration, monitoring, and remote diagnostics.
- Compact & Space-Saving Design: Single-slot form factor minimizes rack space usage and simplifies installation in space-constrained control cabinets.
- Plug-and-Play Deployment: Auto-reconfiguration capability reduces setup time and eliminates complex manual configuration, accelerating system commissioning.
Applications
- Power Generation Plants: Deployed in combined-cycle, thermal, hydroelectric, and gas turbine power stations to connect Mark VIe controllers with serial devices such as vibration monitors, temperature sensors, and protective relays.
- Gas & Steam Turbine Control: Facilitates communication between Mark VIe turbine controls and external Modbus RTU devices, ensuring precise monitoring and control of turbine parameters.
- Oil & Gas Industry: Used in refineries, petrochemical plants, compressor stations, and offshore drilling platforms to integrate serial equipment into Mark VIe-based control systems.
- Industrial Process Control: Applied in manufacturing, water treatment, and chemical processing plants to connect PLCs, HMIs, and SCADA systems with legacy serial devices.
- Boiler Balance of Plant (BoP): Manages communication between Mark VIe controllers and BoP equipment such as feedwater pumps, fans, and valves via serial interfaces.
- Remote Monitoring & Predictive Maintenance: Provides real-time serial data for trend analysis, fault diagnosis, and performance optimization of critical rotating machinery and industrial processes.
System Compatibility
- Control System: GE Mark VIe, Mark VIeS Turbine Control Systems
- Communication Protocols: Modbus RTU, GE IONet, TCP/IP
- Configuration Software: GE Control Systems Toolbox
- Redundancy: Compatible with simplex, dual, and TMR (Triple Modular Redundancy) Mark VIe configurations
- Serial Devices: Modbus RTU slaves, RS-232/RS-422/RS-485 compatible sensors, HMIs, and third-party controllers
