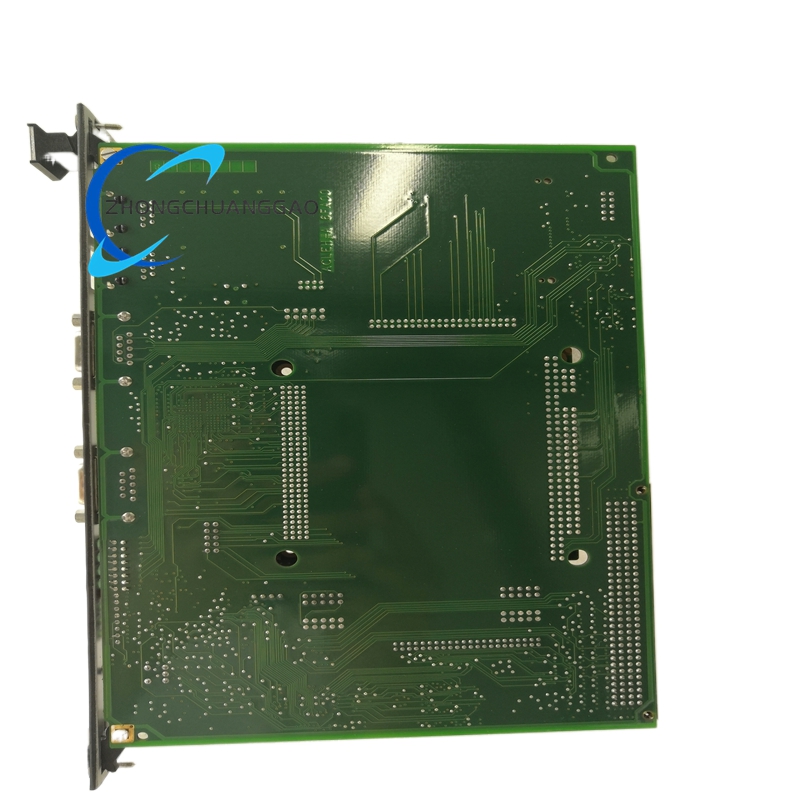

GE IS215ACLEH1A Application Control Layer Module (ACLE)

Description

Technical Specifications

• Manufacturer: General Electric (GE)
• Series: EX2100 Excitation Control System, IS215 Series
• Functional Acronym: ACLE (Application Control Layer)
• Board Revision: H1A
• Processor: Pentium P5 266 MHz / Tualatin Celeron 400 MHz
• Memory: 128 MB expandable DRAM, 256 KB L2 cache, 4 MB flash BIOS
• Storage: CompactFlash (non-volatile, battery-free firmware storage)
• Form Factor: 6U VME, double-slot width
• Communication Ports:
  • 2 × 10BaseT Ethernet ports (TCP/IP, GE IONet)
  • 2 × RS-232 serial ports (COM1/COM2, SNP/SNP-X protocol)
• Backplane Interface: VME bus, PCI/ISA bus controllers
• Status Indicators: 5 front-panel LEDs (OK, ACTIVE, ENET, STATUS, FLASH)
• Power Supply: +5 VDC, 3.0 A (max)
• Operating Temperature: 0°C to +45°C (32°F to 113°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Dimensions: 262 mm × 159 mm × 41 mm (10.3 in × 6.3 in × 1.6 in)
• Weight: 0.45 kg (1.0 lb)
• PCB Coating: Conformal coated for environmental protection
• Certifications: UL 508, CE, ATEX Class I Division 2
• Country of Origin: United States

Key Features

1. Integrated Excitation Control Algorithms: Executes AVR, PSS, UEL, and VAR/PF regulation to maintain generator voltage stability, dampen system oscillations, and prevent under-excitation conditions.
2. High-Speed Real-Time Processing: 266/400 MHz processor and QNX OS deliver deterministic control responses for fast transient events in power systems.
3. Dual Redundant Ethernet Communication: Two 10BaseT ports enable redundant network connections, ensuring uninterrupted data exchange with Mark VI turbine controls, LS2100 systems, and HMIs.
4. Serial Protocol Support: RS-232 ports support SNP/SNP-X protocols for legacy system integration and local configuration access.
5. Non-Volatile CompactFlash Storage: Eliminates battery dependency for firmware and configuration data, reducing maintenance and data loss risks.
6. TMR Redundancy Compatibility: Designed for simplex, dual, or triple-redundant EX2100 rack configurations to eliminate single points of failure.
7. Comprehensive Diagnostics & LED Status: Real-time monitoring of board health, communication links, and fault conditions for proactive maintenance and rapid troubleshooting.
8. GE Toolbox Software Compatibility: Seamlessly integrates with GE Control Systems Toolbox for configuration, programming, and remote diagnostics.
9. Robust Industrial Design: Conformal coating, industrial-grade components, and wide temperature tolerance ensure reliable operation in high-vibration, dusty, or humid environments.
10. Backward Compatibility: Directly replaces the IS215ACLAH1A module in existing EX2100 racks, minimizing upgrade costs and downtime.

Applications

• Generator Excitation Control: Core control for synchronous generators in thermal, combined-cycle, hydro, and gas turbine power plants.
• Power System Voltage Regulation: Maintains grid voltage stability and reactive power control for utility-scale and industrial power generation facilities.
• Turbine-Generator Integration: Facilitates data exchange between EX2100 excitation systems and GE Speedtronic Mark VI/Mark VII turbine controls.
• SCADA & HMI Connectivity: Enables real-time monitoring and control of excitation systems from centralized control rooms via Ethernet.
• Industrial Drive Systems: Applied in GE Innovation Series drive assemblies for excitation control in large motor and generator applications.
• Remote Monitoring & Predictive Maintenance: Provides data for trend analysis, fault diagnosis, and performance optimization of generator excitation systems.

System Compatibility

• Control System: GE EX2100 Excitation Control System (simplex/redundant thyristor/regulator racks)
• Turbine Controllers: GE Speedtronic Mark VI, Mark VII, LS2100
• Network Protocols: TCP/IP, GE IONet, SNP/SNP-X
• Backplane: 6U VME bus, IS200ERRB redundant backplane compatible
