Product Short Description

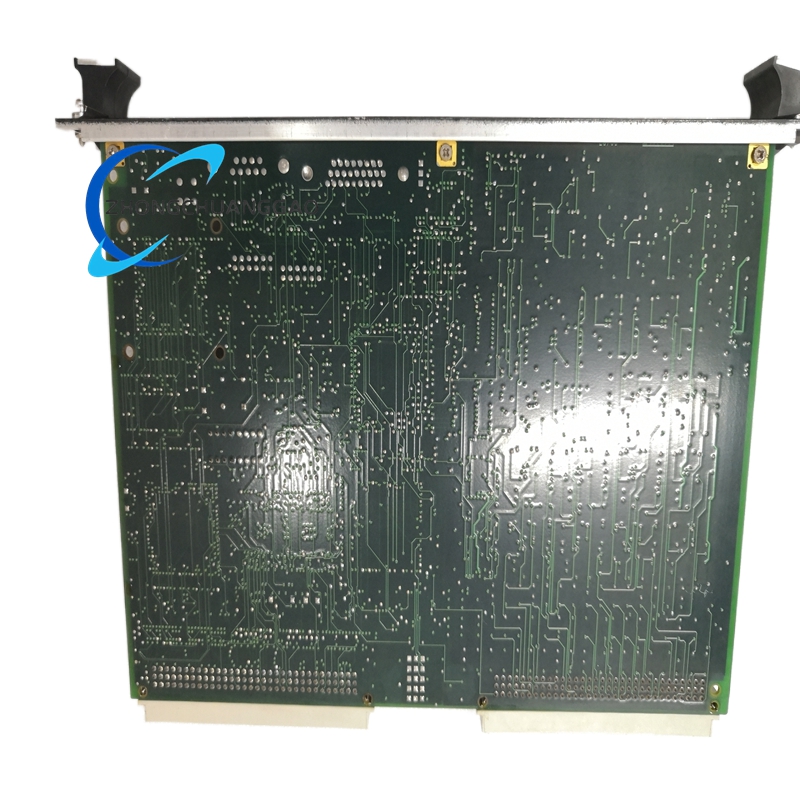

The IS200VVIBH1CAC is a high-performance VMEbus-based vibration monitoring and processing board designed as the core vibration I/O component for GE Mark VI/VIe Speedtronic turbine control systems. It processes raw vibration, displacement, and speed signals from up to 14 field sensors (proximity, seismic, and magnetic pickup) connected via TVIB/DVIB terminal boards. Engineered for safety-critical power generation and industrial turbine applications, it delivers high-resolution data acquisition, real-time signal analysis, and fault detection for shaft vibration, bearing health, rotor eccentricity, and differential expansion monitoring.
Description
Technical Specifications
- Board Type: VMEbus Vibration Processing PCB (Conformal Coated)
- System Compatibility: GE Mark VI / Mark VIe Speedtronic (Simplex/TMR)
- Sensor Channels: 14 channels (proximity, seismic, or MPU sensors)
- Signal Resolution: 16-bit analog-to-digital converter (ADC)
- MPU Pulse Rate Range: 2 Hz to 20 kHz
- MPU Pulse Rate Accuracy: ±0.05% of reading
- Input Voltage Range: ±10 V DC (sensor signals)
- Power Supply: 5 V DC (VME bus), 24 V DC (field sensor power)
- Power Consumption: Max 15 W
- Processor: 32-bit high-speed industrial RISC processor
- Memory: Integrated Flash (firmware), SRAM (runtime data)
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Dimensions (L×W×H): 262 mm × 188 mm × 21 mm (10.3 in × 7.4 in × 0.8 in)
- Weight: 0.3 kg (0.66 lbs)
- LED Indicators: 3 (Run, Fail, Status)
- Certifications: CE (EN 61000-6-2), UL 508, CSA C22.2 No.14-13, RoHS
Key Features
- 14-Channel High-Density Monitoring: Simultaneously processes signals from 14 vibration, displacement, or speed sensors, providing comprehensive coverage of turbine rotating components.
- Multi-Sensor Compatibility: Directly interfaces with proximity (eddy-current), seismic (velocity), and magnetic pickup (MPU) sensors, supporting diverse vibration measurement requirements.
- High-Resolution Signal Processing: Equipped with 16-bit ADCs and a 32-bit RISC processor, ensuring precise, real-time conversion and analysis of raw sensor data.
- TMR & Simplex Support: Designed for seamless integration into both simplex and TMR Mark VI/VIe systems, delivering fault tolerance and zero downtime during component failures.
- Comprehensive Diagnostics: Three front-panel LEDs (Run, Fail, Status) provide real-time operational visibility, while onboard diagnostics detect and report sensor faults, signal anomalies, and board-level errors.
- Industrial-Grade Durability: Features conformal coating, surface-mount components, and robust VME connectors to withstand extreme temperatures, vibration, and electrical transients in harsh industrial environments.
- Seamless Terminal Board Integration: Works in tandem with TVIB/DVIB terminal boards for simplified field wiring, signal conditioning, and surge protection, ensuring reliable data transmission.
Application Scenarios
- Power Generation Plants: Deployed in gas turbine, steam turbine, and combined-cycle power plants for critical monitoring of shaft vibration, bearing health, rotor eccentricity, and differential expansion; enables predictive maintenance and protects against catastrophic equipment failure.
- Oil & Gas Industry: Used in compressor stations, refineries, and offshore platforms to monitor turbine-driven compressors, pumps, and rotating equipment, ensuring operational safety and efficiency.
- Industrial Cogeneration: Applied in chemical plants, steel mills, and pulp/paper facilities with on-site turbine-based power generation, optimizing energy efficiency and meeting strict emissions standards.
- Process Industries: Utilized in pulp and paper, water treatment, and pharmaceutical plants for monitoring large rotating machinery and ensuring uninterrupted production.
Functional Overview
The IS200VVIBH1CAC functions as the vibration processing hub within the Mark VI/VIe system, receiving raw sensor signals from TVIB/DVIB terminal boards. It digitizes analog vibration and displacement signals, processes MPU pulse signals for speed and phase measurement, and analyzes data to detect abnormal vibration patterns, bearing wear, or shaft misalignment. The processed vibration data is transmitted to the main turbine controller for real-time monitoring, alarm generation, and trip initiation if parameters exceed safe thresholds. Redundant power inputs and TMR-compatible design ensure continuous operation during faults, while onboard diagnostics and LED indicators simplify troubleshooting. All connections are made via VMEbus and front-panel I/O connectors, enabling easy integration, maintenance, and system expansion。
