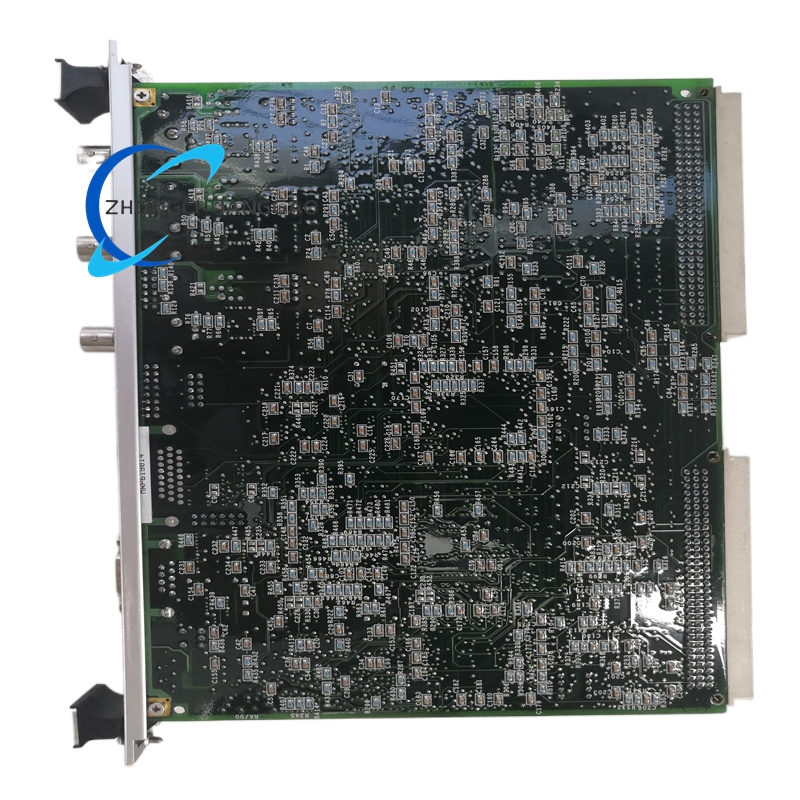

GE IS200VCMIH2BEE VME Communications Interface Board (VCMI)

Description

Technical Specifications

• Manufacturer: General Electric (GE)
• Series: Mark VI Speedtronic, IS200 Series
• Functional Acronym: VCMI (VME Communications Interface)
• Board Revision: BEE
• Redundancy Type: Triple Modular Redundancy (TMR)
• Communication Ports: 3 × IONet fiber-optic Ethernet ports
• Serial Port: 1 × 9-pin D-Sub RS-232/422/485 serial port
• Backplane Interface: VME (Versa Module Europa) bus
• Data Transfer Rate: Up to 10 Mbps (IONet)
• Power Supply: 24V DC
• Operating Temperature: -20°C to +70°C (-4°F to 158°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Dimensions: 283 mm × 190 mm × 48 mm (11.15 in × 7.5 in × 1.9 in)
• Weight: 2.8 kg (6.2 lbs)
• PCB Coating: Conformal coated for environmental protection
• Country of Origin: United States

Key Features

1. TMR Redundancy Architecture: Three independent IONet ports enable triple modular redundancy, eliminating single points of failure and ensuring uninterrupted communication in critical turbine control systems.
2. High-Speed Fiber-Optic Communication: Utilizes IONet fiber-optic Ethernet for noise-immune, low-latency data transmission over long distances, ideal for harsh industrial environments.
3. VME Bus Master Capability: Acts as a bus master for the VME backplane, managing data flow between the CPU, I/O modules, and peripheral devices efficiently.
4. Comprehensive Protocol Support: Compatible with Modbus, SRTP, EtherNet/IP, and TCP/IP protocols, enabling seamless integration with diverse industrial networks and devices.
5. Integrated Diagnostics & LEDs: Multiple status LEDs monitor power, communication, and fault conditions in real time, supporting proactive maintenance and rapid troubleshooting.
6. Remote Monitoring & Control: Facilitates remote access to turbine data and system configuration, allowing operators to monitor performance and adjust parameters from centralized control rooms.
7. Robust Industrial Design: Conformal coating, industrial-grade components, and wide temperature tolerance ensure reliable operation in extreme conditions, including high vibration, dust, and humidity.
8. Seamless Mark VI Integration: Designed for direct integration into GE Speedtronic Mark VI turbine control racks, supporting both simplex and redundant system configurations.

Applications

• Gas Turbine Control: Manages communication between the Mark VI controller and turbine I/O, including fuel valves, inlet guide vanes, and temperature sensors in power generation plants.
• Steam Turbine Control: Facilitates data exchange for governor valves, stop valves, and extraction valves, ensuring precise speed and load regulation in utility and industrial steam turbines.
• Power Generation: Deployed in combined-cycle power plants, thermal power stations, and independent power producers (IPPs) for reliable turbine control and grid synchronization.
• Oil & Gas Industry: Used in refineries, petrochemical plants, and compressor stations to control turbine-driven machinery, ensuring safe and efficient operation of critical processes.
• Industrial Automation: Applied in large-scale industrial facilities requiring high-reliability motion control, safety interlocks, and real-time data monitoring.

System Compatibility

• Control System: GE Speedtronic Mark VI Turbine Control System
• Network: Unit Data Highway (UDH) with IONet fiber-optic Ethernet
• I/O Architecture: Supports simplex, dual, and triple-redundant (TMR) configurations
• Backplane: VME bus-compliant for seamless integration with Mark VI rack components
