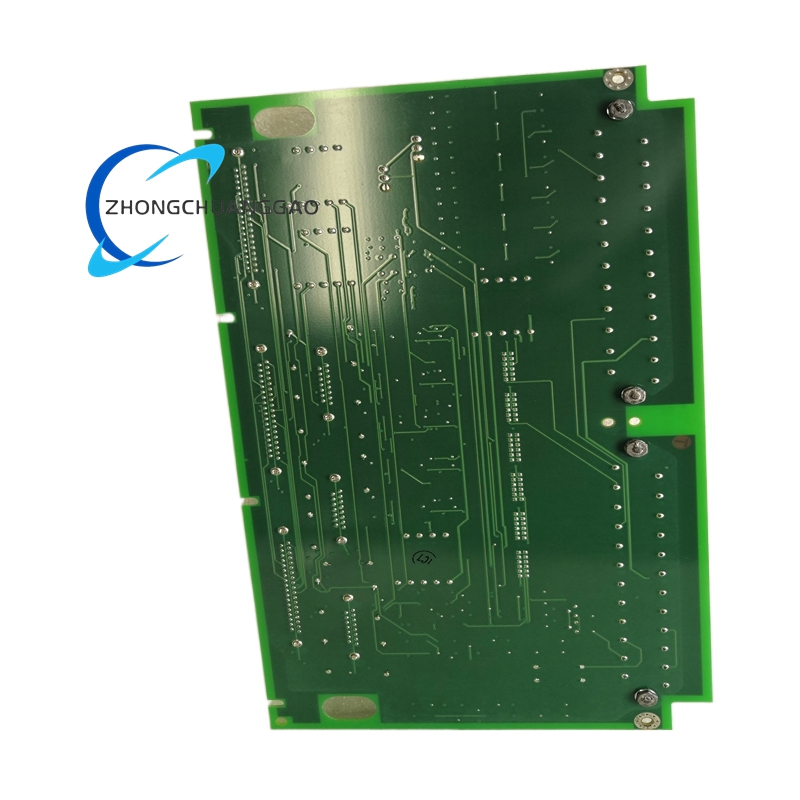

The IS200TSVOH1B is a high-performance, barrier-type servo valve termination board designed by General Electric (GE). It is a critical component of the Mark VI Speedtronic turbine control system, serving as the interface between the main control system and electro-hydraulic servo valves, as well as Linear Variable Differential Transformer (LVDT) position sensors. This board ensures precise, reliable, and safe control of industrial gas and steam turbines.
Description
Technical Specifications
- Manufacturer: General Electric (GE)
- Series: Mark VI Speedtronic, IS200 Series
- Functional Acronym: TSVO (Termination Servo Valve)
- Board Revision: B
- Channels: 2 independent servo control channels
- Feedback Compatibility: LVDT/LVDR, 0–7.0 Vrms input range
- Sensors per Channel: Up to 6 LVDT/LVDR sensors (3 high/moderate/low selectable)
- Pulse Input Rate: 2 kHz to 14 kHz
- Termination Type: Dual barrier-type terminal blocks
- Connectors: Multiple D-Sub connectors, vertical plug connectors
- Switches: 6 jumper switches for configuration
- Dimensions: 3.5 cm × 13 cm × 13.6 cm (1.38 in × 5.12 in × 5.35 in)
- Weight: 0.34 kg (0.75 lbs)
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Protection: Conformal coated PCB for environmental resistance
- Origin: United States
Key Features
- Dual-Channel Servo Control: Supports two independent servo loops for precise valve positioning.
- LVDT Feedback Integration: Accepts up to six position sensors per channel for accurate valve position monitoring.
- Servo Clamp Functionality: Activates valve clamping during turbine trips for safety.
- High-Speed Signal Processing: Handles pulse rates up to 14 kHz for dynamic control applications.
- Robust Electrical Isolation: Barrier-type terminals provide isolation between field wiring and control circuitry, reducing noise and interference.
- Redundancy Compatibility: Designed for simplex, dual, or triple-redundant Mark VI system architectures.
- Built-In Diagnostics: Real-time monitoring of board and sensor status for predictive maintenance.
- Compact & Durable: Conformal coating and industrial-grade components ensure reliability in harsh environments.
Applications
- Gas Turbine Control: Manages fuel, inlet guide vane, and bleed valve actuators in power generation plants.
- Steam Turbine Control: Controls governor, stop, and extraction valves for optimal steam flow regulation.
- Power Generation: Used in utility-scale thermal power plants, combined-cycle facilities, and independent power producers (IPPs).
- Oil & Gas Industry: Deployed in compressor stations, refineries, and petrochemical plants for turbine-driven machinery control.
- Industrial Automation: Applied in large-scale industrial processes requiring precise motion control and safety interlocks.
System Compatibility
- Control System: GE Mark VI Speedtronic Turbine Control System
- Interfacing Module: Connects directly to the TREG (Terminal Regulator) module within the Mark VI rack
- I/O Architecture: Supports high-speed networked I/O for simplex, dual, and triple-redundant configurations
