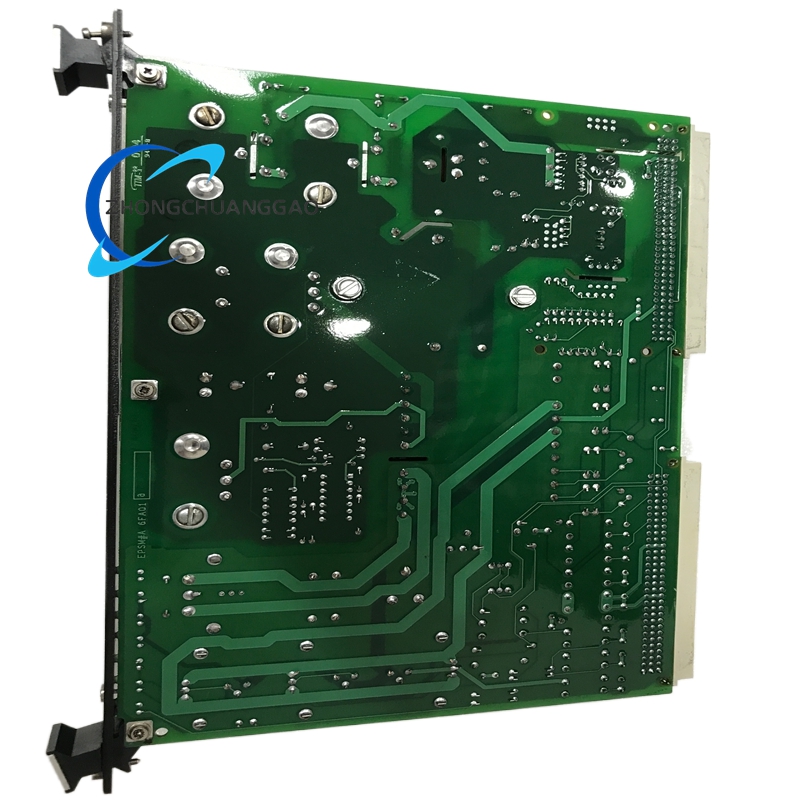

The GE IS200EPSMG1A is a high-density, rack-mountable power supply module designed for the Mark VI Speedtronic turbine control system and EX2100 excitation control system. It converts high-voltage DC input into multiple regulated low-voltage outputs, providing power to core controllers and auxiliary modules within the critical control system.
Description
Technical Specifications
- Manufacturer: General Electric (GE)
- Series: Mark VI IS200 Series, EX2100 Excitation Control Series
- Input Voltage: 125 VDC (from EPDM, Exciter Power Distribution Module)
- Output Voltages:
- +5 VDC (for digital logic)
- ±15 VDC (for analog circuits)
- +24 VDC (for I/O modules and external devices)
- Isolated 70 VDC (for contact wetting on ECTB/EXTB modules)
- Power Consumption: 12 W (typical)
- Processor (if applicable): 667 MHz Freescale 8349 (for integrated processing variants)
- Operating System: QNX (for integrated processing variants)
- Operating Temperature: 0°C to +65°C (fanless operation)
- Storage Temperature: -40°C to +70°C
- Humidity: 5% to 95% non-condensing
- Dimensions: Standard 19-inch rack module, single-slot width
- Weight: 13.60 lbs (6.17 kg)
- Certifications: CE, UL, NFPA Class 1
- LED Indicators: Seven front-panel LEDs (P5, P15, N15, P24A, P24B, etc.) for power status and fault diagnostics
Key Features
- High-Efficiency Voltage Conversion: Integrates a buck regulator and push-pull inverter to convert 125 VDC to stable, isolated outputs, ensuring high efficiency and electrical isolation between input and output.
- Redundancy Support: Designed for triple-redundant system architectures, supporting up to three modules side-by-side for fault-tolerant operation.
- Robust Industrial Design: Fanless cooling system, heavy-duty PCB construction, and conformal coating for reliability in harsh industrial environments.
- Integrated Diagnostics: Front-panel LEDs provide real-time status monitoring of each output voltage, enabling quick fault identification and maintenance.
- Hot-Swappable: Modular design allows replacement without shutting down the entire system, minimizing downtime.
- Wide Compatibility: Seamlessly integrates with GE Mark VI, EX2100, and other Speedtronic system components, including EPDM, EGDM, and EDEX modules.
Applications
- Power Generation:
- Gas and steam turbine control systems (Mark VI Speedtronic)
- Generator excitation control (EX2100) for voltage regulation and reactive power control
- Combined-cycle power plants, thermal power stations, and hydroelectric facilities
- Industrial Automation:
- Petrochemical, refining, and chemical processing plants
- Metallurgy, steel, and cement production lines
- Water treatment and desalination facilities
- Critical Infrastructure:
- Rail transit signaling and control systems
- Offshore oil and gas platforms
- Data center power distribution and control systems
Functional Role
The IS200EPSMG1A serves as the primary power backbone for the Mark VI/EX2100 control systems. It receives 125 VDC from the EPDM, converts it to the precise voltages required by the system’s M1/M2/C controllers, I/O cards, and auxiliary modules (e.g., crowbar, de-excitation modules), ensuring stable and reliable operation of the entire turbine and excitation control system.
